Car Stops | Speed Bumps



series CS-33

RUBBER CAR STOP
model CS-33-BL

Protecting people and property from drivers in dangerous areas. Constructed of lightweight recycled plastic. One person installation. Can be removed for seal coating, snow removal, or change of location. Resists marring by oil, road salt, sunlight and chemicals. Resists rotting, termite damage and corrosion. No costly painting or maintenance. Series CS-S24 features two 1-1/2" x 1/2" channels for running cable underneath. Asphalt kit includes spikes and butyl tape. The concrete hardware kit includes bolts, anchors and washers. The glue down anchor plate kit includes anchor plates, T-nuts, bolts and washers. Requires two part epoxy which is not included. Hardware kits sold separately. Models included in the CS-TB96 series are designed for use with trucks and other larger tired vehicles.

Model CS-33-BL is constructed of black, recycled rubber.

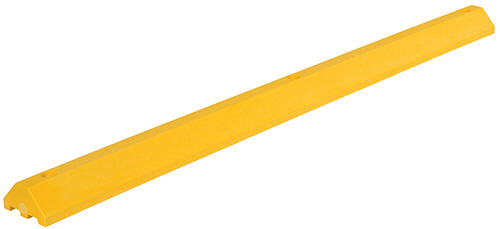

model CS-S24-Y

model CS-S24-Y

Asphalt Kit
model CS-AK

Concrete Kit
model CS-33-KIT-3

Glue Down Kit
model CS-
GD-2

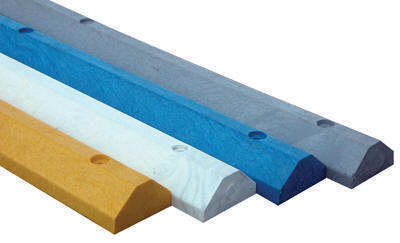

Car Stops
Model PDF Length Width Height Color Number
Of Holes
Wt.
(lbs)
CS-33-G Warranty PDFCompliance Certificate 72" 6" 3-1/4" Gray 3 27
CS-33-Y Warranty PDFCompliance Certificate 72" 6" 3-1/4" Yellow 3 27
CS-33-B Warranty PDFCompliance Certificate 72" 6" 3-1/4" Blue 3 27
CS-33-W Warranty PDFCompliance Certificate 72" 6" 3-1/4" White 3 27
CS-33-BL Warranty PDFCompliance Certificate 71-3/4" 5-3/4" 4" Black 4 37
CS-S24-Y Warranty PDFCompliance Certificate 24" 6 3-" Yellow 2 10
CS-S24-B Warranty PDFCompliance Certificate 24" 6 3-" Blue 2 10
CS-S24-G Warranty PDFCompliance Certificate 24" 6 3-" Grey 2 10
CS-S24-W Warranty PDFCompliance Certificate 24" 6 3-" White 2 10
CS-S48-G Warranty PDFCompliance Certificate 48" 6" 4" Gray 2 22
CS-S48-Y Warranty PDFCompliance Certificate 48" 6" 4" Yellow 2 22
CS-S48-B Warranty PDFCompliance Certificate 48" 6" 4" Blue 2 22
CS-S48-W Warranty PDFCompliance Certificate 48" 6" 4" White 2 22
CS-S72-G Warranty PDFCompliance Certificate 72" 6" 4" Gray 3 33
CS-S72-Y Warranty PDFCompliance Certificate 72" 6" 4 Yellow 3 33
CS-S72-B Warranty PDFCompliance Certificate 72" 6" 4" Blue 3 33
CS-S72-W Warranty PDFCompliance Certificate 72" 6" 4" White 3 33
CS-TB96-G Warranty PDFCompliance Certificate 96" 10" 7" Gray 4 134
CS-TB96-Y Warranty PDFCompliance Certificate 96" 10" 7 Yellow 4 134
CS-TB96-B Warranty PDFCompliance Certificate 96" 10" 7" Blue 4 134
CS-TB96-W Warranty PDFCompliance Certificate 96" 10" 7" White 4 134
Car Stop Options
CS-AK-2 Warranty PDF Asphalt Hardware Kit (2 12" spikes & butyl tape) 3
CS-HD-AK-2 Warranty PDF Heavy Duty Asphalt Hardware Kit (2 Holes) 2
CS-33-KIT-2 Warranty PDF Concrete Hardware Kit (2 bolts & anchors) 2
CS-GD-2 Warranty PDF Glue down anchor plate 2
CS-AK-3 Warranty PDF Asphalt Hardware Kit (3 12" spikes & butyl tape) 3
CS-HD-AK-3 Warranty PDF Heavy Duty Asphalt Hardware Kit (3 Holes) 3
CS-33-KIT-3 Warranty PDF Concrete Hardware Kit (3 bolts & anchors) 2
CS-GD-3 Warranty PDF Glue down anchor plate 3
CS-AK-4 Warranty PDF Asphalt Hardware Kit (4 12" spikes & butyl tape) 4
CS-HD-AK-4 Warranty PDF Heavy Duty Asphalt Hardware Kit (4 Holes) 4
CS-33-KIT-4 Warranty PDF Concrete Hardware Kit (4 bolts & anchors) 2
CS-GD-4 Warranty PDF Glue down anchor plate 4

= Approval Drawing Warranty PDF = Warranty Photo Gallery = Photo Gallery Compliance Certificate = Testing Certificate

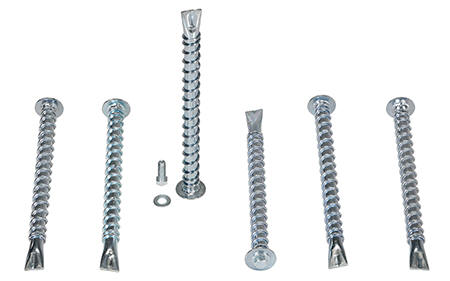

model AS-HDA-12-6PK

The Heavy Duty Asphalt Anchors are ideal for attaching items to an asphalt surface.  The unit is designed of a strong construction that is resilient and long lasting throughout the harshest of environments.  Once the anchors are in place, they promote safety and well-being by holding material in a secure position.
Heavy Duty Asphalt Anchors
Model Shaft
Dia.
Overall
Dia.
Overall
Length
Quantity Wt.
(lbs)
AS-HDA-12 1" 1-5/8" 12" 1 1
AS-HDA-12-4PK 1" 1-5/8" 12" 4 4
AS-HDA-12-6PK 1" 1-5/8" 12" 6 6

= Approval Drawing Warranty PDF = Warranty Photo Gallery = Photo Gallery Compliance Certificate = Testing Certificate
