model LL-24



Model LL-40



Model LL-60



model LL-90



Flourescent
series LL-SAF



Incandescent
series LL-SAI-40



Incandescent
series LL-SAI-60



Incandescent with Fan
model HLGN-40



High Pressure Sodium
model LLS-24



High Pressure Sodium
model LLS-40


High Pressure Sodium
model LLS-60



Halogen Double Arm
model HLGN-40



High Pressure Sodium, Adjustable Arm
model AALLS-40


High Pressure Sodium, Adjustable Arm
model AALLS-60


Lights minimize freight damage while expediting loading and unloading operations. Provides uniform visibility  inside trailers or around dock areas. Model LL-SAI and LL-SAF are ETL C/U.S. listed, while all others are UL listed.

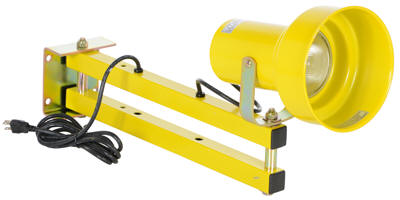

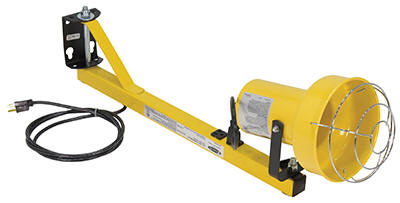

Incandescent Lights, series LL, offer good color, low replacement cost and turn on instantly even in cold environments. It utilizes a 90 watt bulb, model PAR-38, sold separately. Adjustable arm knuckle joint allows vertical and horizontal positioning.

Halogen Lights, model HLGN-40, typically provides more lumens/watt, better energy efficiency, has a longer service life and experiences less light depreciation over its lifetime. It is supplied with a 500 watt bulb. Full illumination is instantaneous.

High Pressure Sodium Lights, series LLS and AALLS, offers much higher lumens/watt output and a very long lamp life. Its illumination color rendition (yellowish) is not as desirable as an incandescent. It typically requires several minutes to turn on, and even longer if in a cold environment. Low operating cost. Units are supplied with a 50 watt bulb.

Spun Aluminum Dock Lights, series LL-SAI and LL-SAF, stay cool to the touch even with a 300 watt incandescent light. Features strut arm with both horizontal and vertical adjustments. Available in a standard incandescent lamp head and a fluorescent lamp head. Fluorescent units include a bulb and head.  Bulb sold separate for incandescent units.



90W HALOGEN BULB
Model PAR-38-90



50W SODIUM BULB
Model LL-S-BULB



SODIUM HEAD ONLY
Model LL-S-HEAD


WIRE GUARD
Model LL-WG



OPTIONAL FAN
Model LLF-18



FAN & LIGHT KIT
Model LL-40-FAN





Dock Loading Lights
Model PDF Description Length Wt.
(lbs.)

 Dry Locations

LL-24  Warranty PDFPhoto GalleryCompliance Certificate Incandescent, Double Arm 24" 14
LL-40  Warranty PDFPhoto GalleryCompliance Certificate Incandescent,  Double Arm 40" 16
LL-60 Warranty PDFPhoto GalleryCompliance Certificate Incandescent, Double Arm 60" 21
LL-90 Warranty PDFPhoto GalleryCompliance Certificate Incandescent, Triple Arm 90" 30
LL-SAF-40 Warranty PDFPhoto GalleryCompliance Certificate Fluorescent, single strut arm 40" 11
LL-SAF-60 Warranty PDFPhoto GalleryCompliance Certificate Fluorescent, single strut arm 60" 15
LL-SAI-24 Warranty PDF Incandescent, Single Strut Arm 24" 9
LL-SAI-40 Warranty PDFPhoto GalleryCompliance Certificate Incandescent, Single Strut Arm 40" 11
LL-SAI-60 Warranty PDFPhoto GalleryCompliance Certificate Incandescent, Single Strut Arm 60" 15
HLGN-40 Warranty PDFPhoto GalleryCompliance Certificate Halogen, Double Arm 40" 16
Damp Locations
LLS-24 Photo GalleryCompliance Certificate High Pressure Sodium, Single Arm 24" 10
LLS-40 Photo GalleryCompliance Certificate High Pressure Sodium, Double Arm 40" 18
LLS-60 Photo GalleryCompliance Certificate High Pressure Sodium, Double Arm 60" 21
LLS-90 Photo GalleryCompliance Certificate High Pressure Sodium, Triple Arm 90" 30
AALLS-40 Photo GalleryCompliance Certificate High Pressure Sodium, Adjustable Arm 40" 17
AALLS-60 Photo GalleryCompliance Certificate High Pressure Sodium, Adjustable Arm 60" 19
Loading Light Options
Model Description Wt.
(lbs.)
PAR-38-90 90 Watt Halogen Bulb, 1270 Lumens (LL) 1
LL-S-BULB Sodium Bulb - 50 Watt 2
LL-FL-BULB Fluorescent Bulb - 55 Watt 2
LL-S-HEAD Sodium Head Only 2
LL-WG Wire Guard - 6" Diameter (Incandescent) 2
LL-STAND Light Stand, 83" High, Includes adjustable bracket 60
LLF-18* 18" Fan, Mounting Brackets and Wiring (CFM High/Medium/Low 1800, 1500, 1300) 20
LL-40-FAN Package: LL-40 light, fan, brackets and wiring 37
LL-SAI-40-FAN Package: LL-40 light, fan, brackets, Incandescent bulb and wiring 37
* CFM High 1800/Medium 1500/ Low 1300

  = Approval Drawing Warranty PDF = Warranty Photo Gallery = Photo Gallery Compliance Certificate = Testing Certificate

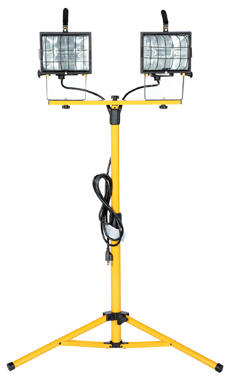

model HLGN-FWL

Superior lighting at the jobsite assures worker safety plus accurate loading and unloading. This premium light is UL listed and CSA certified. 500 watt halogen bulb included providing 11,000 lumens.

Halogen Loading Lights & Work Lights

Model PDFs Description Mounting
Style
Light
Bulbs
Wt.
(lbs)
HLGN-FWL Warranty PDFPhoto GalleryCompliance Certificate Single Lamp Floor 500 Watt 5

  = Approval Drawing Warranty PDF = Warranty Photo Gallery = Photo Gallery Compliance Certificate = Testing Certificate

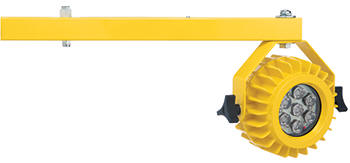

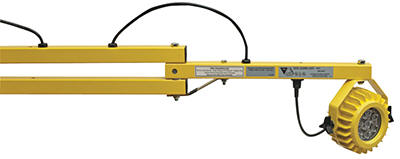

model LL-HD-LED-24

Rugged, heavy duty LED Dock Loading Lights provides brighter light than an incandescent light source while only using 18 watts of power.  Encased in a cast aluminum housing with shatter resistant polycarbonate lens cover, this unit instantly reaches maximum light output.  Light head is IP66 rated; can be sprayed down.  Expected life of 50,000+ hours; 5 year warranty.  UL listed.

Heavy Duty LED Loading Dock Lights

Model PDFs Description Length Bulb
Included
Wt.
(lbs)
LL-HD-LED-24 Warranty PDFPhoto GalleryCompliance Certificate  single arm 24" YES 17
LL-HD-LED-40 Warranty PDFPhoto GalleryCompliance Certificate  double strut arm 40" YES 25
LL-HD-LED-60 Warranty PDFPhoto GalleryCompliance Certificate double strut arm 60" YES 28
LL-HD-LED-90 Warranty PDFPhoto GalleryCompliance Certificate double strut arm 90" YES 38

  = Approval Drawing Warranty PDF = Warranty Photo Gallery = Photo Gallery Compliance Certificate = Testing Certificate

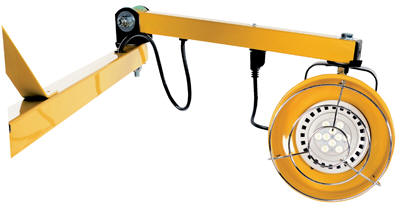

model LL-LED-40

Reduce broken bulb and high maintenance costs with LED Dock Loading Lights. These use 80% less energy than incandescent or halogen bulbs. Achieves maximum light intensity instantly, and light is optimized for trailer illumination. These LED lights have no fragile filaments to break, eliminating the shattered glass of broken incandescent bulbs. Light bulb included.



model LL-LED-24       |      model LL-LED-60


model LL-LED-BULB

LED Loading Dock Lights

Model PDFs Description Length Bulb
Included
Wt.
(lbs)
LL-LED-24 Warranty PDFPhoto Gallery
single arm 24" YES 11
LL-LED-40 Warranty PDFPhoto Gallery
 double arm 40" YES 15
LL-LED-60 Warranty PDFPhoto Gallery
double arm 60" YES 18
LL-LED-BULB Replacement LED Bulb 2

  = Approval Drawing Warranty PDF = Warranty Photo Gallery = Photo Gallery Compliance Certificate = Testing Certificate

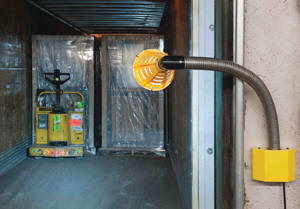

model LL-GN-27

Low profile, flexible task light, ideally suited for loading dock applications.  Its 27 flexible stainless steel neck can be easily rotated and position to light with minimal obstruction to the loading dock area. The dock lights narrow profile and flexibility enable it to be mounted between two neighboring loading dock positions. With the simple mounting method and ability to be positioned precisely, it is an ideal task light for use around work stations and machinery. UL listed.



model LL-GN-LED-27



Model LL-GN-27 (Bulb not included)

Flexible Gooseneck Loading Dock Lights

Model PDFs Description Bulb
Included
Length Wt.
(lbs)
LL-GN-27 Warranty PDFPhoto Gallery
 Incandescent (90 Watt) No 27" 11
LL-GN-LED-27 Warranty PDFPhoto Gallery
 LED Yes 27" 18

  = Approval Drawing Warranty PDF = Warranty Photo Gallery = Photo Gallery Compliance Certificate = Testing Certificate
