Car Stops | Speed Bumps



SB & SBA series

Help control drivers in dangerous areas while protecting people and property. One person installation. Holds up under truck and semi-trailer traffic. Can be removed for seal coating, snow removal, or change of location. Resists marring by oil, road salt, sunlight and chemicals. Unlike lumber, it does not leach out polluting chemicals. Resists rotting, termite damage and corrosion.  No costly painting or maintenance.

Asphalt kit includes spikes and butyl tape. The concrete hardware kit includes bolts, anchors and washers. The glue down anchor plate kit includes anchor plates, T-nuts, bolts, and washers. Requires 2-3 ounces of either 2-part epoxy or heavy duty construction adhesive to the bottom of each anchor plate, which is not included.

Speed Bumps
Model PDF Description Overall Size (WxHxL) Type of Hardware Kit Included # Of
Mounting
Holes
Wt.
(lbs)
SB-48 Warranty PDF Standard Recycled Plastic Speed Bump w/concrete hardware 10"x2"x48" Concrete 3 17
SBA-48 Warranty PDF Standard Recycled Plastic Speed Bump w/asphalt hardware 10"x2"x48" Asphalt 3 19
SBHA-48 Warranty PDF Standard Recycled Plastic Speed Bump w/HD asphalt hardware 10"x2"x48" HD Asphalt 3 19
SBG-48 Warranty PDF Standard Recycled Plastic Speed Bump w/glue-down hardware 10"x2"x48" Glue-Down 3 17
SBD-48 Warranty PDF Deluxe Recycled Plastic Speed Bump w/concrete hardware 12"x2-1/4"x48" Concrete 3 26
SBDA-48 Warranty PDF Deluxe Recycled Plastic Speed Bump w/HD asphalt hardware 12"x2-1/4"x48" Asphalt 3 29
SBDHA-48 Warranty PDF Deluxe Recycled Plastic Speed Bump w/HD asphalt hardware 12"x2-1/4"x48" HD Asphalt 3 29
SBDG-48 Warranty PDF Deluxe Recycled Plastic Speed Bump w/glue down hardware 12"x2-1/4"x48" Glue-Down 3 26
SB-36 Warranty PDF Standard Recycled Plastic Speed Bump w/concrete hardware 10"x2"x72" Concrete 4 26
SBA-36 Warranty PDF Standard Recycled Plastic Speed Bump w/asphalt hardware 10"x2"x72" Asphalt 4 28
SBHA-36 Warranty PDF Standard Recycled Plastic Speed Bump w/HD asphalt hardware 10"x2"x72" HD Asphalt 4 28
SBG-36 Warranty PDF Standard Recycled Plastic Speed Bump w/glue-down hardware 10"x2"x72" Glue-Down 4 26
SBD-72 Warranty PDF Deluxe Recycled Plastic Speed Bump w/concrete hardware 12"x2-1/4"x72" Concrete 4 37
SBDA-72 Warranty PDF Deluxe Recycled Plastic Speed Bump w/asphalt hardware 12"x2-1/4"x72" Asphalt 4 40
SBDHA-72 Warranty PDF Deluxe Recycled Plastic Speed Bump w/HD asphalt hardware 12"x2-1/4"x72" HD Asphalt 4 40
SBDG-72 Warranty PDF Deluxe Recycled Plastic Speed Bump w/glue-down hardware 12"x2-1/4"x72" Glue-Down 4 37
SB-108 Warranty PDF Standard Recycled Plastic Speed Bump w/concrete hardware 10"x 2"x 106" Concrete 5 56
SBA-108 Warranty PDF Standard Recycled Plastic Speed Bump w/asphalt hardware 10"x 2"x 106" Asphalt 5 59
SBHA-108 Warranty PDF Standard Recycled Plastic Speed Bump w/HD asphalt hardware 10"x 2"x 106" HD Asphalt 5 59
SBG-108 Warranty PDF Standard Recycled Plastic Speed Bump w/glue-down hardware 10"x 2"x 106" Glue-Down 5 56
SBS-1012   Reflective Speed Bump Sign 2
SBE-12   End caps for standard speed bumps (Only 10Wx2H speed bumps) 9
* Models do not include cable channels

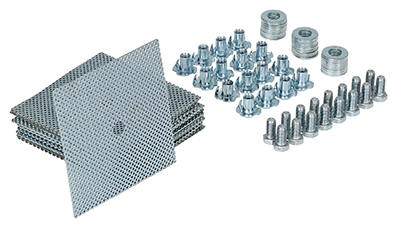

model SB-36-GDK

The Anchor Kits are a great addition to the facility maintenance department.  The kit supplies a
solution to securing speed bumps to a surface.  The unit is designed of a strong construction that is
resilient and long lasting throughout the harshest environments.  Once the anchoring is in place, the
speed bumps are ready for use.  The kit is available in both glue down and asphalt anchor style.


model SB-48-AK

RSH Anchor Kits
Model PDF Description Use With
# Of Holes
Wt.
(lbs)
SB-48-AK Warranty PDF Asphalt Kit for 48 Models 3 4
SB-36-AK Warranty PDF Asphalt Kit for 36 Models 4 4
SB-108-AK Warranty PDF Asphalt Kit for 108 Models 5 5
SB-HD-AK-3 Warranty PDF Heavy Duty Asphalt Hardware Kit 3 7
SB-HD-AK-4 Warranty PDF Heavy Duty Asphalt Hardware Kit 4 9
SB-HD-AK-5 Warranty PDF Heavy Duty Asphalt Hardware Kit 5 10
SB-48-GDK Warranty PDF Glue Down Hardware Kit for 48 Models 3 2
SB-36-GDK Warranty PDF Glue Down Hardware Kit for 48 Models 4 3
SB-108-GDK Warranty PDF Glue Down Hardware Kit for 48 Models 5 3

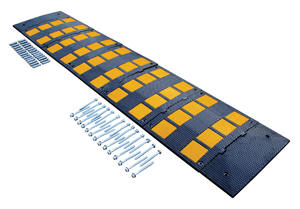

Control traffic and reduce vehicle to speeds. Ideal in neighborhoods, construction areas, hospitals, post offices, and airports. Can be removed for seal coating, snow removal, or change of location. Easy tongue and groove installation.

Series RSH are constructed of recycled and virgin rubber. Units are black with yellow embedded highway tape to ensure high visibility. Units include (5) center and (2) end module's.

Rubber Speed Humps
Model PDF Overall Size
(WxLxH)
Description Type of
Hardware Kit Included
Capacity
(lbs)
Reduce
Speeds (MPH)
Wt. (lbs)
 Deluxe Rubber Speed Humps
RSH-108-24-C Warranty PDF 23.5"x108"x1.375" Complete Module Concrete 40,000 5-10 106
RSH-108-24-A Warranty PDF 23.5"x108"x1.375" Complete Module Asphalt 40,000 5-10 113
RSH-120-36-C Warranty PDF 35.25"x120"x2.4375" Complete Module Concrete 60,000 5-10 256
RSH-120-36-A Warranty PDF 35.25"x120"x2.4375" Complete Module Asphalt 60,000 5-10 264
 ADDITIONAL PIECES
RSH-108-EF-C Warranty PDF 23-1/2"x8-7/8"x1-3/8" End Cap (female) Concrete 40,000 5-10 12
RSH-108-EF-A Warranty PDF 23-1/2"x8-7/8"x1-3/8" End Cap (female) Asphalt 40,000 5-10 12
RSH-108-EM-C Warranty PDF 23-1/2"x9-15/32"x1-3/8" End Cap (male) Concrete 40,000 5-10 12
RSH-108-EM-A Warranty PDF 23-1/2"x9-15/32"x1-3/8" End Cap (male) Asphalt 40,000 5-10 12
RSH-108-M-C Warranty PDF 23-1/2"x19-13/16"x1-3/8" Middle Section Concrete 40,000 5-10 23
RSH-108-M-A Warranty PDF 23-1/2"x19-13/16"x1-3/8" Middle Section Asphalt 40,000 5-10 23
RSH-120-EF-C Warranty PDF 35-1/4"x10-7/16x2-7/16" End Cap (female) Concrete 60,000 5-10 22
RSH-120-EF-A Warranty PDF 35-1/4"10-7/16x2-7/16" End Cap (female) Asphalt 60,000 5-10 22
RSH-120-EM-C Warranty PDF 35-1/4"x11-7/16x2-7/16" End Cap (male) Concrete 60,000 5-10 22
RSH-120-EM-A Warranty PDF 35-1/4"x11-7/16x2-7/16" End Cap (male) Asphalt 60,000 5-10 22
RSH-120-M-C Warranty PDF 35-1/4"x20-5/16x2-7/16" Middle Section Concrete 60,000 5-10 56
RSH-120-M-A Warranty PDF 35-1/4"x20-5/16x2-7/16" Middle Section Asphalt 60,000 5-10 56

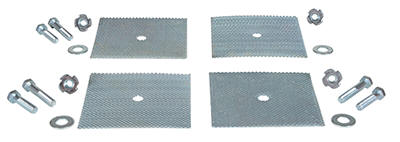

model RSH-GD-16

The Anchor Kits are a great addition to the facility maintenance department.  The kit supplies a solution to securing speed bumps to a surface.  The unit is designed of a strong construction that is resilient and long lasting throughout the harshest environments.  Once the anchoring is in place, the speed bumps are ready for use.  The kit is available in both glue down and asphalt anchor style.

RSH Anchor Kits
Model PDF Description Use With
Length
Wt.
(lbs)
RSH-108-HD-AK-KIT Warranty PDF Heavy Duty Asphalt Hardware Kit 108 12
RSH-120-HD-AK-KIT Warranty PDF Heavy Duty Asphalt Hardware Kit 120 14
RSH-GD-16 Warranty PDF Glue Down Hardware Kit 108 22
RSH-GD-24 Warranty PDF Glue Down Hardware Kit 120 30

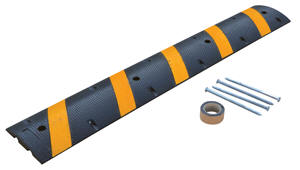

Heavy-duty molded rubber construction for durability. Rubber includes UV stabilizer for longer life. Features five reflective yellow diagonal strips and "cats eyes" per side for better visibility. Four mounting holes per speed bump with one mounting hole per end cap. Four mounting holes per speedbump with hardware included. Maximum capacity is 40,000 pounds.

Molded Rubber Speed Bumps
Model PDF Overall Size
(WxHxL)
Description Type of
Hardware Kit
Wt.
(lbs)
SBRY-72-A Warranty PDF 11-3/4"x1-3/4"x72" Speed Bump Asphalt 55
SBRY-CAP-A Warranty PDF 11 3/4" x 1-3/4"x5 7/8" End Cap Asphalt 10
SBRY-72-C Warranty PDF 11-3/4"x1-3/4"x72" Speed Bump Concrete 53
SBRY-CAP-C Warranty PDF 11 3/4" x 1-3/4"x5 7/8" End Cap Concrete 8
