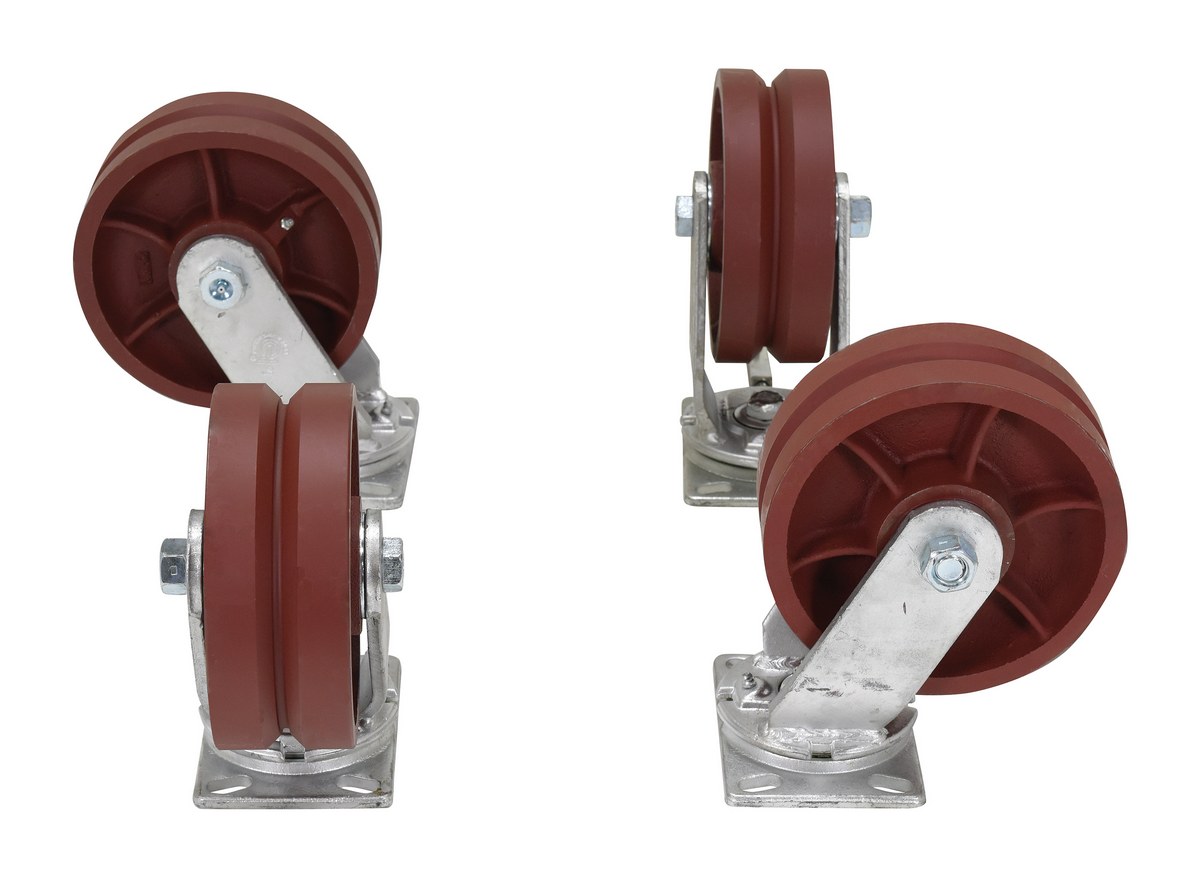

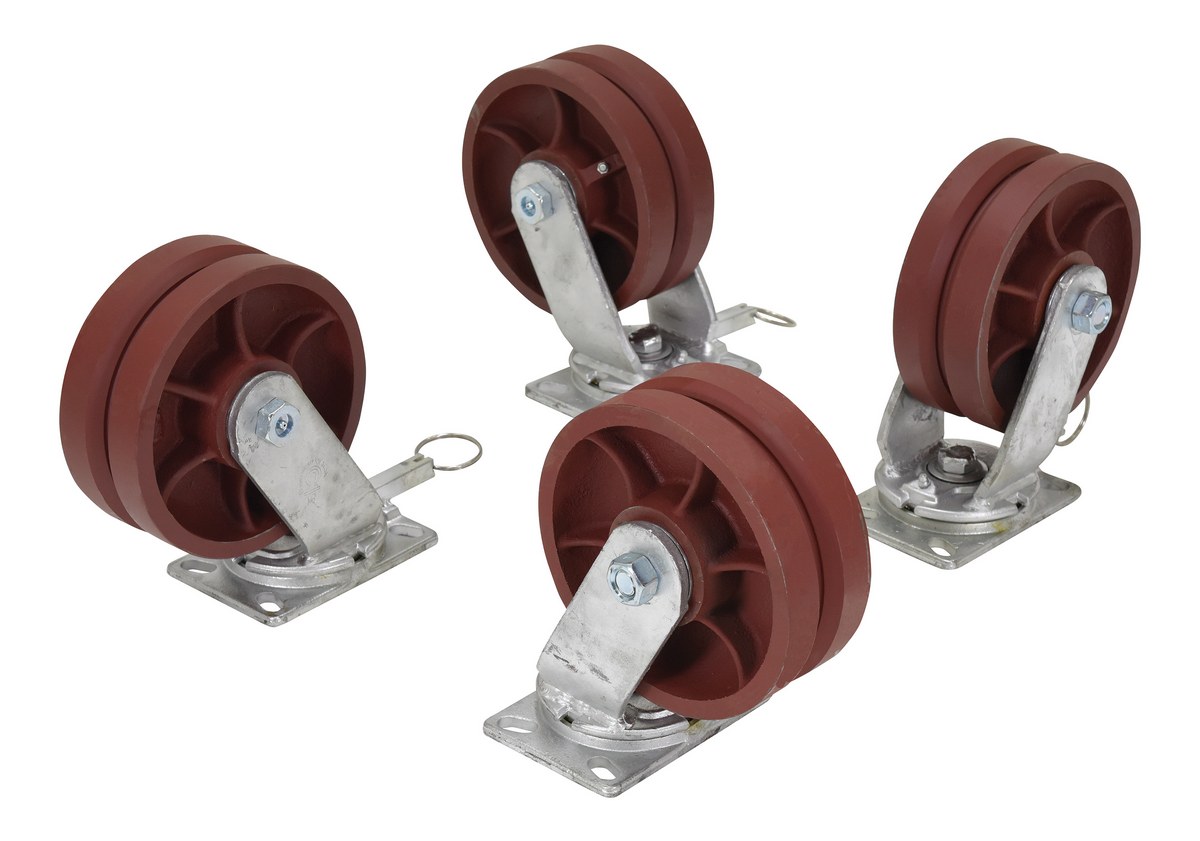

Ductile Iron Swivel V-Groove Casters 8 In. x 3 In. For Steel Gantry Cranes 6,000 Lb. to 8,000 Lb. Capacity

Swivel Gantry Crane Casters for Overhead Load Lifting and Controlled Positioning, 8,000 lb. Capacity with 8 in. x 3 in – Model AHS-6/8-V
The v groove caster is a great addition to the gantry crane. The design allows the unit to be utilized on a stable track for precise positioning. Simple installation with the pre drilled mounting holes.
Product Status
Available QuickShip
Key Features
  • Total locking v-groove caster set for holding a gantry crane in place
  • Works with steel gantry crane for maximum capacity
  • Ductile Iron casters in order to hold greater loads
  • Set includes four (4) swivel casters for even maneuverability
Quick Actions

Product Resources

Image Gallery View product images Contact Vestil Ask about this product
Documents

PDFs & Product Files

  Testing Certificate   Adjustable Height Steel Gantry Crane   Adjustable Height Steel Gantry Crane   90 Days Warranty
Product Data

Core Data

Assembled Weight 49 lbs
Assembled Size 3"W x 8"L x 8"H
Total Ship Weight 50 lbs
Package 1 Size 11"W x 11"D x 11"H
Color / Finish Black
Freight Type Parcel

Additional Attributes

Capacity (lb.) 6000/8000
Caster Material Ductile Iron
Caster Type Swivel V-Groove
Set (qty.) 4
Caster Diameter/Width (in.) 8 x 3
Plate Size Width/Length (in.) 4-1/2 x 6-1/4
Extended Product Details

Marketing Specs.

MFG Model # (Series)
AHS-6/8-V
Product Name
Ductile Iron Swivel V-Groove Casters 8 In. x 3 In. For Steel Gantry Cranes 6,000 Lb. to 8,000 Lb. Capacity
UPC
691215001571
GTIN
00691215001571
Taxonomy 1
Hardware
Taxonomy 2
Builders Hardware
Taxonomy 3
Casters & Glides
Taxonomy 4
Kits & Variety Packs
Assembled Depth (in.)
8
Assembled Width(in.)
3
Assembled Height(in.)
8
Assembled Weight(lbs.)
49
Color/Finish
Black
Material
Steel
Option? Y/N
Y
Sell UOM
ST-Set
Country Of Origin
US
Approval Drawing Required? Y/N
N
Assembly
Assembled
Compatible Products
AHS-6-10-12, AHS-6-10-14, AHS-6-10-16, AHS-6-15-7, AHS-6-15-9, AHS-6-15-10, AHS-6-15-12, AHS-6-15-14, AHS-6-15-16, AHS-6-20-12, AHS-6-20-14, AHS-6-20-16, AHS-8-10-12, AHS-8-10-14, AHS-8-10-16, AHS-8-15-7, AHS-8-15-9, AHS-8-15-10, AHS-8-15-12, AHS-8-15-14, AHS-15-16, AHS-8-20-12, AHS-8-20-14, AHS-8-20-16

Logistics

Packaging Level
PACK_OR_INNER_PACK
Package Depth (in.)
11
Package Width (in.)
11
Package Height (in.)
11
Package Weight (in.)
50
Freight Class
65
NMFC Code
Casters NOI in bags boxes or drums
NMFC Number
41725
LTL Freight
Parcel
UNSPSC
31162701
HTSUS Number
8716.90.3000
USMCA HS
8716.90
Origin Criterion
B
Certification Indicator
D
ECCN
EAR99
US Shipping Point
Angola, IN
Supplier Postal Code
46703
Hazardous Material? Yes/No
No
MSDS? Yes/No
No
Batteries Included?
No

Warranty

Warranty
Yes
Manufactuer Warranty
90 Days Limited Warranty
Warranty Type
Limited - Parts
Cancelable? Y/N
Y
Returnable? Y/N
Y
California Prop 65 Compliant?
Unknown

Prop 65 Warning
