Steel Pallet Dumper/Retainer 52 In. Long Forks 2000 Lb. Capacity Blue

Fork Lift Attachment for Commercial and Industrial Misc. Fork Attachments Use, 2,000 lb. Capacity with 52 in.

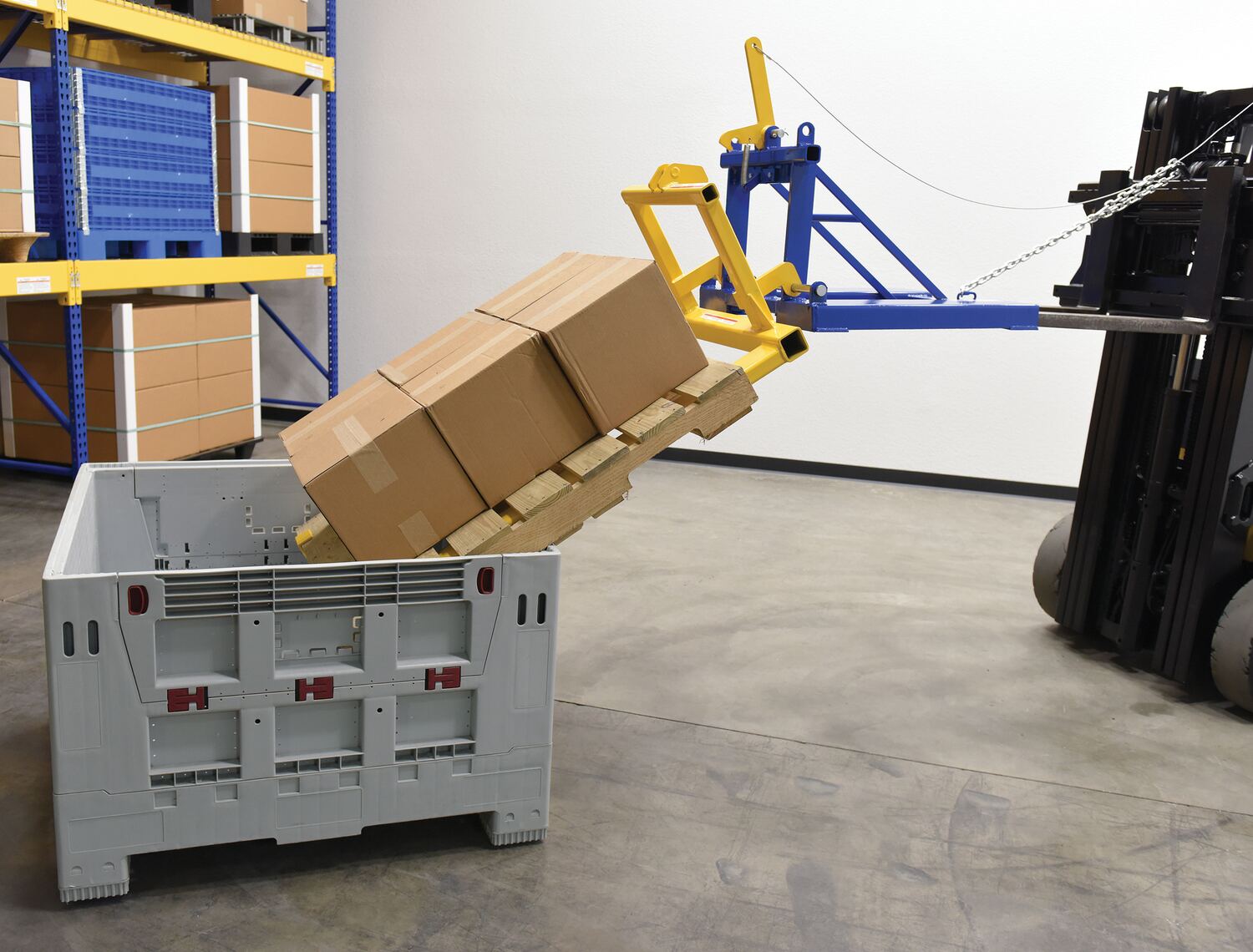

Dump loaded pallets easily without leaving the seat of your fork truck with the all welded steel pallet dumper/retainer. Unit slides onto forks and is secured by a safety restraint. Two (2) retainers hold the pallet in place while dumping the contents into a hopper or dumpster. Once the retainers have cleared the opposite end of the pallet, raise the forks and the retainers will hold the pallet on the forks. Lift the pallet to the dumping height and rest the pallet on the edge of the dumpster. Pull the chain, releasing the fork carriage, allowing the pallet to tilt and dump the load into the hopper or dumpster. When finished, simply lower to the ground until the carriage latches.
Product Status
Available
Key Features
  • Dump loaded pallets easily without leaving your seat
  • Two (2) retainers hold the pallet for more stability
  • Pallet tilts and dumps the load into a hopper or dumpster
  • Carriage latches when lowered to the ground
Quick Actions

Product Resources

Image Gallery View product images Contact Vestil Ask about this product
Documents

PDFs & Product Files

  Pallet Dumper / Retainer Owners Manual   Label Page PDF   90 Days Warranty
Product Data

Core Data

Assembled Weight 281 lbs
Assembled Size 33"W x 91"L x 32.375"H
Total Ship Weight 334 lbs
Package 1 Size 34"W x 104"D x 43"H
Color / Finish Blue
Freight Type LTL Palletized

Additional Attributes

Uniform Capacity (lb.) 2,000
Usable Fork Length (in.) 52
Fork Pocket Width (in.) 7-1/2
Fort Pocket Height (in.) 2-1/2
Fork Drop Angle (degrees) 90
Chain Length (in.) 28
Extended Product Details

Marketing Specs.

MFG Model # (Series)
PAL-D/R
Product Name
Steel Pallet Dumper/Retainer 52 In. Long Forks 2000 Lb. Capacity Blue
UPC
691215029285
GTIN
00691215029285
Taxonomy 1
Material Handling
Taxonomy 2
Forklift Attachments
Taxonomy 3
Pallet Dumper
Assembled Depth (in.)
91
Assembled Width(in.)
33
Assembled Height(in.)
32.375
Assembled Weight(lbs.)
281
Color/Finish
Blue
Material
Steel
Option? Y/N
N
Sell UOM
EA-Each
Country Of Origin
US
Approval Drawing Required? Y/N
N
Assembly
Assembled

Logistics

Packaging Level
BASE_UNIT_OR_EACH
Package Depth (in.)
104
Package Width (in.)
34
Package Height (in.)
43
Package Weight (in.)
334
Subclass
3
Freight Class
250
NMFC Code
Lift Truck Attachments: Fork arms, fingers/tine, s
NMFC Number
193100
LTL Freight
LTL Palletized
UNSPSC
27112800
HTSUS Number
8428.90.0390
USMCA HS
8428.90
Origin Criterion
B
Certification Indicator
D
ECCN
EAR99
US Shipping Point
Angola, IN
Supplier Postal Code
46703
Hazardous Material? Yes/No
No
MSDS? Yes/No
No
Batteries Included?
No

Warranty

Warranty
Yes
Manufactuer Warranty
90 Days Limited Warranty
Warranty Type
Limited - Parts
Cancelable? Y/N
Y
Returnable? Y/N
Y
California Prop 65 Compliant?
Unknown

Prop 65 Warning

Copyright © 2026 All Rights Reserved, Vestil Manufacturing Corp.

Details For Model: PAL-D/R

PAL-D/R

Steel Pallet Dumper/Retainer 52 In. Long Forks 2000 Lb. Capacity Blue

Dump loaded pallets easily without leaving the seat of your fork truck with the all welded steel pallet dumper/retainer. Unit slides onto forks and is secured by a safety restraint. Two (2) retainers hold the pallet in place while dumping the contents into a hopper or dumpster. Once the retainers have cleared the opposite end of the pallet, raise the forks and the retainers will hold the pallet on the forks. Lift the pallet to the dumping height and rest the pallet on the edge of the dumpster. Pull the chain, releasing the fork carriage, allowing the pallet to tilt and dump the load into the hopper or dumpster. When finished, simply lower to the ground until the carriage latches.

  • Dump loaded pallets easily without leaving your seat
  • Two (2) retainers hold the pallet for more stability
  • Pallet tilts and dumps the load into a hopper or dumpster
  • Carriage latches when lowered to the ground

Core Data

Assembled Weight: 281 Assembled Size: 33"W x 91"L x 32.375"H Color: Blue
Total Ship Weight: 334 Package 1 Size: 34"W x 104"D x 43"H Freight: LTL Palletized

Specifications

Uniform Capacity (lb.): 2,000
Usable Fork Length (in.): 52
Fork Pocket Width (in.): 7-1/2
Fort Pocket Height (in.): 2-1/2
Fork Drop Angle (degrees): 90
Chain Length (in.): 28
