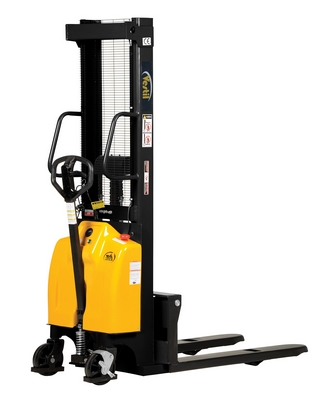

Steel Hand Pump DC Powered Stacker with Fixed Forks and Legs 98 In. Raised Height 2,000 Lb. Capacity Yellow

DC-Powered Hydraulic Hand Pump Stacker for Moving Loads Through Warehouses and Production Areas, 2,000 lb. Capacity with 98 in. Raised Height
The combination hand pump and electric stacker is an economical alternative to the DC powered lift stacker. It's ideal for maintenance and commercial applications. This unit can be used as a manual hand pump lift or an electric powered lift, which is ideal when power is not available. It has a high quality hydraulic pump and DC lift system. The compact design and strong steel profile construction allows the lift to handle tasks such as transporting dies, molds, and skids. It features an integral battery charger, battery level gauge, and adjustable lowering speed. Easily maneuverable using a standard pull handle.
Product Status
Available QuickShip
Key Features
  • Unique design features manual and powered forks
  • Standard pull handle maneuvers easily
  • Steel construction is ideal for maintenance and commercial applications
  • High quality hydraulic pump and DC lift system conveniently lifts forks when loaded/unloaded
Quick Actions

Product Resources

Image Gallery View product images Contact Vestil Ask about this product
Documents

PDFs & Product Files

  Approval Drawing   SE/HP Series Combination Hand Pump and Electric Stackers Instruction Manual   Label Page PDF   Hydraulic Oil SDS   1 Year Warranty
Product Data

Core Data

Assembled Weight 850 lbs
Assembled Size 26.75"W x 65.375"L x 72"H
Total Ship Weight 941 lbs
Package 1 Size 40"W x 84"D x 77"H
Color / Finish Yellow
Freight Type LTL Palletized

Additional Attributes

Uniform Capacity (lb.) 2,000
Fixed Fork Spacing (in.) 26-3/4 (OD)
Fork Width/Length (in.) 5-9/10 x 42
Service Range (in.) 3-3/8 to 98
Fixed Leg Spacing (in.) 26-3/4 (OD)
Mast Double
Phase Single
Hertz 60
Caster Material Polyurethane
Number of Casters 4
Front Caster Diameter (in.) 4
Rear Caster Diameter (in.) 6-1/2
Horsepower (HP) 2
Maximum Wattage (watts) 1500
Maximum Ampere (amp.) 120
Battery (2) 12V / 40 Ah
Hydraulic Oil Type ISO32

Battery Information

Battery Depth 8
Battery Width 14
Battery Height 8
Battery Weight 60
Battery Freight Class 60
Battery NMFC Number 60700
Battery NMFC Description Gel batteries on unit
Lithium Battery Configuration C -- Contained In
Extended Product Details

Marketing Specs.

MFG Model # (Series)
SE/HP-98
Product Name
Steel Hand Pump DC Powered Stacker with Fixed Forks and Legs 98 In. Raised Height 2,000 Lb. Capacity Yellow
UPC
691215062510
GTIN
00691215062510
Taxonomy 1
Material Handling
Taxonomy 2
Lifting Equipment
Taxonomy 3
Lifters / tilters
Taxonomy 4
Box Stacker
Taxonomy 5
Electric
Assembled Depth (in.)
65.375
Assembled Width(in.)
26.75
Assembled Height(in.)
72
Assembled Weight(lbs.)
850
Color/Finish
Yellow
Material
Steel
Option? Y/N
N
Sell UOM
EA-Each
Country Of Origin
CN
Approval Drawing Required? Y/N
N
Assembly
Assembled

Logistics

Packaging Level
BASE_UNIT_OR_EACH
Package Depth (in.)
84
Package Width (in.)
40
Package Height (in.)
77
Package Weight (in.)
941
Subclass
6
Freight Class
200
NMFC Code
Cars, Lift Trucks or Vehicles,áNOI, not designed for general highway use,
NMFC Number
190235
LTL Freight
LTL Palletized
UNSPSC
24101606
HTSUS Number
8428.90.0390
USMCA HS
8428.90
Origin Criterion
NO
Certification Indicator
NO
ECCN
EAR99
US Shipping Point
Angola, IN
Supplier Postal Code
46703
Hazardous Material? Yes/No
No
MSDS? Yes/No
Yes
Batteries Included?
Yes
Battery Weight (lbs.)
60
Battery Freight Class
60
Battery NMFC Number
60700
Battery NMFC Description
Gel batteries on unit
Lithium Battery Configuration
C -- Contained In

Warranty

Warranty
Yes
Manufactuer Warranty
1 Year Limited Warranty
Warranty Type
Limited - Parts
Cancelable? Y/N
Y
Returnable? Y/N
Y
California Prop 65 Compliant?
Unknown

Prop 65 Warning

Copyright © 2026 All Rights Reserved, Vestil Manufacturing Corp.

Details For Model: SE/HP-98

SE/HP-98

Steel Hand Pump DC Powered Stacker with Fixed Forks and Legs 98 In. Raised Height 2,000 Lb. Capacity Yellow

The combination hand pump and electric stacker is an economical alternative to the DC powered lift stacker. It's ideal for maintenance and commercial applications. This unit can be used as a manual hand pump lift or an electric powered lift, which is ideal when power is not available. It has a high quality hydraulic pump and DC lift system. The compact design and strong steel profile construction allows the lift to handle tasks such as transporting dies, molds, and skids. It features an integral battery charger, battery level gauge, and adjustable lowering speed. Easily maneuverable using a standard pull handle.

  • Unique design features manual and powered forks
  • Standard pull handle maneuvers easily
  • Steel construction is ideal for maintenance and commercial applications
  • High quality hydraulic pump and DC lift system conveniently lifts forks when loaded/unloaded

Core Data

Assembled Weight: 850 Assembled Size: 26.75"W x 65.375"L x 72"H Color: Yellow
Total Ship Weight: 941 Package 1 Size: 40"W x 84"D x 77"H Freight: LTL Palletized

Specifications

Uniform Capacity (lb.): 2,000
Fixed Fork Spacing (in.): 26-3/4 (OD)
Fork Width/Length (in.): 5-9/10 x 42
Service Range (in.): 3-3/8 to 98
Fixed Leg Spacing (in.): 26-3/4 (OD)
Mast: Double
Phase: Single
Hertz: 60
Caster Material: Polyurethane
Number of Casters: 4
Front Caster Diameter (in.): 4
Rear Caster Diameter (in.): 6-1/2
Horsepower (HP): 2
Maximum Wattage (watts): 1500
Maximum Ampere (amp.): 120
Battery: (2) 12V / 40 Ah
Hydraulic Oil Type: ISO32
