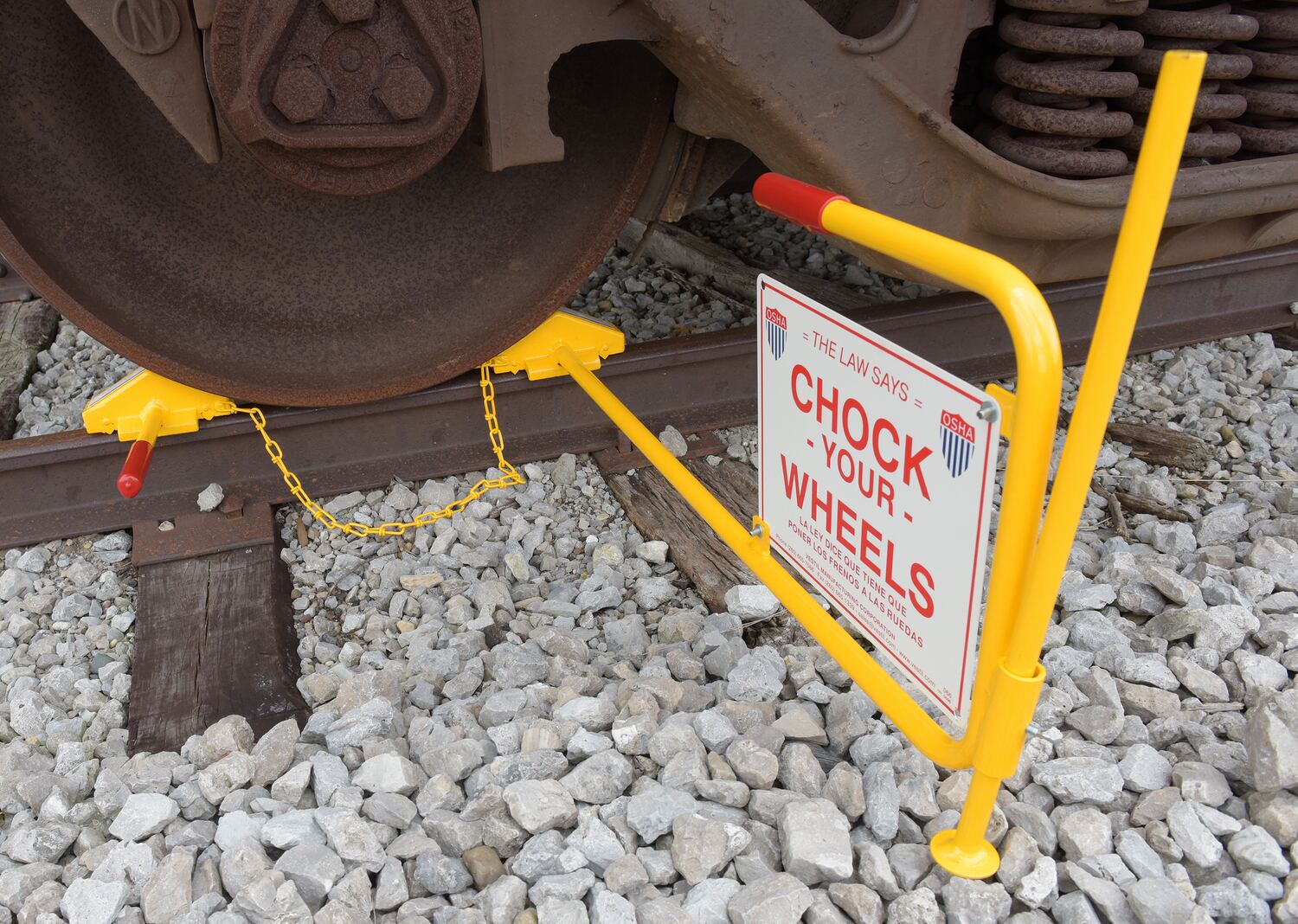

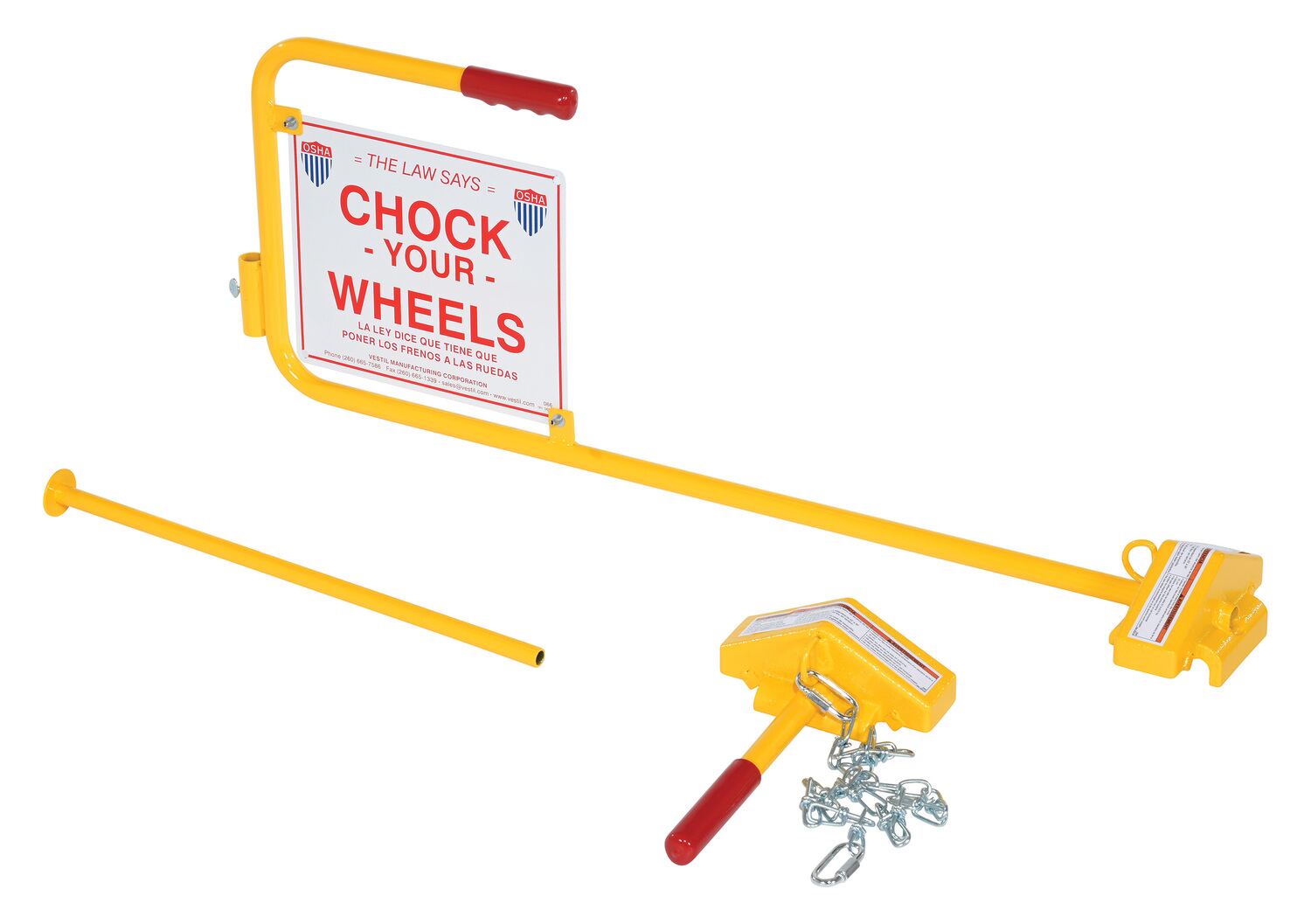

Steel Single Rail Chock with Flag Rail Chock 30 In. Long Chain Yellow

Rail Wheel Chock for Vehicle and Wheel Restraint at Loading Areas, 30 in., Yellow Finish – Model SRC/FRC
The single steel rail chock fits most standard size rails. The double sided flanges keep chocks on track and the hardened steel spurs that are located on the bottom side of the chock, are used to maximize a positive grip. There are adjustable support legs to balance the flag rail chocks. The aluminum "chalk your wheels" sign is visible from both sides. This unit includes a flag rail chock combination.
Product Status
Available QuickShip
Key Features
  • Single steel rail chock design fits most standard size rails
  • Heavy-duty welded steel construction provides maximum durability & strength
  • Rubber hand grips included for a non slip grip
  • Aluminum "chalk your wheels" sign provides visibility from both sides
Quick Actions

Product Resources

Image Gallery View product images Contact Vestil Ask about this product
Documents

PDFs & Product Files

  Approval Drawing   Testing Certificate   Label Page PDF   30 Days Warranty
Product Data

Core Data

Assembled Weight 21 lbs
Assembled Size 40.0625"W x 44"L x 20.125"H
Total Ship Weight 23 lbs
Package 1 Size 15"W x 42"D x 19"H
Color / Finish Yellow
Freight Type Parcel

Additional Attributes

Flag Handle Length (in.) 36
Chock Handle Length (in.) 9-11/16
Chain Length (in.) 30
Wheel Chock Length (in.) 7-1/2
Wheel Chock Width (in.) 3-15/16
Wheel Chock Height (in.) 3-13/16
Flag Raised (in.) 29
Flag Lowered (in.) 14-1/4
Extended Product Details

Marketing Specs.

MFG Model # (Series)
SRC/FRC
Product Name
Steel Single Rail Chock with Flag Rail Chock 30 In. Long Chain Yellow
UPC
691215037068
GTIN
00691215037068
Taxonomy 1
Automotive
Taxonomy 2
Tools
Taxonomy 3
Wheel & Tire
Taxonomy 4
Wheel Chocks
Assembled Depth (in.)
44
Assembled Width(in.)
40.0625
Assembled Height(in.)
20.125
Assembled Weight(lbs.)
21
Color/Finish
Yellow
Material
Bronze
Option? Y/N
N
Sell UOM
EA-Each
Country Of Origin
US
Approval Drawing Required? Y/N
N
Assembly
Assembled

Logistics

Packaging Level
BASE_UNIT_OR_EACH
Package Depth (in.)
42
Package Width (in.)
15
Package Height (in.)
19
Package Weight (in.)
23
Subclass
3
Freight Class
250
NMFC Code
Signs in Boxes Crates or Packages
NMFC Number
176050
LTL Freight
Parcel
UNSPSC
24101808
HTSUS Number
7326.90.8688
USMCA HS
7326.90
Origin Criterion
B
Certification Indicator
D
ECCN
EAR99
US Shipping Point
Angola, IN
Supplier Postal Code
46703
Hazardous Material? Yes/No
No
MSDS? Yes/No
No
Batteries Included?
No

Warranty

Warranty
Yes
Manufactuer Warranty
30 Days Limited Warranty
Warranty Type
Limited - Parts
Cancelable? Y/N
Y
Returnable? Y/N
Y
California Prop 65 Compliant?
Unknown

Prop 65 Warning

Copyright © 2026 All Rights Reserved, Vestil Manufacturing Corp.

Details For Model: SRC/FRC

SRC/FRC

Steel Single Rail Chock with Flag Rail Chock 30 In. Long Chain Yellow

The single steel rail chock fits most standard size rails. The double sided flanges keep chocks on track and the hardened steel spurs that are located on the bottom side of the chock, are used to maximize a positive grip. There are adjustable support legs to balance the flag rail chocks. The aluminum "chalk your wheels" sign is visible from both sides. This unit includes a flag rail chock combination.

  • Single steel rail chock design fits most standard size rails
  • Heavy-duty welded steel construction provides maximum durability & strength
  • Rubber hand grips included for a non slip grip
  • Aluminum "chalk your wheels" sign provides visibility from both sides

Core Data

Assembled Weight: 21 Assembled Size: 40.0625"W x 44"L x 20.125"H Color: Yellow
Total Ship Weight: 23 Package 1 Size: 15"W x 42"D x 19"H Freight: Parcel

Specifications

Flag Handle Length (in.): 36
Chock Handle Length (in.): 9-11/16
Chain Length (in.): 30
Wheel Chock Length (in.): 7-1/2
Wheel Chock Width (in.): 3-15/16
Wheel Chock Height (in.): 3-13/16
Flag Raised (in.): 29
Flag Lowered (in.): 14-1/4
