  All Products   Loading Dock Equipment   Dockplates & Dockboards   Aluminum Hand Truck Dockplates A-3024
Product Image

Visual Reference

A-3024
A-3024
A-3024
A-3024
A-3024
A-3024
A-3024
A-3024
A-3024
A-3024
A-3024
A-3024

Aluminum Hand Truck Dock Plate 30 In. x 24 In. 500 Lb. Capacity Silver

Aluminum Hand Truck Dock Plate for Trailer Loading, Dock Access, and Material Transfer, 500 lb. Capacity with 30 in. x 24 in.
This Aluminum Hand Truck dock plate is designed for use with two (2) wheel hand trucks. It is a convenient, safe, and easy way to access loading docks from trucks. This dock plate is lightweight and easily transported by just one person. The locking legs secure the plate for safe loading and unloading. Complete with bolt-on zinc plated carrying handles and locking legs.
Product Status
Available QuickShip
Key Features
  • Lightweight design is ideal for foot or hand truck traffic
  • Beveled entrance and exit edges provide smooth transition
  • Tread plate surface ensures skid-resistant safe traction
  • Zinc-plated locking legs and lifting handles for OSHA compliance
Quick Actions

Product Resources

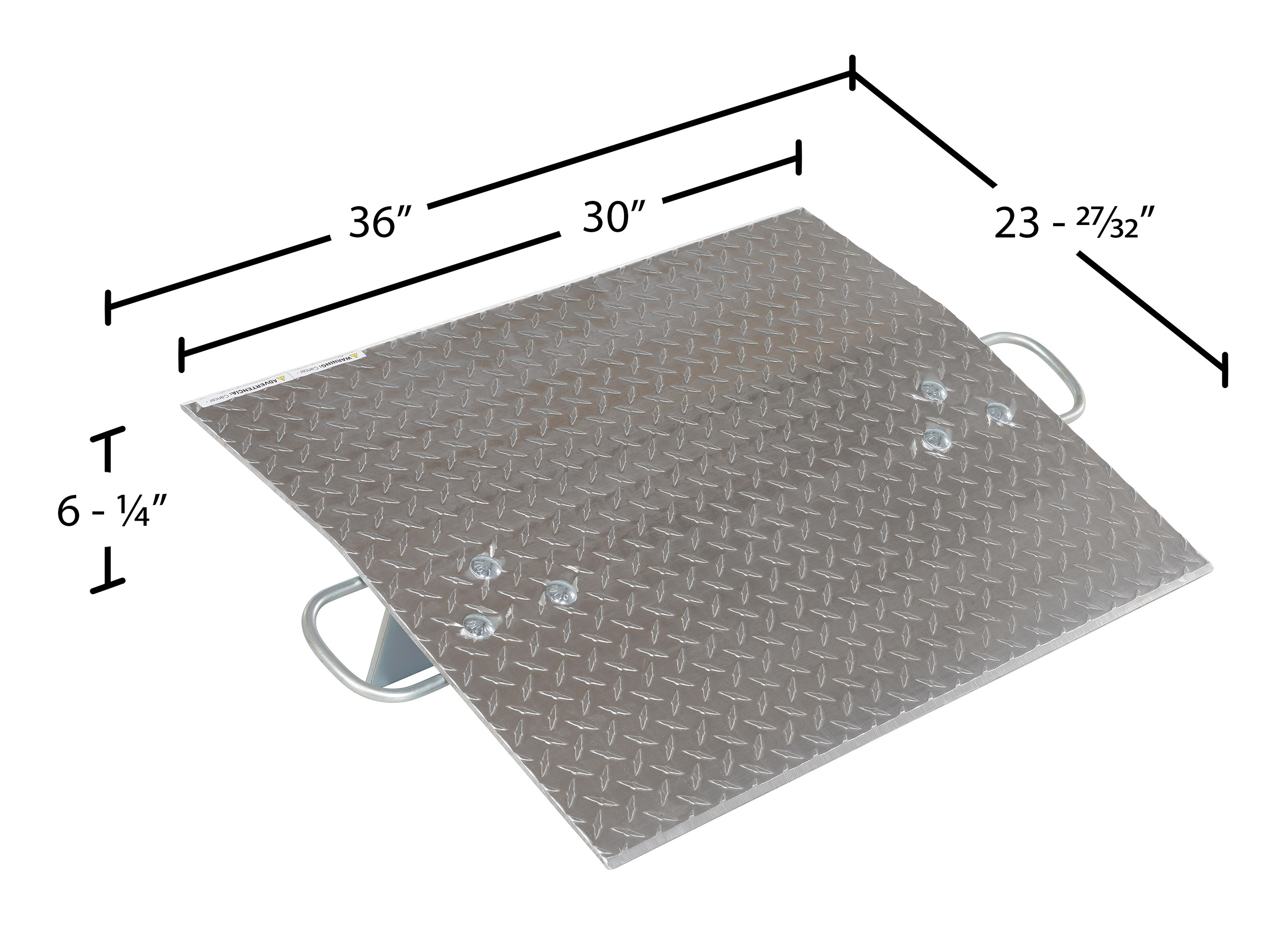

Image Gallery View product images Dimensions Open dimensioned image Contact Vestil Ask about this product
Documents

PDFs & Product Files

  Approval Drawing   Testing Certificate   A, AH, E, EH Dockboards Manual   Label Page PDF   90 Days Warranty
Product Data

Core Data

Assembled Weight 30 lbs
Assembled Size 36"W x 24.84375"L x 6.25"H
Total Ship Weight 39 lbs
Package 1 Size 24"W x 30"D x 3"H
Color / Finish Silver
Freight Type Parcel

Additional Attributes

Uniform Capacity (lb.) 500
Bend or Crown (degrees) 11
Distance Between Bend or Crown From Dockplate Edge (in.) 9
Usable Width (in.) 30
Usable Length (in.) 24
Plate Thickness (in.) 1/4
Height Difference Between Truck and Door (in.) 3
Extended Product Details

Marketing Specs.

MFG Model # (Series)
A-3024
Product Name
Aluminum Hand Truck Dock Plate 30 In. x 24 In. 500 Lb. Capacity Silver
UPC
691215000536
GTIN
00691215000536
Taxonomy 1
Material Handling
Taxonomy 2
Loading Dock Equipment
Taxonomy 3
Dockplates
Assembled Depth (in.)
24.84375
Assembled Width(in.)
36
Assembled Height(in.)
6.25
Assembled Weight(lbs.)
30
Color/Finish
Silver
Material
Aluminum
Option? Y/N
N
Sell UOM
EA-Each
Country Of Origin
US
Approval Drawing Required? Y/N
N
Assembly
Assembly required

Logistics

Packaging Level
BASE_UNIT_OR_EACH
Package Depth (in.)
30
Package Width (in.)
24
Package Height (in.)
3
Package Weight (in.)
28
Subclass
1
Freight Class
100
NMFC Code
Ramps Dockboards freight loading not mechanical
NMFC Number
168720
Package 2 Depth (in.)
10
Package 2 Width (in.)
9
Package 2 Height (in.)
7
Package 2 Weight (lbs.)
11
Package 2 Subclass
9
Package 2 Freight Class
70
Package2 NMFC Number
95190
LTL Freight
Parcel
UNSPSC
24101807
HTSUS Number
7610.90.0080
USMCA HS
7610.90
Origin Criterion
B
Certification Indicator
D
ECCN
EAR99
US Shipping Point
Angola, IN
Supplier Postal Code
46703
Hazardous Material? Yes/No
No
MSDS? Yes/No
No
Batteries Included?
No

Warranty

Warranty
Yes
Manufactuer Warranty
90 Days Limited Warranty
Warranty Type
Limited - Parts
Cancelable? Y/N
Y
Returnable? Y/N
Y
California Prop 65 Compliant?
Unknown

Prop 65 Warning

Copyright © 2026 All Rights Reserved, Vestil Manufacturing Corp.

Details For Model: A-3024

A-3024

Aluminum Hand Truck Dock Plate 30 In. x 24 In. 500 Lb. Capacity Silver

This Aluminum Hand Truck dock plate is designed for use with two (2) wheel hand trucks. It is a convenient, safe, and easy way to access loading docks from trucks. This dock plate is lightweight and easily transported by just one person. The locking legs secure the plate for safe loading and unloading. Complete with bolt-on zinc plated carrying handles and locking legs.

  • Lightweight design is ideal for foot or hand truck traffic
  • Beveled entrance and exit edges provide smooth transition
  • Tread plate surface ensures skid-resistant safe traction
  • Zinc-plated locking legs and lifting handles for OSHA compliance

Core Data

Assembled Weight: 30 Assembled Size: 36"W x 24.84375"L x 6.25"H Color: Silver
Total Ship Weight: 39 Package 1 Size: 24"W x 30"D x 3"H Freight: Parcel

Specifications

Uniform Capacity (lb.): 500
Bend or Crown (degrees): 11
Distance Between Bend or Crown From Dockplate Edge (in.): 9
Usable Width (in.): 30
Usable Length (in.): 24
Plate Thickness (in.): 1/4
Height Difference Between Truck and Door (in.): 3
