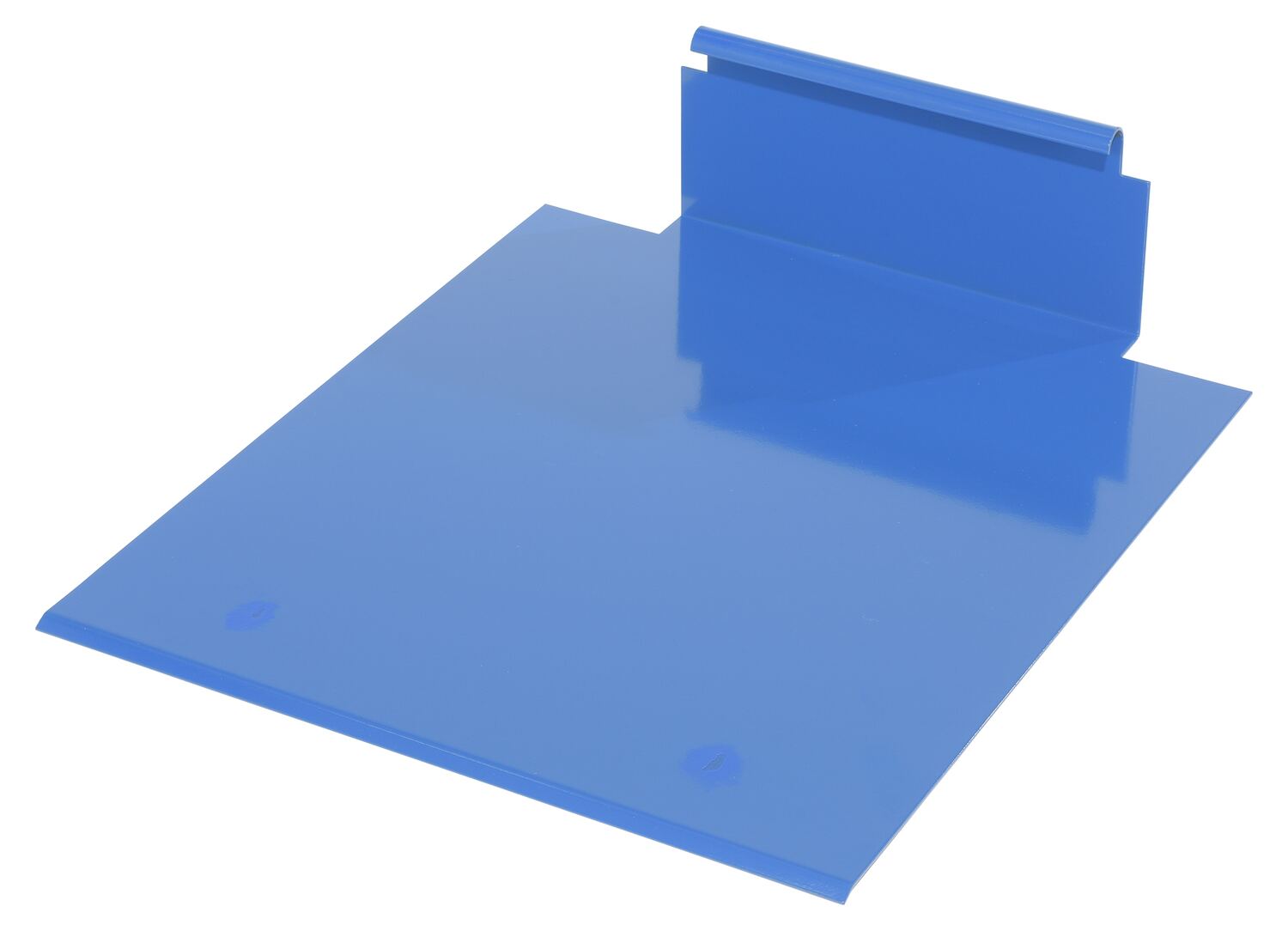

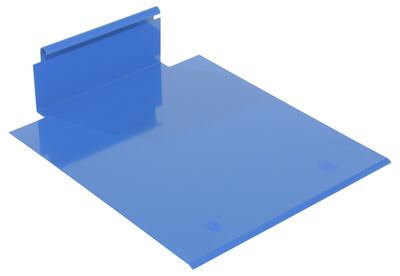

Steel Deck Platform For Hand Winch Lifts 24-1/4 In. x 20-1/2 In. 500 Lb. Capacity Blue

Deck Platform for Commercial and Industrial Portable Load Lifters Use, 500 lb. Capacity with 24-1/4 in. x 20-1/2 in.
Optional deck platform for hand winch lift truck. Works only when forks are flipped down.
Product Status
Available QuickShip
Key Features
  • Lightweight portable lifts are great for hundreds of applications
  • Manual cable winch easily raises and lowers forks
  • Counterbalance weight design keeps unit from tipping with heavy loads
  • Hold-down device secures carriage during transport
Quick Actions

Product Resources

Image Gallery View product images Dimensions Open dimensioned image Contact Vestil Ask about this product
Documents

PDFs & Product Files

  Approval Drawing   Testing Certificate   A-LIFT Hand Winch Lift Trucks Instruction Manual   1 Year Warranty
Product Data

Core Data

Assembled Weight 17 lbs

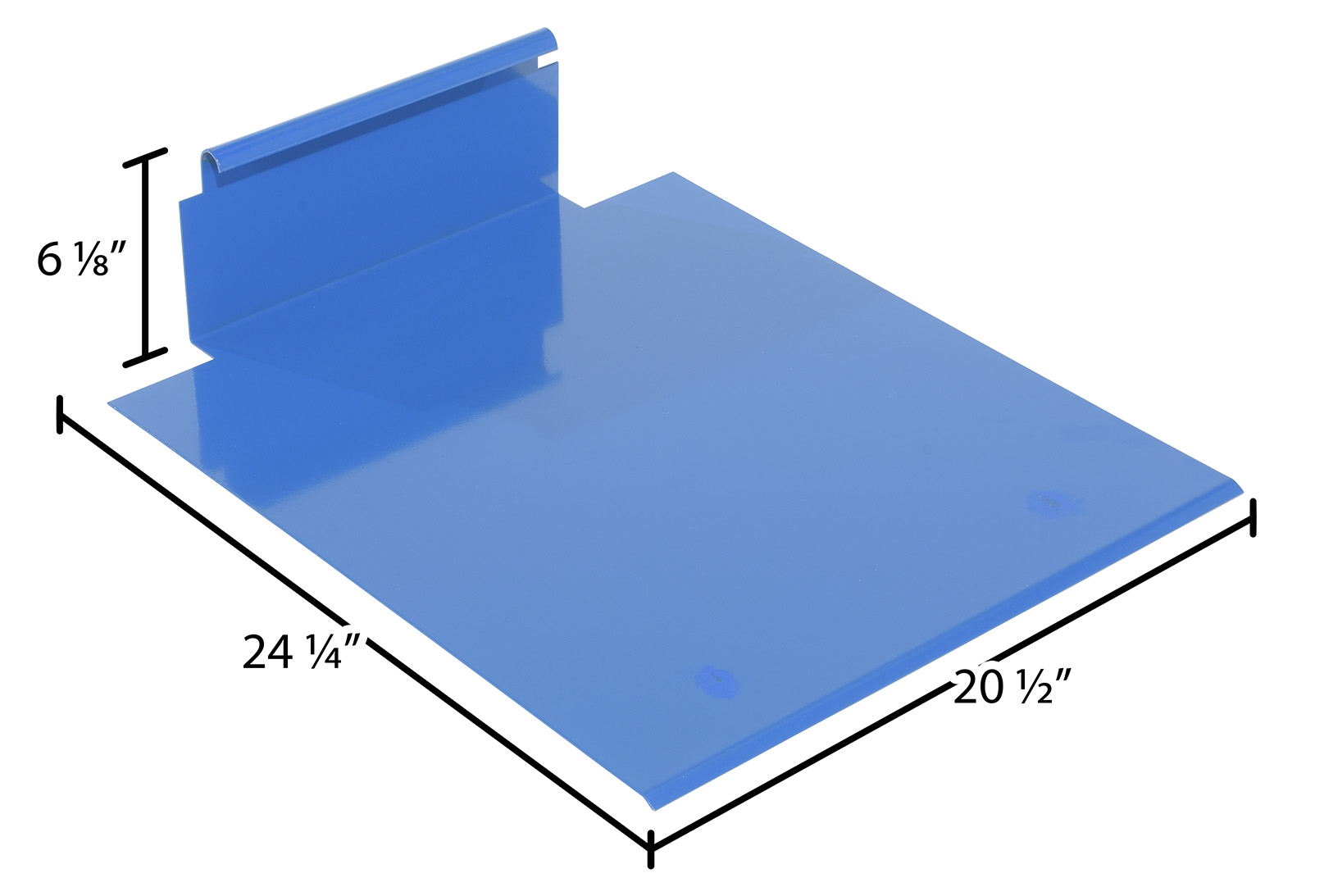

Assembled Size 20.5"W x 24.25"L x 6.125"H
Total Ship Weight 18 lbs
Package 1 Size 25"W x 25"D x 6"H
Color / Finish Blue
Freight Type Parcel

Additional Attributes

Uniform Capacity (lbs) 500
Overall Length (in.) 24-1/4
Overall Width (in.) 20-1/2
Overall Height (in.) 6-1/8
Extended Product Details

Marketing Specs.

MFG Model # (Series)
A-LIFT-DK
Product Name
Steel Deck Platform For Hand Winch Lifts 24-1/4 In. x 20-1/2 In. 500 Lb. Capacity Blue
UPC
691215049993
GTIN
00691215049993
Taxonomy 1
Building Supplies
Taxonomy 2
Heavy Construction & Mining Equipment
Taxonomy 3
Compact / Micro
Taxonomy 4
Attachments
Taxonomy 5
Compact Utility Loaders
Taxonomy 6
Platforms
Assembled Depth (in.)
24.25
Assembled Width(in.)
20.5
Assembled Height(in.)
6.125
Assembled Weight(lbs.)
17
Color/Finish
Blue
Material
Steel
Option? Y/N
Y
Sell UOM
EA-Each
Country Of Origin
CN
Approval Drawing Required? Y/N
N
Assembly
Assembled
Compatible Products
A-LIFT-R, A-LIFT-R-HP, A-LIFT-S, A-LIFT-S-HP, A-LIFT-S-EHP, A-LIFT-CB, A-LIFT-CB-HP, A-LIFT-CB-EHP

Logistics

Packaging Level
BASE_UNIT_OR_EACH
Package Depth (in.)
25
Package Width (in.)
25
Package Height (in.)
6
Package Weight (in.)
18
Subclass
1
Freight Class
175
NMFC Code
Lift trucks hand including pallet jacks
NMFC Number
189240
LTL Freight
Parcel
UNSPSC
22101802
HTSUS Number
8431.20.0000
USMCA HS
8431.20
Origin Criterion
NO
Certification Indicator
NO
ECCN
EAR99
US Shipping Point
Angola, IN
Supplier Postal Code
46703
Hazardous Material? Yes/No
No
MSDS? Yes/No
No
Batteries Included?
No

Warranty

Warranty
Yes
Manufactuer Warranty
1 Year Limited Warranty
Warranty Type
Limited - Parts
Cancelable? Y/N
Y
Returnable? Y/N
Y
California Prop 65 Compliant?
Unknown

Prop 65 Warning

Copyright © 2026 All Rights Reserved, Vestil Manufacturing Corp.

Details For Model: A-LIFT-DK

A-LIFT-DK

Steel Deck Platform For Hand Winch Lifts 24-1/4 In. x 20-1/2 In. 500 Lb. Capacity Blue

Optional deck platform for hand winch lift truck. Works only when forks are flipped down.

  • Lightweight portable lifts are great for hundreds of applications
  • Manual cable winch easily raises and lowers forks
  • Counterbalance weight design keeps unit from tipping with heavy loads
  • Hold-down device secures carriage during transport

Core Data

Assembled Weight: 17 Assembled Size: 20.5"W x 24.25"L x 6.125"H Color: Blue
Total Ship Weight: 18 Package 1 Size: 25"W x 25"D x 6"H Freight: Parcel

Specifications

Uniform Capacity (lbs): 500
Overall Length (in.): 24-1/4
Overall Width (in.): 20-1/2
Overall Height (in.): 6-1/8
