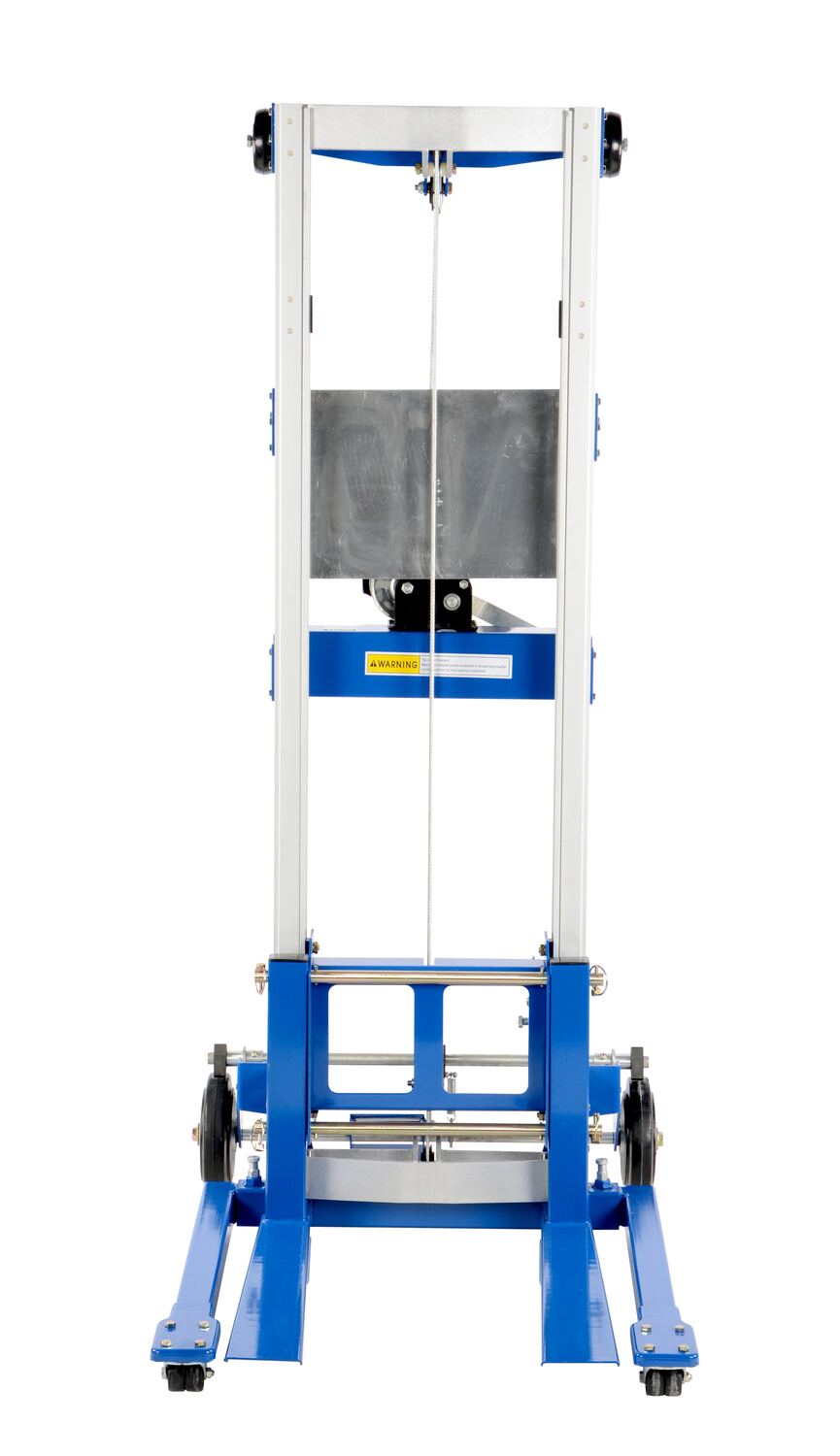

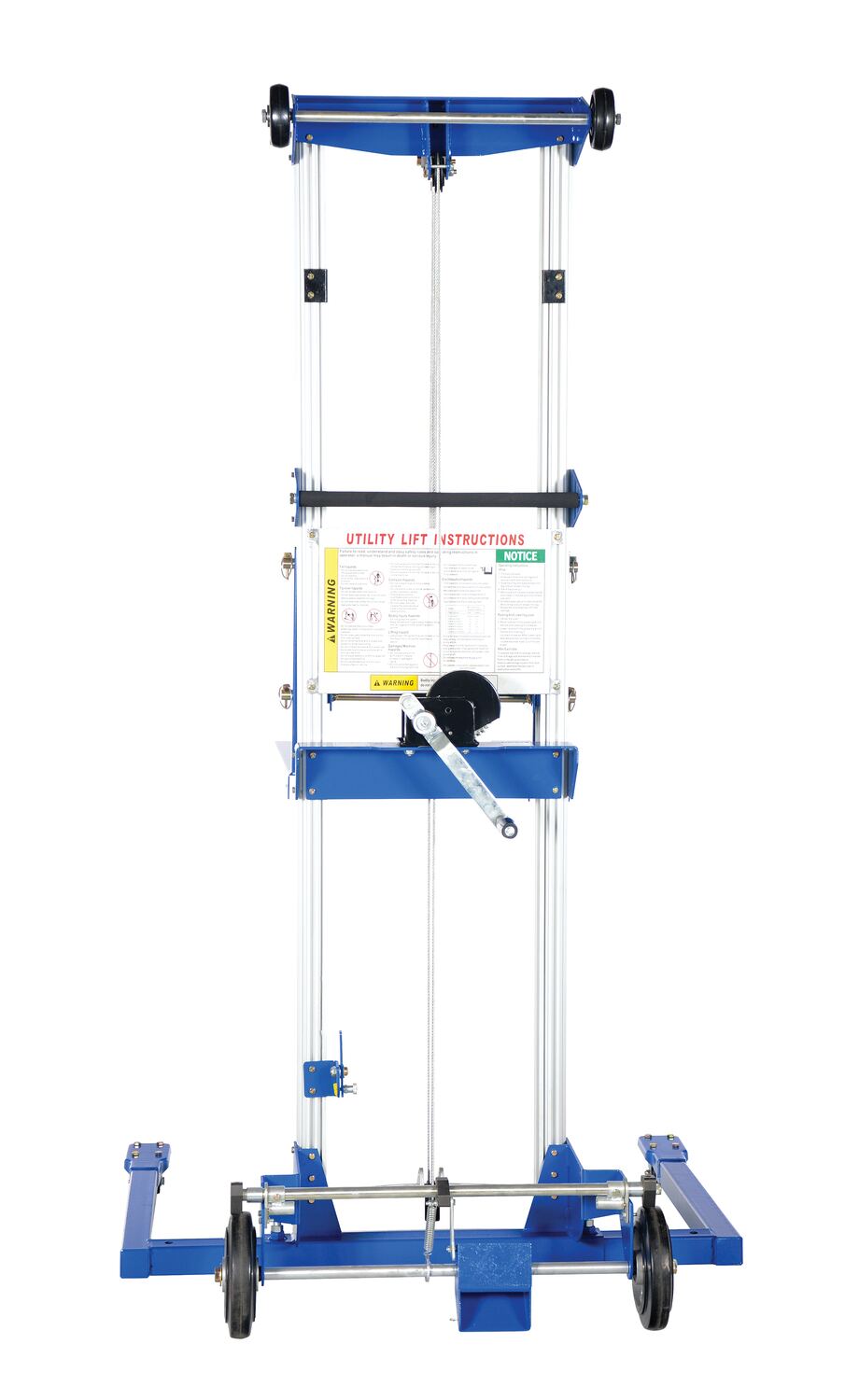

Aluminum/Steel Adjustable Straddle Manual Hand Winch Lift Trucks 400 Lb. Capacity Silver/Blue

Aluminum Adjustable Portable Winch Lift Truck for Commercial and Industrial Portable Load Lifters Use, 400 lb. Capacity
The hand winch lift truck is compact and designed to lift material to and from shelves, move office equipment, and install ceiling/wall appliances. It's constructed of durable steel-and-aluminum. Operated by a hand-crank winch that features a reversible handle and hold-down device for securing the carriage during transport.
Product Status
Available QuickShip
Key Features
  • Lightweight portable lifts are great for hundreds of applications
  • Manual cable winch easily raises and lowers forks
  • Adjustable straddle width for varying load sizes
  • Hold-down device secures carriage during transport
Quick Actions

Product Resources

Image Gallery View product images Dimensions Open dimensioned image Contact Vestil Ask about this product
Documents

PDFs & Product Files

  Approval Drawing   Testing Certificate   A-LIFT Hand Winch Lift Trucks Instruction Manual   Label Page PDF   1 Year Warranty
Product Data

Core Data

Assembled Weight 145 lbs

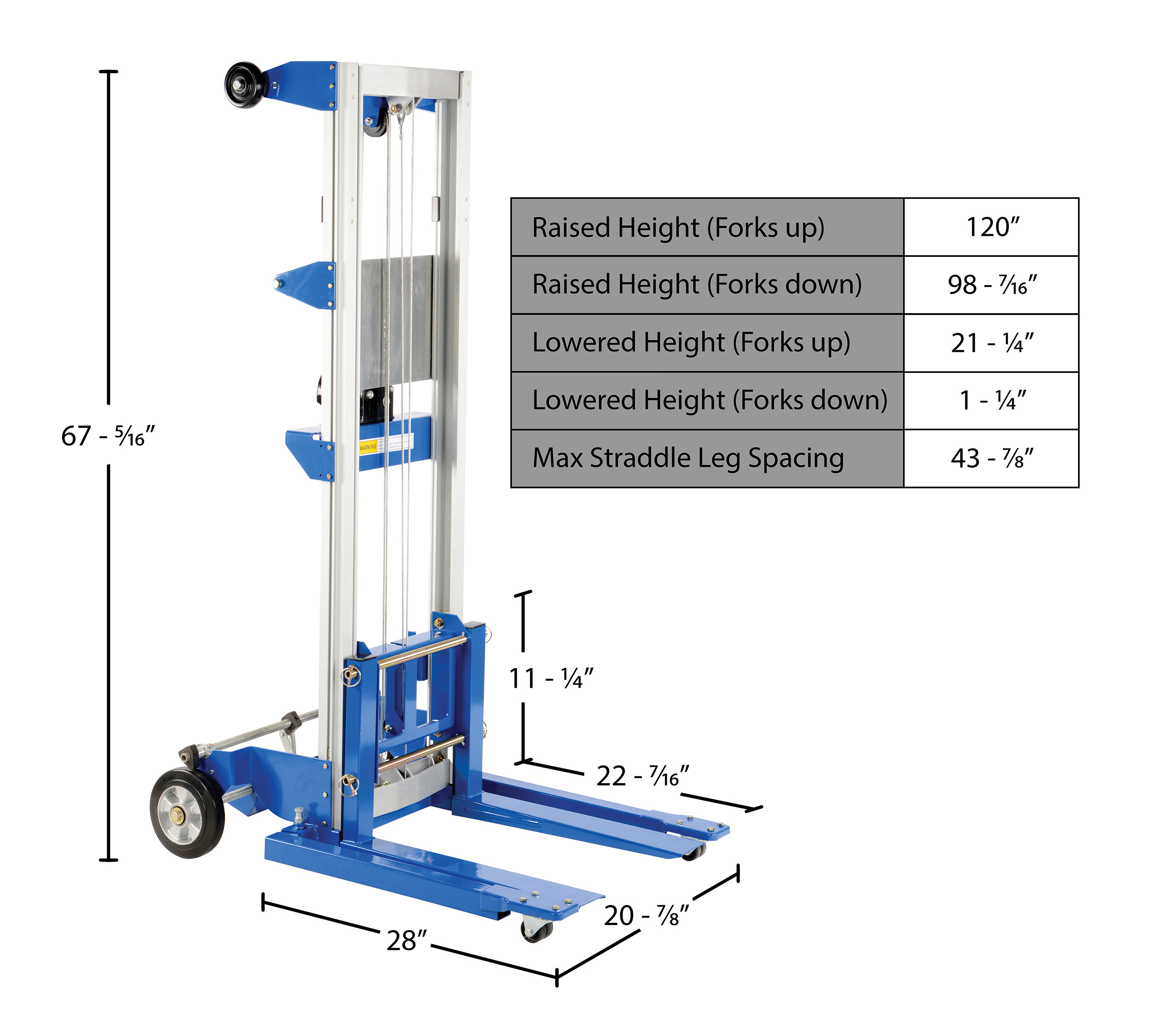

Assembled Size 43.875"W x 42.5"L x 67.3125"H
Total Ship Weight 219 lbs
Package 1 Size 29"W x 92"D x 24"H
Color / Finish Silver
Freight Type LTL Palletized

Additional Attributes

Uniform Capacity (lb.) 400
Service Range w/ Forks Down (in.) 1-1/4 to 98-7/16
Service Range w/ Forks Up (in.) 21-1/4 to 120
Fork Width/Length (in.) 4 x 22-7/16
Fork Spacing (in.) 20-7/8
Adjustable Leg Spacing (in.) 29 to 43-7/8
Fork Raise per Hand Crank Rotation (in.) 1
Rear Non-Marking Wheel Diameter (in.) 8
Front Swivel Wheel Diameter (in.) 2
Extended Product Details

Marketing Specs.

MFG Model # (Series)
A-LIFT-S-HP
Product Name
Aluminum/Steel Adjustable Straddle Manual Hand Winch Lift Trucks 400 Lb. Capacity Silver/Blue
UPC
691215002240
GTIN
00691215002240
Taxonomy 1
Material Handling
Taxonomy 2
Pallet Jacks and Lifts
Assembled Depth (in.)
42.5
Assembled Width(in.)
43.875
Assembled Height(in.)
67.3125
Assembled Weight(lbs.)
145
Color/Finish
Silver
Material
Aluminum/Steel
Option? Y/N
N
Sell UOM
EA-Each
Country Of Origin
CN
Approval Drawing Required? Y/N
N
Assembly
Assembled

Logistics

Packaging Level
BASE_UNIT_OR_EACH
Package Depth (in.)
92
Package Width (in.)
29
Package Height (in.)
24
Package Weight (in.)
219
Subclass
1
Freight Class
175
NMFC Code
Lift trucks hand including pallet jacks
NMFC Number
189240
LTL Freight
LTL Palletized
UNSPSC
24101604
HTSUS Number
8427.90.0090
USMCA HS
8427.90
Origin Criterion
NO
Certification Indicator
NO
ECCN
EAR99
US Shipping Point
Angola, IN
Supplier Postal Code
46703
Hazardous Material? Yes/No
No
MSDS? Yes/No
No
Batteries Included?
No

Warranty

Warranty
Yes
Manufactuer Warranty
1 Year Limited Warranty
Warranty Type
Limited - Parts
Cancelable? Y/N
Y
Returnable? Y/N
Y
California Prop 65 Compliant?
Unknown

Prop 65 Warning

Copyright © 2026 All Rights Reserved, Vestil Manufacturing Corp.

Details For Model: A-LIFT-S-HP

A-LIFT-S-HP

Aluminum/Steel Adjustable Straddle Manual Hand Winch Lift Trucks 400 Lb. Capacity Silver/Blue

The hand winch lift truck is compact and designed to lift material to and from shelves, move office equipment, and install ceiling/wall appliances. It's constructed of durable steel-and-aluminum. Operated by a hand-crank winch that features a reversible handle and hold-down device for securing the carriage during transport.

  • Lightweight portable lifts are great for hundreds of applications
  • Manual cable winch easily raises and lowers forks
  • Adjustable straddle width for varying load sizes
  • Hold-down device secures carriage during transport

Core Data

Assembled Weight: 145 Assembled Size: 43.875"W x 42.5"L x 67.3125"H Color: Silver
Total Ship Weight: 219 Package 1 Size: 29"W x 92"D x 24"H Freight: LTL Palletized

Specifications

Uniform Capacity (lb.): 400
Service Range w/ Forks Down (in.): 1-1/4 to 98-7/16
Service Range w/ Forks Up (in.): 21-1/4 to 120
Fork Width/Length (in.): 4 x 22-7/16
Fork Spacing (in.): 20-7/8
Adjustable Leg Spacing (in.): 29 to 43-7/8
Fork Raise per Hand Crank Rotation (in.): 1
Rear Non-Marking Wheel Diameter (in.): 8
Front Swivel Wheel Diameter (in.): 2
