  All Products   Industrial Carts & Dollies   A-Frame Carts   A-Frame Carts AF-3060
Product Image

Visual Reference

AF-3060
AF-3060
AF-3060
AF-3060
AF-3060
AF-3060
AF-3060
AF-3060
AF-3060

Steel A-Frame Cart 30 In. x 60 In. 2,000 Lb. Capacity Blue

Panel Utility Cart for Commercial and Industrial A-frame Carts Use, 2,000 lb. Capacity with 30 in. x 60 in.
If you need to move bulky sheets of material such as drywall, plywood, paneling, or sheets of metal, you need the heavy-duty A-Frame cart. A convenient parts tray is included between the A-frame uprights. Unit is easily secured for loading and unloading by using the foot operated caster brake.
Product Status
Available
Key Features
  • Move bulky sheets of material such as drywall or sheets of metal
  • Includes a convenient parts tray between the A-frame uprights
  • Unit is easily secured for loading and unloading
  • Use the foot operated caster brake for extra security
Quick Actions

Product Resources

Image Gallery View product images Dimensions Open dimensioned image Contact Vestil Ask about this product
Documents

PDFs & Product Files

  Approval Drawing   Testing Certificate   A-Frame Cart   Label Page PDF   90 Days Warranty
Product Data

Core Data

Assembled Weight 158 lbs

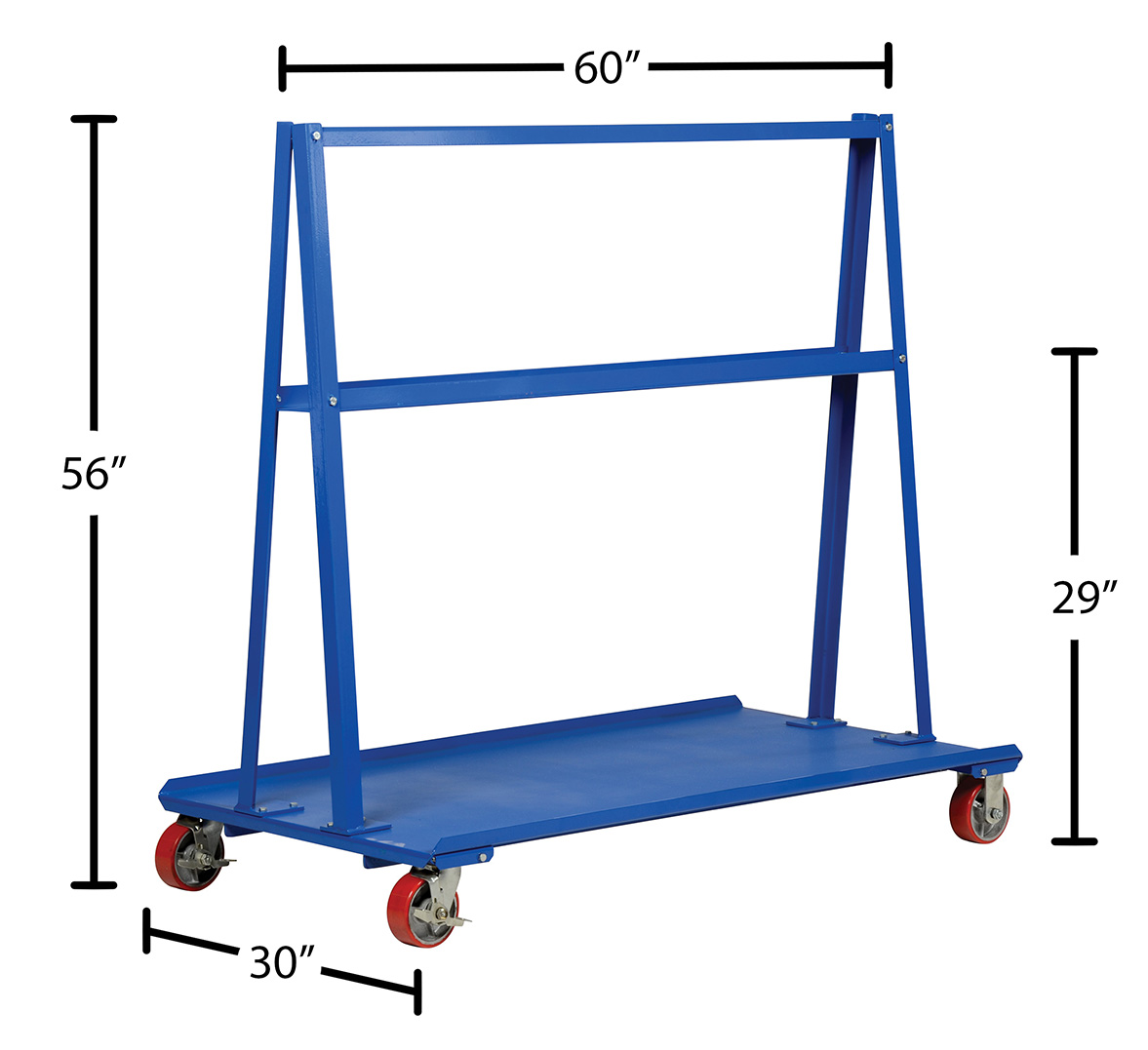

Assembled Size 30"W x 60"L x 56"H
Total Ship Weight 201 lbs
Package 1 Size 40"W x 60"D x 10"H
Color / Finish Blue
Freight Type LTL Palletized

Additional Attributes

Uniform Capacity (lb.) 2,000
Deck Width (in.) 30
Deck Length (in.) 60
Lip Height (in.) 1
Caster Quantity/Diameter/Width (in.) (4) 5x2
Caster Quantity/Type (2) Rigid (2) Swivel with Brake
Caster Material Poly-on-Steel
Extended Product Details

Marketing Specs.

MFG Model # (Series)
AF-3060
Product Name
Steel A-Frame Cart 30 In. x 60 In. 2,000 Lb. Capacity Blue
UPC
691215000918
GTIN
00691215000918
Taxonomy 1
Material Handling
Taxonomy 2
Hand Trucks & Dollies
Taxonomy 3
Platform Carts
Taxonomy 4
Manual
Assembled Depth (in.)
60
Assembled Width(in.)
30
Assembled Height(in.)
56
Assembled Weight(lbs.)
158
Color/Finish
Blue
Material
Steel
Option? Y/N
N
Sell UOM
EA-Each
Country Of Origin
US
Approval Drawing Required? Y/N
N
Assembly
Assembly required

Logistics

Packaging Level
BASE_UNIT_OR_EACH
Package Depth (in.)
60
Package Width (in.)
40
Package Height (in.)
10
Package Weight (in.)
201
Subclass
6
Freight Class
100
NMFC Code
Vehicles, other than self-propelled
NMFC Number
189800
LTL Freight
LTL Palletized
UNSPSC
30241513
HTSUS Number
8716.80.5090
USMCA HS
8716.80
Origin Criterion
B
Certification Indicator
D
ECCN
EAR99
US Shipping Point
Angola, IN
Supplier Postal Code
46703
Hazardous Material? Yes/No
No
MSDS? Yes/No
No
Batteries Included?
No

Warranty

Warranty
Yes
Manufactuer Warranty
90 Days Limited Warranty
Warranty Type
Limited - Parts
Cancelable? Y/N
Y
Returnable? Y/N
Y
California Prop 65 Compliant?
Unknown

Prop 65 Warning

Copyright © 2026 All Rights Reserved, Vestil Manufacturing Corp.

Details For Model: AF-3060

AF-3060

Steel A-Frame Cart 30 In. x 60 In. 2,000 Lb. Capacity Blue

If you need to move bulky sheets of material such as drywall, plywood, paneling, or sheets of metal, you need the heavy-duty A-Frame cart. A convenient parts tray is included between the A-frame uprights. Unit is easily secured for loading and unloading by using the foot operated caster brake.

  • Move bulky sheets of material such as drywall or sheets of metal
  • Includes a convenient parts tray between the A-frame uprights
  • Unit is easily secured for loading and unloading
  • Use the foot operated caster brake for extra security

Core Data

Assembled Weight: 158 Assembled Size: 30"W x 60"L x 56"H Color: Blue
Total Ship Weight: 201 Package 1 Size: 40"W x 60"D x 10"H Freight: LTL Palletized

Specifications

Uniform Capacity (lb.): 2,000
Deck Width (in.): 30
Deck Length (in.): 60
Lip Height (in.): 1
Caster Quantity/Diameter/Width (in.): (4) 5x2
Caster Quantity/Type: (2) Rigid (2) Swivel with Brake
Caster Material: Poly-on-Steel
