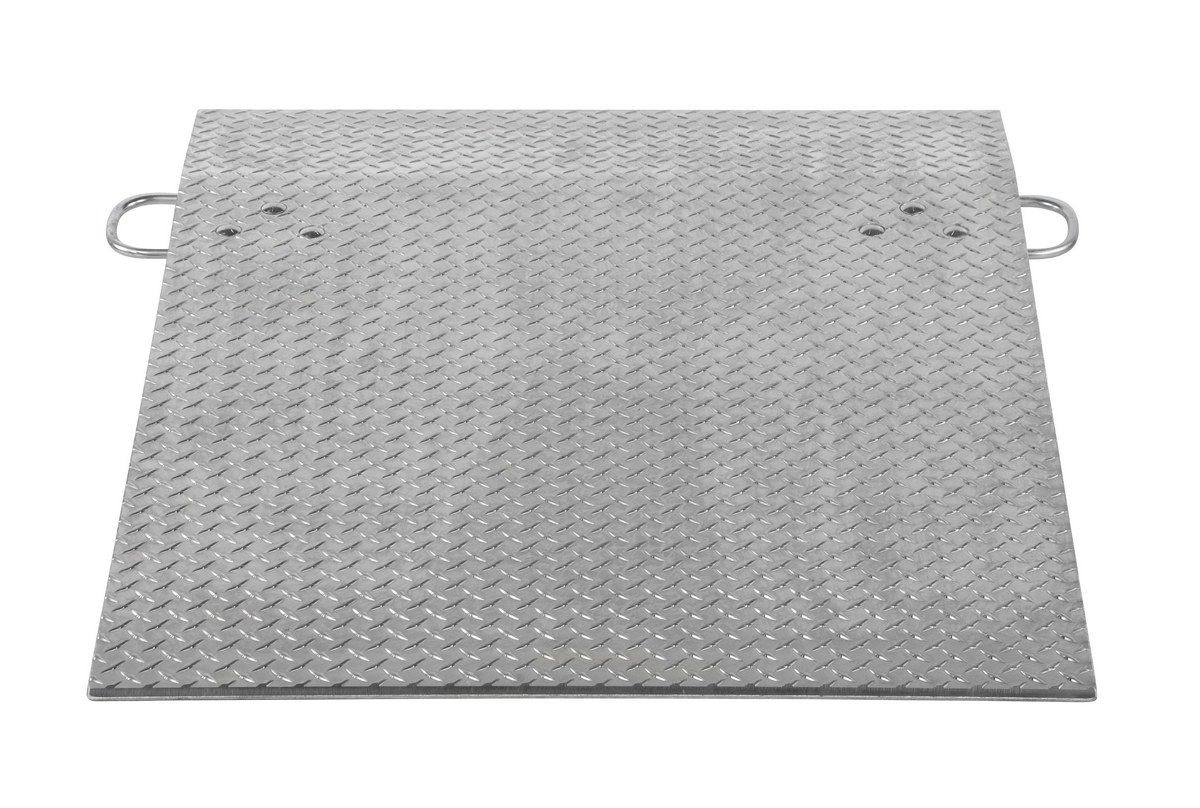

Aluminum Hand Truck Dock Plate 36 In. x 48 In. 700 Lb. Capacity Silver

Aluminum Hand Truck Dock Board for Trailer Loading, Dock Access, and Material Transfer, 700 lb. Capacity with 36 in. x 48 in.
This Aluminum Hand Truck dock plate is designed for use with two (2) wheel hand trucks. It is a convenient, safe, and easy way to access loading docks from trucks. This dock plate is lightweight and easily transported by just one person. The tread plate surface ensures skid-resistant safe traction and the locking legs secure the plate for safe loading and unloading. Complete with bolt-on zinc plated carrying handles and locking legs.
Product Status
Available QuickShip
Key Features
  • Lightweight design is ideal for foot or hand truck traffic
  • Beveled entrance and exit edges provide smooth transition
  • Tread plate surface ensures skid-resistant safe traction
  • Zinc-plated locking legs and lifting handles for OSHA compliance
Quick Actions

Product Resources

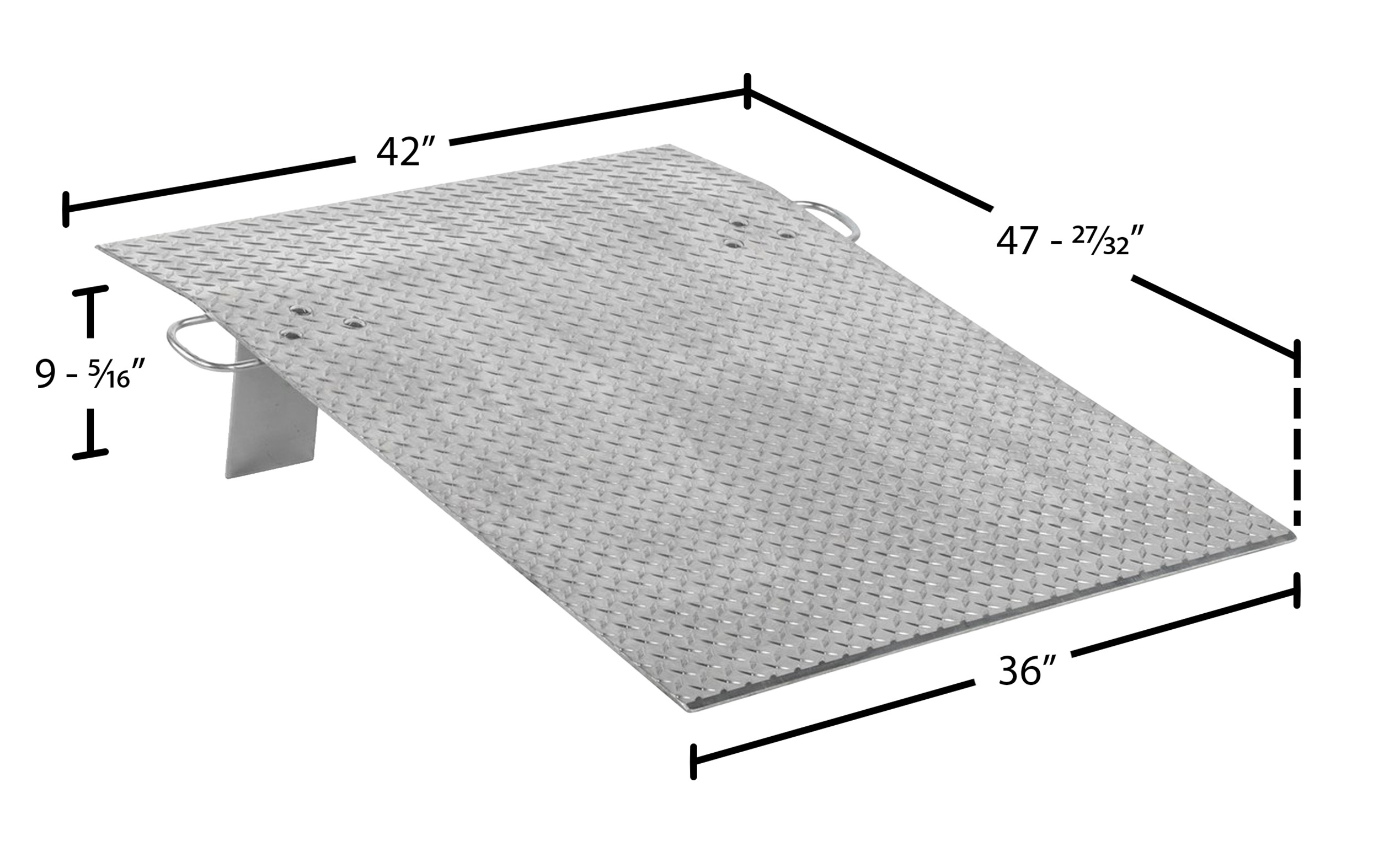

Image Gallery View product images Dimensions Open dimensioned image Contact Vestil Ask about this product
Documents

PDFs & Product Files

  Approval Drawing   Testing Certificate   A, AH, E, EH Dockboards Manual   Label Page PDF   90 Days Warranty
Product Data

Core Data

Assembled Weight 68 lbs
Assembled Size 42"W x 48"L x 9.3125"H
Total Ship Weight 64 lbs
Package 1 Size 36"W x 48"D x 3"H
Color / Finish Silver
Freight Type Parcel

Additional Attributes

Uniform Capacity (lb.) 700
Bend or Crown (degrees) 11
Distance Between Bend or Crown From Dockplate Edge (in.) 9
Usable Width (in.) 36
Usable Length (in.) 48
Plate Thickness (in.) 5/16
Height Difference Between Truck and Door (in.) 7
Extended Product Details

Marketing Specs.

MFG Model # (Series)
AH-3648
Product Name
Aluminum Hand Truck Dock Plate 36 In. x 48 In. 700 Lb. Capacity Silver
UPC
691215001113
GTIN
00691215001113
Taxonomy 1
Material Handling
Taxonomy 2
Loading Dock Equipment
Taxonomy 3
Dockplates
Assembled Depth (in.)
48
Assembled Width(in.)
42
Assembled Height(in.)
9.3125
Assembled Weight(lbs.)
68
Color/Finish
Silver
Material
Aluminum
Option? Y/N
N
Sell UOM
EA-Each
Country Of Origin
US
Approval Drawing Required? Y/N
N
Assembly
Assembly required

Logistics

Packaging Level
BASE_UNIT_OR_EACH
Package Depth (in.)
48
Package Width (in.)
36
Package Height (in.)
3
Package Weight (in.)
50
Subclass
1
Freight Class
100
NMFC Code
Ramps Dockboards freight loading not mechanical
NMFC Number
168720
Package 2 Depth (in.)
13
Package 2 Width (in.)
11
Package 2 Height (in.)
8
Package 2 Weight (lbs.)
14
Package 2 Subclass
9
Package 2 Freight Class
70
Package2 NMFC Number
95190
LTL Freight
Parcel
UNSPSC
24101807
HTSUS Number
7610.90.0080
USMCA HS
7610.90
Origin Criterion
B
Certification Indicator
D
ECCN
EAR99
US Shipping Point
Angola, IN
Supplier Postal Code
46703
Hazardous Material? Yes/No
No
MSDS? Yes/No
No
Batteries Included?
No

Warranty

Warranty
Yes
Manufactuer Warranty
90 Days Limited Warranty
Warranty Type
Limited - Parts
Cancelable? Y/N
Y
Returnable? Y/N
Y
California Prop 65 Compliant?
Unknown

Prop 65 Warning

Copyright © 2026 All Rights Reserved, Vestil Manufacturing Corp.

Details For Model: AH-3648

AH-3648

Aluminum Hand Truck Dock Plate 36 In. x 48 In. 700 Lb. Capacity Silver

This Aluminum Hand Truck dock plate is designed for use with two (2) wheel hand trucks. It is a convenient, safe, and easy way to access loading docks from trucks. This dock plate is lightweight and easily transported by just one person. The tread plate surface ensures skid-resistant safe traction and the locking legs secure the plate for safe loading and unloading. Complete with bolt-on zinc plated carrying handles and locking legs.

  • Lightweight design is ideal for foot or hand truck traffic
  • Beveled entrance and exit edges provide smooth transition
  • Tread plate surface ensures skid-resistant safe traction
  • Zinc-plated locking legs and lifting handles for OSHA compliance

Core Data

Assembled Weight: 68 Assembled Size: 42"W x 48"L x 9.3125"H Color: Silver
Total Ship Weight: 64 Package 1 Size: 36"W x 48"D x 3"H Freight: Parcel

Specifications

Uniform Capacity (lb.): 700
Bend or Crown (degrees): 11
Distance Between Bend or Crown From Dockplate Edge (in.): 9
Usable Width (in.): 36
Usable Length (in.): 48
Plate Thickness (in.): 5/16
Height Difference Between Truck and Door (in.): 7
