Aluminum Adjustable Height Gantry Crane with V-Groove Cast Iron Casters 15 Ft. Wide x 10 Ft. Max Usable Height 2,000 Lb. Capacity Silver

Adjustable Height Aluminum Gantry Crane for Overhead Load Lifting and Controlled Positioning, 2,000 lb. Capacity with 15 ft. Wide, Silver Finish – Model AHA-2-15-10-VG

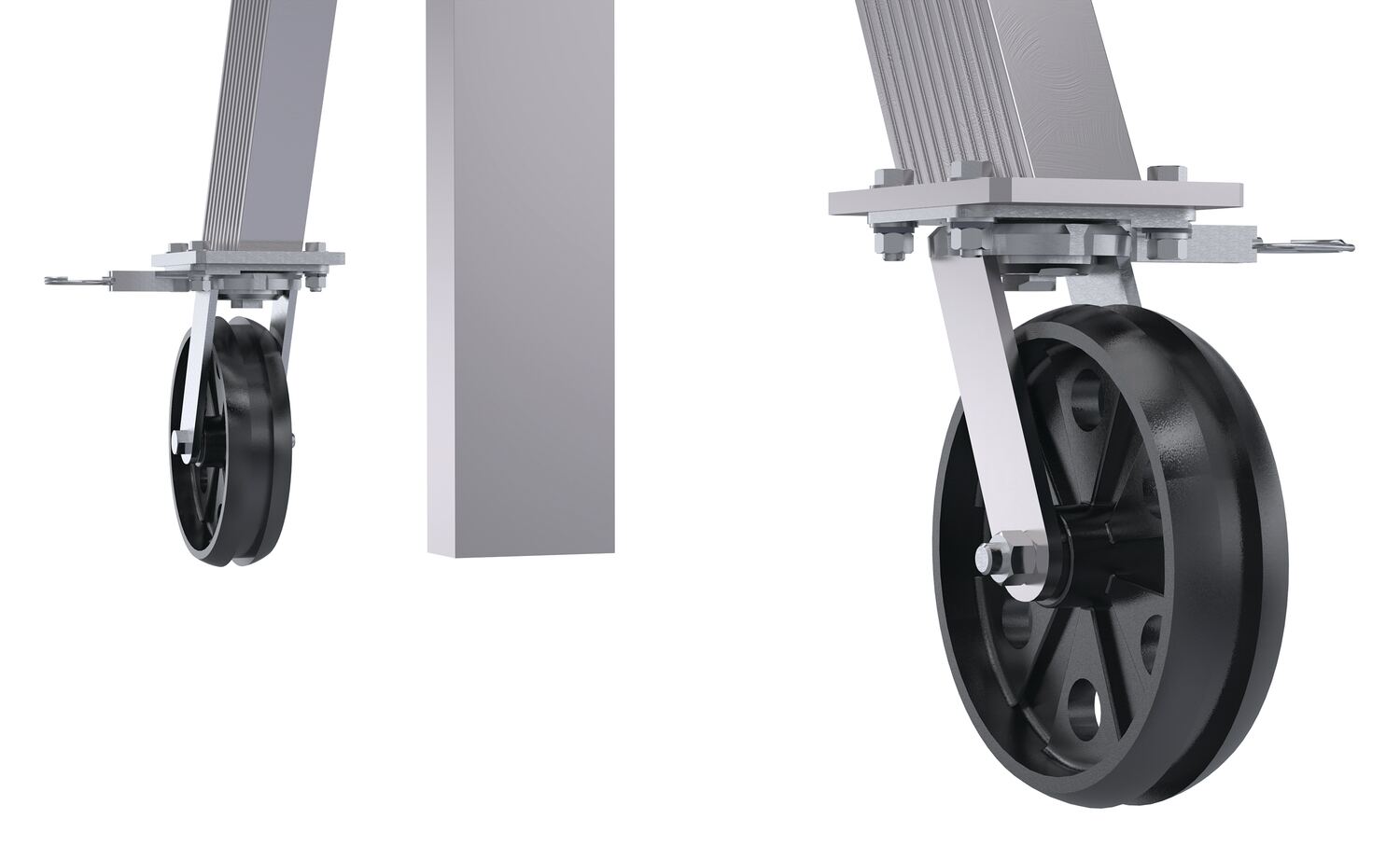

The adjustable height Aluminum Gantry crane combines lightweight and rigid, sturdy construction into one unit. The all aluminum construction of this gantry crane makes it corrosion resistant and perfect for outdoor use. The lightweight I-beam allows simple height adjustments. All pinned connections make it possible for single person set up and take down in just minutes. Included are two straps, allowing one person to transport the gantry crane in one neat package. Unit comes standard four (4) V-groove casters, allowing for quick movement and positioning adjustments.
Product Status
Available QuickShip
Key Features
  • Heavy-duty welded aluminum construction for long lasting use
  • Easy adjustable height can be done with fork truck or other overhead lifting device
  • Beam length allows for use with items, both large and small
  • All units comply with applicable CMAA and ANSI specifications
Quick Actions

Product Resources

Image Gallery View product images Contact Vestil Ask about this product
Documents

PDFs & Product Files

  Testing Certificate   Aluminum Jib Crane Manual   Label Page PDF   1 Year Warranty
Product Data

Core Data

Assembled Weight 337 lbs
Assembled Size 53.8125"W x 180"L x 130"H
Total Ship Weight 364 lbs
Package 1 Size 29"W x 180"D x 20"H
Color / Finish Silver
Freight Type LTL Palletized

Additional Attributes

Uniform Capacity (lb.) 2,000
Adjustable Clearance Range (in.) 92 to 122
Beam Height (in.) 8
Overall Beam Length (in.) 180
Usable Beam Length (in.) 156-1/4
Flange Width (in.) 4-3/16
Increment Height Adjustment (in.) 6
Caster Qty/Diameter/Width (in.) (4) 8 x 2
Caster Material Cast Iron
Extended Product Details

Marketing Specs.

MFG Model # (Series)
AHA-2-15-10-VG
Product Name
Aluminum Adjustable Height Gantry Crane with V-Groove Cast Iron Casters 15 Ft. Wide x 10 Ft. Max Usable Height 2,000 Lb. Capacity Silver
UPC
691215365116
GTIN
00691215365116
Taxonomy 1
Material Handling
Taxonomy 2
Lifting Equipment
Taxonomy 3
Cranes
Taxonomy 4
Gantry
Assembled Depth (in.)
180
Assembled Width(in.)
53.8125
Assembled Height(in.)
130
Assembled Weight(lbs.)
337
Color/Finish
Silver
Material
Aluminum
Option? Y/N
N
Sell UOM
EA-Each
Country Of Origin
US
Approval Drawing Required? Y/N
N
Assembly
Assembly required

Logistics

Packaging Level
BASE_UNIT_OR_EACH
Package Depth (in.)
180
Package Width (in.)
29
Package Height (in.)
20
Package Weight (in.)
364
Subclass
8
Freight Class
175
NMFC Code
MACHINERY GROUP
NMFC Number
133300
LTL Freight
LTL Palletized
UNSPSC
24101654
HTSUS Number
8426.19.0000
USMCA HS
8426.19
Origin Criterion
B
Certification Indicator
D
ECCN
EAR99
US Shipping Point
Angola, IN
Supplier Postal Code
46703
Hazardous Material? Yes/No
No
MSDS? Yes/No
No
Batteries Included?
No

Warranty

Warranty
Yes
Manufactuer Warranty
1 Year Limited Warranty
Warranty Type
Limited - Parts
Cancelable? Y/N
Y
Returnable? Y/N
Y
California Prop 65 Compliant?
Unknown

Prop 65 Warning

Copyright © 2026 All Rights Reserved, Vestil Manufacturing Corp.

Details For Model: AHA-2-15-10-VG

AHA-2-15-10-VG

Aluminum Adjustable Height Gantry Crane with V-Groove Cast Iron Casters 15 Ft. Wide x 10 Ft. Max Usable Height 2,000 Lb. Capacity Silver

The adjustable height Aluminum Gantry crane combines lightweight and rigid, sturdy construction into one unit. The all aluminum construction of this gantry crane makes it corrosion resistant and perfect for outdoor use. The lightweight I-beam allows simple height adjustments. All pinned connections make it possible for single person set up and take down in just minutes. Included are two straps, allowing one person to transport the gantry crane in one neat package. Unit comes standard four (4) V-groove casters, allowing for quick movement and positioning adjustments.

  • Heavy-duty welded aluminum construction for long lasting use
  • Easy adjustable height can be done with fork truck or other overhead lifting device
  • Beam length allows for use with items, both large and small
  • All units comply with applicable CMAA and ANSI specifications

Core Data

Assembled Weight: 337 Assembled Size: 53.8125"W x 180"L x 130"H Color: Silver
Total Ship Weight: 364 Package 1 Size: 29"W x 180"D x 20"H Freight: LTL Palletized

Specifications

Uniform Capacity (lb.): 2,000
Adjustable Clearance Range (in.): 92 to 122
Beam Height (in.): 8
Overall Beam Length (in.): 180
Usable Beam Length (in.): 156-1/4
Flange Width (in.): 4-3/16
Increment Height Adjustment (in.): 6
Caster Qty/Diameter/Width (in.): (4) 8 x 2
Caster Material: Cast Iron
