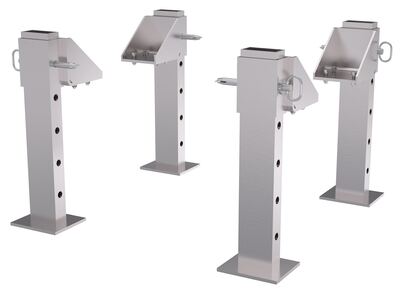

Aluminum Adjustable Height Retro Fit Kit 4,000 Lb. Capacity

Aluminum Adjustable Height Retro Fit Kit 4,000 Lb. Capacity for Overhead Load Lifting and Controlled Positioning, 4,000 lb. Capacity
A retro-fit kit allows an already working crane to be transformed into an even more foundation ally sound design. With a simple installation process, the retro fit kit lets the gantry crane be height adjustable at all four legs. Adjustment can be made in increments, utilizing the pre drilled holes.
Product Status
Available
Key Features
  • Set of 4
  • Quick attachment to existing crane
  • Flat footed design provides surface stability
  • Aluminum construction
Quick Actions

Product Resources

Image Gallery View product images Contact Vestil Ask about this product
Documents

PDFs & Product Files

  Approval Drawing   Testing Certificate   Aluminum Jib Crane Manual   1 Year Warranty
Product Data

Core Data

Assembled Weight 13 lbs
Assembled Size 7"W x 11.125"L x 23.625"H
Total Ship Weight 54 lbs
Package 1 Size 24"W x 24"D x 12"H
Color / Finish Silver
Freight Type Parcel

Additional Attributes

Uniform Capacity (lbs.) 4,000
Lowered Height (in.) 1.5
Raised Height (in.) 17.5
Base Plate Width (in.) 6
Base Plate Width (in.) 7
Overall Width (in.) 12-3/8
Usable Width (in.) 7-3/4
Overall Length (in.) 9-1/4
Usable Length (in.) 7-3/4
Overall height (in.) 23-5/8
Height to Bottom of Gantry Pad Adjustable (in.) 1-1/2 to 17-1/2
Extended Product Details

Marketing Specs.

MFG Model # (Series)
AHA-4-ALO-RF
Product Name
Aluminum Adjustable Height Retro Fit Kit 4,000 Lb. Capacity
UPC
691215373586
GTIN
00691215373586
Taxonomy 1
Material Handling
Taxonomy 2
Lifting Equipment
Taxonomy 3
Cranes
Taxonomy 4
Gantry
Assembled Depth (in.)
11.125
Assembled Width(in.)
7
Assembled Height(in.)
23.625
Assembled Weight(lbs.)
13
Color/Finish
Silver
Material
Aluminum
Option? Y/N
Y
Sell UOM
ST-Set
Country Of Origin
US
Approval Drawing Required? Y/N
N
Assembly
Assembly required

Logistics

Packaging Level
PACK_OR_INNER_PACK
Package Depth (in.)
24
Package Width (in.)
24
Package Height (in.)
12
Package Weight (in.)
54
Subclass
9
Freight Class
100
NMFC Code
Machinery Group
NMFC Number
133300
LTL Freight
Parcel
UNSPSC
24101654
HTSUS Number
8426.19.0000
USMCA HS
8426.19
Origin Criterion
B
Certification Indicator
D
ECCN
EAR99
US Shipping Point
Angola, IN
Supplier Postal Code
46703
Hazardous Material? Yes/No
No
MSDS? Yes/No
No
Batteries Included?
No

Warranty

Warranty
Yes
Manufactuer Warranty
1 Year Limited Warranty
Warranty Type
Limited - Parts
Cancelable? Y/N
Y
Returnable? Y/N
Y
California Prop 65 Compliant?
Unknown

Prop 65 Warning

Copyright © 2026 All Rights Reserved, Vestil Manufacturing Corp.

Details For Model: AHA-4-ALO-RF

AHA-4-ALO-RF

Aluminum Adjustable Height Retro Fit Kit 4,000 Lb. Capacity

A retro-fit kit allows an already working crane to be transformed into an even more foundation ally sound design. With a simple installation process, the retro fit kit lets the gantry crane be height adjustable at all four legs. Adjustment can be made in increments, utilizing the pre drilled holes.

  • Set of 4
  • Quick attachment to existing crane
  • Flat footed design provides surface stability
  • Aluminum construction

Core Data

Assembled Weight: 13 Assembled Size: 7"W x 11.125"L x 23.625"H Color: Silver
Total Ship Weight: 54 Package 1 Size: 24"W x 24"D x 12"H Freight: Parcel

Specifications

Uniform Capacity (lbs.): 4,000
Lowered Height (in.): 1.5
Raised Height (in.): 17.5
Base Plate Width (in.): 6
Base Plate Width (in.): 7
Overall Width (in.): 12-3/8
Usable Width (in.): 7-3/4
Overall Length (in.): 9-1/4
Usable Length (in.): 7-3/4
Overall height (in.): 23-5/8
Height to Bottom of Gantry Pad Adjustable (in.): 1-1/2 to 17-1/2
