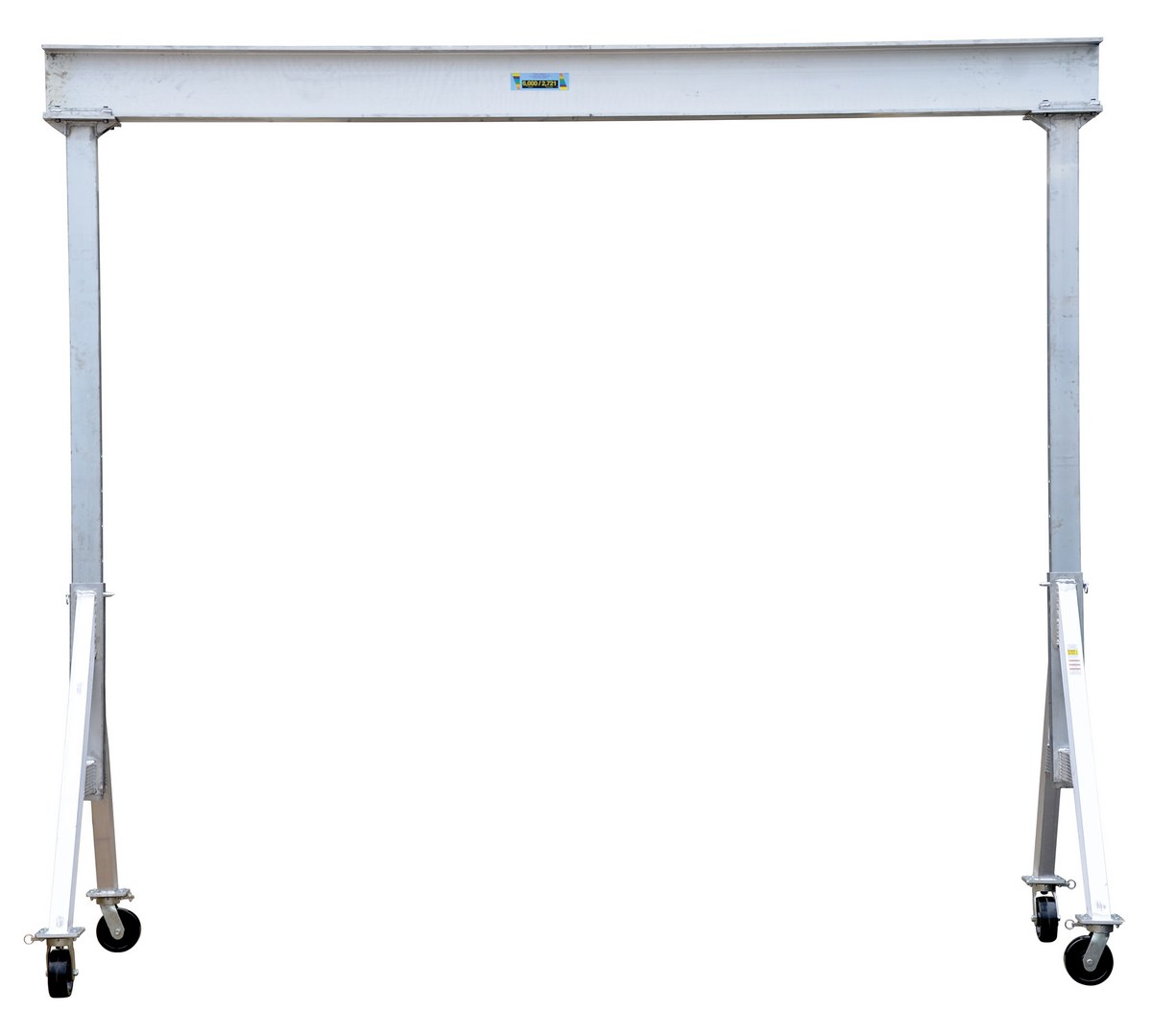

Aluminum Adjustable Height Gantry Crane with Phenolic Casters 15 Ft.Wide x 12 Ft. Max Usable Height 6,000 Lb. Capacity Silver

Adjustable Height Aluminum Gantry Crane for Overhead Load Lifting and Controlled Positioning, 6,000 lb. Capacity, Silver Finish – Model AHA-6-15-12
The adjustable height Aluminum Gantry crane combines lightweight and rigid, sturdy construction into one unit. The all aluminum construction of this gantry crane makes it corrosion resistant and perfect for outdoor use. The lightweight I-beam allows for simple height adjustments. All pinned connections make it possible for single person set up and take down in just minutes. Included are two (2) straps, allowing one person to transport the gantry crane in one neat package.
Product Status
Available
Key Features
  • Heavy-duty welded aluminum construction for long lasting use
  • Each unit includes four swivel phenolic casters with four-way position locks for safe positioning
  • Easy adjustable height can be done with fork truck or other overhead lifting device
  • All units comply with applicable CMAA and ANSI specifications
Quick Actions

Product Resources

Image Gallery View product images Contact Vestil Ask about this product
Documents

PDFs & Product Files

  Approval Drawing   Testing Certificate   Aluminum Jib Crane Manual   Come-Along kit for height adjustment   Label Page PDF   1 Year Warranty
Product Data

Core Data

Assembled Weight 613 lbs
Assembled Size 64.6875"W x 180"L x 158"H
Total Ship Weight 701 lbs
Package 1 Size 64"W x 64"D x 20"H
Color / Finish Silver
Freight Type LTL Palletized

Additional Attributes

Uniform Capacity (lb.) 6,000
Overall I-Beam Length (ft.) 15
I-Beam Height (In.) 12
I-Beam Flange Width (in.) 7
Under I-Beam Range (in.) 122 to 146
Base Width (in.) 64-11/16
Caster Quantity/Diameter/Width (in.) (4) 8 x 3
Caster Type Swivel (4) Position Locking Casters
Caster Material Phenolic
Caster Top Plate (in.) 4 x 4 1/2
Usable Trolley Travel Distance (in.) 156-1/4
Increment Height Adjustment (in.) 6
Extended Product Details

Marketing Specs.

MFG Model # (Series)
AHA-6-15-12
Product Name
Aluminum Adjustable Height Gantry Crane with Phenolic Casters 15 Ft.Wide x 12 Ft. Max Usable Height 6,000 Lb. Capacity Silver
UPC
691215066228
GTIN
00691215066228
Taxonomy 1
Material Handling
Taxonomy 2
Lifting Equipment
Taxonomy 3
Cranes
Taxonomy 4
Gantry
Assembled Depth (in.)
180
Assembled Width(in.)
64.6875
Assembled Height(in.)
158
Assembled Weight(lbs.)
613
Color/Finish
Silver
Material
Aluminum
Option? Y/N
N
Sell UOM
EA-Each
Country Of Origin
US
Approval Drawing Required? Y/N
N
Assembly
Assembly required

Logistics

Packaging Level
BASE_UNIT_OR_EACH
Package Depth (in.)
64
Package Width (in.)
64
Package Height (in.)
20
Package Weight (in.)
217
Subclass
8
Freight Class
175
NMFC Code
MACHINERY GROUP
NMFC Number
133300
Package 2 Depth (in.)
180
Package 2 Width (in.)
29
Package 2 Height (in.)
20
Package 2 Weight (lbs.)
484
Package 2 Subclass
8
Package 2 Freight Class
175
Package2 NMFC Number
133300
LTL Freight
LTL Palletized
UNSPSC
24101654
HTSUS Number
8426.19.0000
USMCA HS
8426.19
Origin Criterion
B
Certification Indicator
D
ECCN
EAR99
US Shipping Point
Angola, IN
Supplier Postal Code
46703
Hazardous Material? Yes/No
No
MSDS? Yes/No
No
Batteries Included?
No

Warranty

Warranty
Yes
Manufactuer Warranty
1 Year Limited Warranty
Warranty Type
Limited - Parts
Cancelable? Y/N
Y
Returnable? Y/N
Y
California Prop 65 Compliant?
Unknown

Prop 65 Warning
