AHA-PNU-RF
AHA-PNU-RF
AHA-PNU-RF
AHA-PNU-RF
AHA-PNU-RF

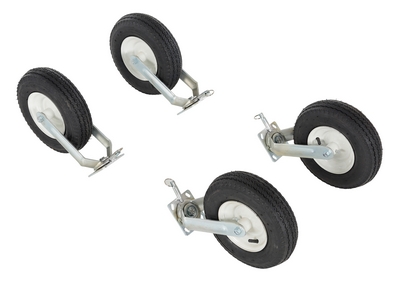

Pneumatic Rubber Casters 12 In. x 3-1/2 In. Swivel 4-Position Lock Casters 1,500 Lb. Capacity Black/White

Pneumatic Swivel Steel Gantry Casters for Overhead Load Lifting and Controlled Positioning, 1,500 lb. Capacity with 12 in. x 3-1/2 in.
Aluminum Gantry crane option, retrofit four-way lock pneumatic casters.
Product Status
Available
Key Features
  • Optional retrofit four-way locking pneumatic casters for ideal operation
  • Ideal for aluminum gantry cranes for maximum efficiency
  • Features durable construction for added strength and long life
  • Use in industrial applications for optimal results
Quick Actions

Product Resources

Image Gallery View product images Contact Vestil Ask about this product
Documents

PDFs & Product Files

  Aluminum Jib Crane Manual   90 Days Warranty
Product Data

Core Data

Assembled Weight 20 lbs
Assembled Size 4"W x 12"L x 15.75"H
Total Ship Weight 48 lbs
Package 1 Size 11"W x 18"D x 9"H
Color / Finish Black / White
Freight Type Parcel

Additional Attributes

Capacity (lb.) 1500
Caster Material Pneumatic
Set (qty.) 4
Caster Type Swivel 4 Position Lock
Caster Diameter/Width (in.) 12 x 3-1/2
Plate Size Width/Length (in.) 4-1/2 x 4
Mounting Slots (in.) 7/16 x 3/4
Extended Product Details

Marketing Specs.

MFG Model # (Series)
AHA-PNU-RF
Product Name
Pneumatic Rubber Casters 12 In. x 3-1/2 In. Swivel 4-Position Lock Casters 1,500 Lb. Capacity Black/White
UPC
691215001366
GTIN
00691215001366
Taxonomy 1
Hardware
Taxonomy 2
Builders Hardware
Taxonomy 3
Casters & Glides
Taxonomy 4
Kits & Variety Packs
Assembled Depth (in.)
12
Assembled Width(in.)
4
Assembled Height(in.)
15.75
Assembled Weight(lbs.)
20
Color/Finish
Black / White
Material
Rubber/Pneumatic
Option? Y/N
Y
Sell UOM
ST-Set
Country Of Origin
US
Approval Drawing Required? Y/N
N
Assembly
Assembled
Compatible Products
AHA-2-10-10, AHA-2-10-12, AHA-2-10-8, AHA-2-12-10, AHA-2-12-12, AHA-2-12-8, AHA-2-15-10, AHA-2-15-12, AHA-2-15-8, AHA-2-8-10, AHA-2-8-12, AHA-2-8-8

Logistics

Packaging Level
PACK_OR_INNER_PACK
Package Depth (in.)
18
Package Width (in.)
11
Package Height (in.)
9
Package Weight (in.)
48
Freight Class
65
NMFC Code
Casters NOI in bags boxes or drums
NMFC Number
41725
LTL Freight
Parcel
UNSPSC
24101654
HTSUS Number
8431.20.0000
USMCA HS
8431.20
Origin Criterion
B
Certification Indicator
D
ECCN
EAR99
US Shipping Point
Angola, IN
Supplier Postal Code
46703
Hazardous Material? Yes/No
No
MSDS? Yes/No
No
Batteries Included?
No

Warranty

Warranty
Yes
Manufactuer Warranty
90 Days Limited Warranty
Warranty Type
Limited - Parts
Cancelable? Y/N
Y
Returnable? Y/N
Y
California Prop 65 Compliant?
Unknown

Prop 65 Warning

Copyright © 2026 All Rights Reserved, Vestil Manufacturing Corp.

Details For Model: AHA-PNU-RF

AHA-PNU-RF

Pneumatic Rubber Casters 12 In. x 3-1/2 In. Swivel 4-Position Lock Casters 1,500 Lb. Capacity Black/White

Aluminum Gantry crane option, retrofit four-way lock pneumatic casters.

  • Optional retrofit four-way locking pneumatic casters for ideal operation
  • Ideal for aluminum gantry cranes for maximum efficiency
  • Features durable construction for added strength and long life
  • Use in industrial applications for optimal results

Core Data

Assembled Weight: 20 Assembled Size: 4"W x 12"L x 15.75"H Color: Black / White
Total Ship Weight: 48 Package 1 Size: 11"W x 18"D x 9"H Freight: Parcel

Specifications

Capacity (lb.): 1500
Caster Material: Pneumatic
Set (qty.): 4
Caster Type: Swivel 4 Position Lock
Caster Diameter/Width (in.): 12 x 3-1/2
Plate Size Width/Length (in.): 4-1/2 x 4
Mounting Slots (in.): 7/16 x 3/4
