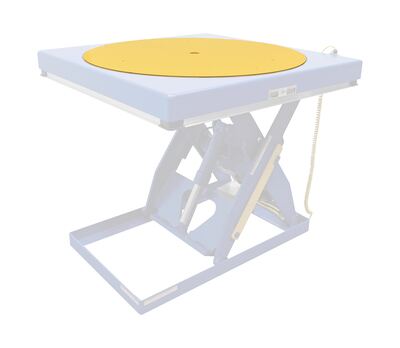

Factory Installed Steel Built-In Flush Mounted Manual Carousel For Scissor Lift Tables 300 Lb. Capacity Blue

Manual Carousel for Ergonomic Load Lifting and Workstation Positioning, 300 lb. Capacity
Optional manual built-In carousel positions pallets, boxes, or crates without ever stepping around the table. The sleek flush mounted carousel is easy to operate and rotates smoothly. A safety detent lock restricts carousel rotation when not in use. The carousel adds one (1) inch to the scissor table service range. The scissor table is not included and the option is only available on a new table purchase.
Product Status
Temporarily Unavailable - Please Contact Sales Non-Returnable
Key Features
  • Optional longer lip for ideal operation
  • Ideal for a dock leveler unit for maximum efficiency
  • Features durable construction for added strength and long life
  • Use in industrial applications for optimal results
Quick Actions

Product Resources

Image Gallery View product images Contact Vestil Ask about this product
Documents

PDFs & Product Files

  Testing Certificate   AHLT, MANUAL   90 Days Warranty
Product Data

Core Data

Assembled Weight 450 lbs
Assembled Size 48"W x 48"L x 1"H
Total Ship Weight 805 lbs
Package 1 Size 45"W x 45"D x 1"H
Color / Finish Blue
Freight Type LTL Loose

Additional Attributes

Maximum Uniform Capacity (lb.) 4000
De-rates Table Capacity (lb.) 300
Additional Scissor Table Service Range Height (in.) 1
Diameter (in.) 45
Platform Minimum Width/Length (in.) 48 x 48
Rotation Degree 360
Extended Product Details

Marketing Specs.

MFG Model # (Series)
AHLT-ROTATE
Product Name
Factory Installed Steel Built-In Flush Mounted Manual Carousel For Scissor Lift Tables 300 Lb. Capacity Blue
UPC
691215232425
GTIN
00691215232425
Taxonomy 1
Material Handling
Taxonomy 2
Turntables
Taxonomy 3
Manual
Assembled Depth (in.)
48
Assembled Width(in.)
48
Assembled Height(in.)
1
Assembled Weight(lbs.)
450
Color/Finish
Blue
Material
Steel
Option? Y/N
Y
Sell UOM
EA-Each
Country Of Origin
US
Approval Drawing Required? Y/N
N
Assembly
Assembled
Compatible Products
AHLT-4848-3-43, AHLT-4872-3-43

Logistics

Packaging Level
BASE_UNIT_OR_EACH
Package Depth (in.)
45
Package Width (in.)
45
Package Height (in.)
1
Package Weight (in.)
350
Subclass
20
Freight Class
55
NMFC Code
Conveyors Elevators or Lifts NOI
NMFC Number
120700
Package 2 Depth (in.)
97
Package 2 Width (in.)
44
Package 2 Height (in.)
42
Package 2 Weight (lbs.)
455
Package 2 Freight Class
77.5
Package2 NMFC Number
125820
LTL Freight
LTL Loose
UNSPSC
24101617
HTSUS Number
8431.31.0060
USMCA HS
8431.31
Origin Criterion
B
Certification Indicator
D
ECCN
EAR99
US Shipping Point
Angola, IN
Supplier Postal Code
46703
Hazardous Material? Yes/No
No
MSDS? Yes/No
No
Batteries Included?
No

Warranty

Warranty
Yes
Manufactuer Warranty
90 Days Limited Warranty
Warranty Type
Limited - Parts
Cancelable? Y/N
N
Returnable? Y/N
N
California Prop 65 Compliant?
Unknown

Prop 65 Warning
