Steel Adjustable Height Gantry Crane with V-Groove Ductile Steel Casters 20 Ft.Wide x 12 Ft. Max Usable Height 4,000 Lb. Capacity Blue

Adjustable Height Steel Gantry Crane for Overhead Load Lifting and Controlled Positioning, 4,000 lb. Capacity – Model AHS-4-20-12-VG
The industrial steel Gantry crane is designed for transporting and positioning materials along the beams length. The solid steel construction will provide years of service. Unit comes standard four (4) V-groove casters, allowing for quick movement and positioning adjustments. More economical and flexible than permanent cranes and features a quick setup design. Painted blue finish with warning and operating stickers and complete owner's manual. Designed for semi-permanent or permanent applications. Requires assistance from fork truck to set-up.
Product Status
Available QuickShip
Key Features
  • Heavy-duty welded steel construction for long lasting use
  • Easy adjustable height can be done with fork truck or other overhead lifting device
  • Beam length allows for use with items, both large and small
  • All units comply with applicable CMAA and ANSI specifications
Quick Actions

Product Resources

Image Gallery View product images Contact Vestil Ask about this product
Documents

PDFs & Product Files

  Testing Certificate   Adjustable Height Steel Gantry Crane   Adjustable Height Steel Gantry Crane   Label Page PDF   1 Year Warranty
Product Data

Core Data

Assembled Weight 1016 lbs
Assembled Size 76.125"W x 240"L x 156"H
Total Ship Weight 1075 lbs
Package 1 Size 77"W x 89"D x 19"H
Color / Finish Blue
Freight Type LTL Palletized

Additional Attributes

Uniform Capacity (lb.) 4,000
Adjustable Clearance Range (in.) 90 to 144
Beam Height (in.) 12-3/16
Overall Beam Length (in.) 240
Usable Beam Length (in.) 209-3/4
Flange Width (in.) 4
Increment Height Adjustment (in.) 6

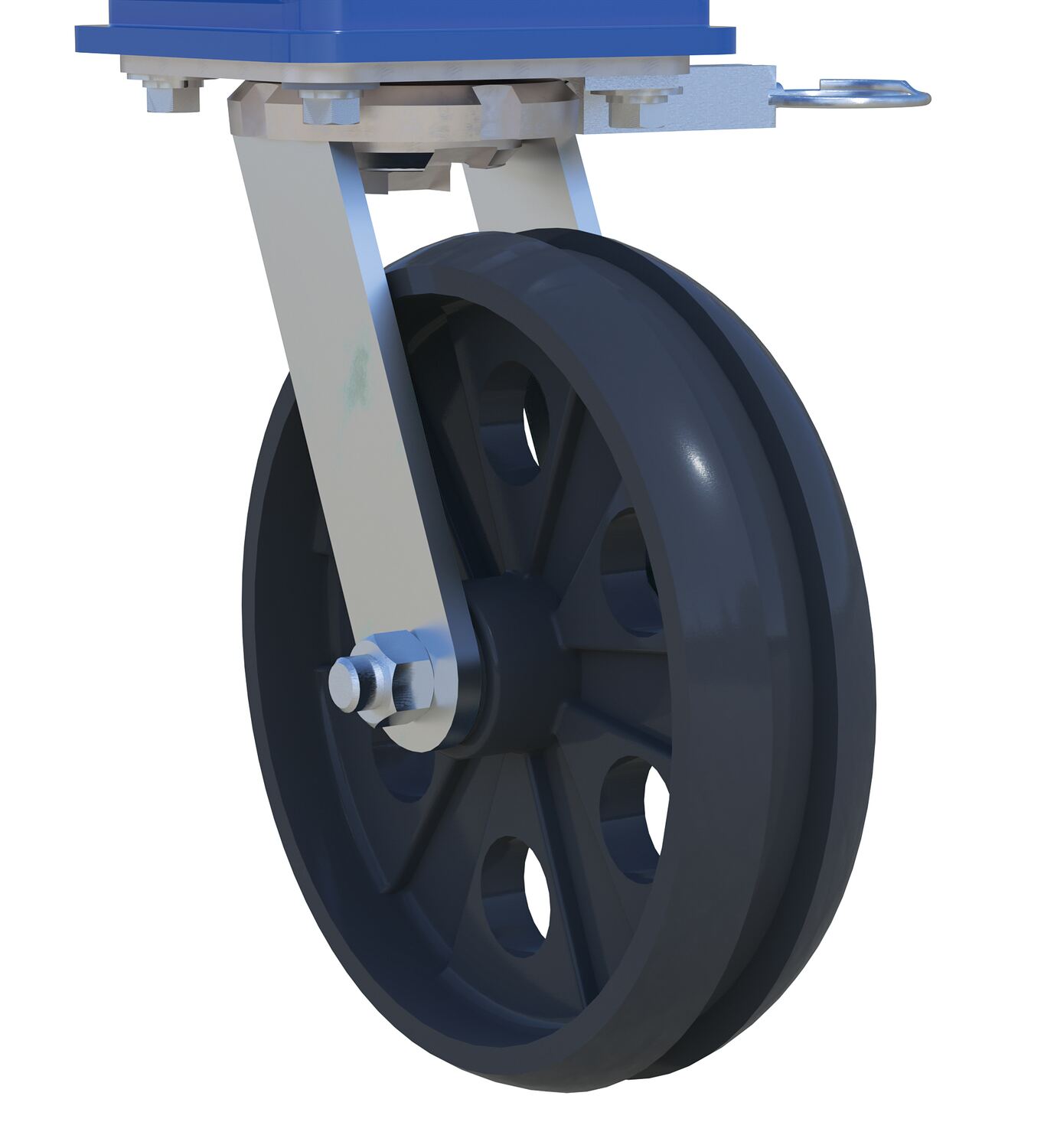

Caster Qty/Diameter/Width (in.) (4) 8 x 3
Caster Material Ductile Steel
Extended Product Details

Marketing Specs.

MFG Model # (Series)
AHS-4-20-12-VG
Product Name
Steel Adjustable Height Gantry Crane with V-Groove Ductile Steel Casters 20 Ft.Wide x 12 Ft. Max Usable Height 4,000 Lb. Capacity Blue
UPC
691215366786
GTIN
00691215366786
Taxonomy 1
Material Handling
Taxonomy 2
Lifting Equipment
Taxonomy 3
Cranes
Taxonomy 4
Gantry
Assembled Depth (in.)
240
Assembled Width(in.)
76.125
Assembled Height(in.)
156
Assembled Weight(lbs.)
1016
Color/Finish
Blue
Material
Steel
Option? Y/N
N
Sell UOM
EA-Each
Country Of Origin
US
Approval Drawing Required? Y/N
N
Assembly
Assembly required

Logistics

Packaging Level
BASE_UNIT_OR_EACH
Package Depth (in.)
89
Package Width (in.)
77
Package Height (in.)
19
Package Weight (in.)
695
Subclass
9
Freight Class
100
NMFC Code
MACHINERY GROUP
NMFC Number
133300
Package 2 Depth (in.)
257
Package 2 Width (in.)
14
Package 2 Height (in.)
12
Package 2 Weight (lbs.)
380
Package 2 Subclass
9
Package 2 Freight Class
100
Package2 NMFC Number
133300
LTL Freight
LTL Palletized
UNSPSC
24101654
HTSUS Number
8426.19.0000
USMCA HS
8426.19
Origin Criterion
B
Certification Indicator
D
ECCN
EAR99
US Shipping Point
Angola, IN
Supplier Postal Code
46703
Hazardous Material? Yes/No
No
MSDS? Yes/No
No
Batteries Included?
No

Warranty

Warranty
Yes
Manufactuer Warranty
1 Year Limited Warranty
Warranty Type
Limited - Parts
Cancelable? Y/N
Y
Returnable? Y/N
Y
California Prop 65 Compliant?
Unknown

Prop 65 Warning

Copyright © 2026 All Rights Reserved, Vestil Manufacturing Corp.

Details For Model: AHS-4-20-12-VG

AHS-4-20-12-VG

Steel Adjustable Height Gantry Crane with V-Groove Ductile Steel Casters 20 Ft.Wide x 12 Ft. Max Usable Height 4,000 Lb. Capacity Blue

The industrial steel Gantry crane is designed for transporting and positioning materials along the beams length. The solid steel construction will provide years of service. Unit comes standard four (4) V-groove casters, allowing for quick movement and positioning adjustments. More economical and flexible than permanent cranes and features a quick setup design. Painted blue finish with warning and operating stickers and complete owner's manual. Designed for semi-permanent or permanent applications. Requires assistance from fork truck to set-up.

  • Heavy-duty welded steel construction for long lasting use
  • Easy adjustable height can be done with fork truck or other overhead lifting device
  • Beam length allows for use with items, both large and small
  • All units comply with applicable CMAA and ANSI specifications

Core Data

Assembled Weight: 1016 Assembled Size: 76.125"W x 240"L x 156"H Color: Blue
Total Ship Weight: 1075 Package 1 Size: 77"W x 89"D x 19"H Freight: LTL Palletized

Specifications

Uniform Capacity (lb.): 4,000
Adjustable Clearance Range (in.): 90 to 144
Beam Height (in.): 12-3/16
Overall Beam Length (in.): 240
Usable Beam Length (in.): 209-3/4
Flange Width (in.): 4
Increment Height Adjustment (in.): 6
Caster Qty/Diameter/Width (in.): (4) 8 x 3
Caster Material: Ductile Steel
