Steel Adjustable Height Gantry Crane with V-Groove Cast Iron Casters 15 Ft. Wide x 9 Ft. Max Usable Height 6,000 Lb. Capacity Blue

Adjustable Height Steel Gantry Crane for Overhead Load Lifting and Controlled Positioning, 6,000 lb. Capacity with 15 ft. Wide, Blue Finish – Model AHS-6-15-9-VG

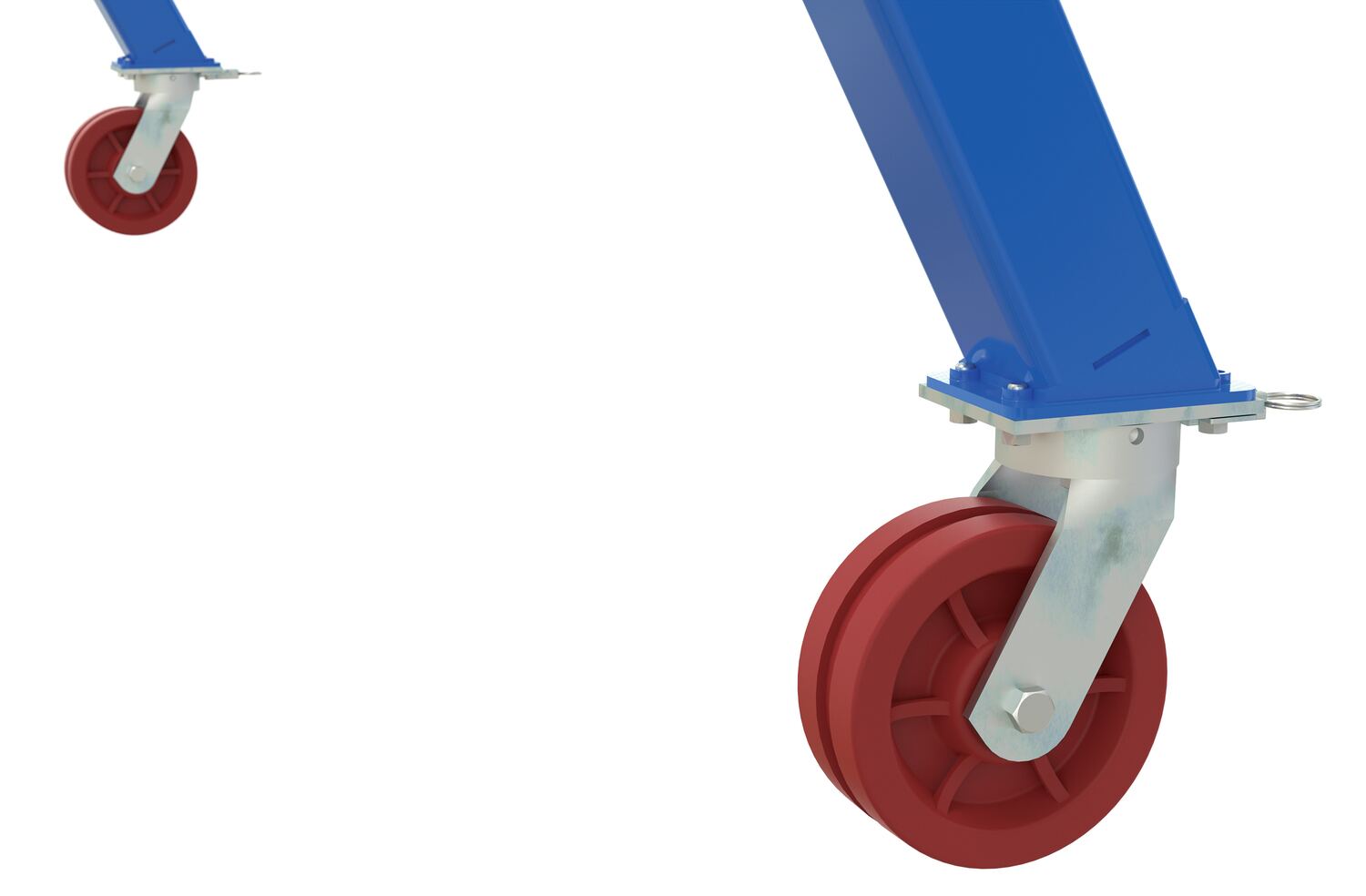

The adjustable height steel gantry crane is designed for transporting and positioning materials along the beams length. The cranes beam height can be adjusted to better conform to the working conditions making it both ergonomically friendly and cost effective. Unit comes standard four (4) V-groove casters, allowing for quick movement and positioning adjustments. Height is adjustable in 6" increments. Do not move units while loaded. Hoist and trolley can be ordered separately. A painted blue finish protects the unit from rust. Designed for semi-permanent or permanent applications.
Product Status
Out of Stock
Key Features
  • Heavy-duty welded steel construction for long lasting use
  • Easy adjustable height can be done with fork truck or other overhead lifting device
  • Beam length allows for use with items, both large and small
  • All units comply with applicable CMAA and ANSI specifications
Quick Actions

Product Resources

Image Gallery View product images Contact Vestil Ask about this product
Documents

PDFs & Product Files

  Testing Certificate   Adjustable Height Steel Gantry Crane   Adjustable Height Steel Gantry Crane   Label Page PDF   1 Year Warranty
Product Data

Core Data

Assembled Weight 847 lbs
Assembled Size 59.625"W x 180"L x 119.3125"H
Total Ship Weight 952 lbs
Package 1 Size 64"W x 66"D x 19"H
Color / Finish Blue
Freight Type LTL Palletized

Additional Attributes

Uniform Capacity (lb.) 6,000
Adjustable Clearance Range (in.) 73 to 109
Beam Height (in.) 10-1/8
Overall Beam Length (in.) 180
Usable Beam Length (in.) 149-3/4
Flange Width (in.) 4
Increment Height Adjustment (in.) 6
Caster Qty/Diameter/Width (in.) (4) 8 x 3
Caster Material Cast Iron
Extended Product Details

Marketing Specs.

MFG Model # (Series)
AHS-6-15-9-VG
Product Name
Steel Adjustable Height Gantry Crane with V-Groove Cast Iron Casters 15 Ft. Wide x 9 Ft. Max Usable Height 6,000 Lb. Capacity Blue
UPC
691215367097
GTIN
00691215367097
Taxonomy 1
Material Handling
Taxonomy 2
Lifting Equipment
Taxonomy 3
Cranes
Taxonomy 4
Gantry
Assembled Depth (in.)
180
Assembled Width(in.)
59.625
Assembled Height(in.)
119.3125
Assembled Weight(lbs.)
847
Color/Finish
Blue
Material
Steel
Option? Y/N
N
Sell UOM
EA-Each
Country Of Origin
US
Approval Drawing Required? Y/N
N
Assembly
Assembly required

Logistics

Packaging Level
BASE_UNIT_OR_EACH
Package Depth (in.)
66
Package Width (in.)
64
Package Height (in.)
19
Package Weight (in.)
661
Subclass
10
Freight Class
77.5
NMFC Code
MACHINERY GROUP
NMFC Number
133300
Package 2 Depth (in.)
192
Package 2 Width (in.)
14
Package 2 Height (in.)
10
Package 2 Weight (lbs.)
291
Package 2 Subclass
10
Package 2 Freight Class
77.5
Package2 NMFC Number
133300
LTL Freight
LTL Palletized
UNSPSC
24101654
HTSUS Number
8426.19.0000
USMCA HS
8426.19
Origin Criterion
B
Certification Indicator
D
ECCN
EAR99
US Shipping Point
Angola, IN
Supplier Postal Code
46703
Hazardous Material? Yes/No
No
MSDS? Yes/No
No
Batteries Included?
No

Warranty

Warranty
Yes
Manufactuer Warranty
1 Year Limited Warranty
Warranty Type
Limited - Parts
Cancelable? Y/N
Y
Returnable? Y/N
Y
California Prop 65 Compliant?
Unknown

Prop 65 Warning

Copyright © 2026 All Rights Reserved, Vestil Manufacturing Corp.

Details For Model: AHS-6-15-9-VG

AHS-6-15-9-VG

Steel Adjustable Height Gantry Crane with V-Groove Cast Iron Casters 15 Ft. Wide x 9 Ft. Max Usable Height 6,000 Lb. Capacity Blue

The adjustable height steel gantry crane is designed for transporting and positioning materials along the beams length. The cranes beam height can be adjusted to better conform to the working conditions making it both ergonomically friendly and cost effective. Unit comes standard four (4) V-groove casters, allowing for quick movement and positioning adjustments. Height is adjustable in 6" increments. Do not move units while loaded. Hoist and trolley can be ordered separately. A painted blue finish protects the unit from rust. Designed for semi-permanent or permanent applications.

  • Heavy-duty welded steel construction for long lasting use
  • Easy adjustable height can be done with fork truck or other overhead lifting device
  • Beam length allows for use with items, both large and small
  • All units comply with applicable CMAA and ANSI specifications

Core Data

Assembled Weight: 847 Assembled Size: 59.625"W x 180"L x 119.3125"H Color: Blue
Total Ship Weight: 952 Package 1 Size: 64"W x 66"D x 19"H Freight: LTL Palletized

Specifications

Uniform Capacity (lb.): 6,000
Adjustable Clearance Range (in.): 73 to 109
Beam Height (in.): 10-1/8
Overall Beam Length (in.): 180
Usable Beam Length (in.): 149-3/4
Flange Width (in.): 4
Increment Height Adjustment (in.): 6
Caster Qty/Diameter/Width (in.): (4) 8 x 3
Caster Material: Cast Iron
