Steel Knock-Down Adjustable Height Gantry Crane with V-Groove Ductile Steel Casters 20 Ft. Wide x 16 Ft. Max Usable Height 6,000 Lb. Capacity Blue

Adjustable Height Steel Gantry Crane for Overhead Load Lifting and Controlled Positioning, 6,000 lb. Capacity with 20 ft. Wide, Blue Finish – Model AHSN-6-20-16-VG

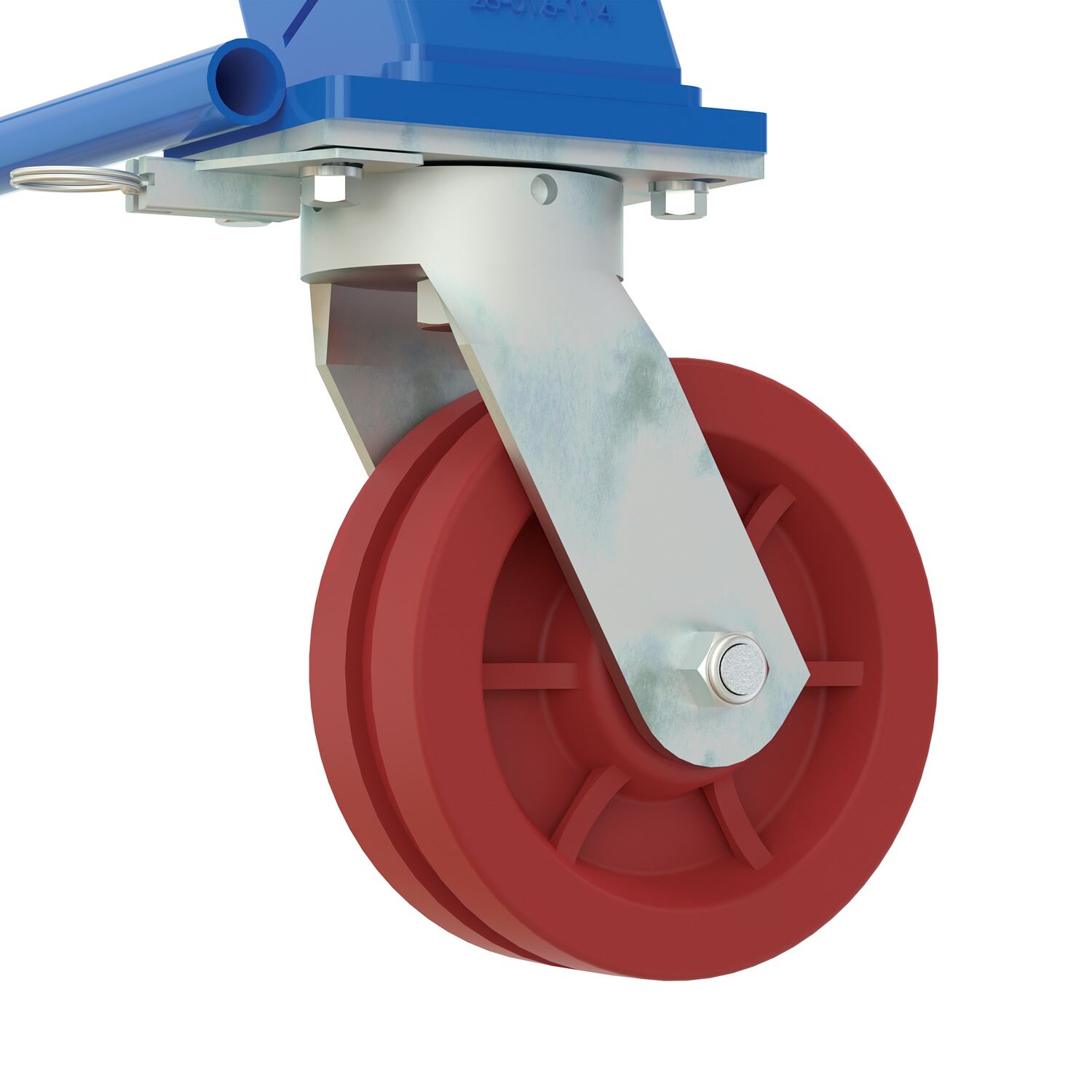

The adjustable height steel gantry crane is designed for transporting and positioning materials along the beams length. The cranes beam height can be adjusted to better conform to the working conditions making it both ergonomically friendly and cost effective. Unit comes standard four (4) V-groove casters, allowing for quick movement and positioning adjustments. Height is adjustable in 6" increments. Do not move units while loaded. Hoist and trolley can be ordered separately. A painted blue finish protects the unit from . Designed for semi-permanent or permanent applications.
Product Status
Available
Key Features
  • Knockdown unit, assembly required
  • Heavy-duty welded steel construction for long lasting use
  • Beam length allows for use with items, both large and small
  • All units comply with applicable CMAA and ANSI specifications
Quick Actions

Product Resources

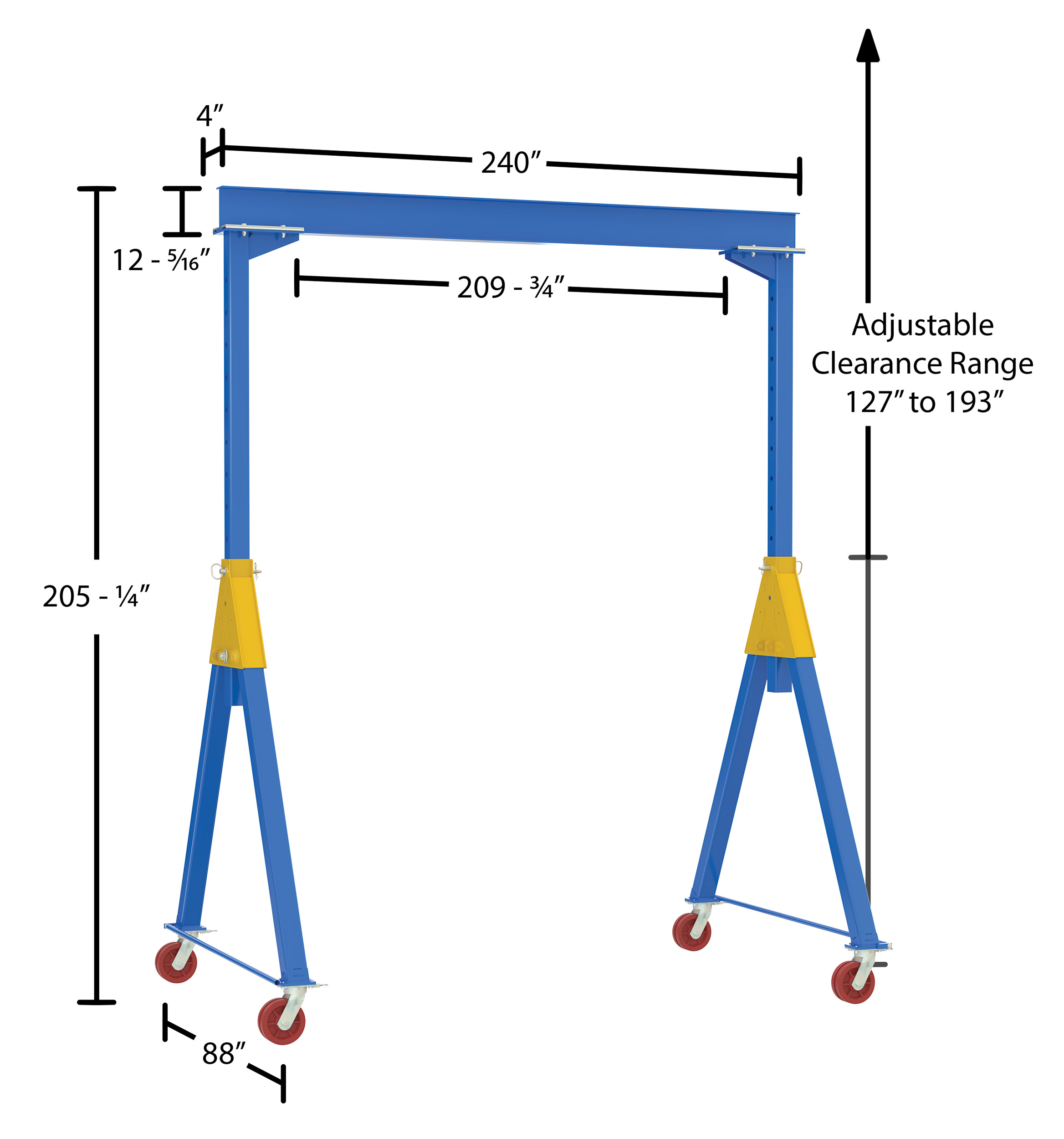

Image Gallery View product images Dimensions Open dimensioned image Contact Vestil Ask about this product
Documents

PDFs & Product Files

  Testing Certificate   Adjustable Steel Gantry Cranes - Knockdown AHSN series   Label Page PDF   1 Year Warranty
Product Data

Core Data

Assembled Weight 1483 lbs
Assembled Size 88"W x 240"L x 205.25"H
Total Ship Weight 1599 lbs
Package 1 Size 89"W x 125"D x 19"H
Color / Finish Blue
Freight Type LTL Palletized

Additional Attributes

Uniform Capacity (lb.) 6,000
Adjustable Clearance Range (in.) 127 to 193
Beam Height (in.) 12-5/16
Overall Beam Length (in.) 240
Usable Beam Length (in.) 209-3/4
Flange Width (in.) 4
Increment Height Adjustment (in.) 6
Swivel Casters w/ Brakes (qty.) 4
Caster Diameter/Width (in.) 8 x 3
Caster Material Ductile Steel
Extended Product Details

Marketing Specs.

MFG Model # (Series)
AHSN-6-20-16-VG
Product Name
Steel Knock-Down Adjustable Height Gantry Crane with V-Groove Ductile Steel Casters 20 Ft. Wide x 16 Ft. Max Usable Height 6,000 Lb. Capacity Blue
UPC
691215366205
GTIN
00691215366205
Taxonomy 1
Material Handling
Taxonomy 2
Lifting Equipment
Taxonomy 3
Cranes
Taxonomy 4
Gantry
Assembled Depth (in.)
240
Assembled Width(in.)
88
Assembled Height(in.)
205.25
Assembled Weight(lbs.)
1483
Color/Finish
Blue
Material
Steel
Option? Y/N
N
Sell UOM
EA-Each
Country Of Origin
US
Approval Drawing Required? Y/N
N
Assembly
Assembly required

Logistics

Packaging Level
BASE_UNIT_OR_EACH
Package Depth (in.)
125
Package Width (in.)
89
Package Height (in.)
19
Package Weight (in.)
959
Subclass
9
Freight Class
100
NMFC Code
Machinery Group
NMFC Number
133300
Package 2 Depth (in.)
240
Package 2 Width (in.)
12
Package 2 Height (in.)
17
Package 2 Weight (lbs.)
640
Package 2 Subclass
9
Package 2 Freight Class
100
Package2 NMFC Number
133300
LTL Freight
LTL Palletized
UNSPSC
24101654
HTSUS Number
8426.19.0000
USMCA HS
8426.19
Origin Criterion
B
Certification Indicator
D
ECCN
EAR99
US Shipping Point
Angola, IN
Supplier Postal Code
46703
Hazardous Material? Yes/No
No
MSDS? Yes/No
No
Batteries Included?
No

Warranty

Warranty
Yes
Manufactuer Warranty
1 Year Limited Warranty
Warranty Type
Limited - Parts
Cancelable? Y/N
Y
Returnable? Y/N
Y
California Prop 65 Compliant?
Unknown

Prop 65 Warning

Copyright © 2026 All Rights Reserved, Vestil Manufacturing Corp.

Details For Model: AHSN-6-20-16-VG

AHSN-6-20-16-VG

Steel Knock-Down Adjustable Height Gantry Crane with V-Groove Ductile Steel Casters 20 Ft. Wide x 16 Ft. Max Usable Height 6,000 Lb. Capacity Blue

The adjustable height steel gantry crane is designed for transporting and positioning materials along the beams length. The cranes beam height can be adjusted to better conform to the working conditions making it both ergonomically friendly and cost effective. Unit comes standard four (4) V-groove casters, allowing for quick movement and positioning adjustments. Height is adjustable in 6" increments. Do not move units while loaded. Hoist and trolley can be ordered separately. A painted blue finish protects the unit from . Designed for semi-permanent or permanent applications.

  • Knockdown unit, assembly required
  • Heavy-duty welded steel construction for long lasting use
  • Beam length allows for use with items, both large and small
  • All units comply with applicable CMAA and ANSI specifications

Core Data

Assembled Weight: 1483 Assembled Size: 88"W x 240"L x 205.25"H Color: Blue
Total Ship Weight: 1599 Package 1 Size: 89"W x 125"D x 19"H Freight: LTL Palletized

Specifications

Uniform Capacity (lb.): 6,000
Adjustable Clearance Range (in.): 127 to 193
Beam Height (in.): 12-5/16
Overall Beam Length (in.): 240
Usable Beam Length (in.): 209-3/4
Flange Width (in.): 4
Increment Height Adjustment (in.): 6
Swivel Casters w/ Brakes (qty.): 4
Caster Diameter/Width (in.): 8 x 3
Caster Material: Ductile Steel
