Aluminum Expand-A-Gate Wall Mount 2-3/4 In. x 20-5/16 In. x 38-5/16 In. Yellow

Aluminum Black and Yellow Gate for Controlled Access and Fall Protection in Work Areas, 2-3/4 in. x 20-5/16 in. x 38-5/16 in.
Expand-A-Gate is designed to set up quickly and easily wherever and whenever needed. Ideal for preventing potential accidents with a lightweight design that allows personnel to quickly retrieve the gate and limit access to unsafe areas. The unit has a smooth operating scissor action that can be interlocking or nestable. Rolls smoothly on rubber swivel casters and can attach to a wall/rack, simply.
Product Status
Available QuickShip
Key Features
  • Barrier design prohibits access to areas for cleaning or safety concerns
  • Aluminum construction is lightweight and portable
  • Smooth operating scissor action can be interlocked or nested
  • Collapsible design makes storing and retrieving easy
Quick Actions

Product Resources

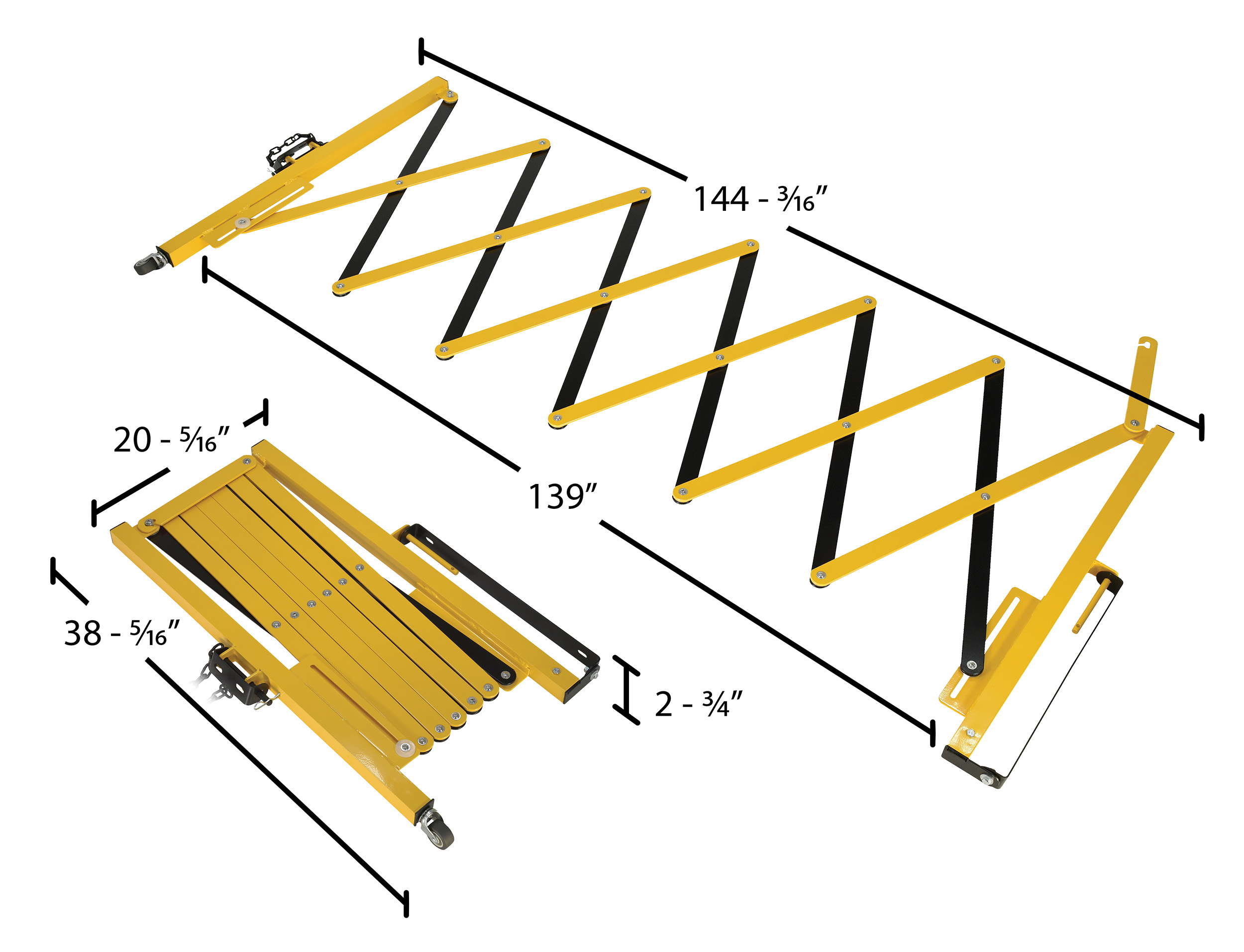

Image Gallery View product images Dimensions Open dimensioned image Contact Vestil Ask about this product
Documents

PDFs & Product Files

  Testing Certificate   EXGATE-30 & ALEXGATE-30 Steel & Aluminum Expand-A-Gate MANUAL   EXGATE-30-C & ALEXGATE-30-C Aluminum & Steel Expand-a-gates with Casters MANUAL   90 Days Warranty
Product Data

Core Data

Assembled Weight 28 lbs
Assembled Size 20.3125"W x 2.75"L x 38.3125"H
Total Ship Weight 35 lbs
Package 1 Size 20"W x 46"D x 2"H
Color / Finish Yellow
Freight Type Parcel

Additional Attributes

Overall Expanded Width (in.) 144-3/16
Expanded Gate Width (in.) 139
X-Bar section, Yellow Bars Gauge 4
X-Bar section, Black Bars Gauge 6
Caster Quantity/Diameter/Width (in.) (1) 2 x 7/8
Caster Type Swivel
Extended Product Details

Marketing Specs.

MFG Model # (Series)
ALEXGATE-30-W
Product Name
Aluminum Expand-A-Gate Wall Mount 2-3/4 In. x 20-5/16 In. x 38-5/16 In. Yellow
UPC
691215112239
GTIN
00691215112239
Taxonomy 1
Hardware
Taxonomy 2
Safety & Security
Taxonomy 3
Safety Barriers
Taxonomy 4
Safety Barricades
Assembled Depth (in.)
2.75
Assembled Width(in.)
20.3125
Assembled Height(in.)
38.3125
Assembled Weight(lbs.)
28
Color/Finish
Yellow
Material
Aluminum
Option? Y/N
N
Sell UOM
EA-Each
Country Of Origin
CN
Approval Drawing Required? Y/N
N
Assembly
Assembly required

Logistics

Packaging Level
BASE_UNIT_OR_EACH
Package Depth (in.)
46
Package Width (in.)
20
Package Height (in.)
2
Package Weight (in.)
35
Subclass
8
Freight Class
85
NMFC Code
Gates, doorway, hallway, porch or stairway
NMFC Number
86320
LTL Freight
Parcel
UNSPSC
30172000
HTSUS Number
7326.90.8688
USMCA HS
7326.90
Origin Criterion
NO
Certification Indicator
NO
ECCN
EAR99
US Shipping Point
Angola, IN
Supplier Postal Code
46703
Hazardous Material? Yes/No
No
MSDS? Yes/No
No
Batteries Included?
No

Warranty

Warranty
Yes
Manufactuer Warranty
90 Days Limited Warranty
Warranty Type
Limited - Parts
Cancelable? Y/N
Y
Returnable? Y/N
Y
California Prop 65 Compliant?
Unknown

Prop 65 Warning

Copyright © 2026 All Rights Reserved, Vestil Manufacturing Corp.

Details For Model: ALEXGATE-30-W

ALEXGATE-30-W

Aluminum Expand-A-Gate Wall Mount 2-3/4 In. x 20-5/16 In. x 38-5/16 In. Yellow

Expand-A-Gate is designed to set up quickly and easily wherever and whenever needed. Ideal for preventing potential accidents with a lightweight design that allows personnel to quickly retrieve the gate and limit access to unsafe areas. The unit has a smooth operating scissor action that can be interlocking or nestable. Rolls smoothly on rubber swivel casters and can attach to a wall/rack, simply.

  • Barrier design prohibits access to areas for cleaning or safety concerns
  • Aluminum construction is lightweight and portable
  • Smooth operating scissor action can be interlocked or nested
  • Collapsible design makes storing and retrieving easy

Core Data

Assembled Weight: 28 Assembled Size: 20.3125"W x 2.75"L x 38.3125"H Color: Yellow
Total Ship Weight: 35 Package 1 Size: 20"W x 46"D x 2"H Freight: Parcel

Specifications

Overall Expanded Width (in.): 144-3/16
Expanded Gate Width (in.): 139
X-Bar section, Yellow Bars Gauge: 4
X-Bar section, Black Bars Gauge: 6
Caster Quantity/Diameter/Width (in.): (1) 2 x 7/8
Caster Type: Swivel
