Aluminum Low Profile Lite Load Lift With Foot Pump Fixed Wheels and Manual Floor Lock 20 In. x 20 In. Platform 400 Lb. Capacity Silver

Aluminum Low-Profile Light Load Lift for Commercial and Industrial Portable Load Lifters Use, 400 lb. Capacity with 20 in. x 20 in., Silver Finish – Model ALLPH-500-FWFL

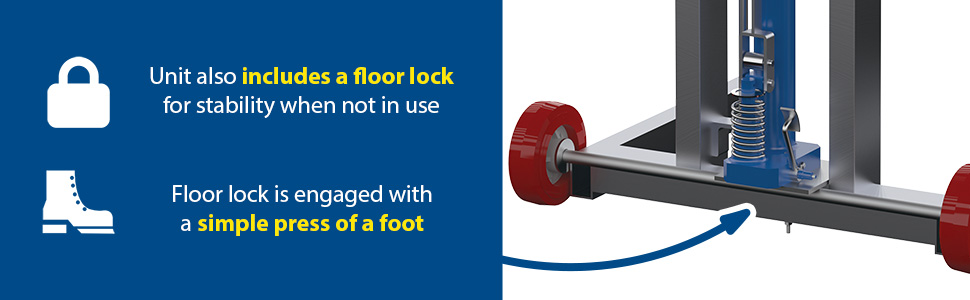

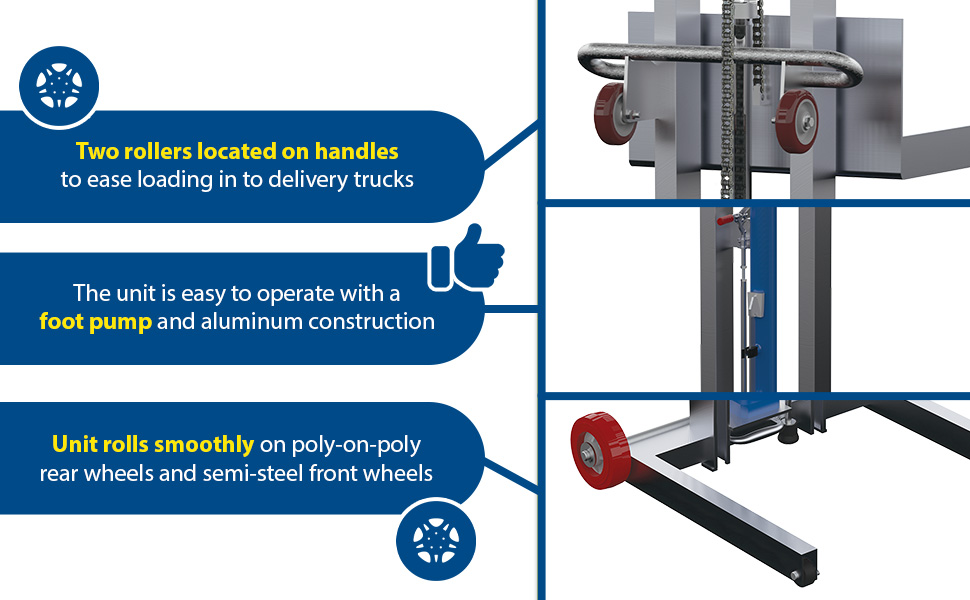

The Lite load lift is ideal for lifting and transporting loads from delivery trucks to docks, or use to inventory storage systems. The unit is easy to operate with a foot pump and aluminum construction. The unit rolls smoothly on poly-on-poly rear wheels and semi-steel front wheels. Located on the handle are two rollers to ease loading into delivery trucks. Unit also includes a floor lock for stability when not in use. The floor lock is engaged with a simple press of the foot.
Product Status
Available
Key Features
  • Aluminum construction provides long lasting rugged use
  • Easy to operate lift system makes lifting products to ergonomic heights simple
  • Two front and two rear wheel design conveniently rolls when loaded
  • Two rollers on handle provide easy unit loading into delivery trucks
Quick Actions

Product Resources

Image Gallery View product images Dimensions Open dimensioned image Contact Vestil Ask about this product
Documents

PDFs & Product Files

  Approval Drawing   Testing Certificate   LLH, LLPH, ALLH, ALLPH Light Load Lifters Use and Maintenance Manual   LLW, LLPW, ALLW, ALLPW Light Load Lifters Use and Maintenance Manual   Label Page PDF   Hydraulic Oil SDS   1 Year Warranty
Product Data

Core Data

Assembled Weight 141 lbs

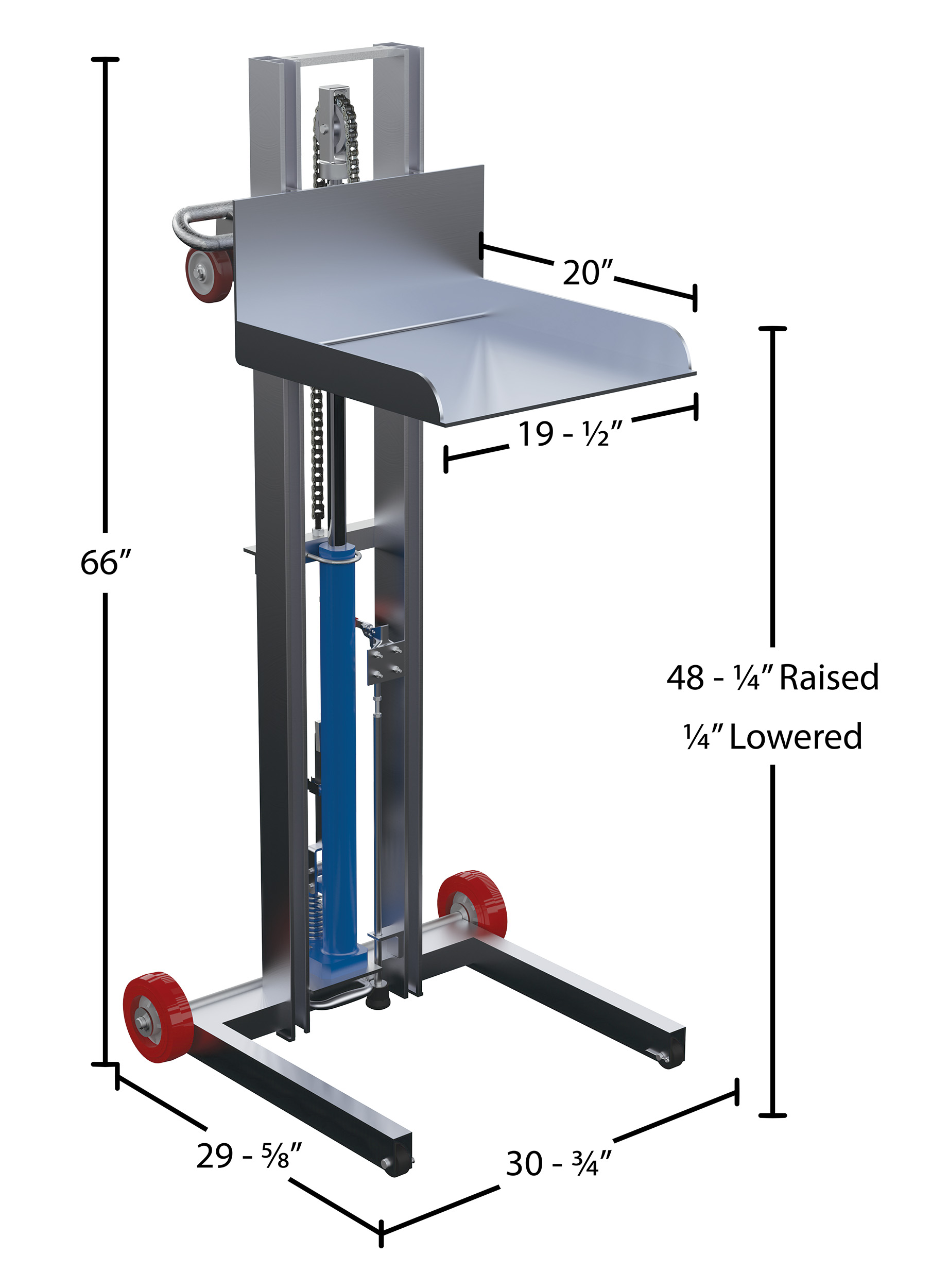

Assembled Size 30.75"W x 29.625"L x 66"H
Total Ship Weight 141 lbs
Package 1 Size 40"W x 48"D x 72"H
Color / Finish Silver
Freight Type LTL Palletized

Additional Attributes

Uniform Capacity (lb.) 400
Platform Width (in.) 19-1/2
Platform Length (in.) 20
Lowered Height (in.) 1/4
Raised Height (in.) 48-1/4
Lift per Foot Pump (in.) 1
Horizontal Load Center (in.) 10
Side Lip Height (in.) 2
Profile Low
Operation Foot Pump
Rear Wheel Qty./Diameter/Width (in.) (2) 6 x 2
Rear Wheel Material Poly on Poly
Rear Wheel Type Rigid
Front Caster Qty./Diameter (in.) (2) 2
Front Caster Material Semi Steel
Front Caster Type Rigid
Handle Caster Qty./Diameter/Width (in.) (2) 4 x 1-1/4
Extended Product Details

Marketing Specs.

MFG Model # (Series)
ALLPH-500-FWFL
Product Name
Aluminum Low Profile Lite Load Lift With Foot Pump Fixed Wheels and Manual Floor Lock 20 In. x 20 In. Platform 400 Lb. Capacity Silver
UPC
691215336178
GTIN
00691215336178
Taxonomy 1
Material Handling
Taxonomy 2
Lifting Equipment
Taxonomy 3
Lifters / Tilters
Taxonomy 4
Load Lifter
Taxonomy 5
Manual
Assembled Depth (in.)
29.625
Assembled Width(in.)
30.75
Assembled Height(in.)
66
Assembled Weight(lbs.)
141
Color/Finish
Silver
Material
Aluminum/Steel
Option? Y/N
N
Sell UOM
EA-Each
Country Of Origin
US
Approval Drawing Required? Y/N
N
Assembly
Assembled

Logistics

Packaging Level
BASE_UNIT_OR_EACH
Package Depth (in.)
48
Package Width (in.)
40
Package Height (in.)
72
Package Weight (in.)
141
Subclass
1
Freight Class
175
NMFC Code
Lift trucks hand including pallet jacks
NMFC Number
189240
LTL Freight
LTL Palletized
UNSPSC
24101604
HTSUS Number
8427.90.0090
USMCA HS
8427.90
Origin Criterion
B
Certification Indicator
D
ECCN
EAR99
US Shipping Point
Angola, IN
Supplier Postal Code
46703
Hazardous Material? Yes/No
No
MSDS? Yes/No
Yes
Batteries Included?
No

Warranty

Warranty
Yes
Manufactuer Warranty
1 Year Limited Warranty
Warranty Type
Limited - Parts
Cancelable? Y/N
Y
Returnable? Y/N
Y
California Prop 65 Compliant?
Unknown

Prop 65 Warning

Copyright © 2026 All Rights Reserved, Vestil Manufacturing Corp.

Details For Model: ALLPH-500-FWFL

ALLPH-500-FWFL

Aluminum Low Profile Lite Load Lift With Foot Pump Fixed Wheels and Manual Floor Lock 20 In. x 20 In. Platform 400 Lb. Capacity Silver

The Lite load lift is ideal for lifting and transporting loads from delivery trucks to docks, or use to inventory storage systems. The unit is easy to operate with a foot pump and aluminum construction. The unit rolls smoothly on poly-on-poly rear wheels and semi-steel front wheels. Located on the handle are two rollers to ease loading into delivery trucks. Unit also includes a floor lock for stability when not in use. The floor lock is engaged with a simple press of the foot.

  • Aluminum construction provides long lasting rugged use
  • Easy to operate lift system makes lifting products to ergonomic heights simple
  • Two front and two rear wheel design conveniently rolls when loaded
  • Two rollers on handle provide easy unit loading into delivery trucks

Core Data

Assembled Weight: 141 Assembled Size: 30.75"W x 29.625"L x 66"H Color: Silver
Total Ship Weight: 141 Package 1 Size: 40"W x 48"D x 72"H Freight: LTL Palletized

Specifications

Uniform Capacity (lb.): 400
Platform Width (in.): 19-1/2
Platform Length (in.): 20
Lowered Height (in.): 1/4
Raised Height (in.): 48-1/4
Lift per Foot Pump (in.): 1
Horizontal Load Center (in.): 10
Side Lip Height (in.): 2
Profile: Low
Operation: Foot Pump
Rear Wheel Qty./Diameter/Width (in.): (2) 6 x 2
Rear Wheel Material: Poly on Poly
Rear Wheel Type: Rigid
Front Caster Qty./Diameter (in.): (2) 2
Front Caster Material: Semi Steel
Front Caster Type: Rigid
Handle Caster Qty./Diameter/Width (in.): (2) 4 x 1-1/4
