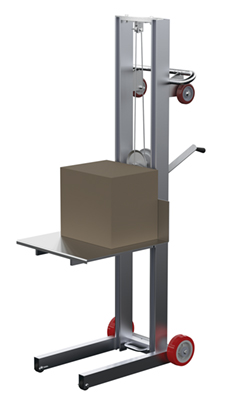

Aluminum Lite Load Lift With Winch and Fixed Wheels 20 In. x 20 In. Platform 400 Lb. Capacity Silver

Aluminum Hand Winch Lift for Commercial and Industrial Portable Load Lifters Use, 400 lb. Capacity with 20 in. x 20 in.
The Lite load lift is ideal for lifting and transporting loads from delivery trucks to docks, or use to inventory storage systems. The unit is easy to operate with a hand winch operation and aluminum construction. The unit rolls smoothly on poly-on-poly rear wheels and semi-steel front wheels. Located on the handle are two rollers to ease loading into delivery trucks.
Product Status
Available QuickShip
Key Features
  • Lite load lift is ideal for lifting and transporting loads
  • Hand winch operation and aluminum construction make the unit is easy to operate
  • Two front and two rear wheel design conveniently rolls when loaded
  • Two rollers, located on the handles, to ease loading into delivery trucks
Quick Actions

Product Resources

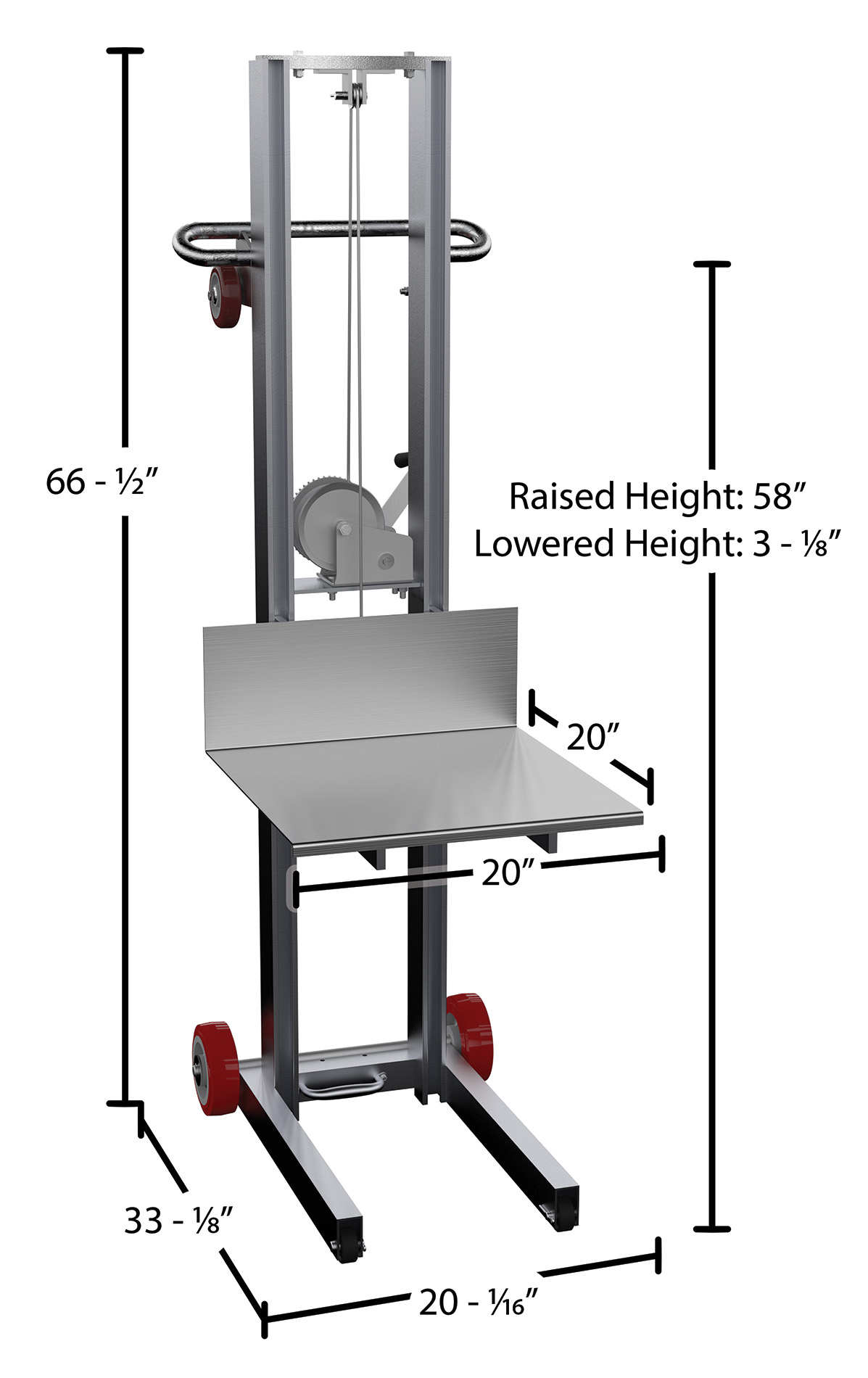

Image Gallery View product images Dimensions Open dimensioned image Contact Vestil Ask about this product
Documents

PDFs & Product Files

  Approval Drawing   Testing Certificate   LLW, LLPW, ALLW, ALLPW Light Load Lifters Use and Maintenance Manual   Label Page PDF   1 Year Warranty
Product Data

Core Data

Assembled Weight 70 lbs
Assembled Size 20.0625"W x 33.125"L x 66.5"H
Total Ship Weight 84 lbs
Package 1 Size 30"W x 36"D x 72"H
Color / Finish Silver
Freight Type LTL Palletized

Additional Attributes

Uniform Capacity (lb.) 400
Platform Width (in.) 20
Platform Length (in.) 20
Lowered Height (in.) 3-1/8
Raised Height (in.) 58
Lift per Winch Rotation (in.) 1
Horizontal Load Center (in.) 10
Operation Hand Winch
Rear Wheel Qty./Diameter/Width (in.) (2) 6 x 2
Rear Wheel Material Poly on Poly
Rear Wheel Type Rigid
Front Caster Qty./Diameter/Width (in.) (2) 2 x 1
Front Caster Material Semi Steel
Front Caster Type Rigid
Handle Caster Diameter/Width (in.) (2) 4 x 1-1/4
Handle Caster Material Poly on Poly
Handle Caster Type Rigid
Extended Product Details

Marketing Specs.

MFG Model # (Series)
ALLW-2020-FW
Product Name
Aluminum Lite Load Lift With Winch and Fixed Wheels 20 In. x 20 In. Platform 400 Lb. Capacity Silver
UPC
691215002349
GTIN
00691215002349
Taxonomy 1
Material Handling
Taxonomy 2
Lifting Equipment
Taxonomy 3
Lifters / Tilters
Taxonomy 4
Load Lifter
Taxonomy 5
Manual
Assembled Depth (in.)
33.125
Assembled Width(in.)
20.0625
Assembled Height(in.)
66.5
Assembled Weight(lbs.)
70
Color/Finish
Silver
Material
Aluminum/Steel
Option? Y/N
N
Sell UOM
EA-Each
Country Of Origin
US
Approval Drawing Required? Y/N
N
Assembly
Assembled

Logistics

Packaging Level
BASE_UNIT_OR_EACH
Package Depth (in.)
36
Package Width (in.)
30
Package Height (in.)
72
Package Weight (in.)
84
Subclass
1
Freight Class
175
NMFC Code
Lift trucks hand including pallet jacks
NMFC Number
189240
LTL Freight
LTL Palletized
UNSPSC
24101604
HTSUS Number
8428.90.0390
USMCA HS
8428.90
Origin Criterion
B
Certification Indicator
D
ECCN
EAR99
US Shipping Point
Angola, IN
Supplier Postal Code
46703
Hazardous Material? Yes/No
No
MSDS? Yes/No
No
Batteries Included?
No

Warranty

Warranty
Yes
Manufactuer Warranty
1 Year Limited Warranty
Warranty Type
Limited - Parts
Cancelable? Y/N
Y
Returnable? Y/N
Y
California Prop 65 Compliant?
Unknown

Prop 65 Warning

Copyright © 2026 All Rights Reserved, Vestil Manufacturing Corp.

Details For Model: ALLW-2020-FW

ALLW-2020-FW

Aluminum Lite Load Lift With Winch and Fixed Wheels 20 In. x 20 In. Platform 400 Lb. Capacity Silver

The Lite load lift is ideal for lifting and transporting loads from delivery trucks to docks, or use to inventory storage systems. The unit is easy to operate with a hand winch operation and aluminum construction. The unit rolls smoothly on poly-on-poly rear wheels and semi-steel front wheels. Located on the handle are two rollers to ease loading into delivery trucks.

  • Lite load lift is ideal for lifting and transporting loads
  • Hand winch operation and aluminum construction make the unit is easy to operate
  • Two front and two rear wheel design conveniently rolls when loaded
  • Two rollers, located on the handles, to ease loading into delivery trucks

Core Data

Assembled Weight: 70 Assembled Size: 20.0625"W x 33.125"L x 66.5"H Color: Silver
Total Ship Weight: 84 Package 1 Size: 30"W x 36"D x 72"H Freight: LTL Palletized

Specifications

Uniform Capacity (lb.): 400
Platform Width (in.): 20
Platform Length (in.): 20
Lowered Height (in.): 3-1/8
Raised Height (in.): 58
Lift per Winch Rotation (in.): 1
Horizontal Load Center (in.): 10
Operation: Hand Winch
Rear Wheel Qty./Diameter/Width (in.): (2) 6 x 2
Rear Wheel Material: Poly on Poly
Rear Wheel Type: Rigid
Front Caster Qty./Diameter/Width (in.): (2) 2 x 1
Front Caster Material: Semi Steel
Front Caster Type: Rigid
Handle Caster Diameter/Width (in.): (2) 4 x 1-1/4
Handle Caster Material: Poly on Poly
Handle Caster Type: Rigid
