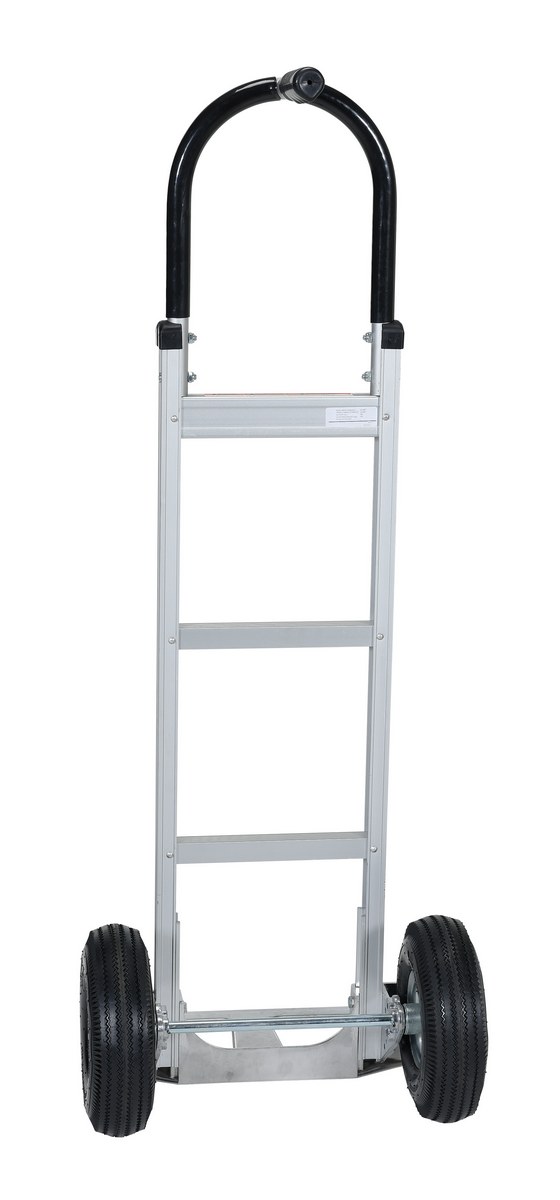

Aluminum Pin Handle Hand Truck With Pneumatic Wheels 18-1/4 In. x 20-3/4 In. x 53 In. 500 Lb. Capacity Silver

Pneumatic Aluminum P Handle Hand Truck for Commercial and Industrial Hand Trucks Use, 500 lb. Capacity with 18-1/4 in. x 20-3/4 in. x 53 in.
Maximize control for different types of loads. These hands trucks can transport boxes wherever they are needed. Transport loads smoothly and evenly over rough or uneven floors. Pneumatic tires are standard on all hands trucks, while industrial solid rubber tires are also available. The convertible hand trucks have pneumatic tires and poly on swivel casters. Optional stair guides available. Assembly is required.
Product Status
Temporarily Unavailable - Please Contact Sales QuickShip
Key Features
  • Ergonomic handle for decreased injury
  • Rolls on casters for smooth transition
  • Aluminum construction for durability
  • Lightweight for portability
Quick Actions

Product Resources

Image Gallery View product images Contact Vestil Ask about this product
Documents

PDFs & Product Files

  Testing Certificate   Deluxe Aluminum Hand Trucks   Label Page PDF   90 Days Warranty
Product Data

Core Data

Assembled Weight 22 lbs
Assembled Size 20.75"W x 18.25"L x 53"H
Total Ship Weight 25 lbs
Package 1 Size 15"W x 42"D x 10"H
Color / Finish Silver
Freight Type Parcel

Additional Attributes

Uniform Capacity (lb.) 500
Nose Plate Width (in.) 17-3/4
Nose Plate Length (in.) 7-1/2
Nose Plate Thickness (in.) 1/2
Tire Diameter (in.) 10-1/2
Tire Width (in.) 3-1/4
Tire Type Pneumatic
Description Pin Handle
Vertical Supports (qty.) 2
Handle Height (in.) 53
Handle Diameter (in.) 1-1/2
Extended Product Details

Marketing Specs.

MFG Model # (Series)
ALUM-PIN
Product Name
Aluminum Pin Handle Hand Truck With Pneumatic Wheels 18-1/4 In. x 20-3/4 In. x 53 In. 500 Lb. Capacity Silver
UPC
691215115728
GTIN
00691215115728
Taxonomy 1
Material Handling
Taxonomy 2
Hand Trucks & Dollies
Taxonomy 3
Hand Trucks
Assembled Depth (in.)
18.25
Assembled Width(in.)
20.75
Assembled Height(in.)
53
Assembled Weight(lbs.)
22
Color/Finish
Silver
Material
Aluminum
Option? Y/N
N
Sell UOM
EA-Each
Country Of Origin
TW
Approval Drawing Required? Y/N
N
Assembly
Assembly required

Logistics

Packaging Level
BASE_UNIT_OR_EACH
Package Depth (in.)
42
Package Width (in.)
15
Package Height (in.)
10
Package Weight (in.)
25
Subclass
4
Freight Class
175
NMFC Code
Vehicles, other than self-propelled
NMFC Number
189800
LTL Freight
Parcel
UNSPSC
24101504
HTSUS Number
8716.80.5010
USMCA HS
8716.80
Origin Criterion
NO
Certification Indicator
NO
ECCN
EAR99
US Shipping Point
Angola, IN
Supplier Postal Code
46703
Hazardous Material? Yes/No
No
MSDS? Yes/No
No
Batteries Included?
No

Warranty

Warranty
Yes
Manufactuer Warranty
90 Days Limited Warranty
Warranty Type
Limited - Parts
Cancelable? Y/N
Y
Returnable? Y/N
Y
California Prop 65 Compliant?
Unknown

Prop 65 Warning

Copyright © 2026 All Rights Reserved, Vestil Manufacturing Corp.

Details For Model: ALUM-PIN

ALUM-PIN

Aluminum Pin Handle Hand Truck With Pneumatic Wheels 18-1/4 In. x 20-3/4 In. x 53 In. 500 Lb. Capacity Silver

Maximize control for different types of loads. These hands trucks can transport boxes wherever they are needed. Transport loads smoothly and evenly over rough or uneven floors. Pneumatic tires are standard on all hands trucks, while industrial solid rubber tires are also available. The convertible hand trucks have pneumatic tires and poly on swivel casters. Optional stair guides available. Assembly is required.

  • Ergonomic handle for decreased injury
  • Rolls on casters for smooth transition
  • Aluminum construction for durability
  • Lightweight for portability

Core Data

Assembled Weight: 22 Assembled Size: 20.75"W x 18.25"L x 53"H Color: Silver
Total Ship Weight: 25 Package 1 Size: 15"W x 42"D x 10"H Freight: Parcel

Specifications

Uniform Capacity (lb.): 500
Nose Plate Width (in.): 17-3/4
Nose Plate Length (in.): 7-1/2
Nose Plate Thickness (in.): 1/2
Tire Diameter (in.): 10-1/2
Tire Width (in.): 3-1/4
Tire Type: Pneumatic
Description: Pin Handle
Vertical Supports (qty.): 2
Handle Height (in.): 53
Handle Diameter (in.): 1-1/2
