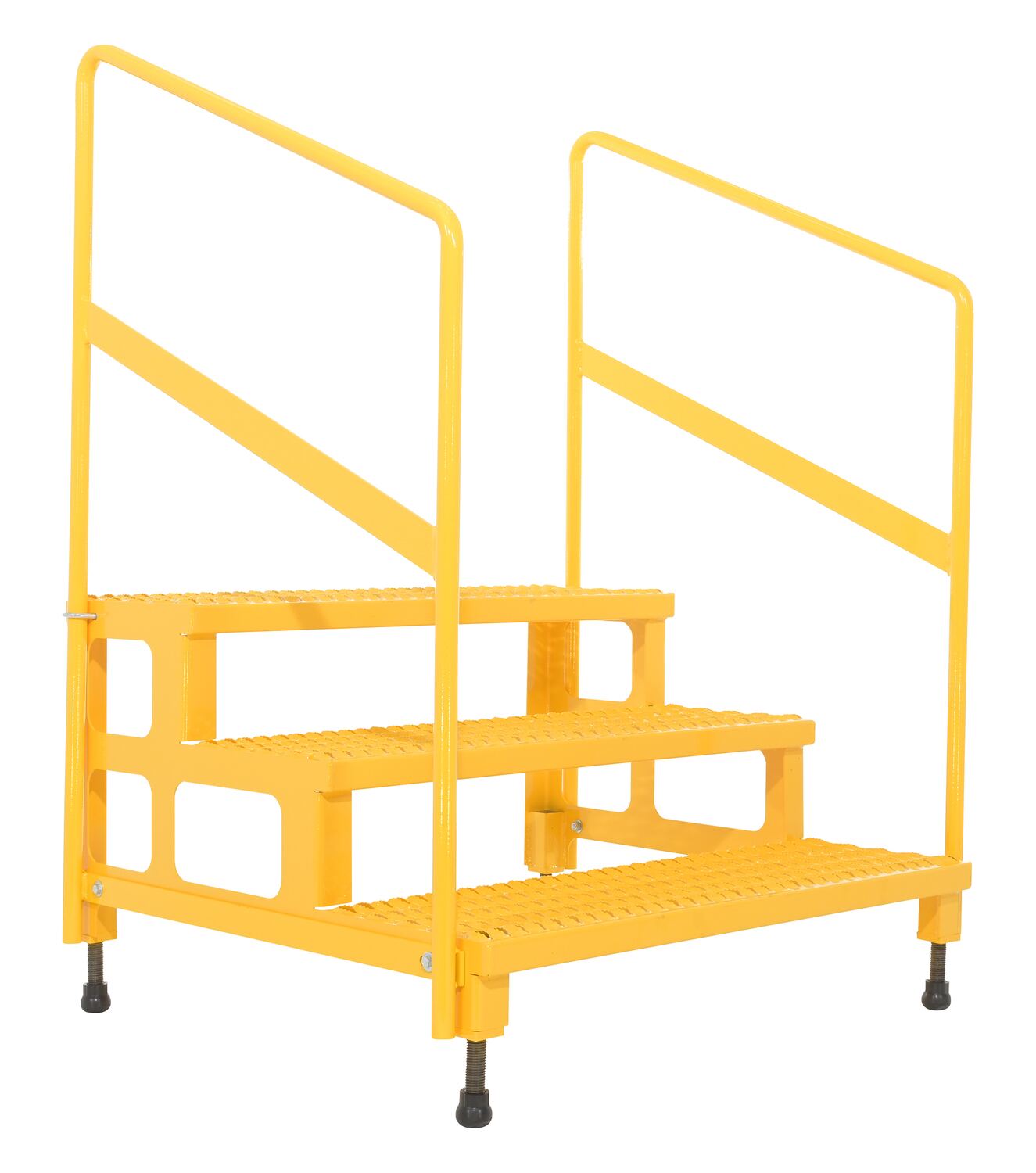

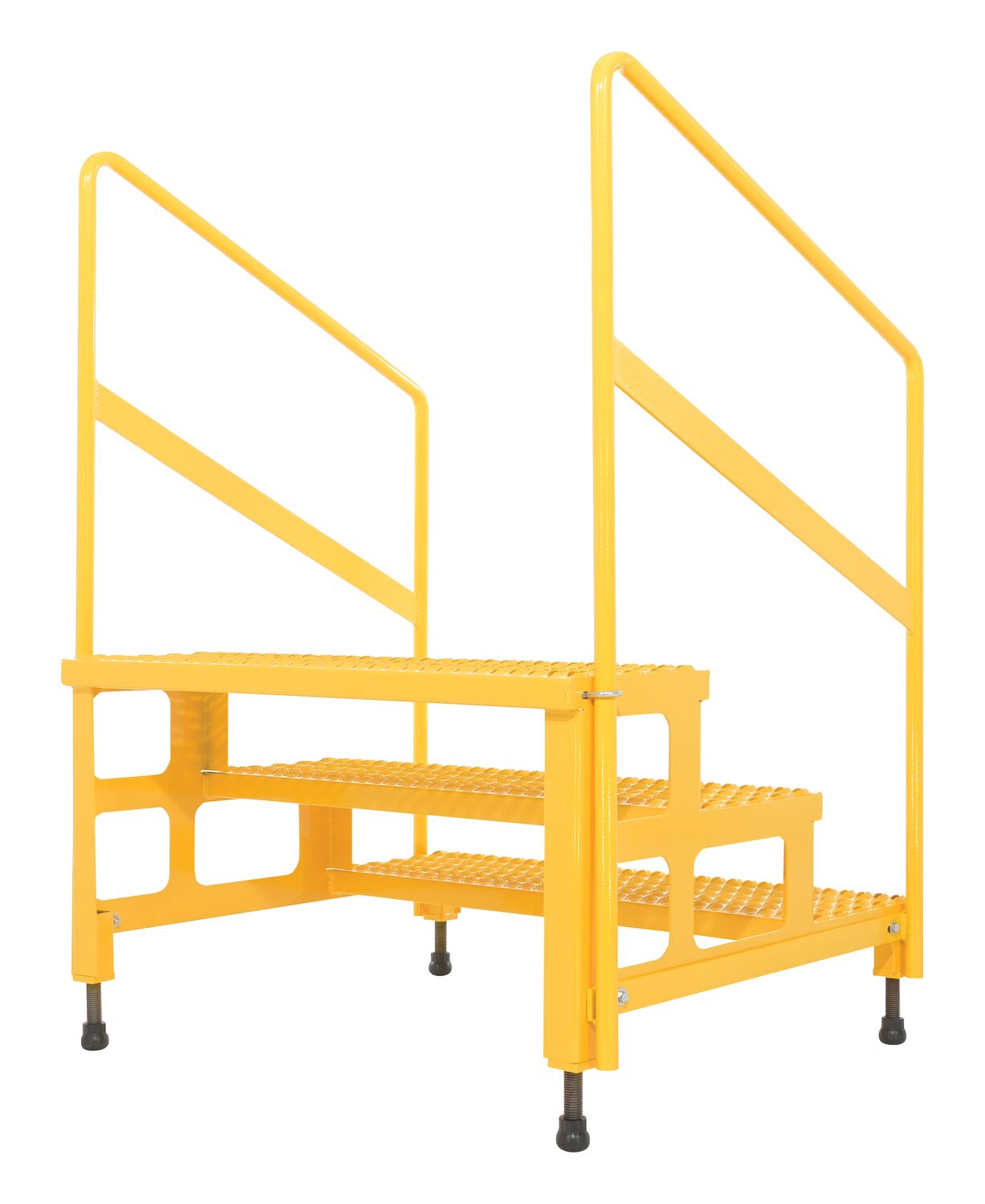

Steel Adjustable Step Stand 36 inches Wide 3-Step with Handrails 500 Lb. Capacity Yellow

Adjustable Step Stand with Hand Rails for Safer Elevated Access in Industrial Work Areas, 500 lb. Capacity, Yellow Finish – Model ASP-36-3-HR

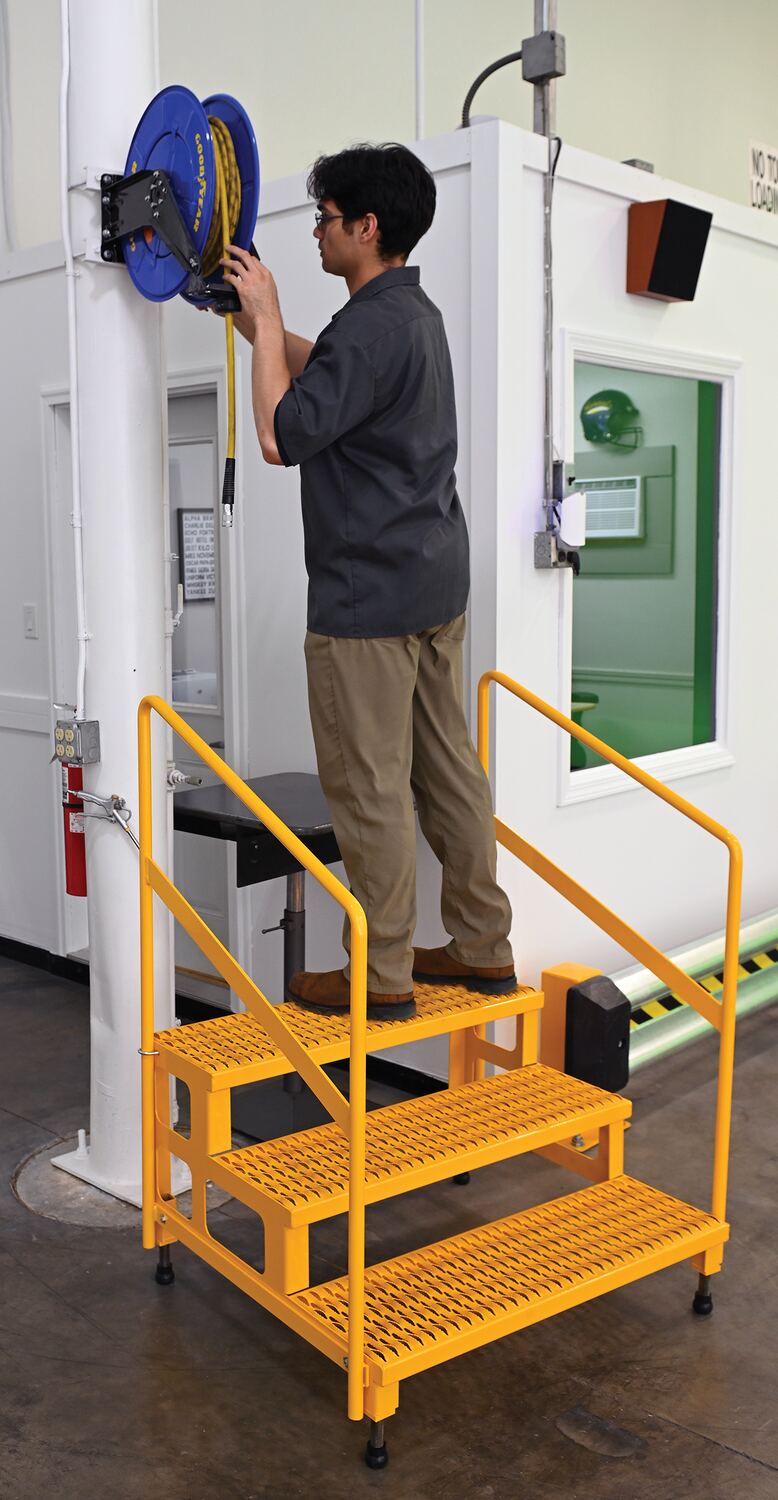

The adjustable step-mate stand can be used as either a comfortable worker platform or a semi-permanent step. Step angle is maintained at a stable 30 degrees. Built of powder coated welded steel with schedule 40 steel handrails. Do not use the stand if it cannot be leveled properly or remains unstable despite adjusting the legs appropriately.
Product Status
Available QuickShip Non-Returnable
Key Features

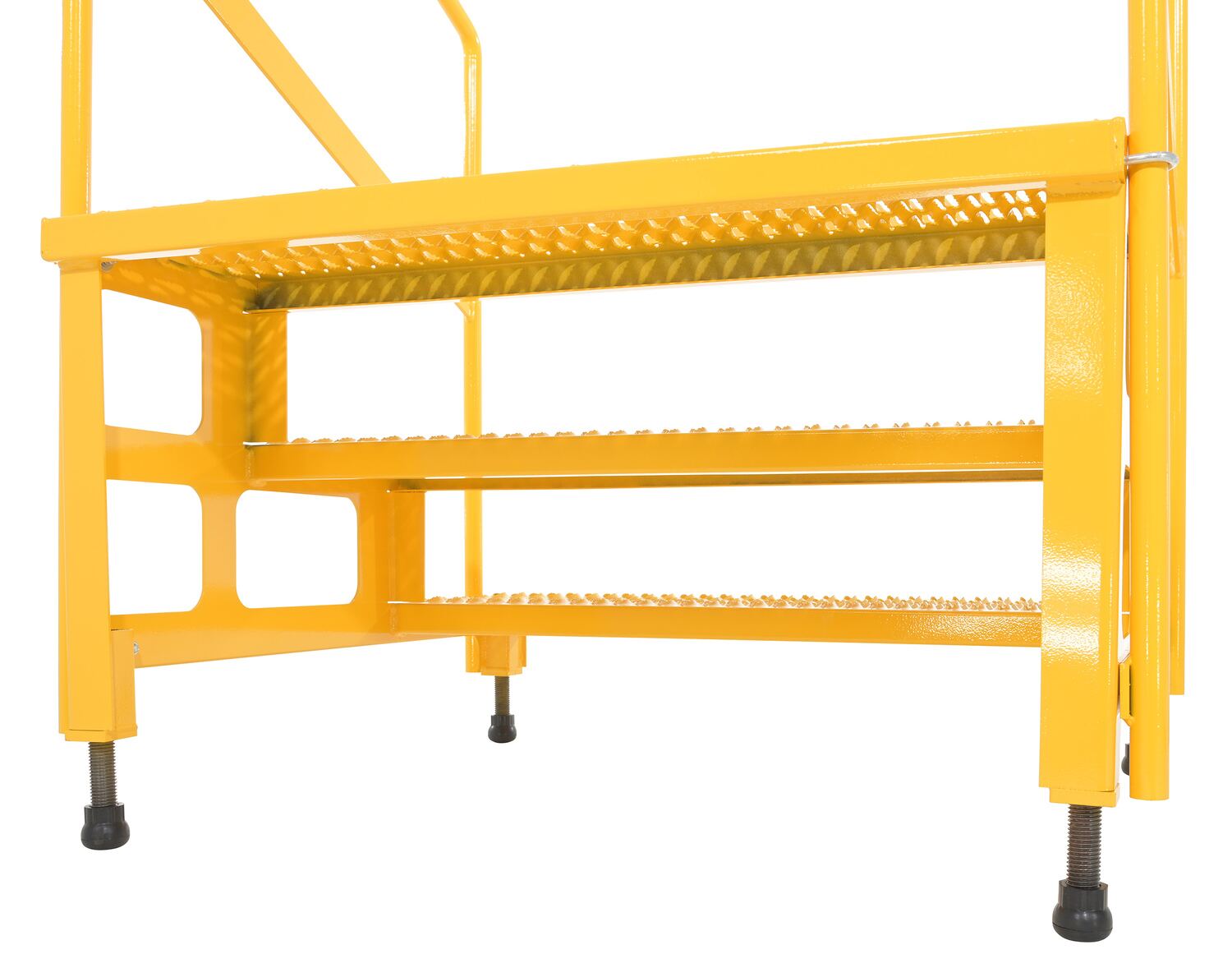

  • Independently adjustable height legs

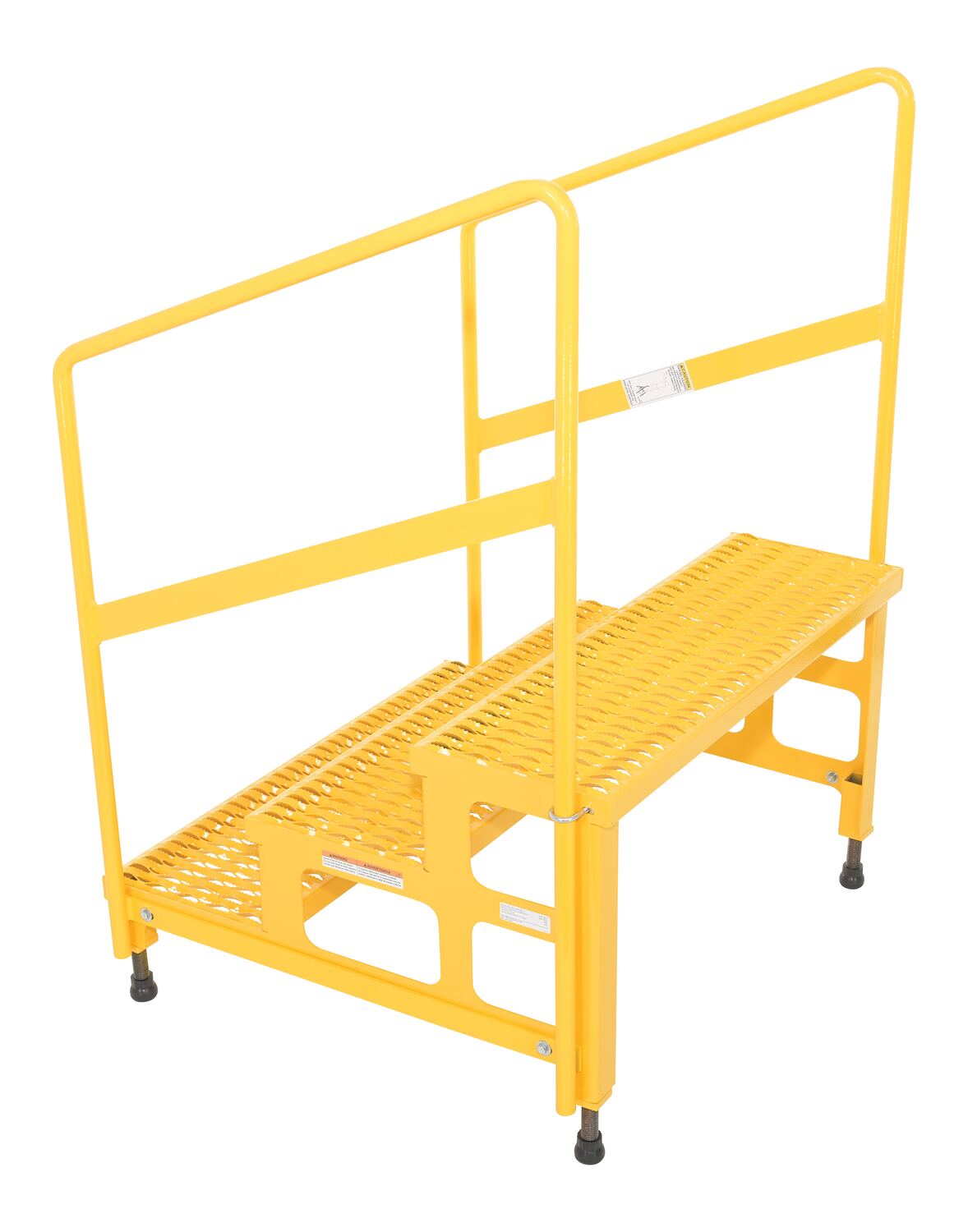

  • Handrails included for user stability
  • Each leg fitted with rubber tip for better grip & traction

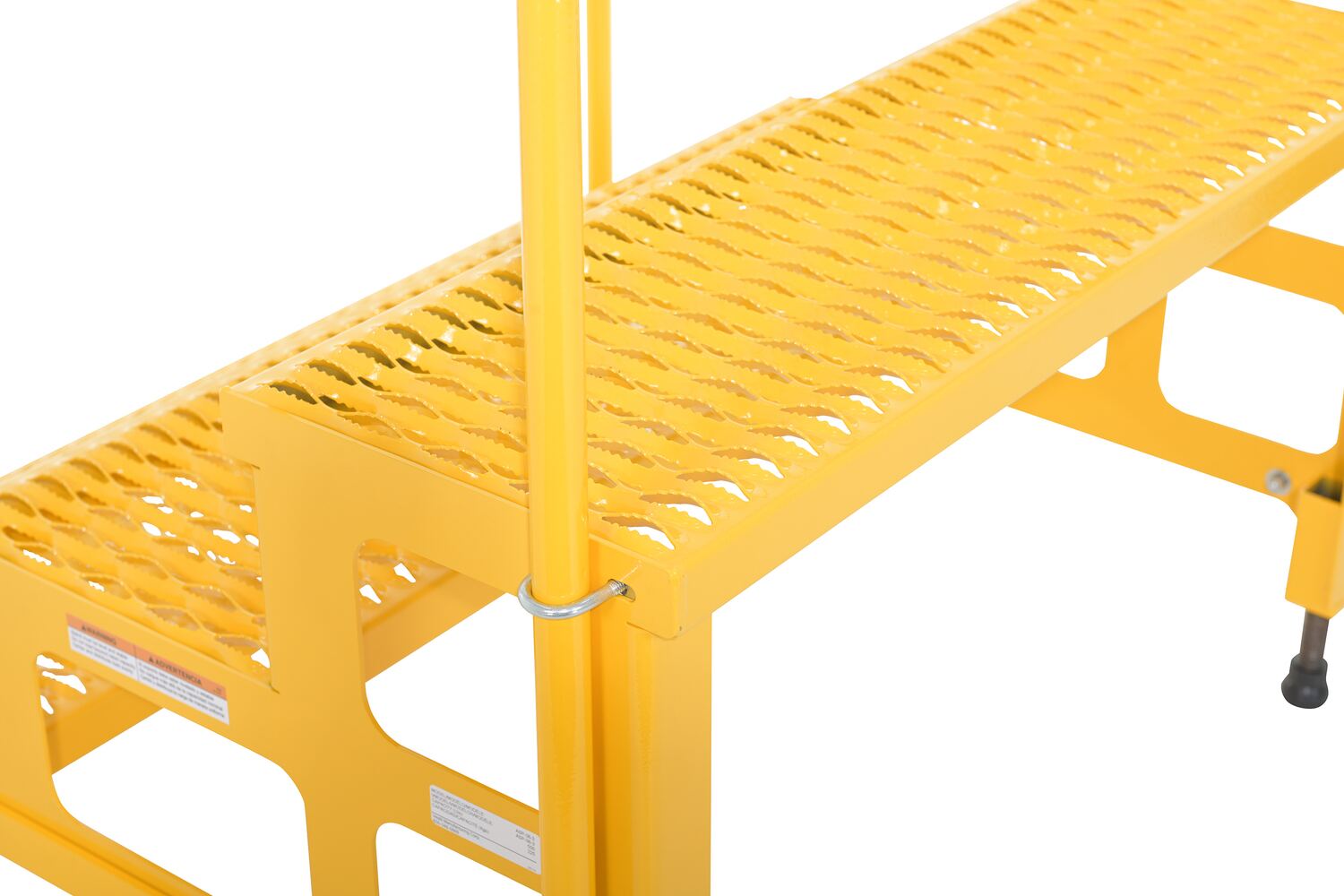

  • Serrated step surface provides excellent traction
Quick Actions

Product Resources

Image Gallery View product images Contact Vestil Ask about this product
Documents

PDFs & Product Files

  Approval Drawing   Testing Certificate   ASP series Adjustable Step-Mate Stands Owners Manual   Label Page PDF   90 Days Warranty
Product Data

Core Data

Assembled Weight 128 lbs
Assembled Size 38.8125"W x 33.875"L x 53"H
Total Ship Weight 148 lbs
Package 1 Size 40"W x 48"D x 39"H
Color / Finish Yellow
Freight Type LTL Palletized

Additional Attributes

Step Width (in.) 36-11/16
Number of Steps 3
Uniform Capacity (lb.) 500
Adjustable Bottom Step Height Range (in.) 6 to 8-1/4
Adjustable Middle Step Height Range (in.) 13 to 15-1/4
Adjustable Top Step Height Range (in.) 20 to 22-1/4
Step Material Serrated Steel
Step Depth (in.) 11-3/4
Step Angle (degrees) 33
Leg Feature Anti-Slip Tips
Adjustable Legs? Yes
Handrail Construction Steel Tubing
Includes 2 Bolt-On Handrails
Overall Width (in.) 38-13/16
Overall Length (in.) 33-7/8
Overall Height (in.) 53
Extended Product Details

Marketing Specs.

MFG Model # (Series)
ASP-36-3-HR
Product Name
Steel Adjustable Step Stand 36 inches Wide 3-Step with Handrails 500 Lb. Capacity Yellow
UPC
691215377003
GTIN
00691215377003
Taxonomy 1
Building Supplies
Taxonomy 2
Ladders & Scaffolding
Taxonomy 3
Ladders
Taxonomy 4
Step
Assembled Depth (in.)
33.875
Assembled Width(in.)
38.8125
Assembled Height(in.)
53
Assembled Weight(lbs.)
128
Color/Finish
Yellow
Material
Steel
Option? Y/N
N
Sell UOM
EA-Each
Country Of Origin
US
Approval Drawing Required? Y/N
N
Assembly
Assembly required

Logistics

Packaging Level
BASE_UNIT_OR_EACH
Package Depth (in.)
48
Package Width (in.)
40
Package Height (in.)
39
Package Weight (in.)
148
Subclass
1
Freight Class
250
NMFC Code
Stairs or Staircases iron or steel w/o handrails or detached
NMFC Number
37257
LTL Freight
LTL Palletized
UNSPSC
30241602
HTSUS Number
7326.90.8660
USMCA HS
7326.90
Origin Criterion
B
Certification Indicator
D
ECCN
EAR99
US Shipping Point
Angola, In
Supplier Postal Code
46703
Hazardous Material? Yes/No
No
MSDS? Yes/No
No
Batteries Included?
No

Warranty

Warranty
Yes
Manufactuer Warranty
90 Days Limited Warranty
Warranty Type
Limited - Parts
Cancelable? Y/N
Y
Returnable? Y/N
N
California Prop 65 Compliant?
Unknown

Prop 65 Warning
