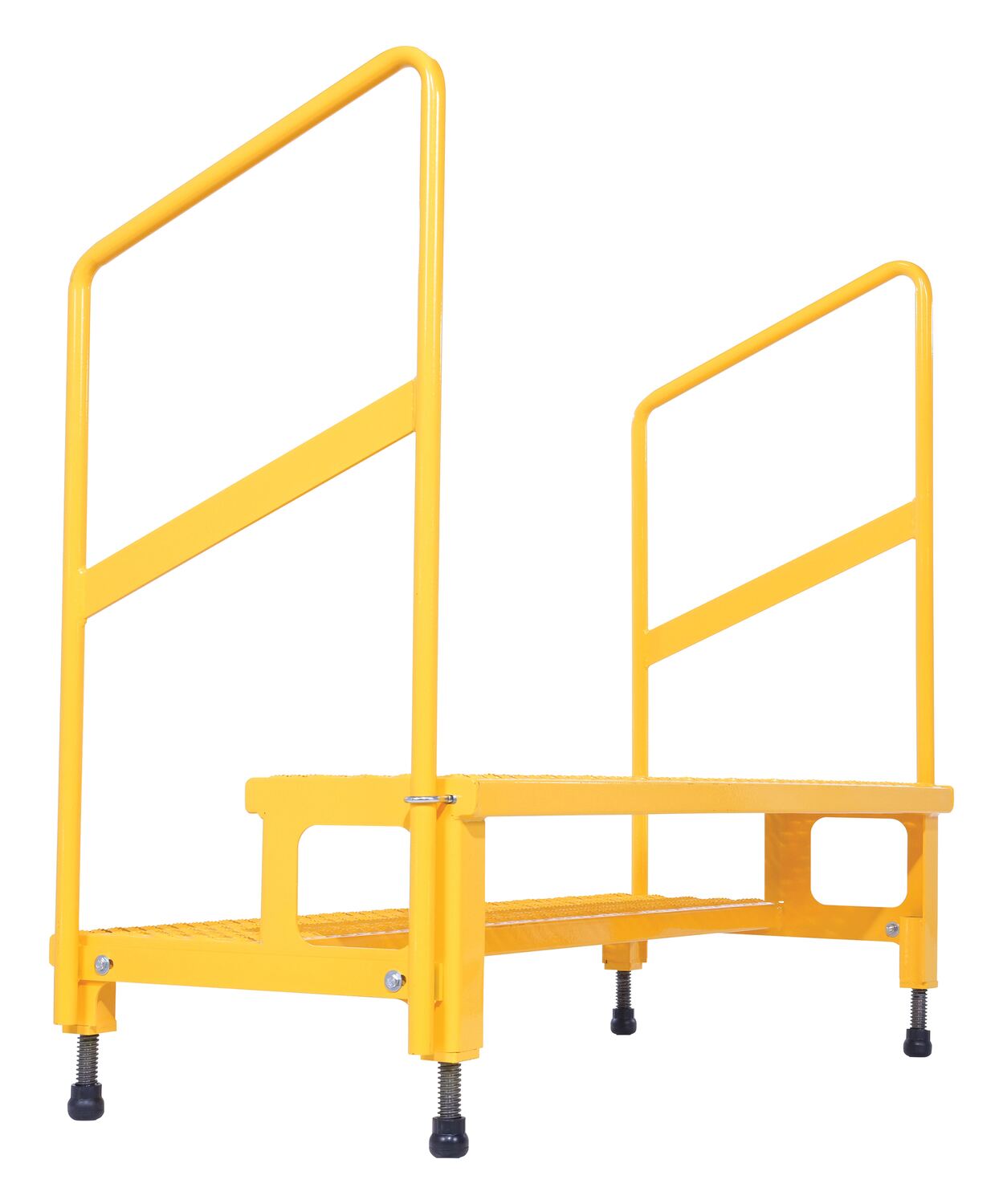

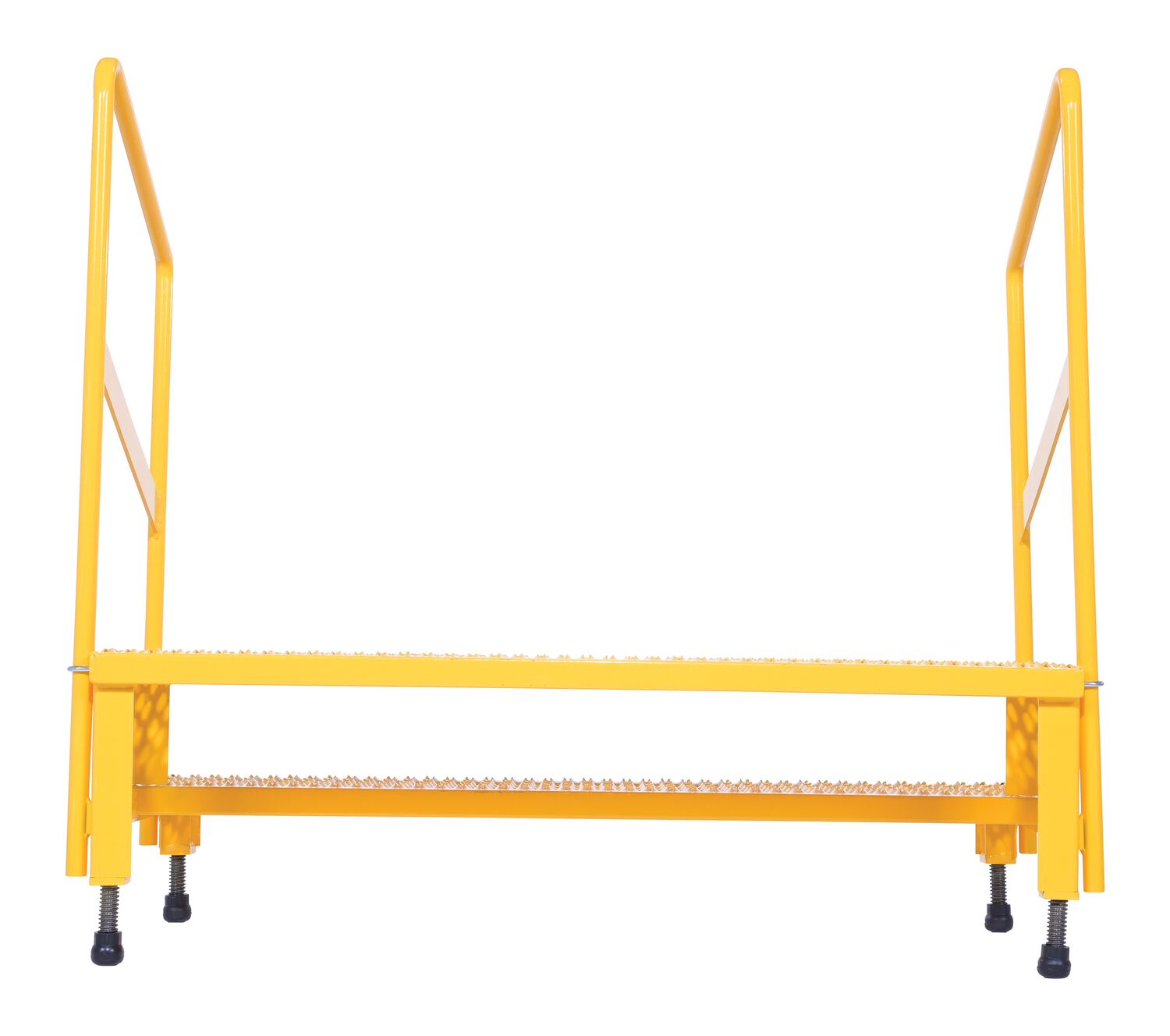

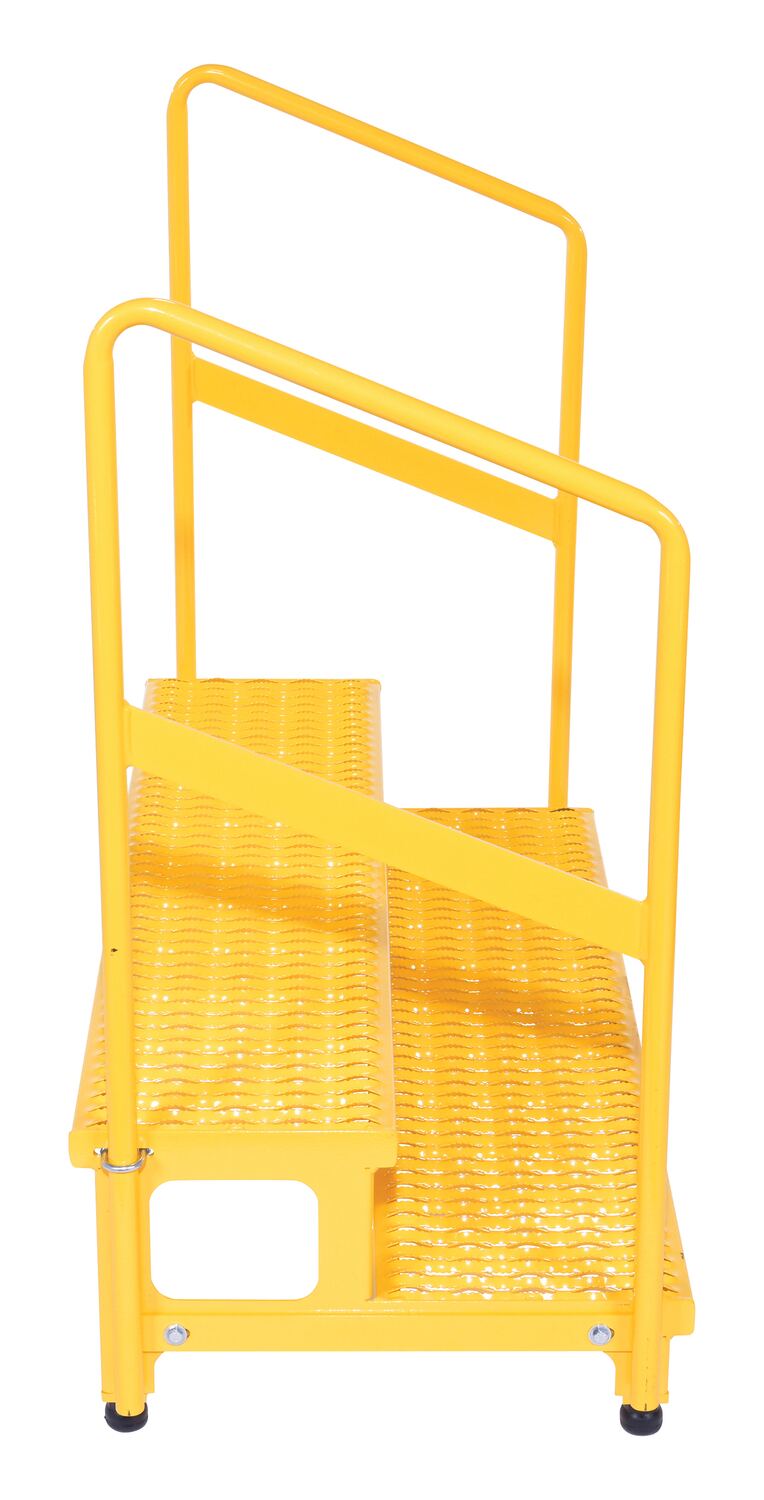

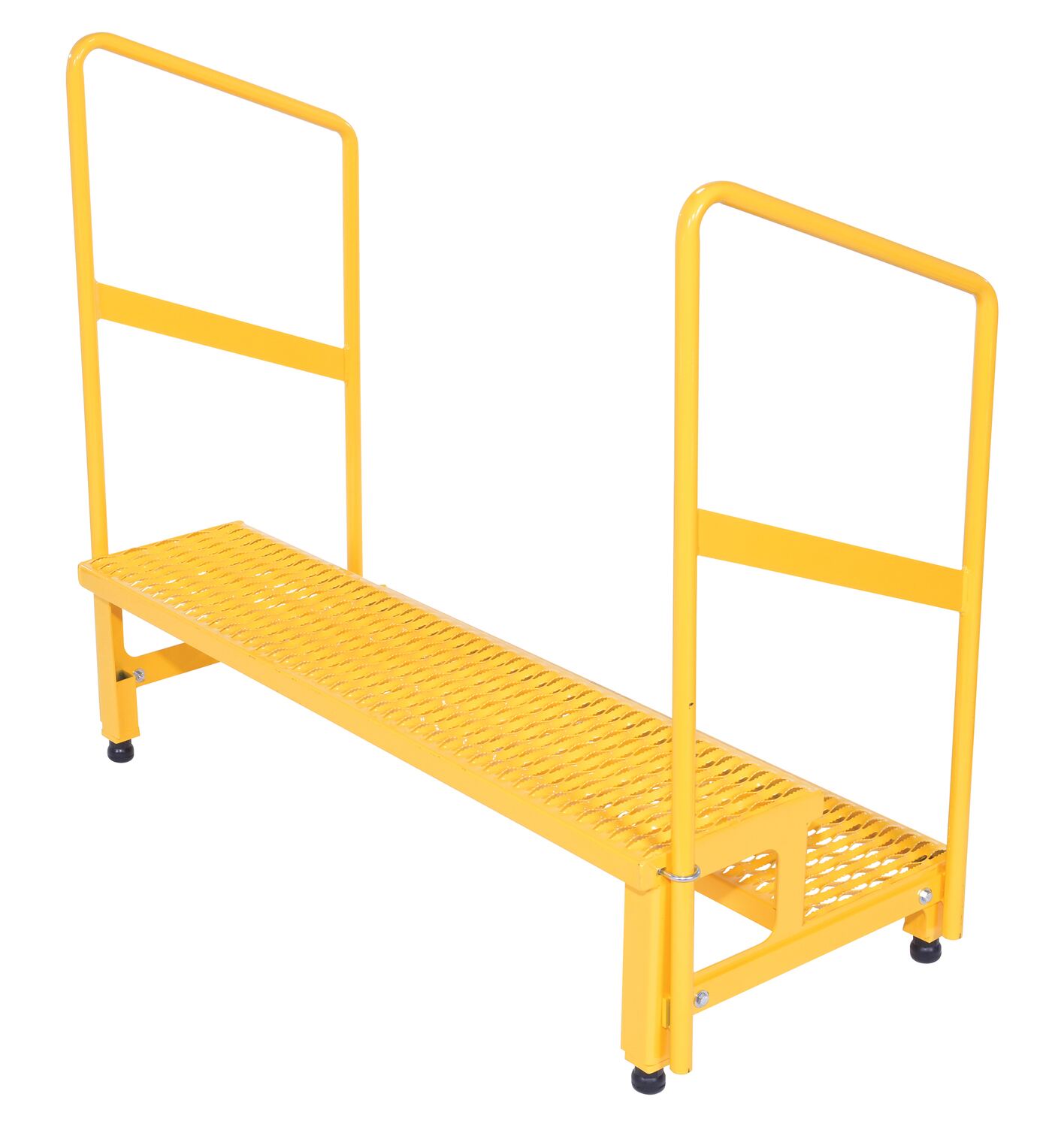

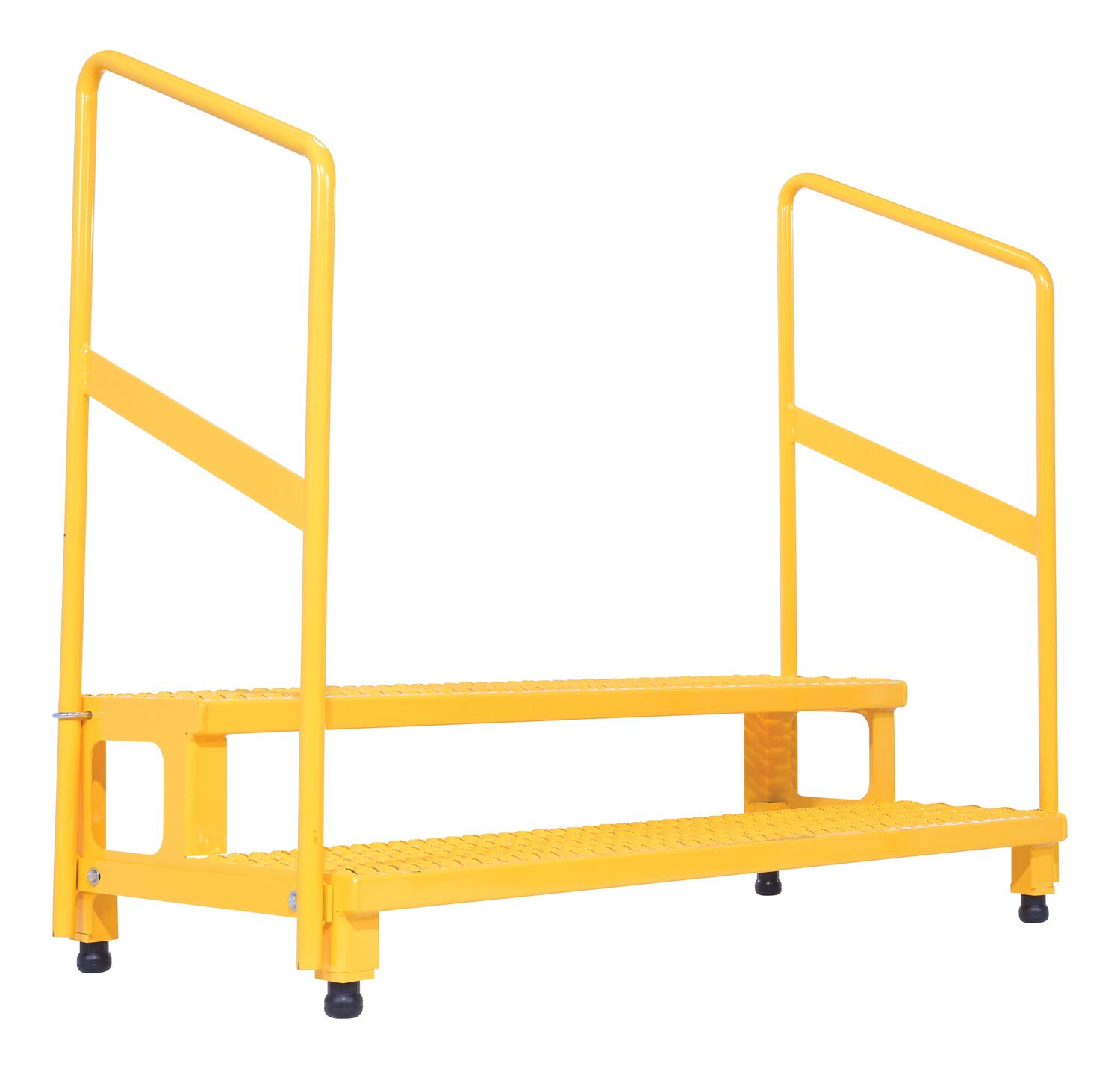

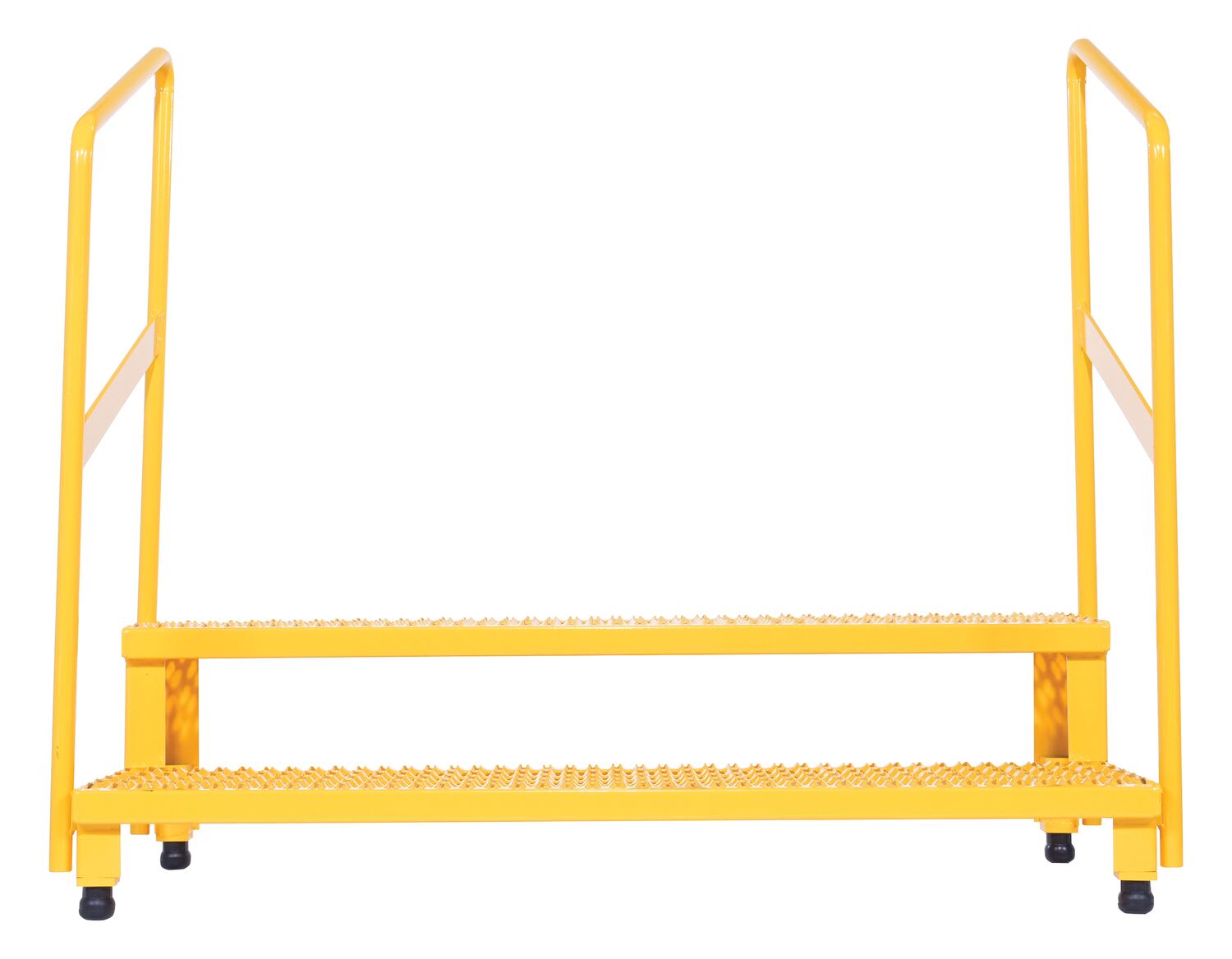

Steel Adjustable Step Mate Stand 2 Step with Handrails 22-7/8 In. x 51-1/8 In. x 43 In. 500 Lb. Capacity Yellow

Adjustable Semi-permanent Step Stand for Safer Elevated Access in Industrial Work Areas, 500 lb. Capacity with 22-7/8 in. x 51-1/8 in. x 43 in.

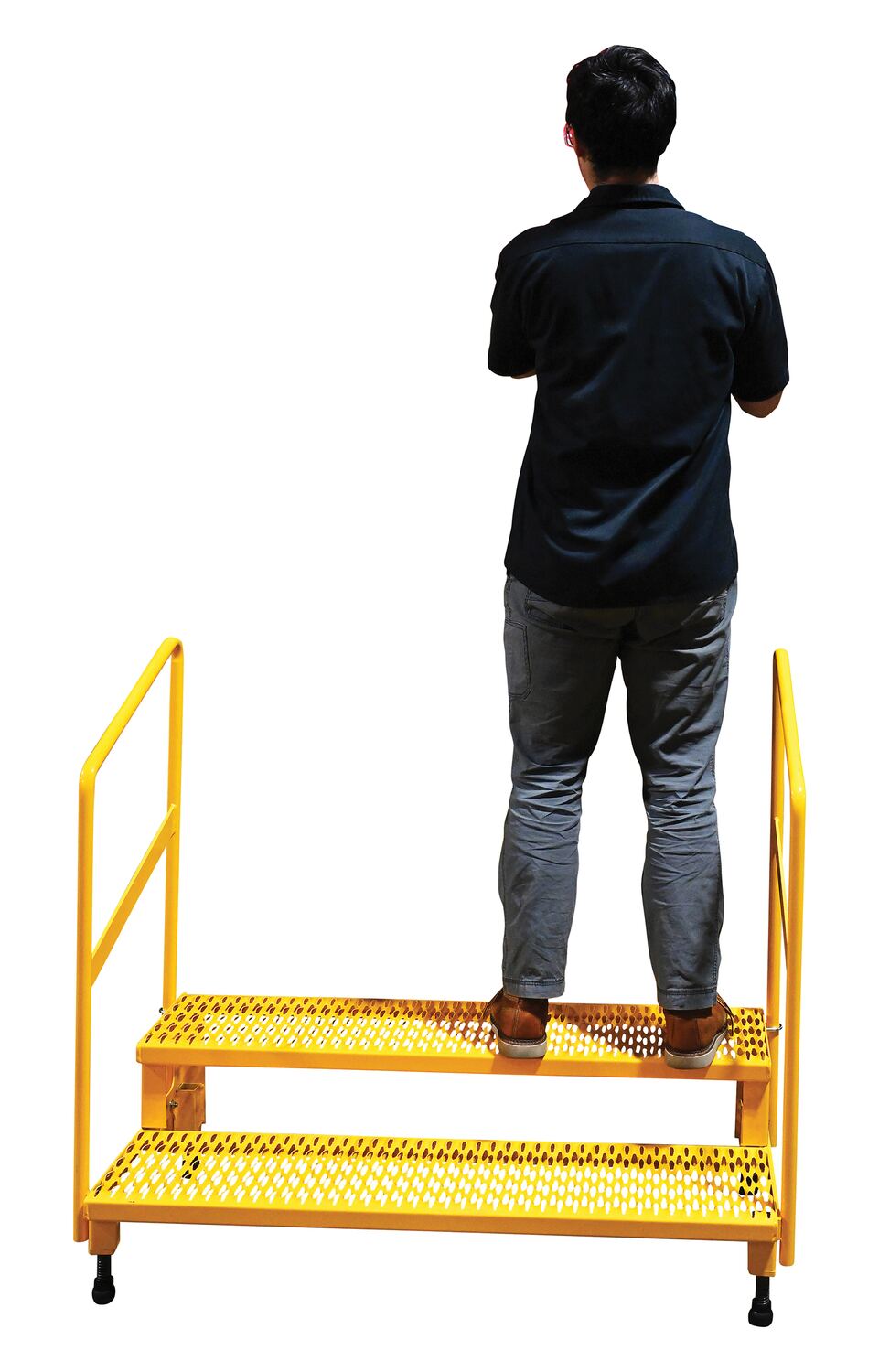

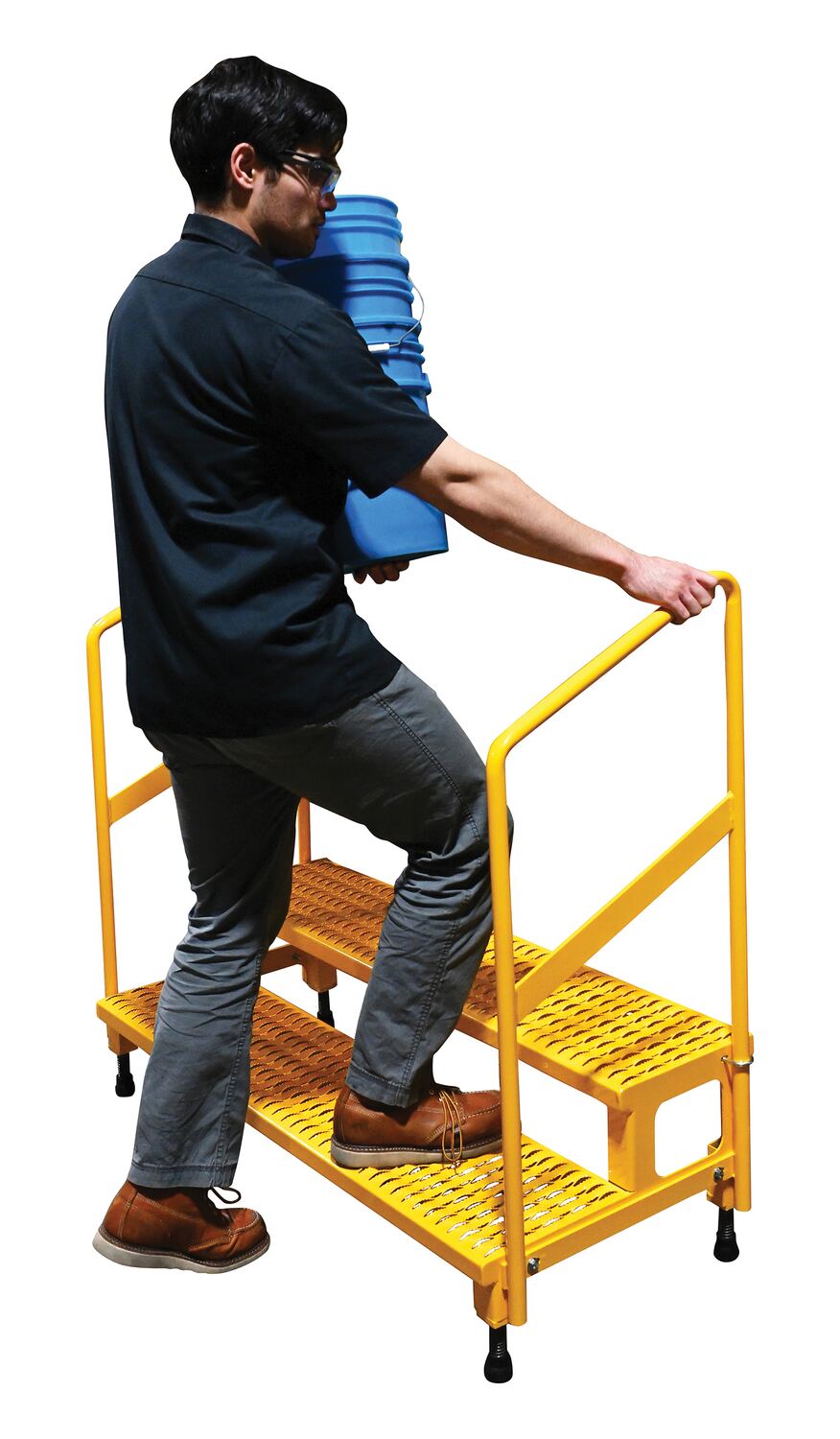

The adjustable step-mate stand can be used as either a comfortable worker platform or a semi-permanent step. The serrated surface ensures safe footing. The legs adjust individually by screwing them into or out of the leg base. Do not use on sloping or uneven ground. Only use on level, even surfaces.
Product Status
Available QuickShip
Key Features

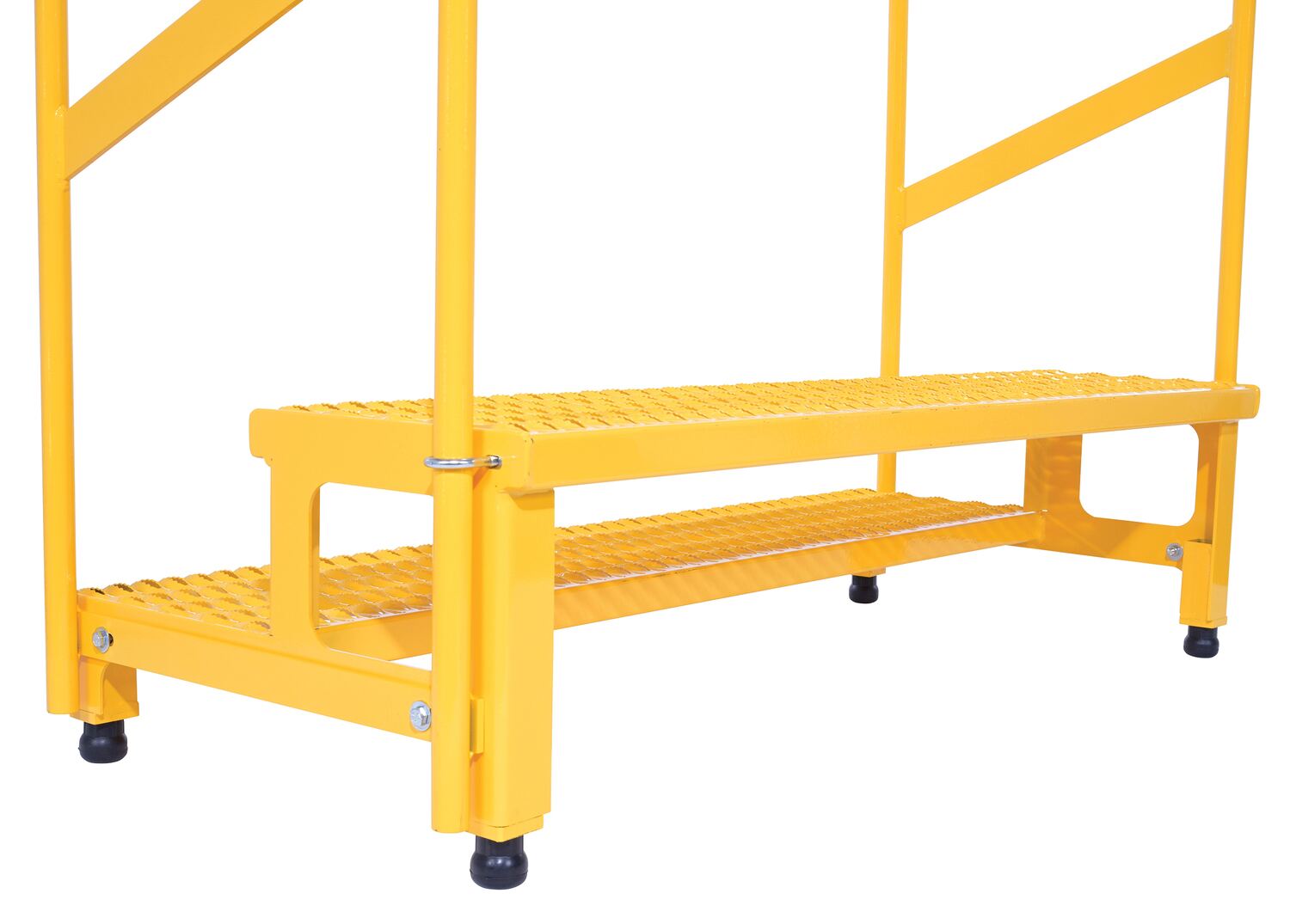

  • Independently adjustable height legs

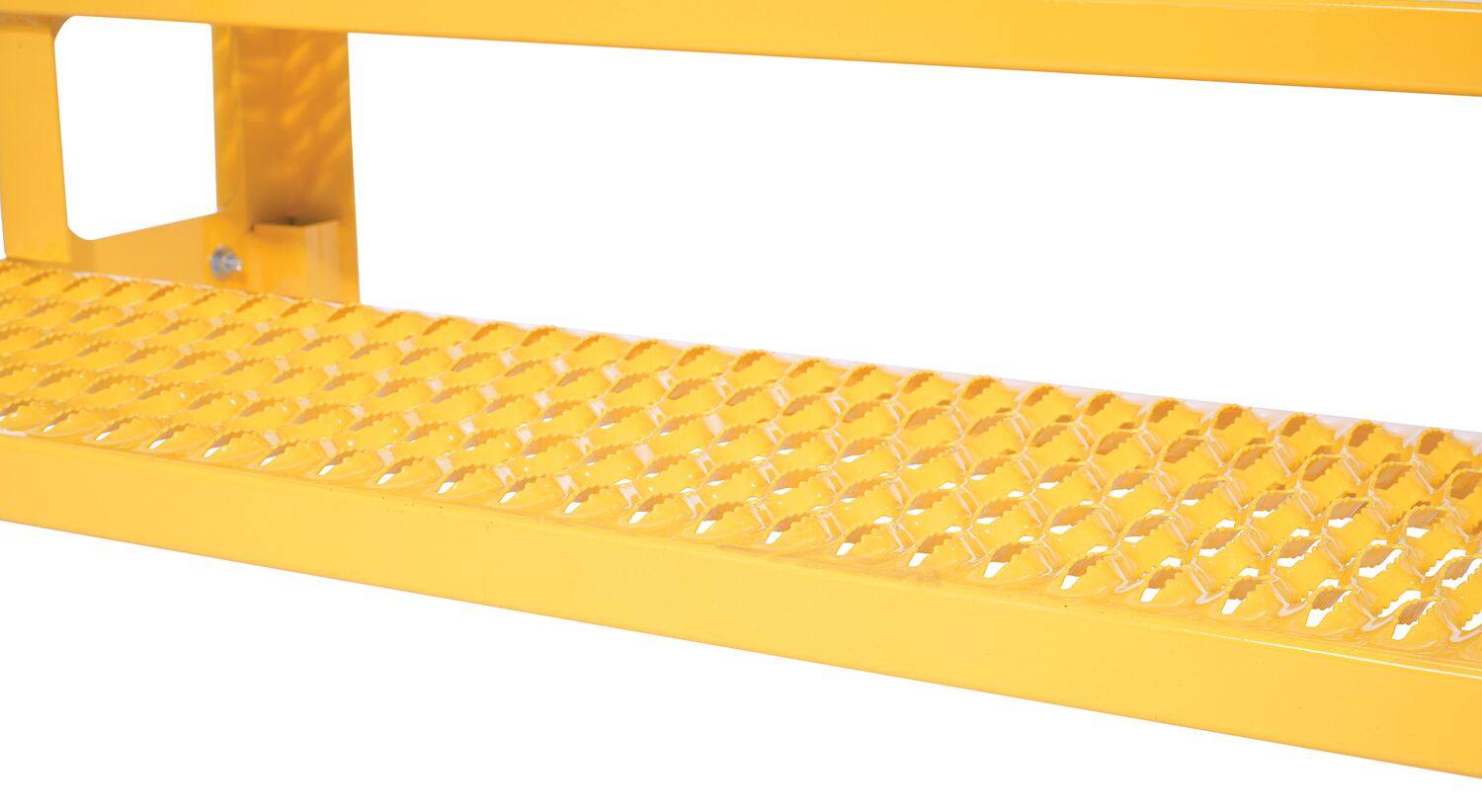

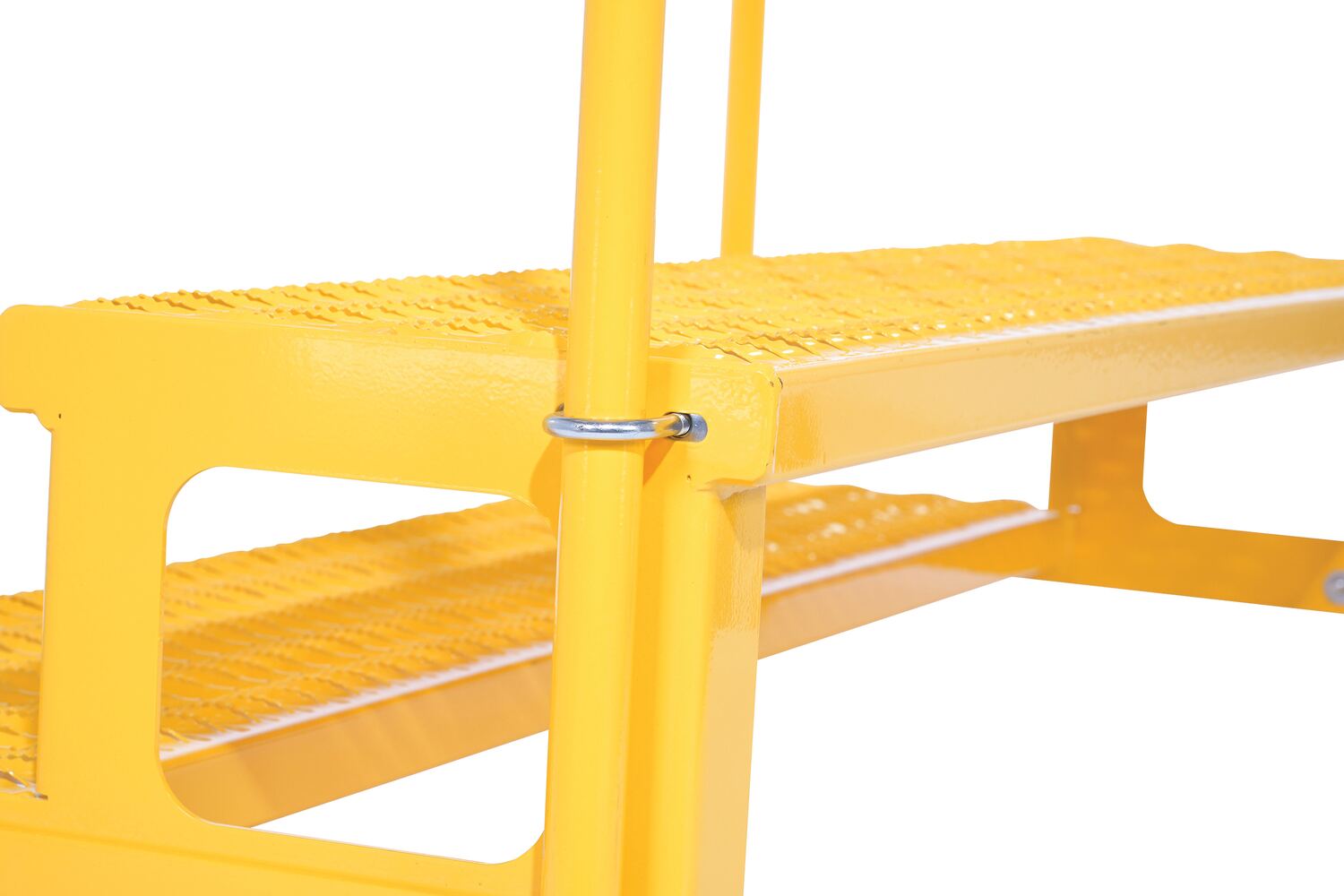

  • Serrated step surface provides excellent traction

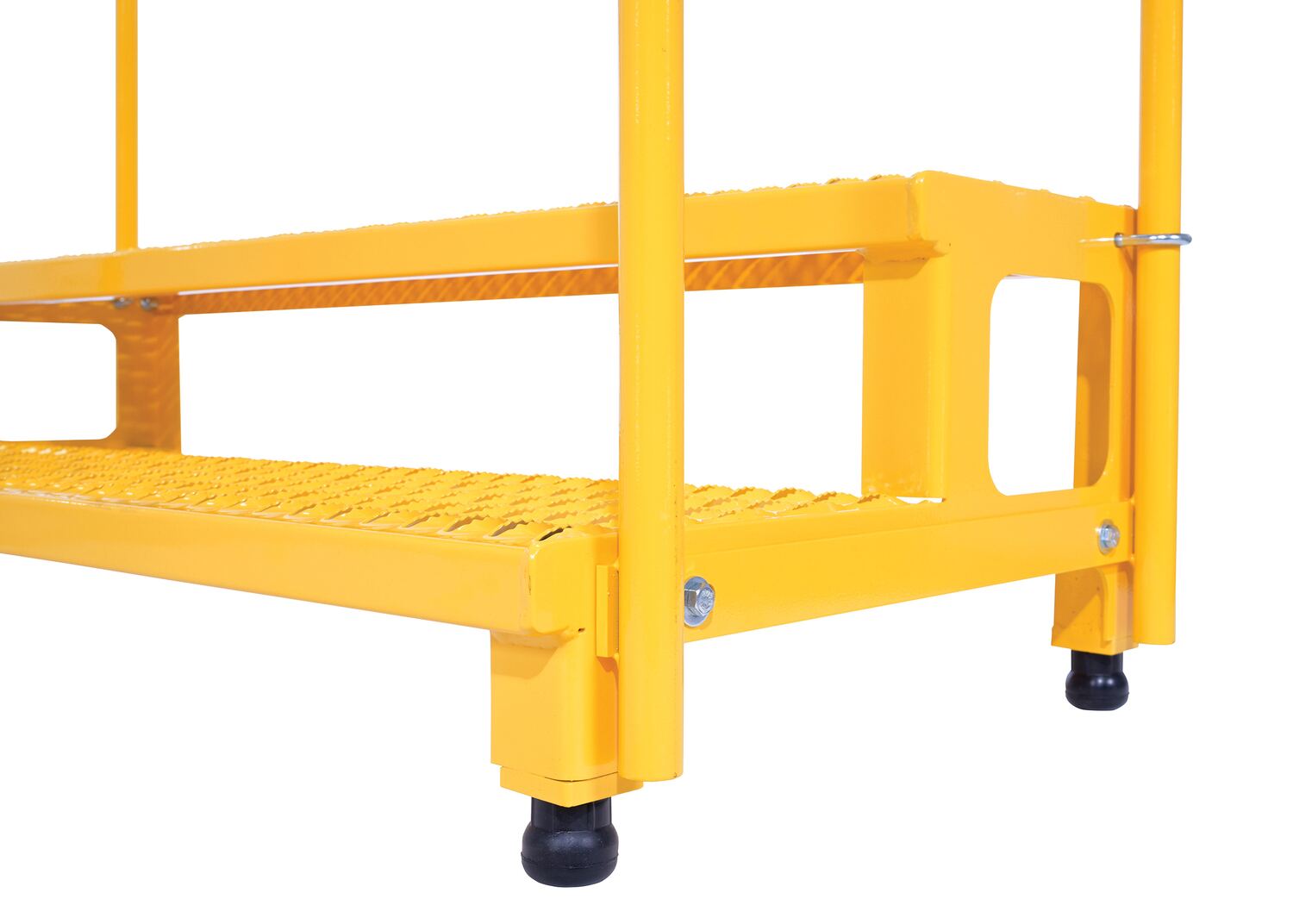

  • Each leg fitted with rubber tip for better grip & traction

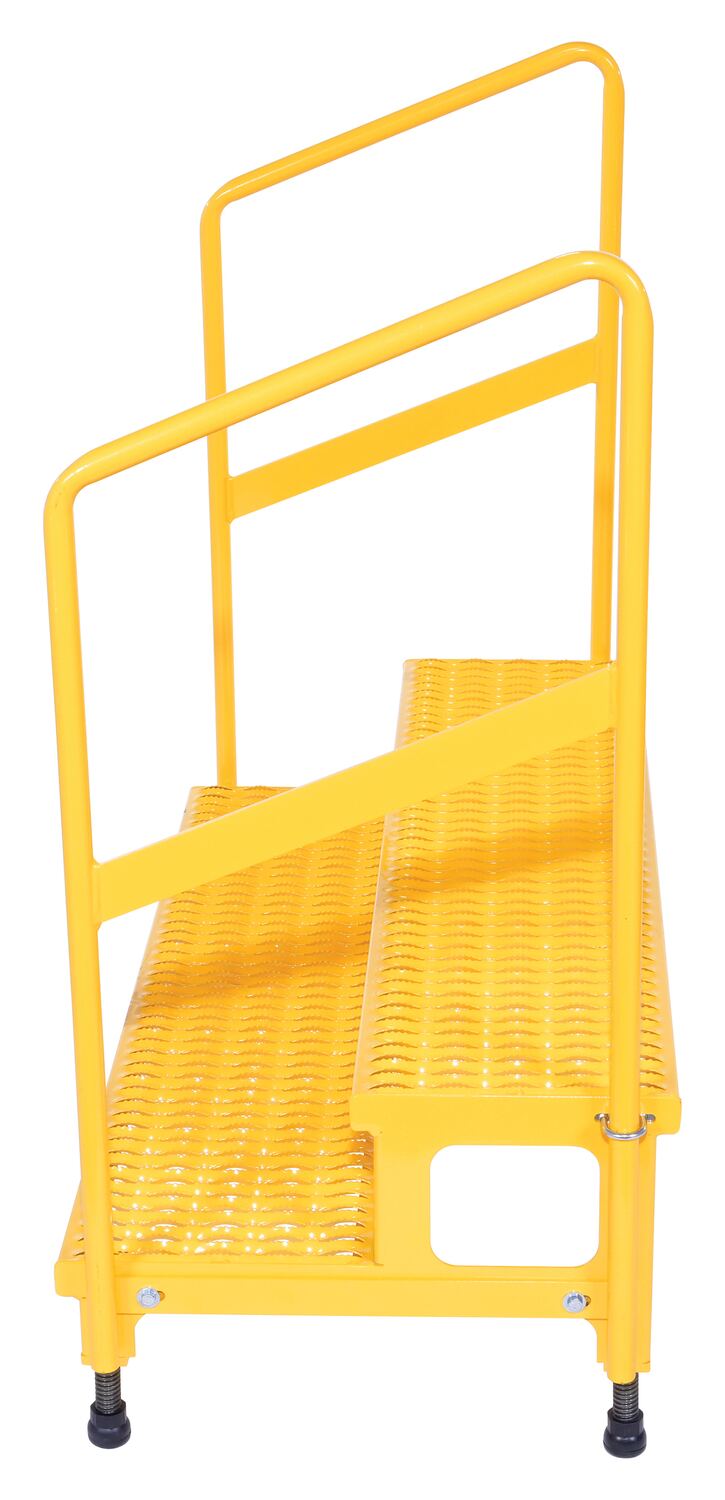

  • Models feature handrails for added stability during use
Quick Actions

Product Resources

Image Gallery View product images Contact Vestil Ask about this product
Documents

PDFs & Product Files

  Approval Drawing   Testing Certificate   ASP series Adjustable Step-Mate Stands Owners Manual   Label Page PDF   90 Days Warranty
Product Data

Core Data

Assembled Weight 96 lbs
Assembled Size 51.125"W x 22.875"L x 43"H
Total Ship Weight 122 lbs
Package 1 Size 40"W x 51"D x 22"H
Color / Finish Yellow
Freight Type LTL Palletized

Additional Attributes

Step Width (in.) 49
Number of Steps 2
Uniform Capacity (lb.) 500
Adjustable Bottom Step Height Range (in.) 6 to 8-1/4
Adjustable Top Step Height Range (in.) 13 to 15-1/4
Step Material Serrated Steel
Step Depth (in.) 11-3/4
Step Angle (degrees) 33
Leg Feature Anti-Slip Tips
Adjustable Legs? Yes
Handrail Construction Steel Tubing
Includes 2 Bolt-On Handrails
Overall Width (in.) 51-1/8
Overall Length (in.) 22-7/8
Overall Height (in.) 46-1/4
Extended Product Details

Marketing Specs.

MFG Model # (Series)
ASP-48-HR
Product Name
Steel Adjustable Step Mate Stand 2 Step with Handrails 22-7/8 In. x 51-1/8 In. x 43 In. 500 Lb. Capacity Yellow
UPC
691215106689
GTIN
00691215106689
Taxonomy 1
Building Supplies
Taxonomy 2
Ladders & Scaffolding
Taxonomy 3
Ladders
Taxonomy 4
Step
Assembled Depth (in.)
22.875
Assembled Width(in.)
51.125
Assembled Height(in.)
43
Assembled Weight(lbs.)
96
Color/Finish
Yellow
Material
Steel
Option? Y/N
N
Sell UOM
EA-Each
Country Of Origin
US
Approval Drawing Required? Y/N
N
Assembly
Assembled

Logistics

Packaging Level
BASE_UNIT_OR_EACH
Package Depth (in.)
51
Package Width (in.)
40
Package Height (in.)
22
Package Weight (in.)
122
Subclass
1
Freight Class
250
NMFC Code
Stairs or Staircases iron or steel w/o handrails or detached
NMFC Number
37257
LTL Freight
LTL Palletized
UNSPSC
30241602
HTSUS Number
7326.90.8688
USMCA HS
7326.90
Origin Criterion
B
Certification Indicator
D
ECCN
EAR99
US Shipping Point
Angola, IN
Supplier Postal Code
46703
Hazardous Material? Yes/No
No
MSDS? Yes/No
No
Batteries Included?
No

Warranty

Warranty
Yes
Manufactuer Warranty
90 Days Limited Warranty
Warranty Type
Limited - Parts
Cancelable? Y/N
Y
Returnable? Y/N
Y
California Prop 65 Compliant?
Unknown

Prop 65 Warning
