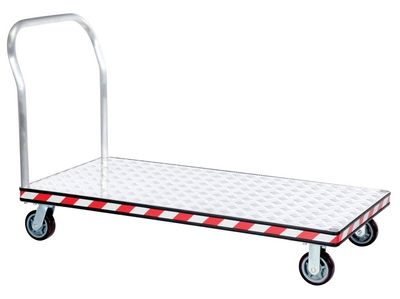

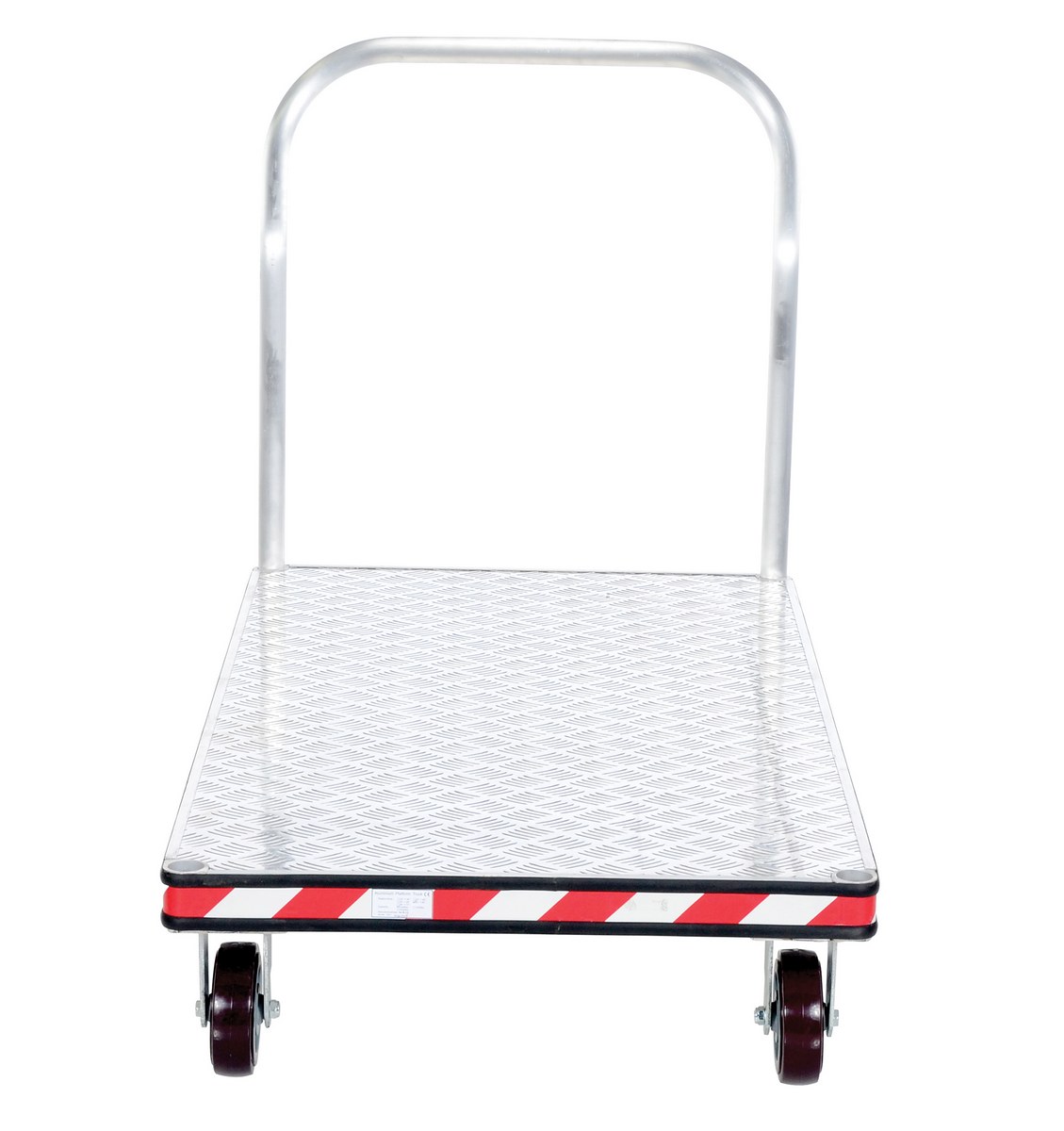

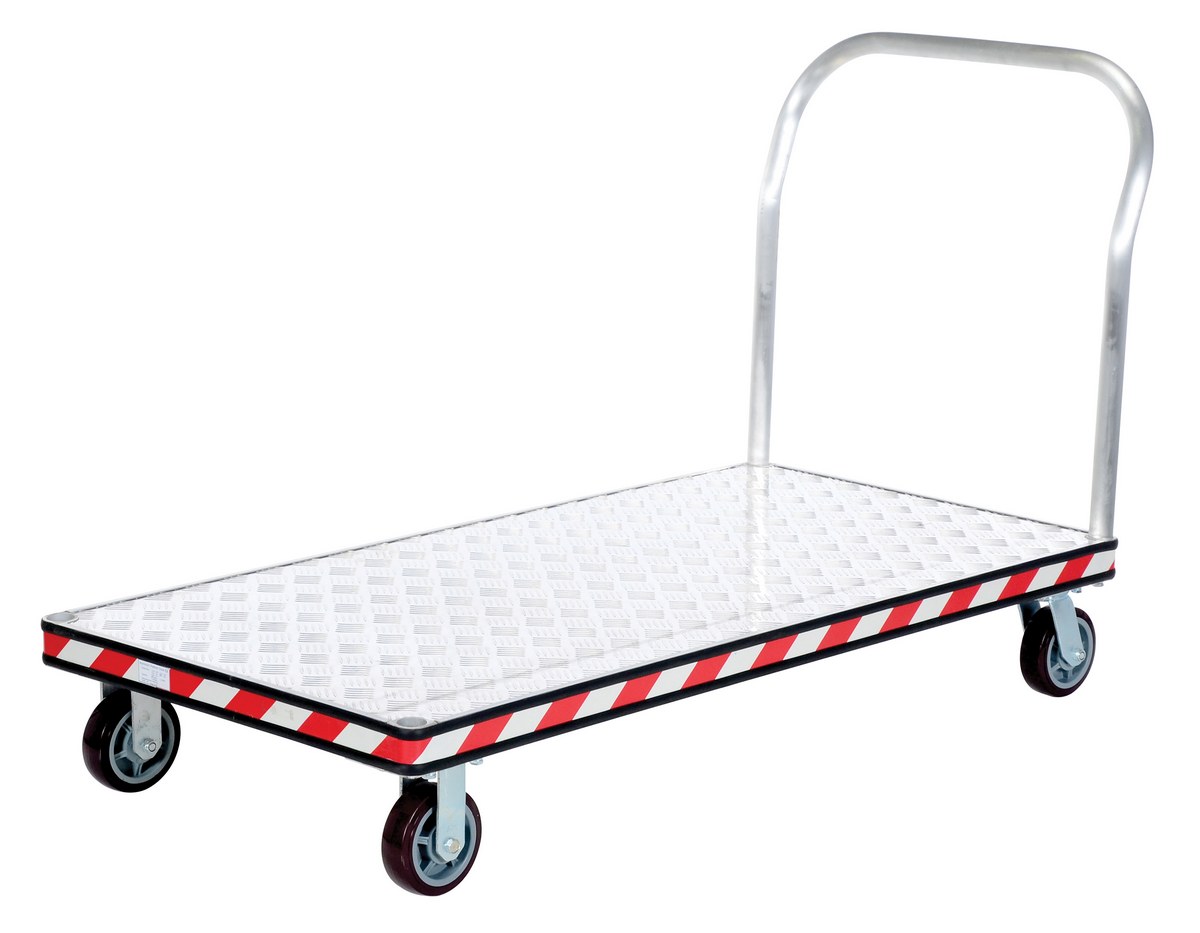

Aluminum Heavy Duty Tread Plate Platform Truck 30 In. x 60 In. 2,400 Lb. Capacity Silver

Heavy Duty Aluminum Platform Truck for Moving Loads Through Warehouses and Production Areas, 2,400 lb. Capacity with 30 in. x 60 in., Silver Finish – Model ATP-C-3060
An aluminum tread plate platform truck is a great addition a variety of settings. Fitted with non-marking rubber protective buffer strip to protect walls and door frames during transit. Design allows items to be loaded and unloaded from multiple sides. The poly-on-poly casters roll smoothly over surfaces.
Product Status
Available QuickShip
Key Features
  • Rounded-edge platform protects walls from damage during transit
  • Includes one removable high-polished steel handle
  • Ideal for commercial and warehouse areas
  • Constructed of all welded aluminum
Quick Actions

Product Resources

Image Gallery View product images Contact Vestil Ask about this product
Documents

PDFs & Product Files

  Testing Certificate   ATP-C series Heavy Duty Aluminum Treadplate Platform Trucks Owners Manual   Label Page PDF   90 Days Warranty
Product Data

Core Data

Assembled Weight 60 lbs
Assembled Size 30"W x 60"L x 39.25"H
Total Ship Weight 112 lbs
Package 1 Size 40"W x 64"D x 14"H
Color / Finish Silver
Freight Type LTL Palletized

Additional Attributes

Uniform Static Capacity (lb.) 2,400
Deck Width (in.) 30
Deck Length (in.) 60
Deck Height (in.) 10-1/4
Caster Diameter (in.) 6
Caster Width (in.) 1-5/8
Rigid Caster (qty.) 2
Swivel Caster (qty.) 2
Caster Material Poly-on-Poly
Extended Product Details

Marketing Specs.

MFG Model # (Series)
ATP-C-3060
Product Name
Aluminum Heavy Duty Tread Plate Platform Truck 30 In. x 60 In. 2,400 Lb. Capacity Silver
UPC
691215113045
GTIN
00691215113045
Taxonomy 1
Material Handling
Taxonomy 2
Hand Trucks & Dollies
Taxonomy 3
Platform Carts
Taxonomy 4
Manual
Assembled Depth (in.)
60
Assembled Width(in.)
30
Assembled Height(in.)
39.25
Assembled Weight(lbs.)
60
Color/Finish
Silver
Material
Aluminum
Option? Y/N
N
Sell UOM
EA-Each
Country Of Origin
CN
Approval Drawing Required? Y/N
N
Assembly
Assembly required

Logistics

Packaging Level
BASE_UNIT_OR_EACH
Package Depth (in.)
64
Package Width (in.)
40
Package Height (in.)
14
Package Weight (in.)
112
Subclass
4
Freight Class
175
NMFC Code
Vehicles, other than self-propelled
NMFC Number
189800
LTL Freight
LTL Palletized
UNSPSC
24101514
HTSUS Number
8716.80.5090
USMCA HS
8716.80
Origin Criterion
NO
Certification Indicator
NO
ECCN
EAR99
US Shipping Point
Angola, IN
Supplier Postal Code
46703
Hazardous Material? Yes/No
No
MSDS? Yes/No
No
Batteries Included?
No

Warranty

Warranty
Yes
Manufactuer Warranty
90 Days Limited Warranty
Warranty Type
Limited - Parts
Cancelable? Y/N
Y
Returnable? Y/N
Y
California Prop 65 Compliant?
Unknown

Prop 65 Warning

Copyright © 2026 All Rights Reserved, Vestil Manufacturing Corp.

Details For Model: ATP-C-3060

ATP-C-3060

Aluminum Heavy Duty Tread Plate Platform Truck 30 In. x 60 In. 2,400 Lb. Capacity Silver

An aluminum tread plate platform truck is a great addition a variety of settings. Fitted with non-marking rubber protective buffer strip to protect walls and door frames during transit. Design allows items to be loaded and unloaded from multiple sides. The poly-on-poly casters roll smoothly over surfaces.

  • Rounded-edge platform protects walls from damage during transit
  • Includes one removable high-polished steel handle
  • Ideal for commercial and warehouse areas
  • Constructed of all welded aluminum

Core Data

Assembled Weight: 60 Assembled Size: 30"W x 60"L x 39.25"H Color: Silver
Total Ship Weight: 112 Package 1 Size: 40"W x 64"D x 14"H Freight: LTL Palletized

Specifications

Uniform Static Capacity (lb.): 2,400
Deck Width (in.): 30
Deck Length (in.): 60
Deck Height (in.): 10-1/4
Caster Diameter (in.): 6
Caster Width (in.): 1-5/8
Rigid Caster (qty.): 2
Swivel Caster (qty.): 2
Caster Material: Poly-on-Poly
