  All Products   Loading Dock Equipment   Walk & Service Ramps   Aluminum Walk Ramps AWR-28-6A
Product Image

Visual Reference

AWR-28-6A
AWR-28-6A
AWR-28-6A
AWR-28-6A
AWR-28-6A

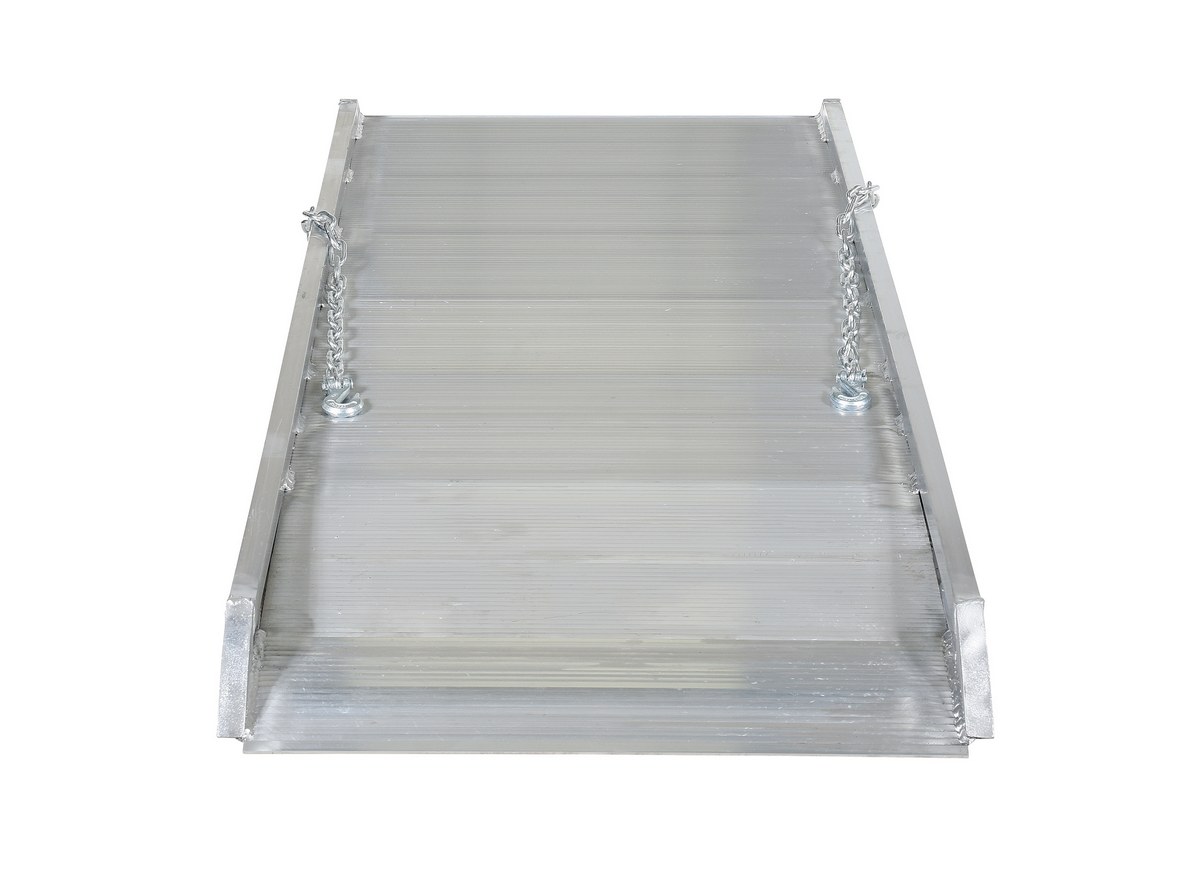

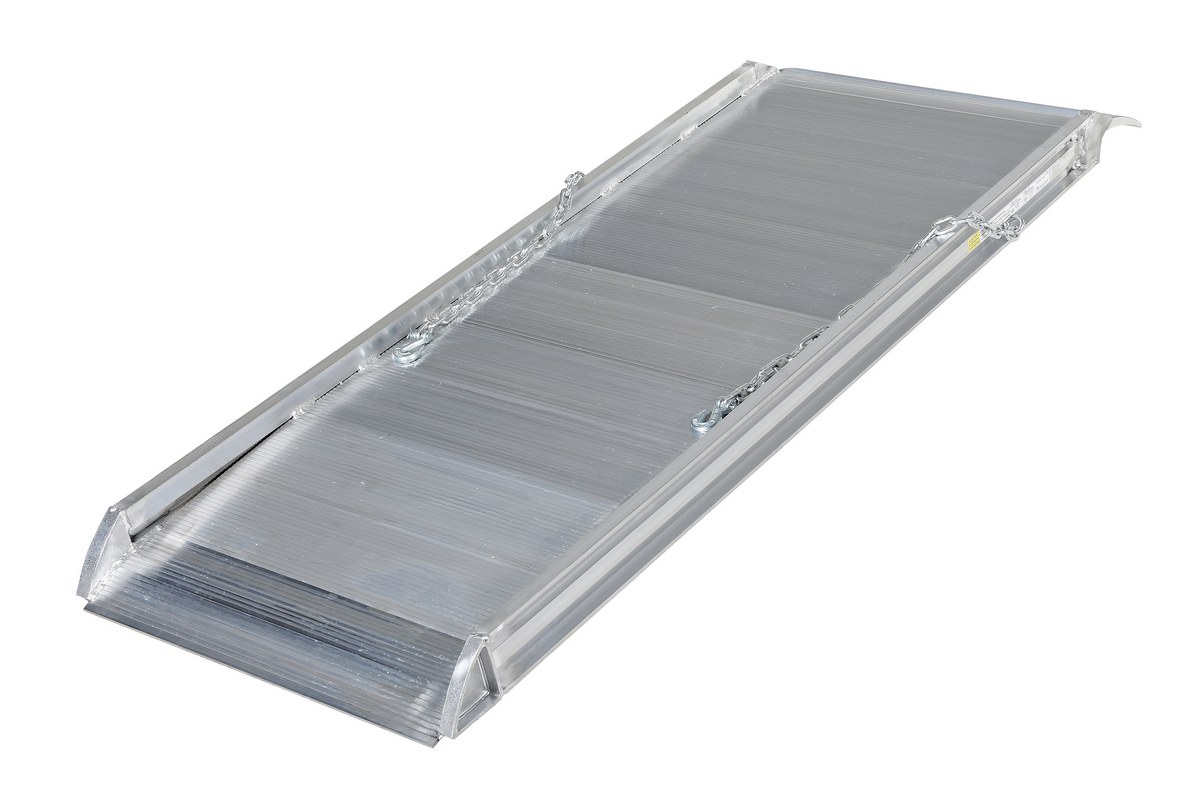

Aluminum Wheel Walk Ramp Overlapping Style 72 In. x 28 In. 2800 Lb. Capacity Silver

Heavy Duty Aluminum Ramp for Trailer Loading, Dock Access, and Material Transfer, 2,800 lb. Capacity with 72 in. x 28 in., Silver Finish – Model AWR-28-6A
The Aluminum Walk Ramp enables delivery men/women, shippers, and receivers to load and unload trucks when docks are unavailable. Heavy-duty steel chains with steel grab hooks are attached to each side of ramp for safely securing ramp to truck. Constructed of strong aluminum alloy with non-skid tread surface. The ramp is lightweight and easy to handle. This overlapping style rests on the truck bed.
Product Status
Available
Key Features
  • 100% Welded aluminum construction is light-weight and will not rust
  • Overlap style end lip provides a smooth transition
  • Safety chains securely connect ramp to trailer for safety
  • Serrated ramp surface provides a non-slip grip
Quick Actions

Product Resources

Image Gallery View product images Contact Vestil Ask about this product
Documents

PDFs & Product Files

  Approval Drawing   Testing Certificate   AWR & AWR-G Series Aluminum Walk Ramp Instruction Manual   Label Page PDF   90 Days Warranty
Product Data

Core Data

Assembled Weight 68 lbs
Assembled Size 28"W x 72"L x 4.4375"H
Total Ship Weight 68 lbs
Package 1 Size 28"W x 72"D x 5"H
Color / Finish Silver
Freight Type LTL Palletized

Additional Attributes

Uniform Capacity with 4-wheel cart (lb.) 2,800
Uniform Capacity with 2-wheel cart (lb.) 2000
Usable Width (in.) 26
Height Range (in.) 6 to 21
Safety Curbs (in.) 1-1/2
Usable Length (in.) 72
Extended Product Details

Marketing Specs.

MFG Model # (Series)
AWR-28-6A
Product Name
Aluminum Wheel Walk Ramp Overlapping Style 72 In. x 28 In. 2800 Lb. Capacity Silver
UPC
691215003537
GTIN
00691215003537
Taxonomy 1
Material Handling
Taxonomy 2
Loading Dock Equipment
Taxonomy 3
Ramps & Accessories
Taxonomy 4
Walk Ramps
Assembled Depth (in.)
72
Assembled Width(in.)
28
Assembled Height(in.)
4.4375
Assembled Weight(lbs.)
68
Color/Finish
Silver
Material
Aluminum
Option? Y/N
N
Sell UOM
EA-Each
Country Of Origin
US
Approval Drawing Required? Y/N
N
Assembly
Assembled

Logistics

Packaging Level
BASE_UNIT_OR_EACH
Package Depth (in.)
72
Package Width (in.)
28
Package Height (in.)
5
Package Weight (in.)
68
Subclass
1
Freight Class
100
NMFC Code
Ramps Dockboards freight loading not mechanical
NMFC Number
168720
LTL Freight
LTL Palletized
UNSPSC
24101615
HTSUS Number
7610.90.0080
USMCA HS
7610.90
Origin Criterion
B
Certification Indicator
D
ECCN
EAR99
US Shipping Point
Angola, IN
Supplier Postal Code
46703
Hazardous Material? Yes/No
No
MSDS? Yes/No
No
Batteries Included?
No

Warranty

Warranty
Yes
Manufactuer Warranty
90 Days Limited Warranty
Warranty Type
Limited - Parts
Cancelable? Y/N
Y
Returnable? Y/N
Y
California Prop 65 Compliant?
Unknown

Prop 65 Warning

Copyright © 2026 All Rights Reserved, Vestil Manufacturing Corp.

Details For Model: AWR-28-6A

AWR-28-6A

Aluminum Wheel Walk Ramp Overlapping Style 72 In. x 28 In. 2800 Lb. Capacity Silver

The Aluminum Walk Ramp enables delivery men/women, shippers, and receivers to load and unload trucks when docks are unavailable. Heavy-duty steel chains with steel grab hooks are attached to each side of ramp for safely securing ramp to truck. Constructed of strong aluminum alloy with non-skid tread surface. The ramp is lightweight and easy to handle. This overlapping style rests on the truck bed.

  • 100% Welded aluminum construction is light-weight and will not rust
  • Overlap style end lip provides a smooth transition
  • Safety chains securely connect ramp to trailer for safety
  • Serrated ramp surface provides a non-slip grip

Core Data

Assembled Weight: 68 Assembled Size: 28"W x 72"L x 4.4375"H Color: Silver
Total Ship Weight: 68 Package 1 Size: 28"W x 72"D x 5"H Freight: LTL Palletized

Specifications

Uniform Capacity with 4-wheel cart (lb.): 2,800
Uniform Capacity with 2-wheel cart (lb.): 2000
Usable Width (in.): 26
Height Range (in.): 6 to 21
Safety Curbs (in.): 1-1/2
Usable Length (in.): 72
