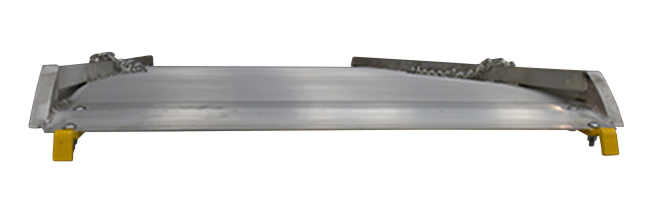

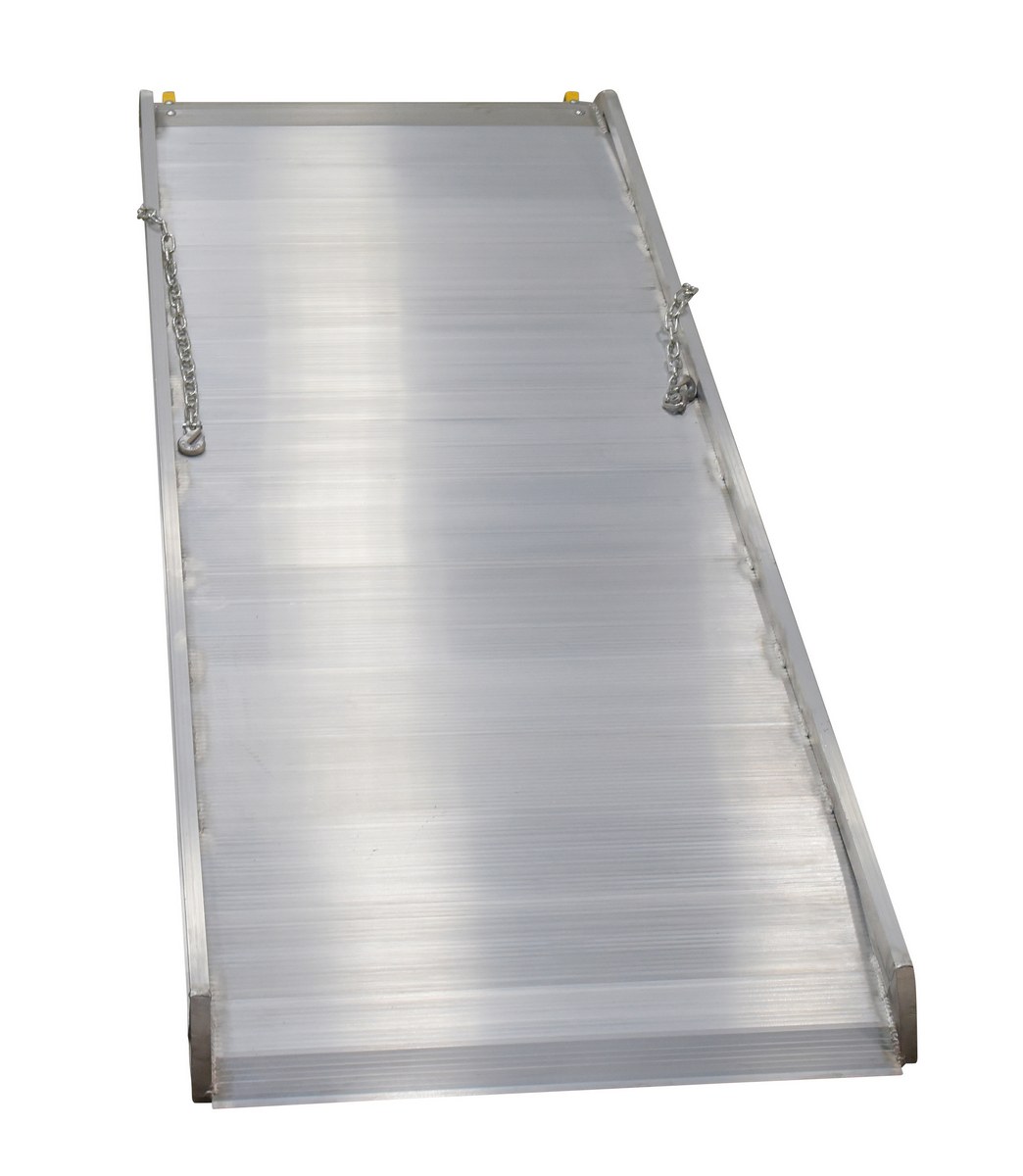

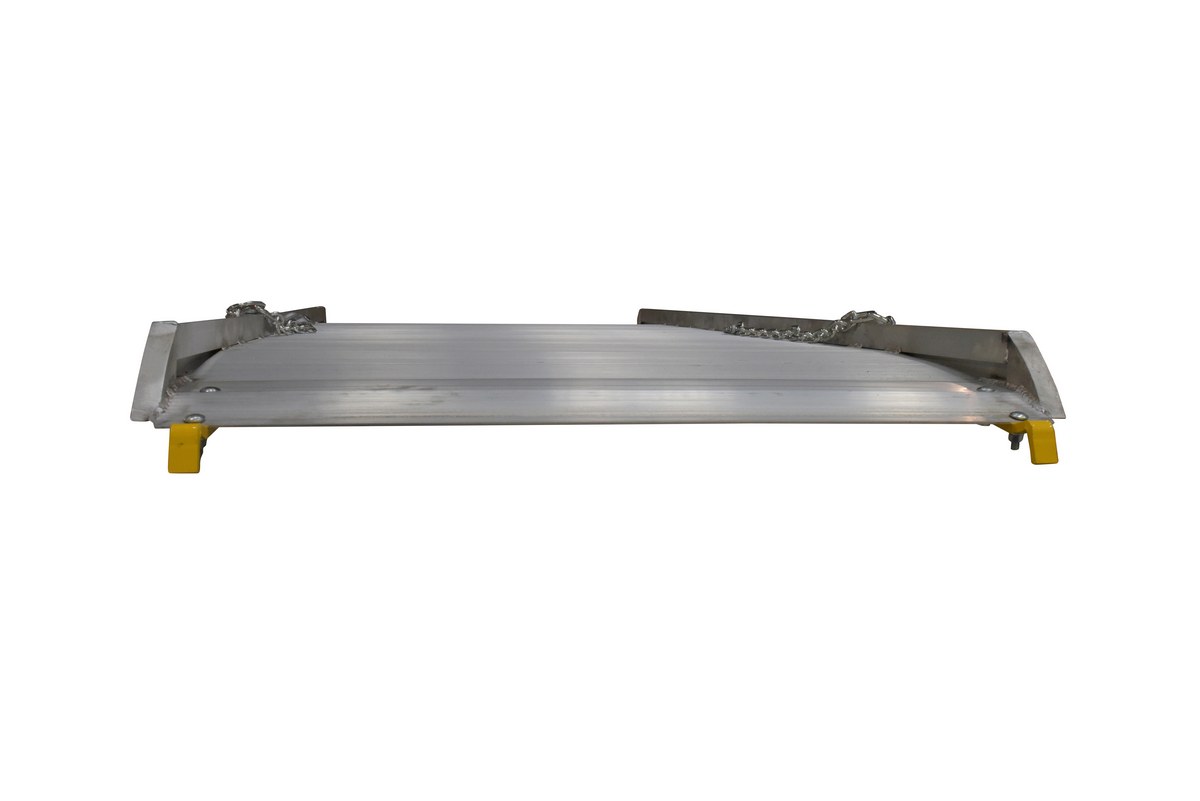

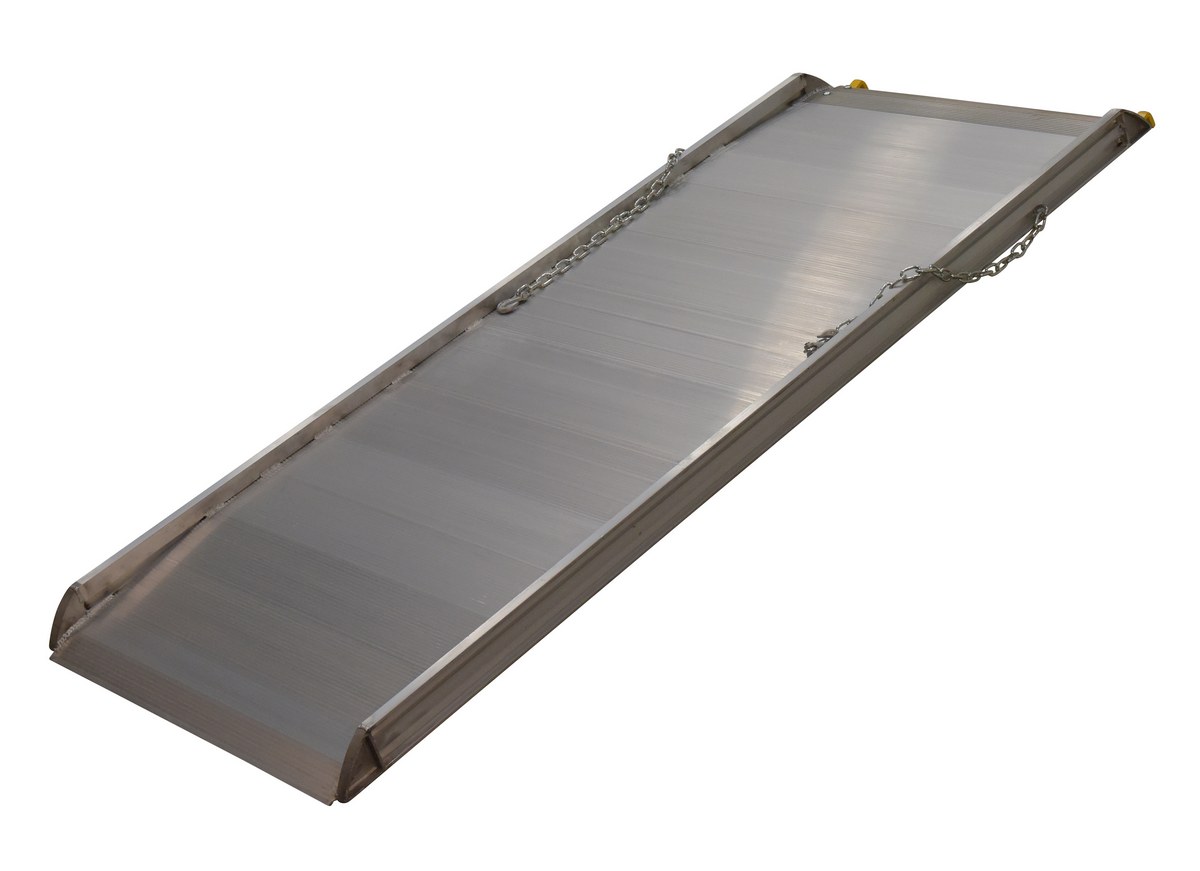

Aluminum Wheel Walk Ramp Steel Hook Style 99-1/4 In. x 38 In. 2500 Lb. Capacity Silver

Heavy Duty Aluminum Ramp for Trailer Loading, Dock Access, and Material Transfer, 2,500 lb. Capacity with 99-1/4 in. x 38 in., Silver Finish – Model AWR-38-8B
The Aluminum Walk Ramp enables delivery men/women, shippers, and receivers to load and unload trucks when docks are unavailable. Heavy-duty steel chains with steel grab hooks are attaches to each side of ramp for safely securing ramp to truck. Constructed of strong aluminum alloy with non-skid tread surface. The ramp is lightweight and easy to handle. This steel hook style mounts onto the truck extensions.
Product Status
Available
Key Features
  • 100% Welded aluminum construction is light-weight and will not rust
  • Steel hook style provides a sturdy surface for loading
  • Safety chains securely connect ramp to trailer for safety
  • Serrated ramp surface provides a non-slip grip
Quick Actions

Product Resources

Image Gallery View product images Contact Vestil Ask about this product
Documents

PDFs & Product Files

  Approval Drawing   Testing Certificate   AWR & AWR-G Series Aluminum Walk Ramp Instruction Manual   Label Page PDF   90 Days Warranty
Product Data

Core Data

Assembled Weight 99 lbs
Assembled Size 38"W x 99.25"L x 5.875"H
Total Ship Weight 105 lbs
Package 1 Size 38"W x 96"D x 5"H
Color / Finish Silver
Freight Type LTL Palletized

Additional Attributes

Uniform Capacity with 4-wheel cart (lb.) 2,500
Uniform Capacity with 2-wheel cart (lb.) 1650
Usable Width (in.) 36
Height Range (in.) 6 to 31
Safety Curbs (in.) 1-1/2
Usable Length (in.) 97-11/16
Extended Product Details

Marketing Specs.

MFG Model # (Series)
AWR-38-8B
Product Name
Aluminum Wheel Walk Ramp Steel Hook Style 99-1/4 In. x 38 In. 2500 Lb. Capacity Silver
UPC
691215003742
GTIN
00691215003742
Taxonomy 1
Material Handling
Taxonomy 2
Loading Dock Equipment
Taxonomy 3
Ramps & Accessories
Taxonomy 4
Walk Ramps
Assembled Depth (in.)
99.25
Assembled Width(in.)
38
Assembled Height(in.)
5.875
Assembled Weight(lbs.)
99
Color/Finish
Silver
Material
Aluminum
Option? Y/N
N
Sell UOM
EA-Each
Country Of Origin
US
Approval Drawing Required? Y/N
N
Assembly
Assembled

Logistics

Packaging Level
BASE_UNIT_OR_EACH
Package Depth (in.)
96
Package Width (in.)
38
Package Height (in.)
5
Package Weight (in.)
105
Subclass
1
Freight Class
100
NMFC Code
Ramps Dockboards freight loading not mechanical
NMFC Number
168720
LTL Freight
LTL Palletized
UNSPSC
24101615
HTSUS Number
7610.90.0080
USMCA HS
7610.90
Origin Criterion
B
Certification Indicator
D
ECCN
EAR99
US Shipping Point
Angola, IN
Supplier Postal Code
46703
Hazardous Material? Yes/No
No
MSDS? Yes/No
No
Batteries Included?
No

Warranty

Warranty
Yes
Manufactuer Warranty
90 Days Limited Warranty
Warranty Type
Limited - Parts
Cancelable? Y/N
Y
Returnable? Y/N
Y
California Prop 65 Compliant?
Unknown

Prop 65 Warning
