Product Data Sheet

  Print to PDF
  All Products   Loading Dock Equipment   Walk & Service Ramps   Aluminum Walk Ramps AWR-HR-10-RF

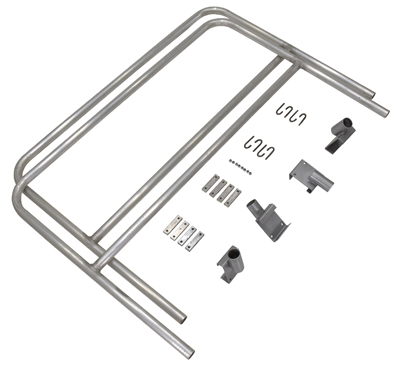

Product Image

Visual Reference

AWR-HR-10-RF
AWR-HR-10-RF
AWR-HR-10-RF

Aluminum Bolt On Handrail 10 Ft. For Aluminum Walk Ramps Retro Fit Silver

Aluminum Bolt-On Walk Ramp Handrail for Trailer Loading, Dock Access, and Material Transfer, Silver Finish – Model AWR-HR-10-RF
This Aluminum Walk Ramp Handrail gives ramp users more stability and security. Handrail can be bolted onto both A-style and B-style aluminum walk ramps. Handrail may be attached to one side or both sides of ramp. Installation brackets and hardware included.
Product Status
Available
Key Features
  • Gives ramp users more stability and security
  • Bolt onto both A-style and B-style aluminum walk ramps
  • May be attached to one side or both sides of ramp
  • Installation brackets and hardware included
Quick Actions

Product Resources

Image Gallery View product images Contact Vestil Ask about this product
Documents

PDFs & Product Files

  Approval Drawing   Testing Certificate   AWR & AWR-G Series Aluminum Walk Ramp Instruction Manual   Label Page PDF   90 Days Warranty
Product Data

Core Data

Assembled Weight 48 lbs
Assembled Size 4.5625"W x 98.3125"L x 45.3125"H
Total Ship Weight 36 lbs
Package 1 Size 96"W x 42"D x 6"H
Color / Finish Silver
Freight Type LTL Palletized

Additional Attributes

Usable Rail Length (in.) 96
Midrail (in.) 18-7/16
Railing Height (in.) 40-1/4
Installation Bolt-on
Handrail (qty.) 2
Extended Product Details

Marketing Specs.

MFG Model # (Series)
AWR-HR-10-RF
Product Name
Aluminum Bolt On Handrail 10 Ft. For Aluminum Walk Ramps Retro Fit Silver
UPC
691215133463
GTIN
00691215133463
Taxonomy 1
Material Handling
Taxonomy 2
Loading Dock Equipment
Taxonomy 3
Ramps & Accessories
Taxonomy 4
Handrails
Assembled Depth (in.)
98.3125
Assembled Width(in.)
4.5625
Assembled Height(in.)
45.3125
Assembled Weight(lbs.)
48
Color/Finish
Silver
Material
Aluminum
Option? Y/N
Y
Sell UOM
ST-Set
Country Of Origin
US
Approval Drawing Required? Y/N
N
Assembly
Assembled
Compatible Products
AWR-28-10A, AWR-28-10B, AWR-38-10A, AWR-38-10B, AWR-G-28-10A, AWR-G-38-10A, AWR-G-28-10A-WH, AWR-G-38-10A-WH, AWR-28-10A-WH, AWR-28-10B-WH, AWR-38-10A-WH, AWR-38-10B-WH

Logistics

Packaging Level
PACK_OR_INNER_PACK
Package Depth (in.)
42
Package Width (in.)
96
Package Height (in.)
6
Package Weight (in.)
36
Subclass
6
Freight Class
300
NMFC Code
Barricade pedestrian iron steel alum combined
NMFC Number
68005
LTL Freight
LTL Palletized
UNSPSC
46151500
HTSUS Number
7610.90.0080
USMCA HS
7610.90
Origin Criterion
B
Certification Indicator
D
ECCN
EAR99
US Shipping Point
Angola, IN
Supplier Postal Code
46703
Hazardous Material? Yes/No
No
MSDS? Yes/No
No
Batteries Included?
No

Warranty

Warranty
Yes
Manufactuer Warranty
90 Days Limited Warranty
Warranty Type
Limited - Parts
Cancelable? Y/N
Y
Returnable? Y/N
Y
California Prop 65 Compliant?
Unknown

Prop 65 Warning

Copyright © 2026 All Rights Reserved, Vestil Manufacturing Corp.

Details For Model: AWR-HR-10-RF

AWR-HR-10-RF

Aluminum Bolt On Handrail 10 Ft. For Aluminum Walk Ramps Retro Fit Silver

This Aluminum Walk Ramp Handrail gives ramp users more stability and security. Handrail can be bolted onto both A-style and B-style aluminum walk ramps. Handrail may be attached to one side or both sides of ramp. Installation brackets and hardware included.

  • Gives ramp users more stability and security
  • Bolt onto both A-style and B-style aluminum walk ramps
  • May be attached to one side or both sides of ramp
  • Installation brackets and hardware included

Core Data

Assembled Weight: 48 Assembled Size: 4.5625"W x 98.3125"L x 45.3125"H Color: Silver
Total Ship Weight: 36 Package 1 Size: 96"W x 42"D x 6"H Freight: LTL Palletized

Specifications

Usable Rail Length (in.): 96
Midrail (in.): 18-7/16
Railing Height (in.): 40-1/4
Installation: Bolt-on
Handrail (qty.): 2
