Steel Fold-Down Galvanized Bollard 42 In. Silver

Galvanized Folding Bollard for Warehouse Traffic Control and Collision Protection, 42 in.

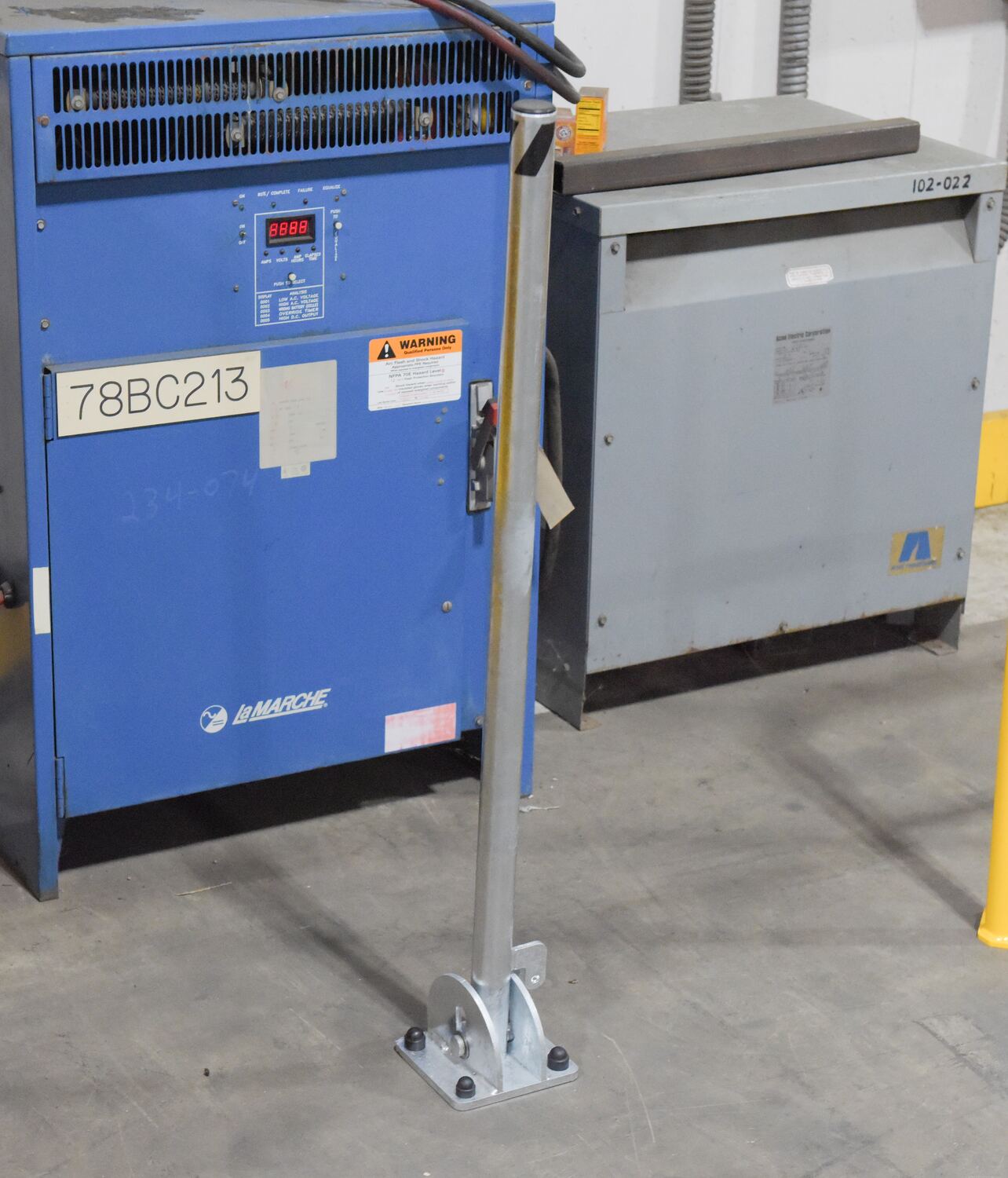

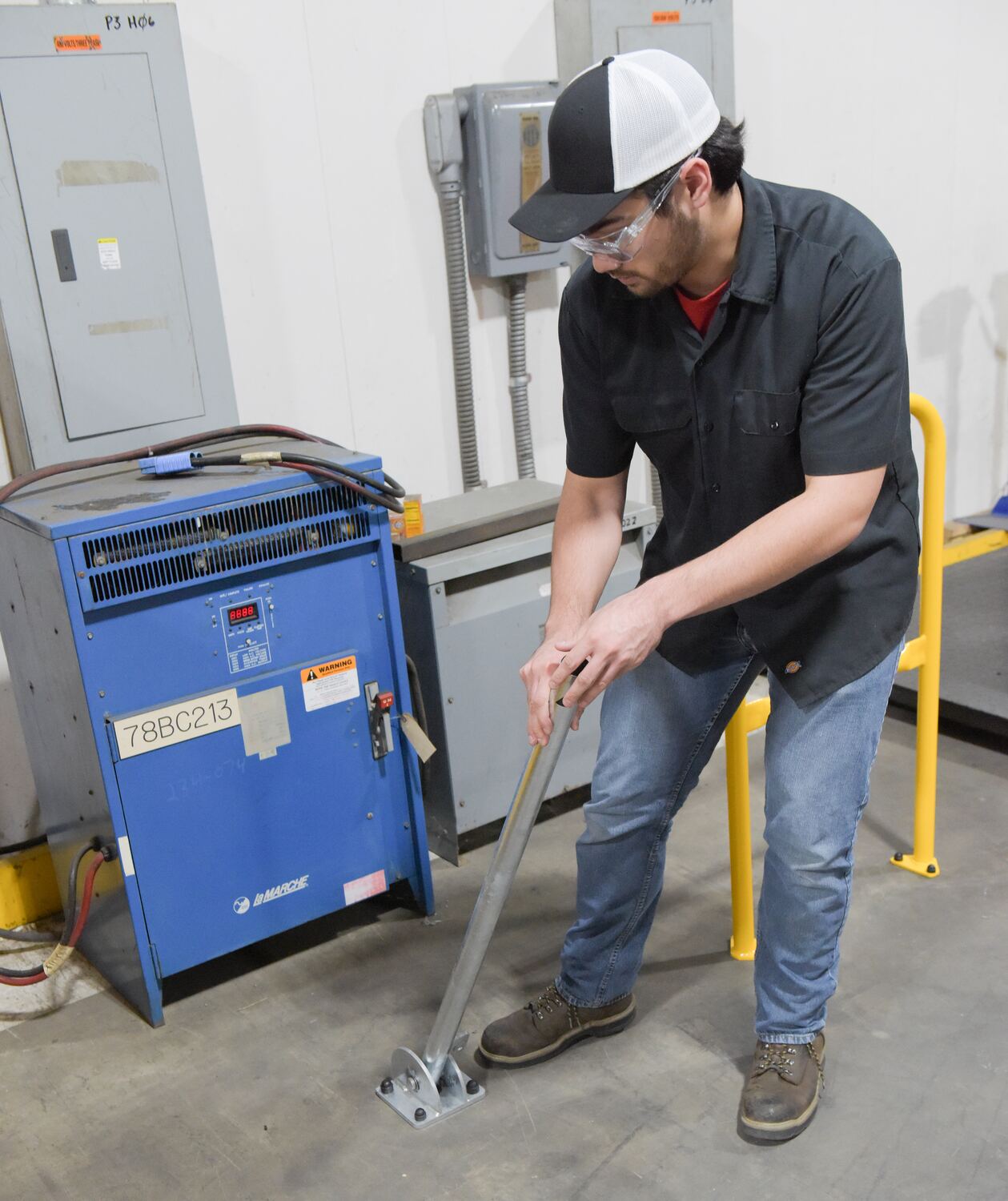

Folding steel barrier post for parking control and security. This folding bollard is locked in the raised position with a padlock (padlock not included). When padlock is removed, bollard may be lowered to ground to allow for access. Steel construction.
Product Status
Quote Required QuickShip
Key Features
  • Collapsible design
  • Black safety stripes
  • Pre-drilled mounting holes
  • Galvanized Finish
Quick Actions

Product Resources

Image Gallery View product images Contact Vestil Ask about this product
Documents

PDFs & Product Files

  Approval Drawing   Testing Certificate   360 Image   Label Page PDF   90 Days Warranty
Product Data

Core Data

Assembled Weight 13 lbs
Assembled Size 6"W x 6"L x 42"H
Total Ship Weight 15 lbs
Package 1 Size 7"W x 7"D x 43"H
Color / Finish Gray
Freight Type Parcel

Additional Attributes

Extended Height (in.) 42
Bollard Diameter (in.) 1-11/16
Collapsed Height (in.) 4-1/4
Bolt Hole Diameter (in.) 7/16
Bolt Holes (qty.) 4
Padlock Hole Diameter (in) 3/8
Base Thickness (in.) 3/8
Cap Material Plastic
Extended Product Details

Marketing Specs.

MFG Model # (Series)
BOL-FD-36-G
Product Name
Steel Fold-Down Galvanized Bollard 42 In. Silver
UPC
691215055635
GTIN
00691215055635
Taxonomy 1
Material Handling
Taxonomy 2
Loading Dock Equipment
Taxonomy 3
Safety Equipment
Taxonomy 4
Bollards
Taxonomy 5
Folding
Assembled Depth (in.)
6
Assembled Width(in.)
6
Assembled Height(in.)
42
Assembled Weight(lbs.)
13
Color/Finish
Gray
Material
Steel
Option? Y/N
N
Sell UOM
EA-Each
Country Of Origin
US
Approval Drawing Required? Y/N
N
Assembly
Assembled

Logistics

Packaging Level
BASE_UNIT_OR_EACH
Package Depth (in.)
7
Package Width (in.)
7
Package Height (in.)
43
Package Weight (in.)
15
Subclass
17
Freight Class
100
NMFC Code
Pipe Tubing or Pipe or Tubing Fittings
NMFC Number
52200
LTL Freight
Parcel
UNSPSC
23152206
HTSUS Number
7326.90.8688
USMCA HS
7326.90
Origin Criterion
B
Certification Indicator
D
ECCN
EAR99
US Shipping Point
Angola, IN
Supplier Postal Code
46703
Hazardous Material? Yes/No
No
MSDS? Yes/No
No
Batteries Included?
No

Warranty

Warranty
Yes
Manufactuer Warranty
90 Days Limited Warranty
Warranty Type
Limited - Parts
Cancelable? Y/N
Y
Returnable? Y/N
Y
California Prop 65 Compliant?
Yes
Copyright © 2026 All Rights Reserved, Vestil Manufacturing Corp.

Details For Model: BOL-FD-36-G

BOL-FD-36-G

Steel Fold-Down Galvanized Bollard 42 In. Silver

Folding steel barrier post for parking control and security. This folding bollard is locked in the raised position with a padlock (padlock not included). When padlock is removed, bollard may be lowered to ground to allow for access. Steel construction.

  • Collapsible design
  • Black safety stripes
  • Pre-drilled mounting holes
  • Galvanized Finish

Core Data

Assembled Weight: 13 Assembled Size: 6"W x 6"L x 42"H Color: Gray
Total Ship Weight: 15 Package 1 Size: 7"W x 7"D x 43"H Freight: Parcel

Specifications

Extended Height (in.): 42
Bollard Diameter (in.): 1-11/16
Collapsed Height (in.): 4-1/4
Bolt Hole Diameter (in.): 7/16
Bolt Holes (qty.): 4
Padlock Hole Diameter (in): 3/8
Base Thickness (in.): 3/8
Cap Material: Plastic
