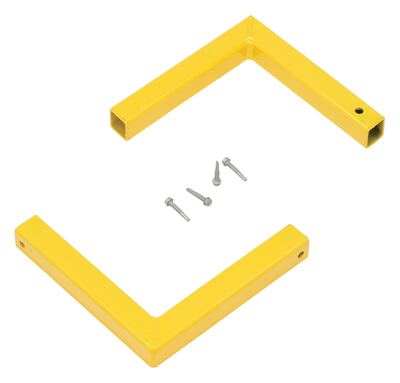

Steel Square Safety Handrail Corner Connectors For Use With Square Rails Yellow

Handrail Connectors for Warehouse Traffic Control and Collision Protection, Yellow Finish with Steel Construction
Steel square safety Handrail corner connectors are used with square rail (sold in pairs).
Product Status
Available QuickShip
Key Features
  • Safety handrail corner connectors are used with square rail
  • Corner connectors are an economical way to protect people and machinery
  • Can be used for loading docks, floor openings, walkways, and mezzanines
  • Safety yellow powder coat finish for high visibility
Quick Actions

Product Resources

Image Gallery View product images Dimensions Open dimensioned image Contact Vestil Ask about this product
Documents

PDFs & Product Files

  Approval Drawing   Testing Certificate   30 Days Warranty
Product Data

Core Data

Assembled Weight 4 lbs

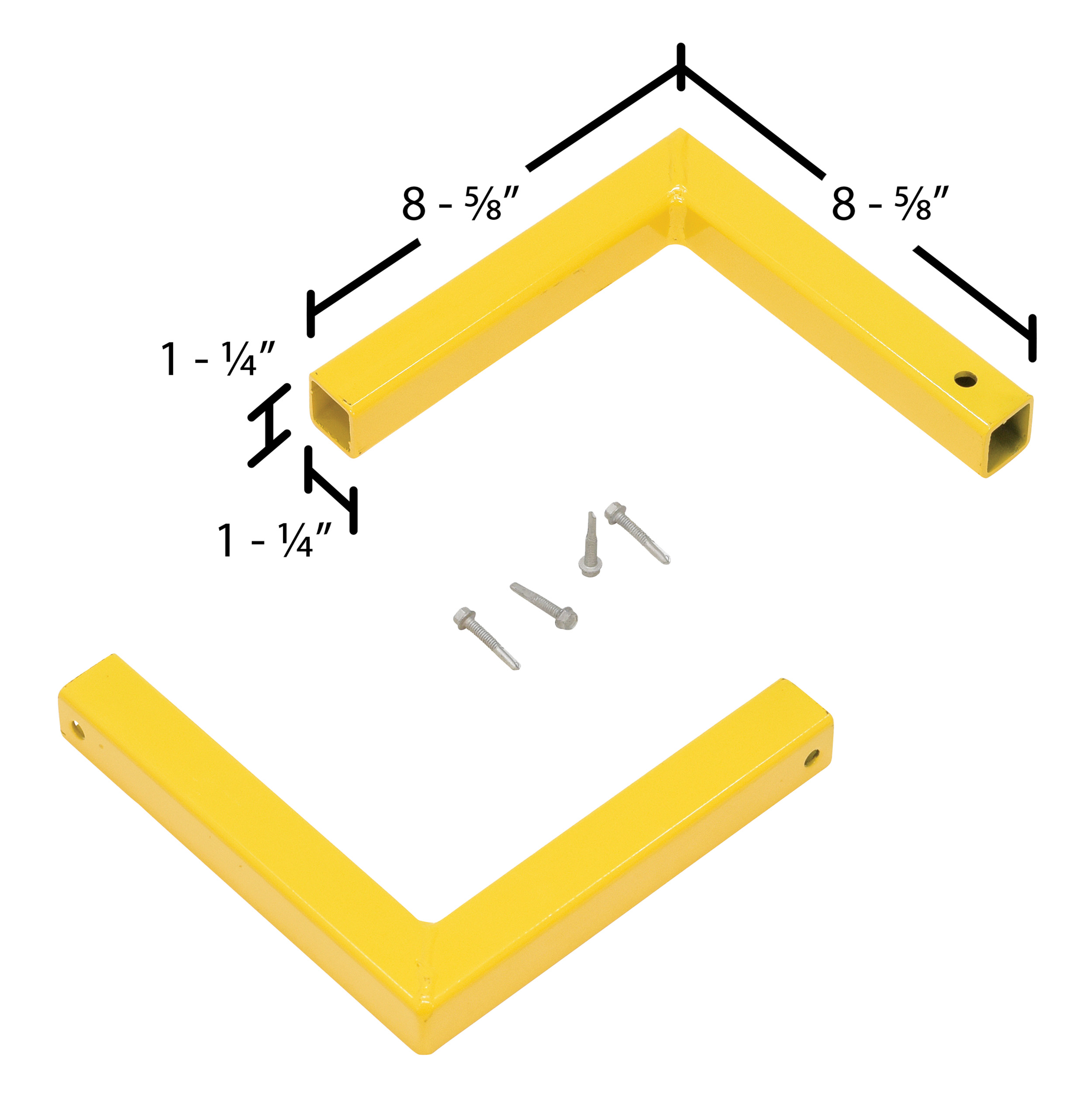

Assembled Size 8.625"W x 8.625"L x 1.25"H
Total Ship Weight 10 lbs
Package 1 Size 4"W x 4"D x 4"H
Color / Finish Yellow
Freight Type Parcel

Additional Attributes

Attachment Method Slide-In
Added length to rail (in.) 3-7/8
Hex Head Self Tapping Screw (qty.) 4
Extended Product Details

Marketing Specs.

MFG Model # (Series)
C-CON
Product Name
Steel Square Safety Handrail Corner Connectors For Use With Square Rails Yellow
UPC
691215010887
GTIN
00691215010887
Taxonomy 1
Building Supplies
Taxonomy 2
Stairs & Railings
Taxonomy 3
Stair & Railing Hardware
Taxonomy 4
Handrail Hardware
Assembled Depth (in.)
8.625
Assembled Width(in.)
8.625
Assembled Height(in.)
1.25
Assembled Weight(lbs.)
4
Color/Finish
Yellow
Material
Steel
Option? Y/N
Y
Sell UOM
PR-Pair
Country Of Origin
US
Approval Drawing Required? Y/N
N
Assembly
Assembled
Compatible Products
SQ-48-TB, SQ-60-TB, SQ-72-TB, SQ-84-TB, SQ-96-TB, SQ-108-TB, SQ-120-TB, SQ-48, SQ-60, SQ-72, SQ-84, SQ-96, SQ-108, SQ-120

Logistics

Packaging Level
PACK_OR_INNER_PACK
Package Depth (in.)
4
Package Width (in.)
4
Package Height (in.)
4
Package Weight (in.)
10
Freight Class
50
NMFC Code
Fixtures wire fence post iron or steel Caps or tops
NMFC Number
68035
LTL Freight
Parcel
UNSPSC
30103101
HTSUS Number
7326.90.8688
USMCA HS
7326.90
Origin Criterion
B
Certification Indicator
D
ECCN
EAR99
US Shipping Point
Angola, IN
Supplier Postal Code
46703
Hazardous Material? Yes/No
No
MSDS? Yes/No
No
Batteries Included?
No

Warranty

Warranty
Yes
Manufactuer Warranty
30 Days Limited Warranty
Warranty Type
Limited - Parts
Cancelable? Y/N
Y
Returnable? Y/N
Y
California Prop 65 Compliant?
Unknown

Prop 65 Warning

Copyright © 2026 All Rights Reserved, Vestil Manufacturing Corp.

Details For Model: C-CON

C-CON

Steel Square Safety Handrail Corner Connectors For Use With Square Rails Yellow

Steel square safety Handrail corner connectors are used with square rail (sold in pairs).

  • Safety handrail corner connectors are used with square rail
  • Corner connectors are an economical way to protect people and machinery
  • Can be used for loading docks, floor openings, walkways, and mezzanines
  • Safety yellow powder coat finish for high visibility

Core Data

Assembled Weight: 4 Assembled Size: 8.625"W x 8.625"L x 1.25"H Color: Yellow
Total Ship Weight: 10 Package 1 Size: 4"W x 4"D x 4"H Freight: Parcel

Specifications

Attachment Method: Slide-In
Added length to rail (in.): 3-7/8
Hex Head Self Tapping Screw (qty.): 4
