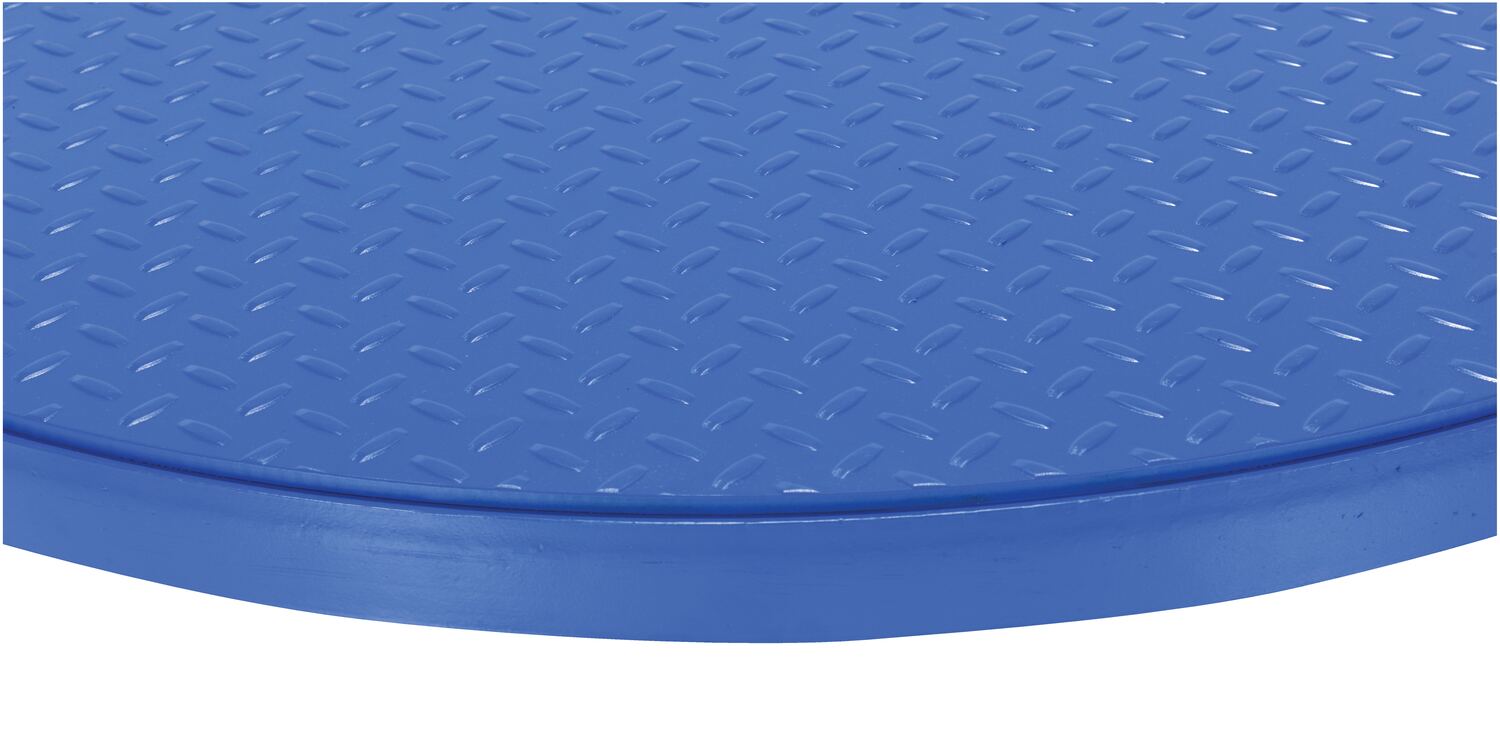

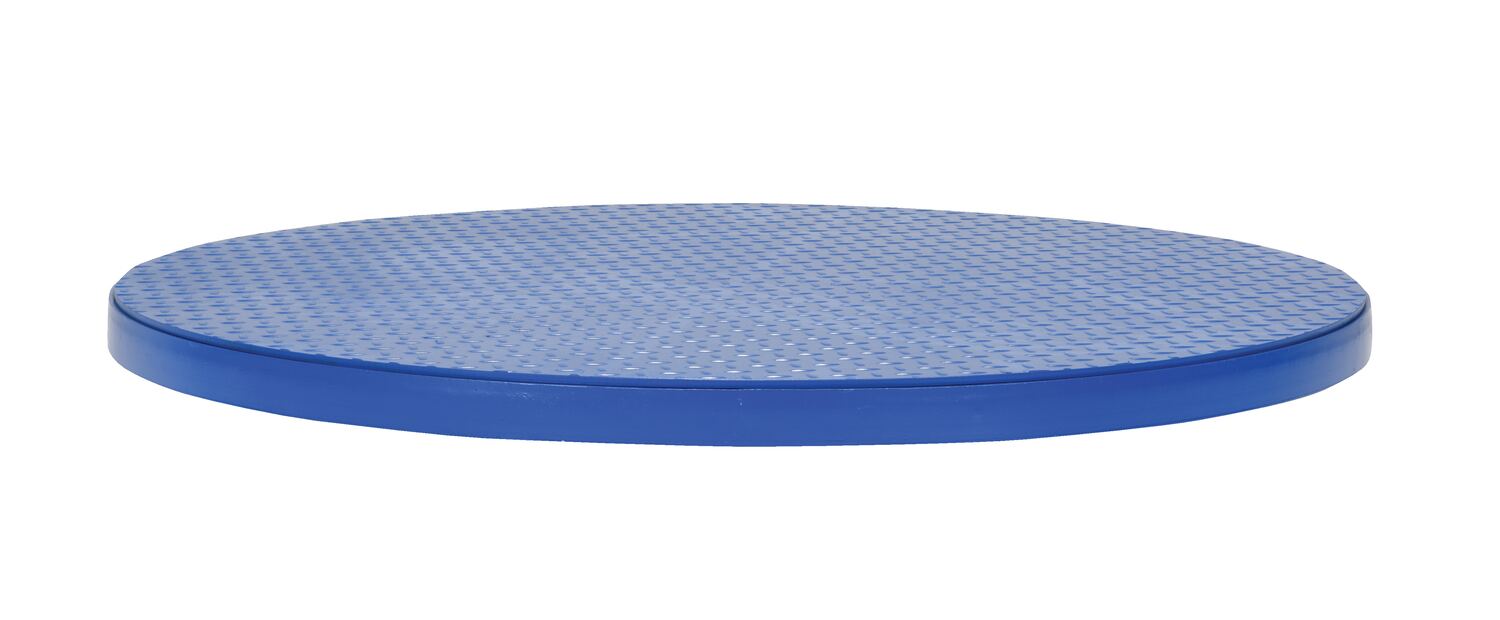

Steel 72 In. Carousel, 2K Capacity, Round Tread Top Plate Blue

Smooth Steel Top Plates for Carousels for Ergonomic Workstation Rotation and Load Positioning, 2,000 lb. Capacity with 72 in., Blue Finish – Model CA-72-2-TP-RTP
This manual carousel rotates material with the assistance of an operator. Now, loading and unloading operations can be done more efficiently minimizing fatigue and risk of back injury. The carousel may be added to an existing work bench, scissor table, or simply placed on the floor. A steel constructed top plate is included with the carousel for enhanced stability during use.
Product Status
Available
Key Features
  • Four guide rollers keep the rings aligned
  • Smooth square top plate
  • Two piece rolled structural angle construction
  • Sealed ball bearings for smooth rotation
Quick Actions

Product Resources

Image Gallery View product images Contact Vestil Ask about this product
Documents

PDFs & Product Files

  Approval Drawing   Testing Certificate   Label Page PDF   90 Days Warranty
Product Data

Core Data

Assembled Weight 360 lbs
Assembled Size 72"W x 72"L x 3"H
Total Ship Weight 400 lbs
Package 1 Size 75"W x 75"D x 8"H
Color / Finish Blue
Freight Type LTL Palletized

Additional Attributes

Uniform Capacity (lb.) 2,000
Top Plate Style Tread
Top Plate Shape Round
Finish Liquid Paint
Extended Product Details

Marketing Specs.

MFG Model # (Series)
CA-72-2-TP-RTP
Product Name
Steel 72 In. Carousel, 2K Capacity, Round Tread Top Plate Blue
UPC
691215372978
GTIN
00691215372978
Taxonomy 1
Material Handling
Taxonomy 2
Carousels & Accessories
Taxonomy 3
Carousels
Assembled Depth (in.)
72
Assembled Width(in.)
72
Assembled Height(in.)
3
Assembled Weight(lbs.)
360
Color/Finish
Blue
Material
Steel
Option? Y/N
N
Sell UOM
EA-Each
Country Of Origin
US
Approval Drawing Required? Y/N
N
Assembly
Assembled

Logistics

Packaging Level
BASE_UNIT_OR_EACH
Package Depth (in.)
75
Package Width (in.)
75
Package Height (in.)
8
Package Weight (in.)
400
Subclass
9
Freight Class
70
NMFC Code
Swivels (Revolving Fixtures or Turntables)
NMFC Number
95190
LTL Freight
LTL Palletized
UNSPSC
24102102
HTSUS Number
7326.90.8688
USMCA HS
7326.90
Origin Criterion
B
Certification Indicator
D
ECCN
EAR99
US Shipping Point
Angola, IN
Supplier Postal Code
46703
Hazardous Material? Yes/No
No
MSDS? Yes/No
No
Batteries Included?
No

Warranty

Warranty
Yes
Manufactuer Warranty
90 Days Limited Warranty
Warranty Type
Limited - Parts
Cancelable? Y/N
Y
Returnable? Y/N
Y
California Prop 65 Compliant?
Unknown

Prop 65 Warning

Copyright © 2026 All Rights Reserved, Vestil Manufacturing Corp.

Details For Model: CA-72-2-TP-RTP

CA-72-2-TP-RTP

Steel 72 In. Carousel, 2K Capacity, Round Tread Top Plate Blue

This manual carousel rotates material with the assistance of an operator. Now, loading and unloading operations can be done more efficiently minimizing fatigue and risk of back injury. The carousel may be added to an existing work bench, scissor table, or simply placed on the floor. A steel constructed top plate is included with the carousel for enhanced stability during use.

  • Four guide rollers keep the rings aligned
  • Smooth square top plate
  • Two piece rolled structural angle construction
  • Sealed ball bearings for smooth rotation

Core Data

Assembled Weight: 360 Assembled Size: 72"W x 72"L x 3"H Color: Blue
Total Ship Weight: 400 Package 1 Size: 75"W x 75"D x 8"H Freight: LTL Palletized

Specifications

Uniform Capacity (lb.): 2,000
Top Plate Style: Tread
Top Plate Shape: Round
Finish: Liquid Paint
