  All Products   Industrial Carts & Dollies   Hand Trucks   Convertible Hand Trucks CAHT-500
Product Image

Visual Reference

CAHT-500
CAHT-500
CAHT-500
CAHT-500
CAHT-500
CAHT-500
CAHT-500
CAHT-500

Aluminum Convertible Hand Truck 500 Lb. Capacity Silver

Aluminum Moving Hand Truck for Commercial and Industrial Hand Trucks Use, 500 lb. Capacity
The Aluminum convertible Hand Truck is a versatile wonder. This hand truck can work in both the vertical and horizontal positions. The task of transporting smaller crates or long narrow boxes is now simplified. This cart rolls smoothly on casters.
Product Status
Available QuickShip
Key Features
  • Convertible hand truck is made from aluminum in order to be more versatile
  • Hand truck can work in both the vertical and horizontal positions in order to transport different loads
  • The task of transporting smaller crates or long narrow boxes is simplified by making load travel easier where it is needed
  • Pneumatic filled casters for smooth mobility
Quick Actions

Product Resources

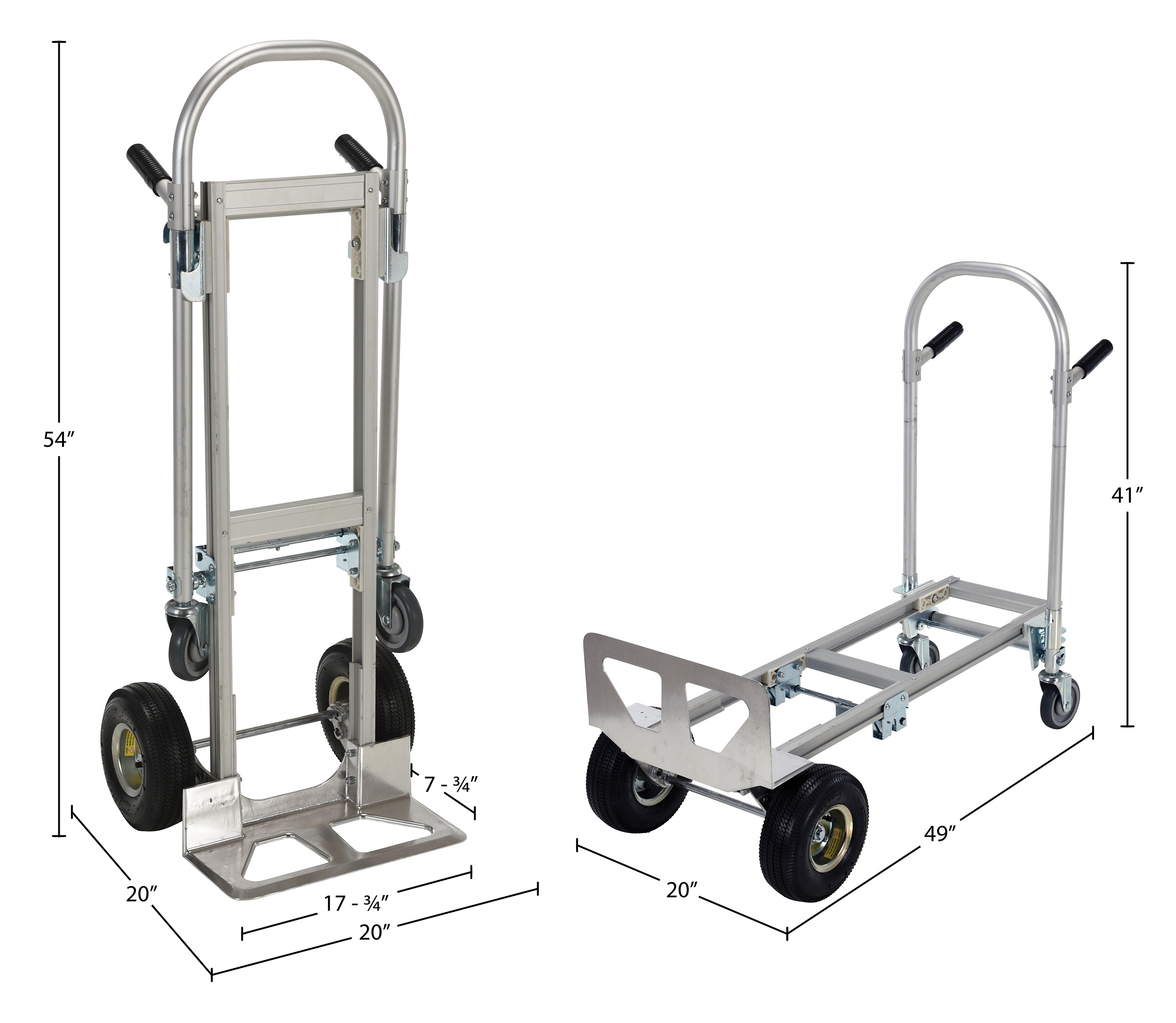

Image Gallery View product images Dimensions Open dimensioned image Contact Vestil Ask about this product
Documents

PDFs & Product Files

  Approval Drawing   Testing Certificate   Aluminum Convertible Hand Truck   Label Page PDF   90 Days Warranty
Product Data

Core Data

Assembled Weight 41 lbs
Assembled Size 20.5"W x 18.875"L x 51.5"H
Total Ship Weight 42 lbs
Package 1 Size 20"W x 50"D x 6"H
Color / Finish Silver
Freight Type Parcel

Additional Attributes

Hand Truck Uniform Capacity (lb.) 500
Platform Truck Uniform Capacity (lb.) 650
Nose Plate Width (in.) 17-3/4
Nose Plate Length (in.) 7-3/4
Nose plate Thickness (in.) 1/8
Rigid Caster Diameter (in.) 10
Rigid Caster Width (in.) 3-1/2
Caster Material Pneumatic
Solid Caster Diameter (in.) 4
Solid Caster Width (in.) 1
Caster Material Solid Rubber
Platform Truck Width (in.) 20-1/2
Platform Truck Length (in.) 46-1/2
Platform Truck Height (in.) 40-1/2
Features Collapsible
Non-Marking Casters No
Extended Product Details

Marketing Specs.

MFG Model # (Series)
CAHT-500
Product Name
Aluminum Convertible Hand Truck 500 Lb. Capacity Silver
UPC
691215010146
GTIN
00691215010146
Taxonomy 1
Material Handling
Taxonomy 2
Hand Trucks & Dollies
Taxonomy 3
Hand Trucks
Assembled Depth (in.)
18.875
Assembled Width(in.)
20.5
Assembled Height(in.)
51.5
Assembled Weight(lbs.)
41
Color/Finish
Silver
Material
Aluminum
Option? Y/N
N
Sell UOM
EA-Each
Country Of Origin
TW
Approval Drawing Required? Y/N
N
Assembly
Assembly required

Logistics

Packaging Level
BASE_UNIT_OR_EACH
Package Depth (in.)
50
Package Width (in.)
20
Package Height (in.)
6
Package Weight (in.)
42
Subclass
8
Freight Class
85
NMFC Code
Vehicles, other than self-propelled
NMFC Number
189800
LTL Freight
Parcel
UNSPSC
24101504
HTSUS Number
8716.80.5010
USMCA HS
8716.80
Origin Criterion
NO
Certification Indicator
NO
ECCN
EAR99
US Shipping Point
Angola, IN
Supplier Postal Code
46703
Hazardous Material? Yes/No
No
MSDS? Yes/No
No
Batteries Included?
No

Warranty

Warranty
Yes
Manufactuer Warranty
90 Days Limited Warranty
Warranty Type
Limited - Parts
Cancelable? Y/N
Y
Returnable? Y/N
Y
California Prop 65 Compliant?
Unknown

Prop 65 Warning

Copyright © 2026 All Rights Reserved, Vestil Manufacturing Corp.

Details For Model: CAHT-500

CAHT-500

Aluminum Convertible Hand Truck 500 Lb. Capacity Silver

The Aluminum convertible Hand Truck is a versatile wonder. This hand truck can work in both the vertical and horizontal positions. The task of transporting smaller crates or long narrow boxes is now simplified. This cart rolls smoothly on casters.

  • Convertible hand truck is made from aluminum in order to be more versatile
  • Hand truck can work in both the vertical and horizontal positions in order to transport different loads
  • The task of transporting smaller crates or long narrow boxes is simplified by making load travel easier where it is needed
  • Pneumatic filled casters for smooth mobility

Core Data

Assembled Weight: 41 Assembled Size: 20.5"W x 18.875"L x 51.5"H Color: Silver
Total Ship Weight: 42 Package 1 Size: 20"W x 50"D x 6"H Freight: Parcel

Specifications

Hand Truck Uniform Capacity (lb.): 500
Platform Truck Uniform Capacity (lb.): 650
Nose Plate Width (in.): 17-3/4
Nose Plate Length (in.): 7-3/4
Nose plate Thickness (in.): 1/8
Rigid Caster Diameter (in.): 10
Rigid Caster Width (in.): 3-1/2
Caster Material: Pneumatic
Solid Caster Diameter (in.): 4
Solid Caster Width (in.): 1
Caster Material: Solid Rubber
Platform Truck Width (in.): 20-1/2
Platform Truck Length (in.): 46-1/2
Platform Truck Height (in.): 40-1/2
Features: Collapsible
Non-Marking Casters: No
