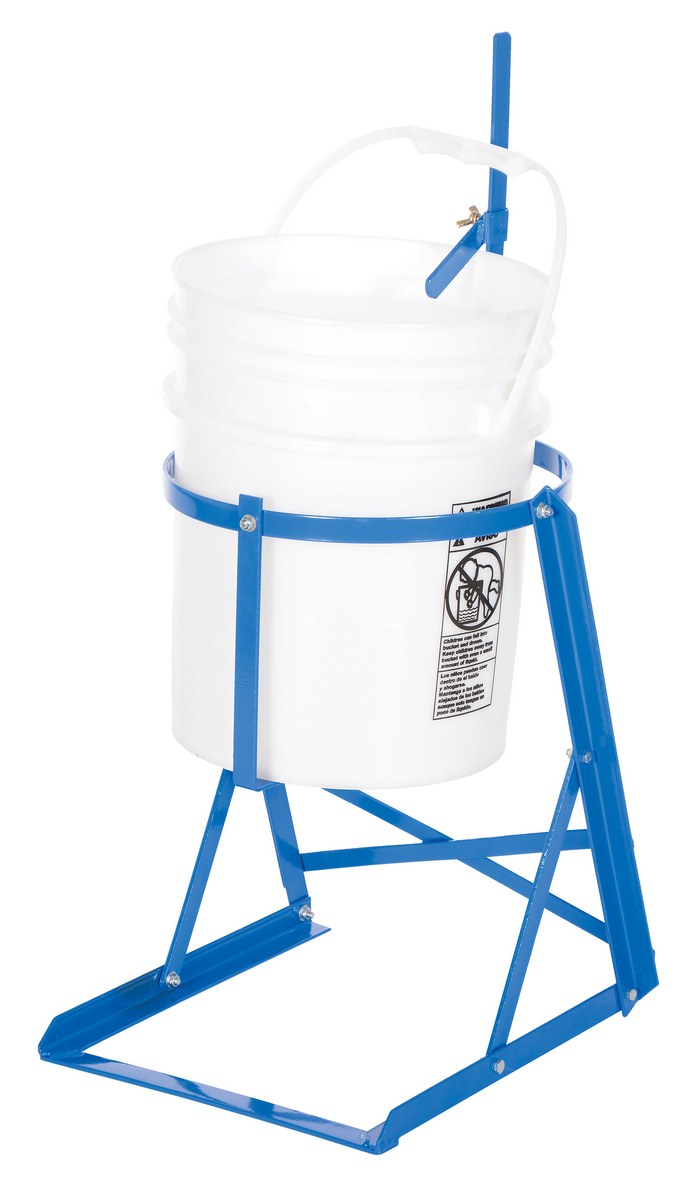

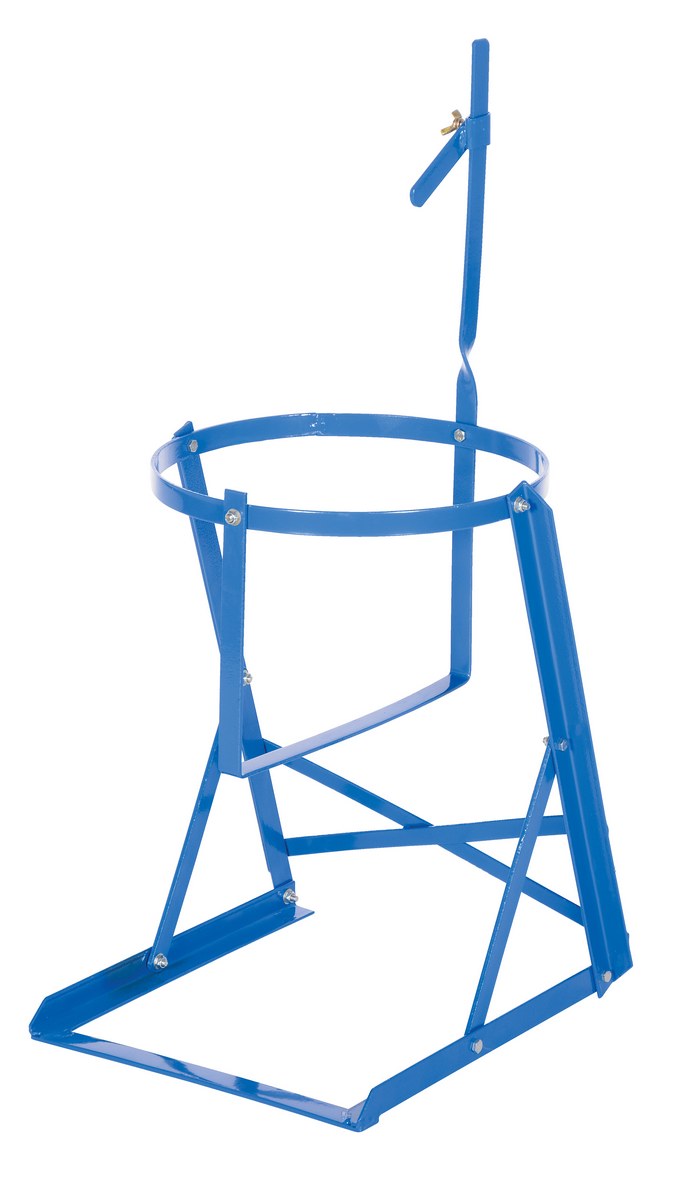

Steel Manual Pail Tipper 70 Lb. Capacity Blue

Manual Pail Dumper for Commercial and Industrial Pails & Pail Equipment Use, 70 lb. Capacity

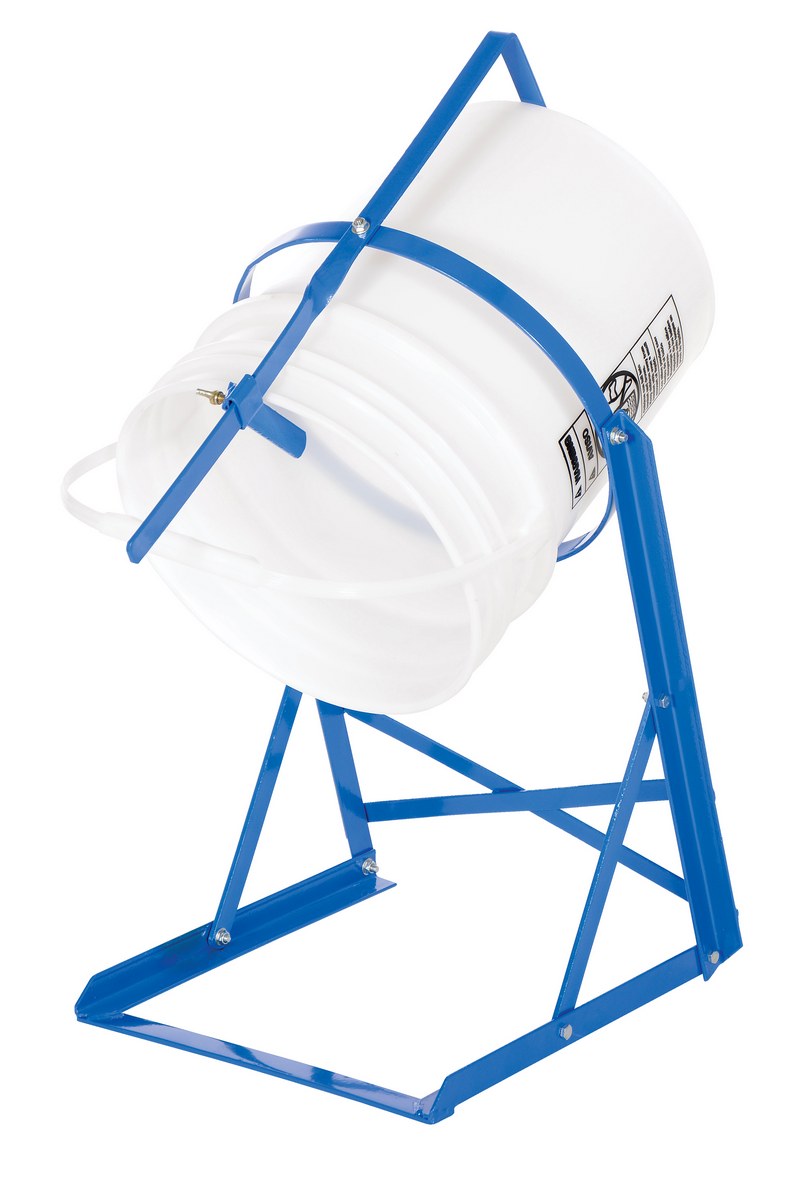

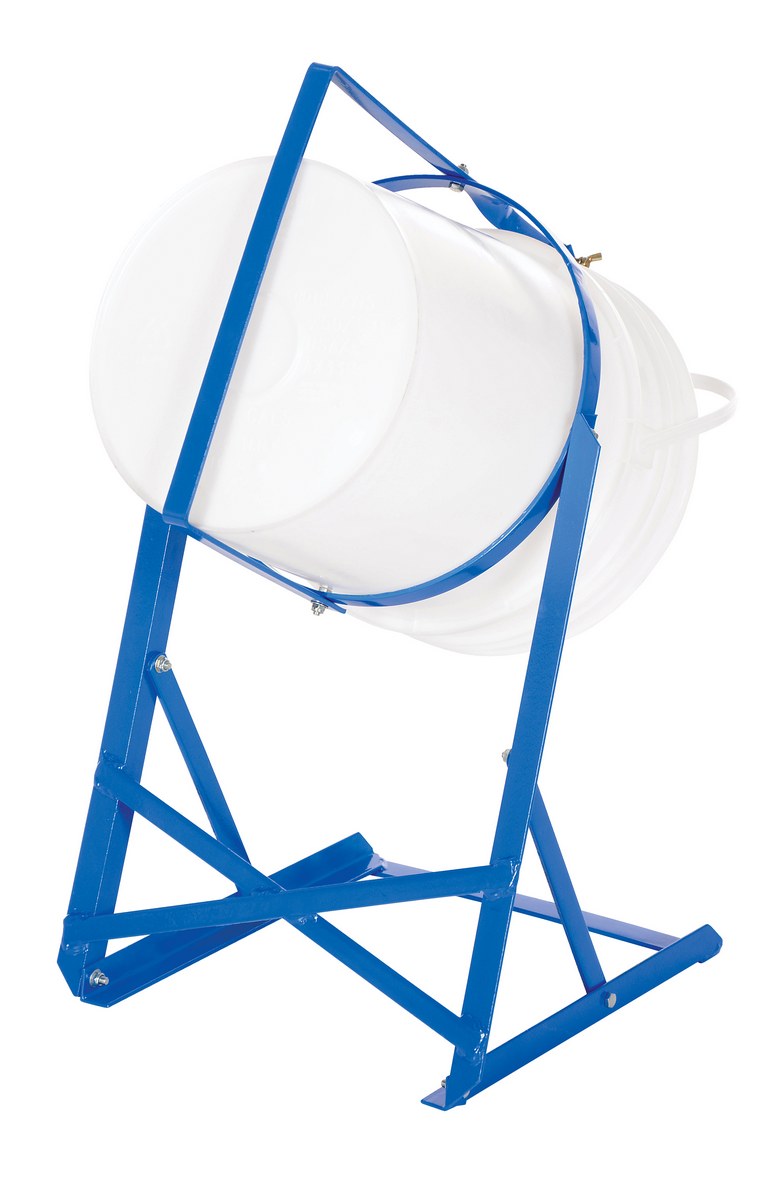

The back saving manual pail tipper is designed for dispensing five (5) gallon plastic or steel pails. Variable height chime lock for quick loading and unloading. Sturdy steel construction. Pail is rotated manually.
Product Status
Available QuickShip
Key Features
  • Manual pail tipper design dispenses five gallon pails for ideal operation
  • Includes a variable height chime lock for quick loading and unloading
  • Features durable construction for added strength and long life
  • Use in industrial applications for optimal results
Quick Actions

Product Resources

Image Gallery View product images Dimensions Open dimensioned image Contact Vestil Ask about this product
Documents

PDFs & Product Files

  Approval Drawing   Testing Certificate   Manual 5 Gallon Pail Tipper   Label Page PDF   30 Days Warranty
Product Data

Core Data

Assembled Weight 9 lbs
Assembled Size 14.625"W x 14.25"L x 32.125"H
Total Ship Weight 11 lbs
Package 1 Size 16"W x 22"D x 3"H
Color / Finish Blue
Freight Type Parcel

Additional Attributes

Uniform Capacity (lb.) 70
Dispensing Height (in.) 10
Clearance between Legs (in.) 12
Diameter (in.) 12.5
For Use With 5 gallon pails
Rotation Angle (degree) 120
Rotation (deg.) 135

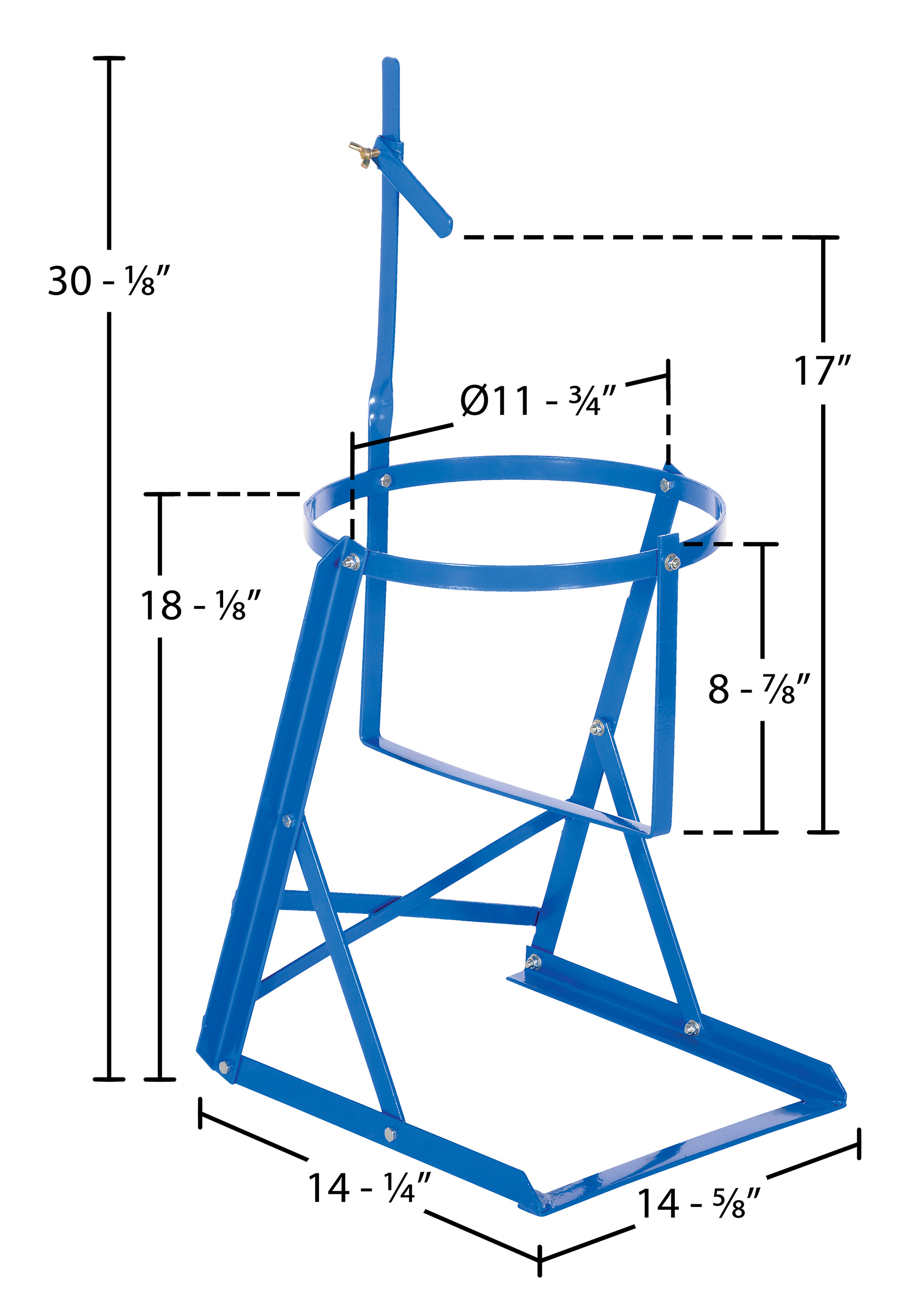

Overall Width (In.) 14-5/8
Overall Length (in.) 14-1/4
Overall Height (in.) 30-1/8
Maximum Pail Height (in.) 17
Usable Ring Opening Diameter (in.) 11-3/4
Extended Product Details

Marketing Specs.

MFG Model # (Series)
CAN-A
Product Name
Steel Manual Pail Tipper 70 Lb. Capacity Blue
UPC
691215010153
GTIN
00691215010153
Taxonomy 1
Material Handling
Taxonomy 2
Drum & Barrel Parts / Accessories
Taxonomy 3
Tools
Taxonomy 4
Tippers
Taxonomy 5
Floor Mounted
Assembled Depth (in.)
14.25
Assembled Width(in.)
14.625
Assembled Height(in.)
32.125
Assembled Weight(lbs.)
9
Color/Finish
Blue
Material
Steel
Option? Y/N
N
Sell UOM
EA-Each
Country Of Origin
CN
Approval Drawing Required? Y/N
N
Assembly
Assembly required

Logistics

Packaging Level
BASE_UNIT_OR_EACH
Package Depth (in.)
22
Package Width (in.)
16
Package Height (in.)
3
Package Weight (in.)
11
Subclass
2
Freight Class
70
NMFC Code
Stands Cradles barrel drum tilting type iron steel
NMFC Number
178680
LTL Freight
Parcel
UNSPSC
23150000
HTSUS Number
8428.90.0390
USMCA HS
8428.90
Origin Criterion
NO
Certification Indicator
NO
ECCN
EAR99
US Shipping Point
Angola, IN
Supplier Postal Code
46703
Hazardous Material? Yes/No
No
MSDS? Yes/No
No
Batteries Included?
No

Warranty

Warranty
Yes
Manufactuer Warranty
30 Days Limited Warranty
Warranty Type
Limited - Parts
Cancelable? Y/N
Y
Returnable? Y/N
Y
California Prop 65 Compliant?
Unknown

Prop 65 Warning

Copyright © 2026 All Rights Reserved, Vestil Manufacturing Corp.

Details For Model: CAN-A

CAN-A

Steel Manual Pail Tipper 70 Lb. Capacity Blue

The back saving manual pail tipper is designed for dispensing five (5) gallon plastic or steel pails. Variable height chime lock for quick loading and unloading. Sturdy steel construction. Pail is rotated manually.

  • Manual pail tipper design dispenses five gallon pails for ideal operation
  • Includes a variable height chime lock for quick loading and unloading
  • Features durable construction for added strength and long life
  • Use in industrial applications for optimal results

Core Data

Assembled Weight: 9 Assembled Size: 14.625"W x 14.25"L x 32.125"H Color: Blue
Total Ship Weight: 11 Package 1 Size: 16"W x 22"D x 3"H Freight: Parcel

Specifications

Uniform Capacity (lb.): 70
Dispensing Height (in.): 10
Clearance between Legs (in.): 12
Diameter (in.): 12.5
For Use With: 5 gallon pails
Rotation Angle (degree): 120
Rotation (deg.): 135
Overall Width (In.): 14-5/8
Overall Length (in.): 14-1/4
Overall Height (in.): 30-1/8
Maximum Pail Height (in.): 17
Usable Ring Opening Diameter (in.): 11-3/4
