Steel Premium Double Scissor Lift Cart with Foot Release 24 In. x 40-1/2 In. 1000 Lb. Capacity Blue

Scissor Lift Platform for Ergonomic Load Lifting and Workstation Positioning, 1,000 lb. Capacity with 24 in. x 40-1/2 in.
The premium scissor lift cart is constructed of heavy duty steel and designed to withstand the most demanding industrial environments. The simplicity and compactness of these products make them ideal for lifting and transporting loads, order-picking, die handling, and for use in support of assembly operations. There is little exertion required to raise and lower the deck due to the high quality foot-actuated, single speed hydraulic pump. The hydraulic system is equipped with an overload protection valve. Each cart has safety stops to prevent an empty deck from lowering while performing maintenance. A unique tilt-up table top allows for safe and easy maintenance. The two rigid front casters and two rear swivel polyurethane casters with brake provide a high degree of maneuverability; each swivel wheel is protected by guards and is equipped with brakes. Features an internal safety velocity fuse in each cylinder.
Product Status
Available QuickShip
Key Features
  • Unique lift design quickly raises & lowers material
  • Ergonomic cart design improves user safety
  • Caster construction provides easy portability when loaded
  • Steel construction offers long lasting rugged use
Quick Actions

Product Resources

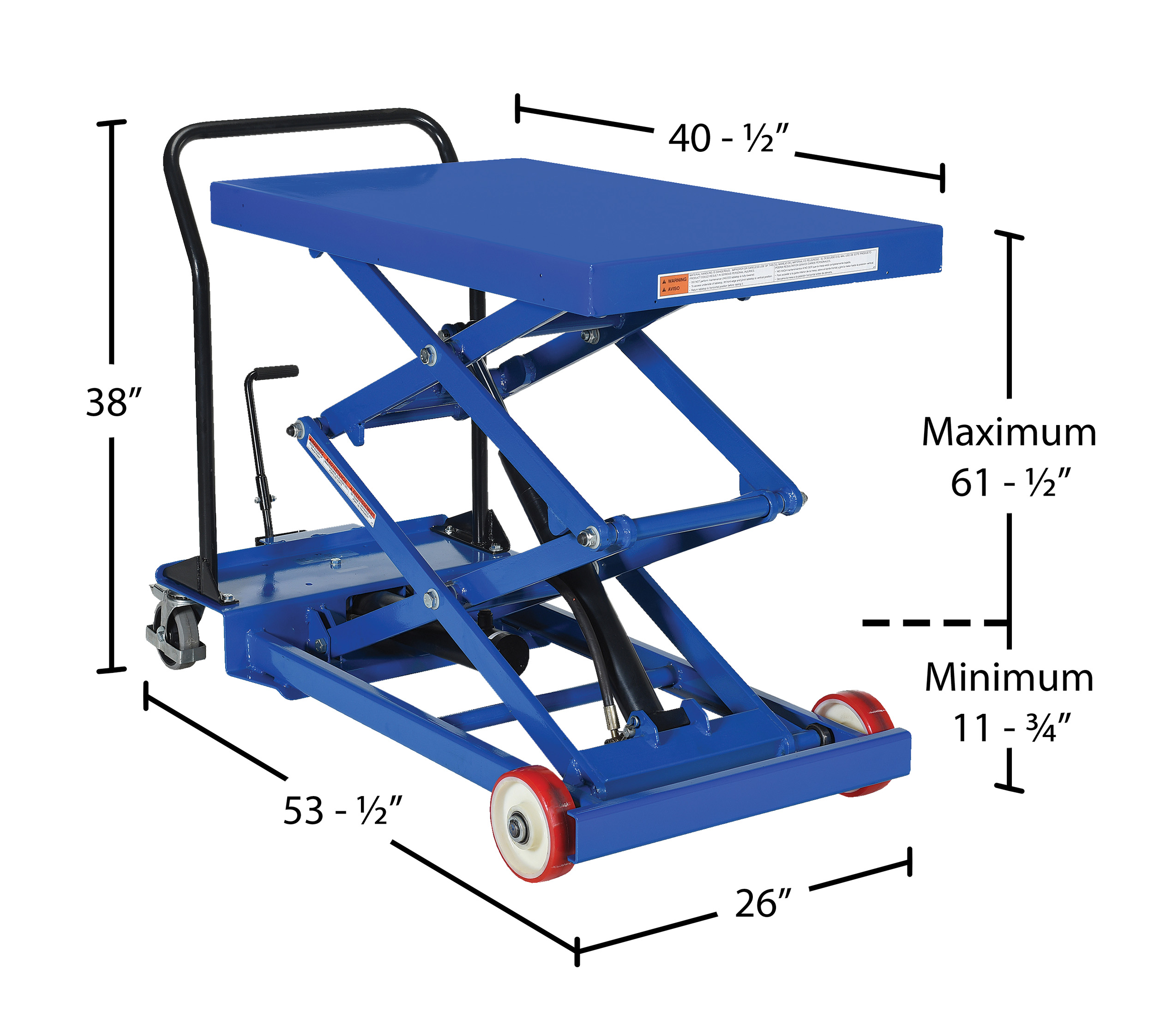

Image Gallery View product images Dimensions Open dimensioned image Contact Vestil Ask about this product
Documents

PDFs & Product Files

  Approval Drawing   Testing Certificate   Premium Scissor Lift Carts   Hydraulic Oil SDS   1 Year Warranty
Product Data

Core Data

Assembled Weight 316 lbs
Assembled Size 26"W x 53.5"L x 38"H
Total Ship Weight 418 lbs
Package 1 Size 40"W x 54"D x 45"H
Color / Finish Blue
Freight Type LTL Palletized

Additional Attributes

Uniform Capacity (lb.) 1,000
Platform Width (in.) 24
Platform Length (in.) 40-1/2
Lowered Height (in.) 11-3/4
Raised Height (in.) 61-1/2
Lowering Method Foot Release
Scissor Type Double
Front Caster Diameter (in.) 8
Front Caster Width (in.) 2
Rear Caster Diameter (in.) 5
Rear Caster Width (in.) 1-1/2
Front Caster Type Hard Rubber
Rear Caster Type Poly-on-Poly
Distance Between Wheels (in.) 14-1/2
Extended Product Details

Marketing Specs.

MFG Model # (Series)
CART-1000-D-FR
Product Name
Steel Premium Double Scissor Lift Cart with Foot Release 24 In. x 40-1/2 In. 1000 Lb. Capacity Blue
UPC
691215084727
GTIN
00691215084727
Taxonomy 1
Material Handling
Taxonomy 2
Lifting Equipment
Taxonomy 3
Lifters / Tilters
Taxonomy 4
Scissor Carts
Taxonomy 5
Manual
Assembled Depth (in.)
53.5
Assembled Width(in.)
26
Assembled Height(in.)
38
Assembled Weight(lbs.)
316
Color/Finish
Blue
Material
Steel
Option? Y/N
N
Sell UOM
EA-Each
Country Of Origin
CN
Approval Drawing Required? Y/N
N
Assembly
Assembled

Logistics

Packaging Level
BASE_UNIT_OR_EACH
Package Depth (in.)
54
Package Width (in.)
40
Package Height (in.)
45
Package Weight (in.)
418
Subclass
17
Freight Class
175
NMFC Code
Conveyors Elevators or Lifts NOI
NMFC Number
120700
LTL Freight
LTL Palletized
UNSPSC
24101501
HTSUS Number
8428.90.0390
USMCA HS
8428.90
Origin Criterion
NO
Certification Indicator
NO
ECCN
EAR99
US Shipping Point
Angola, IN
Supplier Postal Code
46703
Hazardous Material? Yes/No
No
MSDS? Yes/No
Yes
Batteries Included?
No

Warranty

Warranty
Yes
Manufactuer Warranty
1 Year Limited Warranty
Warranty Type
Limited - Parts
Cancelable? Y/N
Y
Returnable? Y/N
Y
California Prop 65 Compliant?
Unknown

Prop 65 Warning

Copyright © 2026 All Rights Reserved, Vestil Manufacturing Corp.

Details For Model: CART-1000-D-FR

CART-1000-D-FR

Steel Premium Double Scissor Lift Cart with Foot Release 24 In. x 40-1/2 In. 1000 Lb. Capacity Blue

The premium scissor lift cart is constructed of heavy duty steel and designed to withstand the most demanding industrial environments. The simplicity and compactness of these products make them ideal for lifting and transporting loads, order-picking, die handling, and for use in support of assembly operations. There is little exertion required to raise and lower the deck due to the high quality foot-actuated, single speed hydraulic pump. The hydraulic system is equipped with an overload protection valve. Each cart has safety stops to prevent an empty deck from lowering while performing maintenance. A unique tilt-up table top allows for safe and easy maintenance. The two rigid front casters and two rear swivel polyurethane casters with brake provide a high degree of maneuverability; each swivel wheel is protected by guards and is equipped with brakes. Features an internal safety velocity fuse in each cylinder.

  • Unique lift design quickly raises & lowers material
  • Ergonomic cart design improves user safety
  • Caster construction provides easy portability when loaded
  • Steel construction offers long lasting rugged use

Core Data

Assembled Weight: 316 Assembled Size: 26"W x 53.5"L x 38"H Color: Blue
Total Ship Weight: 418 Package 1 Size: 40"W x 54"D x 45"H Freight: LTL Palletized

Specifications

Uniform Capacity (lb.): 1,000
Platform Width (in.): 24
Platform Length (in.): 40-1/2
Lowered Height (in.): 11-3/4
Raised Height (in.): 61-1/2
Lowering Method: Foot Release
Scissor Type: Double
Front Caster Diameter (in.): 8
Front Caster Width (in.): 2
Rear Caster Diameter (in.): 5
Rear Caster Width (in.): 1-1/2
Front Caster Type: Hard Rubber
Rear Caster Type: Poly-on-Poly
Distance Between Wheels (in.): 14-1/2
