Steel Mechanical Scissor Cart 25-1/2 In. x 39-1/4 1000 Lb. Capacity Blue

Hand Crank Scissor Cart for Ergonomic Load Lifting and Workstation Positioning, 1,000 lb. Capacity with 25-1/2 in.
When lifting and transporting are both essential, look no further than the mechanical scissor cart. The centrally located hand crank allows the user to raise and lower the platform to a more exact level. A large platform gives the ability to load items in a variety of sizes. Since the platform can be maneuvered to a specific height, the unit can be positioned to best fit the users needs for a more ergonomically friendly experience. Poly casters are included for a smooth roll on a variety of surfaces.
Product Status
Out of Stock QuickShip
Key Features
  • Hand crank for precise positioning
  • Large capacity for lifting objects both big and small
  • Powder coated finish for long term toughness
  • Smooth steel top minimizes abrasions
Quick Actions

Product Resources

Image Gallery View product images Dimensions Open dimensioned image Contact Vestil Ask about this product
Documents

PDFs & Product Files

  Approval Drawing   Testing Certificate   1 Year Warranty
Product Data

Core Data

Assembled Weight 162 lbs

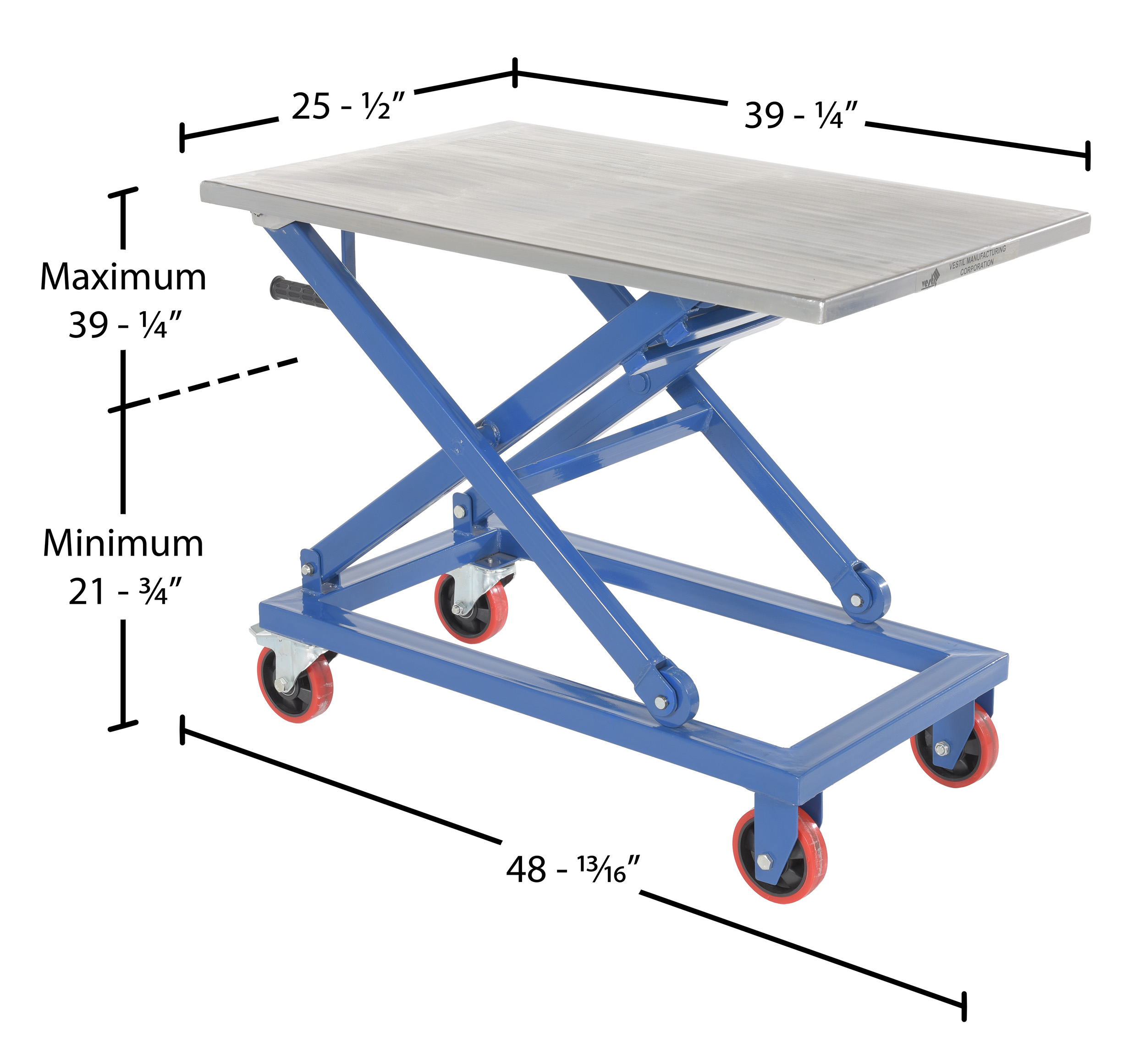

Assembled Size 25.5"W x 48.8125"L x 39.75"H
Total Ship Weight 234 lbs
Package 1 Size 40"W x 48"D x 32"H
Color / Finish Blue
Freight Type LTL Palletized

Additional Attributes

Uniform Capacity (lb.) 1,000
Platform Width (in.) 25-1/2
Platform Length (in.) 39-1/4
Lowered Height (in.) 21-3/4
Raised Height (in.) 39-1/4
Operation Type Hand Crank
Caster Quantity/Diameter/Width (in.) (4) 5 x 1-1/2
Caster Type Poly
Caster Quantity/Type (2) Rigid, (2) Swivel w/brake
Cranks to Raise Platform 225
Extended Product Details

Marketing Specs.

MFG Model # (Series)
CART-1000-M
Product Name
Steel Mechanical Scissor Cart 25-1/2 In. x 39-1/4 1000 Lb. Capacity Blue
UPC
691215329194
GTIN
00691215329194
Taxonomy 1
Material Handling
Taxonomy 2
Lifting Equipment
Taxonomy 3
Lifters / Tilters
Taxonomy 4
Scissor Carts
Taxonomy 5
Manual
Assembled Depth (in.)
48.8125
Assembled Width(in.)
25.5
Assembled Height(in.)
39.75
Assembled Weight(lbs.)
162
Color/Finish
Blue
Material
Steel
Option? Y/N
N
Sell UOM
EA-Each
Country Of Origin
CN
Approval Drawing Required? Y/N
N
Assembly
Assembled

Logistics

Packaging Level
BASE_UNIT_OR_EACH
Package Depth (in.)
48
Package Width (in.)
40
Package Height (in.)
32
Package Weight (in.)
234
Subclass
17
Freight Class
175
NMFC Code
Conveyors Elevators or Lifts NOI
NMFC Number
120700
LTL Freight
LTL Palletized
UNSPSC
24101501
HTSUS Number
8427.90.0090
USMCA HS
8427.90
Origin Criterion
NO
Certification Indicator
NO
ECCN
EAR99
US Shipping Point
Angola, IN
Supplier Postal Code
46703
Hazardous Material? Yes/No
No
MSDS? Yes/No
No
Batteries Included?
No

Warranty

Warranty
Yes
Manufactuer Warranty
1 Year Limited Warranty
Warranty Type
Limited - Parts
Cancelable? Y/N
Y
Returnable? Y/N
Y
California Prop 65 Compliant?
Unknown

Prop 65 Warning

Copyright © 2026 All Rights Reserved, Vestil Manufacturing Corp.

Details For Model: CART-1000-M

CART-1000-M

Steel Mechanical Scissor Cart 25-1/2 In. x 39-1/4 1000 Lb. Capacity Blue

When lifting and transporting are both essential, look no further than the mechanical scissor cart. The centrally located hand crank allows the user to raise and lower the platform to a more exact level. A large platform gives the ability to load items in a variety of sizes. Since the platform can be maneuvered to a specific height, the unit can be positioned to best fit the users needs for a more ergonomically friendly experience. Poly casters are included for a smooth roll on a variety of surfaces.

  • Hand crank for precise positioning
  • Large capacity for lifting objects both big and small
  • Powder coated finish for long term toughness
  • Smooth steel top minimizes abrasions

Core Data

Assembled Weight: 162 Assembled Size: 25.5"W x 48.8125"L x 39.75"H Color: Blue
Total Ship Weight: 234 Package 1 Size: 40"W x 48"D x 32"H Freight: LTL Palletized

Specifications

Uniform Capacity (lb.): 1,000
Platform Width (in.): 25-1/2
Platform Length (in.): 39-1/4
Lowered Height (in.): 21-3/4
Raised Height (in.): 39-1/4
Operation Type: Hand Crank
Caster Quantity/Diameter/Width (in.): (4) 5 x 1-1/2
Caster Type: Poly
Caster Quantity/Type: (2) Rigid, (2) Swivel w/brake
Cranks to Raise Platform: 225
