Stainless Steel Scissor 304 Cart 20-1/4 In. x 39-3/8 In. 1000 Lb. Capacity Silver

Stainless Steel Premium Scissor Lift Cart for Ergonomic Load Lifting and Workstation Positioning, 1,000 lb. Capacity with 20-1/4 in. x 39-3/8 in.
The premium scissor lift cart is constructed of heavy duty steel and designed to withstand the most demanding industrial environments. The simplicity and compactness of these products make them ideal for lifting and transporting loads, order-picking, die handling, and for use in support of assembly operations. There is little exertion required to maneuver the deck due to the high quality foot-actuated, single speed hydraulic pump for raising . A unique tilt-up table top allows for safe and easy maintenance.
Product Status
Available QuickShip Non-Returnable
Key Features
  • Unique lift design quickly raises & lowers material
  • Ergonomic cart design improves user safety
  • Caster construction provides easy portability when loaded
  • 304 Stainless Steel construction offers long lasting rugged use
Quick Actions

Product Resources

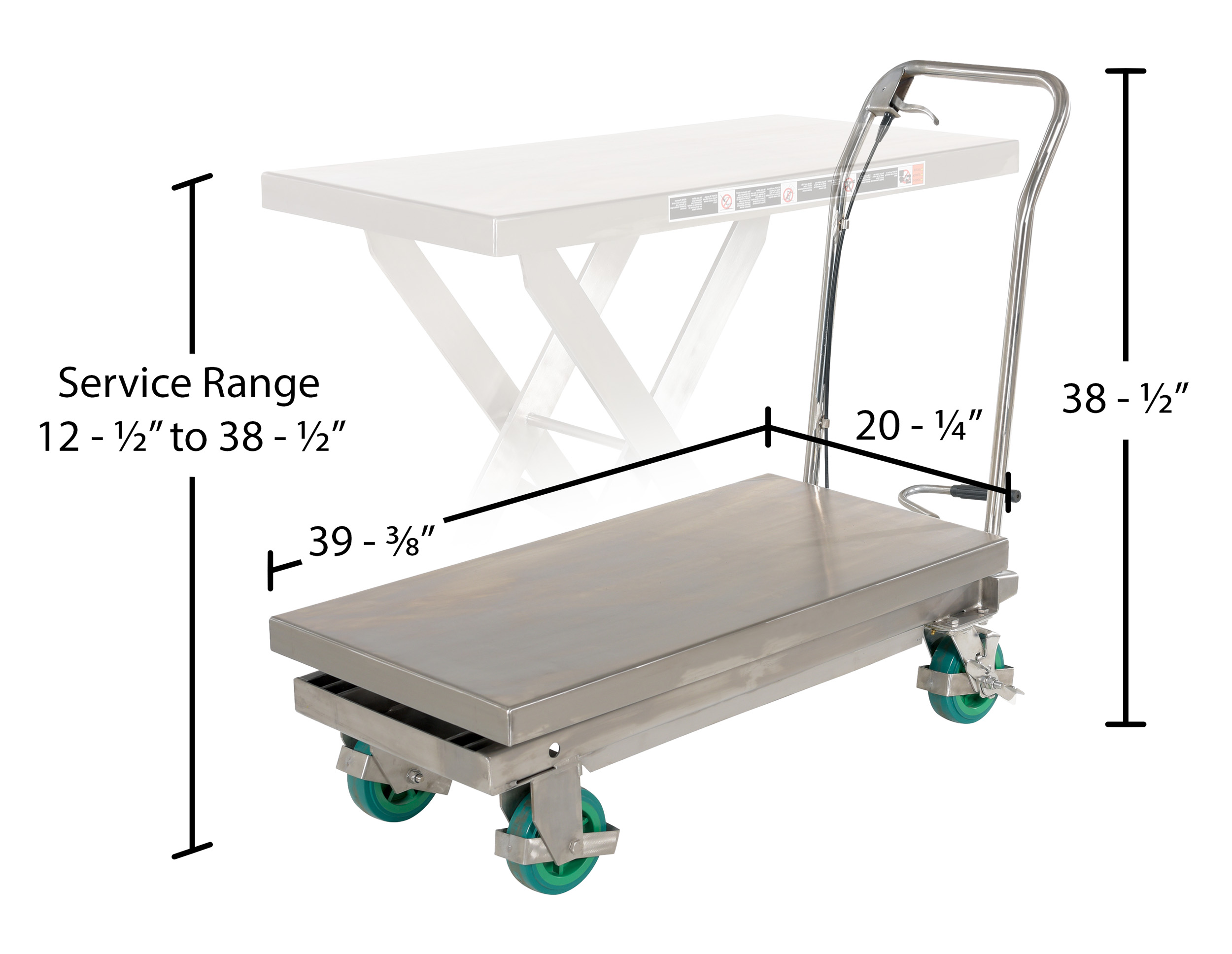

Image Gallery View product images Dimensions Open dimensioned image Contact Vestil Ask about this product
Documents

PDFs & Product Files

  Testing Certificate   Label Page PDF   1 Year Warranty
Product Data

Core Data

Assembled Weight 208 lbs
Assembled Size 20.25"W x 47"L x 38.5"H
Total Ship Weight 258 lbs
Package 1 Size 40"W x 48"D x 27"H
Color / Finish Silver
Freight Type LTL Palletized

Additional Attributes

Uniform Capacity (lb.) 1,000
Service Range (in.) 12-1/2 to 38-1/2
Platform Width (in.) 20-1/4
Platform Length (in.) 39-3/8
Scissor Type Single
Caster Qty/Diameter/Width (in.) (4) 6 x 2
Caster Qty/Type (2) Rigid (2) Swivel with Brakes
Extended Product Details

Marketing Specs.

MFG Model # (Series)
CART-1000-SS2
Product Name
Stainless Steel Scissor 304 Cart 20-1/4 In. x 39-3/8 In. 1000 Lb. Capacity Silver
UPC
691215328203
GTIN
00691215328203
Taxonomy 1
Material Handling
Taxonomy 2
Lifting Equipment
Taxonomy 3
Lifters / Tilters
Taxonomy 4
Scissor Carts
Taxonomy 5
Manual
Assembled Depth (in.)
47
Assembled Width(in.)
20.25
Assembled Height(in.)
38.5
Assembled Weight(lbs.)
208
Color/Finish
Silver
Material
Steel
Option? Y/N
N
Sell UOM
EA-Each
Country Of Origin
CN
Approval Drawing Required? Y/N
N
Assembly
Assembled

Logistics

Packaging Level
BASE_UNIT_OR_EACH
Package Depth (in.)
48
Package Width (in.)
40
Package Height (in.)
27
Package Weight (in.)
258
Subclass
18
Freight Class
92.5
NMFC Code
Conveyors Elevators or Lifts NOI
NMFC Number
120700
LTL Freight
LTL Palletized
UNSPSC
24101501
HTSUS Number
8427.90.0020
USMCA HS
8427.90
Origin Criterion
NO
Certification Indicator
NO
ECCN
EAR99
US Shipping Point
Angola, IN
Supplier Postal Code
46703
Hazardous Material? Yes/No
No
MSDS? Yes/No
No
Batteries Included?
No

Warranty

Warranty
Yes
Manufactuer Warranty
1 Year Limited Warranty
Warranty Type
Limited - Parts
Cancelable? Y/N
N
Returnable? Y/N
N
California Prop 65 Compliant?
Unknown

Prop 65 Warning

Copyright © 2026 All Rights Reserved, Vestil Manufacturing Corp.

Details For Model: CART-1000-SS2

CART-1000-SS2

Stainless Steel Scissor 304 Cart 20-1/4 In. x 39-3/8 In. 1000 Lb. Capacity Silver

The premium scissor lift cart is constructed of heavy duty steel and designed to withstand the most demanding industrial environments. The simplicity and compactness of these products make them ideal for lifting and transporting loads, order-picking, die handling, and for use in support of assembly operations. There is little exertion required to maneuver the deck due to the high quality foot-actuated, single speed hydraulic pump for raising . A unique tilt-up table top allows for safe and easy maintenance.

  • Unique lift design quickly raises & lowers material
  • Ergonomic cart design improves user safety
  • Caster construction provides easy portability when loaded
  • 304 Stainless Steel construction offers long lasting rugged use

Core Data

Assembled Weight: 208 Assembled Size: 20.25"W x 47"L x 38.5"H Color: Silver
Total Ship Weight: 258 Package 1 Size: 40"W x 48"D x 27"H Freight: LTL Palletized

Specifications

Uniform Capacity (lb.): 1,000
Service Range (in.): 12-1/2 to 38-1/2
Platform Width (in.): 20-1/4
Platform Length (in.): 39-3/8
Scissor Type: Single
Caster Qty/Diameter/Width (in.): (4) 6 x 2
Caster Qty/Type: (2) Rigid (2) Swivel with Brakes
