Steel Hydraulic Elevating Cart 47-1/2 In. x 24 In. 1500 Lb. Capacity Blue

Scissor Lift Cart for Ergonomic Load Lifting and Workstation Positioning, 1,500 lb. Capacity with 47-1/2 in. x 24 in.
The Hydraulic elevating cart minimizes worker bending and lifting through its ergonomic design and portability. Material can be easily loaded onto a cart from a table, lowered to a safe transporting height, and raised to unload at destination. The foot pump includes a soft-lowering down valve. The unit moves easily on four polyurethane casters; two swivel with brakes and two rigid. Features a two-speed foot pump. Features an internal safety velocity fuse in each cylinder.
Product Status
Available QuickShip
Key Features
  • Unique lift design quickly raises & lowers material
  • Ergonomic cart design improves user safety
  • Caster construction provides easy portability when loaded
  • Steel construction offers long lasting rugged use
Quick Actions

Product Resources

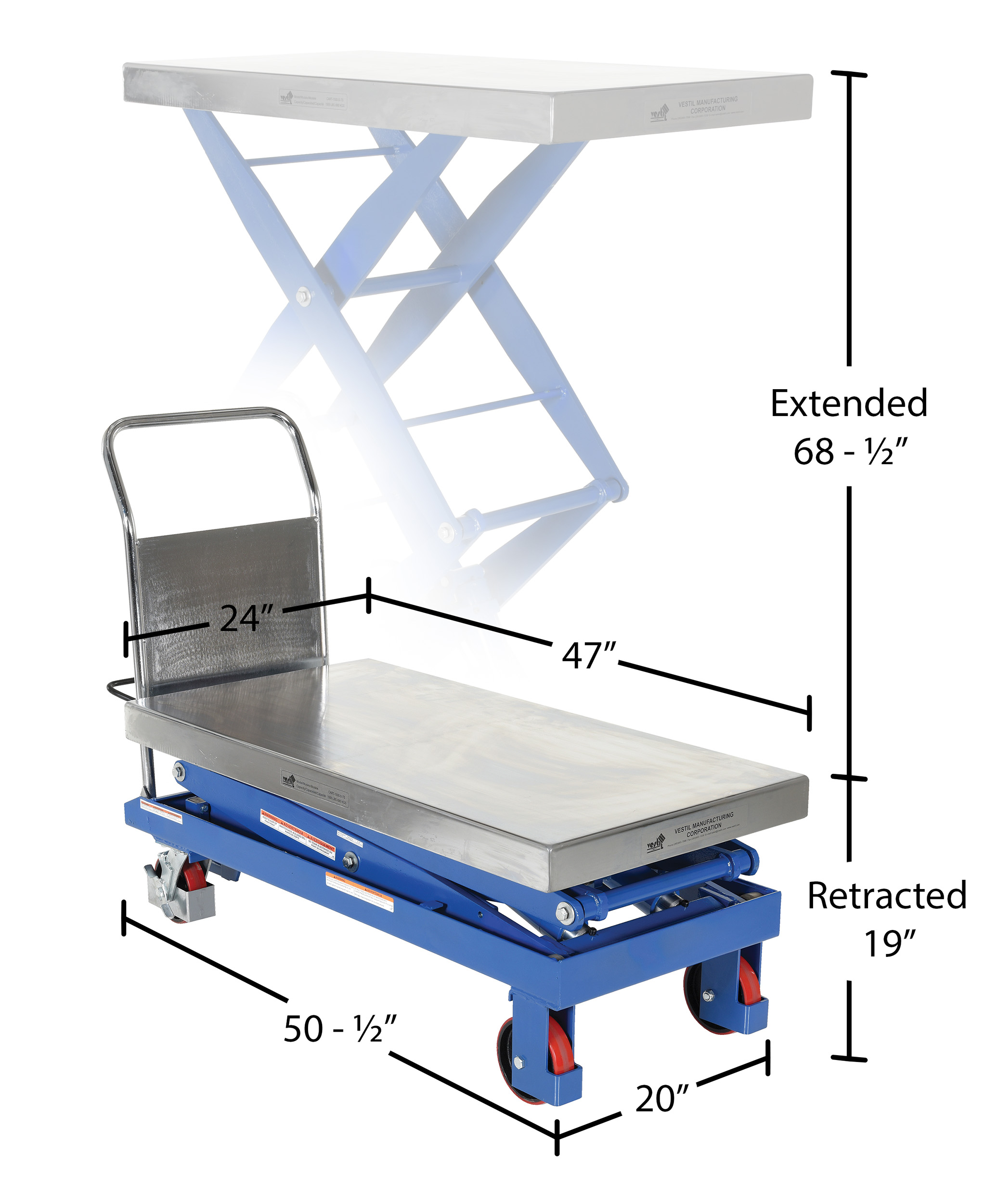

Image Gallery View product images Dimensions Open dimensioned image Contact Vestil Ask about this product
Documents

PDFs & Product Files

  Approval Drawing   Testing Certificate   Hydraulic Elevating Cart model CART-1500-D-TS Owners Manual   Label Page PDF   1 Year Warranty
Product Data

Core Data

Assembled Weight 543 lbs
Assembled Size 24"W x 64.5"L x 39.5"H
Total Ship Weight 612 lbs
Package 1 Size 41"W x 65"D x 27"H
Color / Finish Blue
Freight Type LTL Palletized

Additional Attributes

Uniform Capacity (lb.) 1,500
Platform Width (in.) 24
Platform Length (in.) 47-1/2
Lowered Height (in.) 19
Raised Height (in.) 68
Caster Quantity/Diameter/Width (in.) (4) 6 x 1-1/2
Caster Quantity/Type (2) Rigid (2) Swivel with Brakes
Foot Pump Speed Two
Caster Material Poly-on-Steel
Scissor Type Double
Number of Pumps 107
Extended Product Details

Marketing Specs.

MFG Model # (Series)
CART-1500-D-TS
Product Name
Steel Hydraulic Elevating Cart 47-1/2 In. x 24 In. 1500 Lb. Capacity Blue
UPC
691215010252
GTIN
00691215010252
Taxonomy 1
Material Handling
Taxonomy 2
Lifting Equipment
Taxonomy 3
Lifters / Tilters
Taxonomy 4
Scissor Carts
Taxonomy 5
Manual
Assembled Depth (in.)
64.5
Assembled Width(in.)
24
Assembled Height(in.)
39.5
Assembled Weight(lbs.)
543
Color/Finish
Blue
Material
Steel
Option? Y/N
N
Sell UOM
EA-Each
Country Of Origin
CN
Approval Drawing Required? Y/N
N
Assembly
Assembled

Logistics

Packaging Level
BASE_UNIT_OR_EACH
Package Depth (in.)
65
Package Width (in.)
41
Package Height (in.)
27
Package Weight (in.)
612
Subclass
18
Freight Class
92.5
NMFC Code
Conveyors Elevators or Lifts NOI
NMFC Number
120700
LTL Freight
LTL Palletized
UNSPSC
24101501
HTSUS Number
8428.90.0390
USMCA HS
8428.90
Origin Criterion
NO
Certification Indicator
NO
ECCN
EAR99
US Shipping Point
Angola, IN
Supplier Postal Code
46703
Hazardous Material? Yes/No
No
MSDS? Yes/No
No
Batteries Included?
No

Warranty

Warranty
Yes
Manufactuer Warranty
1 Year Limited Warranty
Warranty Type
Limited - Parts
Cancelable? Y/N
Y
Returnable? Y/N
Y
California Prop 65 Compliant?
Unknown

Prop 65 Warning

Copyright © 2026 All Rights Reserved, Vestil Manufacturing Corp.

Details For Model: CART-1500-D-TS

CART-1500-D-TS

Steel Hydraulic Elevating Cart 47-1/2 In. x 24 In. 1500 Lb. Capacity Blue

The Hydraulic elevating cart minimizes worker bending and lifting through its ergonomic design and portability. Material can be easily loaded onto a cart from a table, lowered to a safe transporting height, and raised to unload at destination. The foot pump includes a soft-lowering down valve. The unit moves easily on four polyurethane casters; two swivel with brakes and two rigid. Features a two-speed foot pump. Features an internal safety velocity fuse in each cylinder.

  • Unique lift design quickly raises & lowers material
  • Ergonomic cart design improves user safety
  • Caster construction provides easy portability when loaded
  • Steel construction offers long lasting rugged use

Core Data

Assembled Weight: 543 Assembled Size: 24"W x 64.5"L x 39.5"H Color: Blue
Total Ship Weight: 612 Package 1 Size: 41"W x 65"D x 27"H Freight: LTL Palletized

Specifications

Uniform Capacity (lb.): 1,500
Platform Width (in.): 24
Platform Length (in.): 47-1/2
Lowered Height (in.): 19
Raised Height (in.): 68
Caster Quantity/Diameter/Width (in.): (4) 6 x 1-1/2
Caster Quantity/Type: (2) Rigid (2) Swivel with Brakes
Foot Pump Speed: Two
Caster Material: Poly-on-Steel
Scissor Type: Double
Number of Pumps: 107
