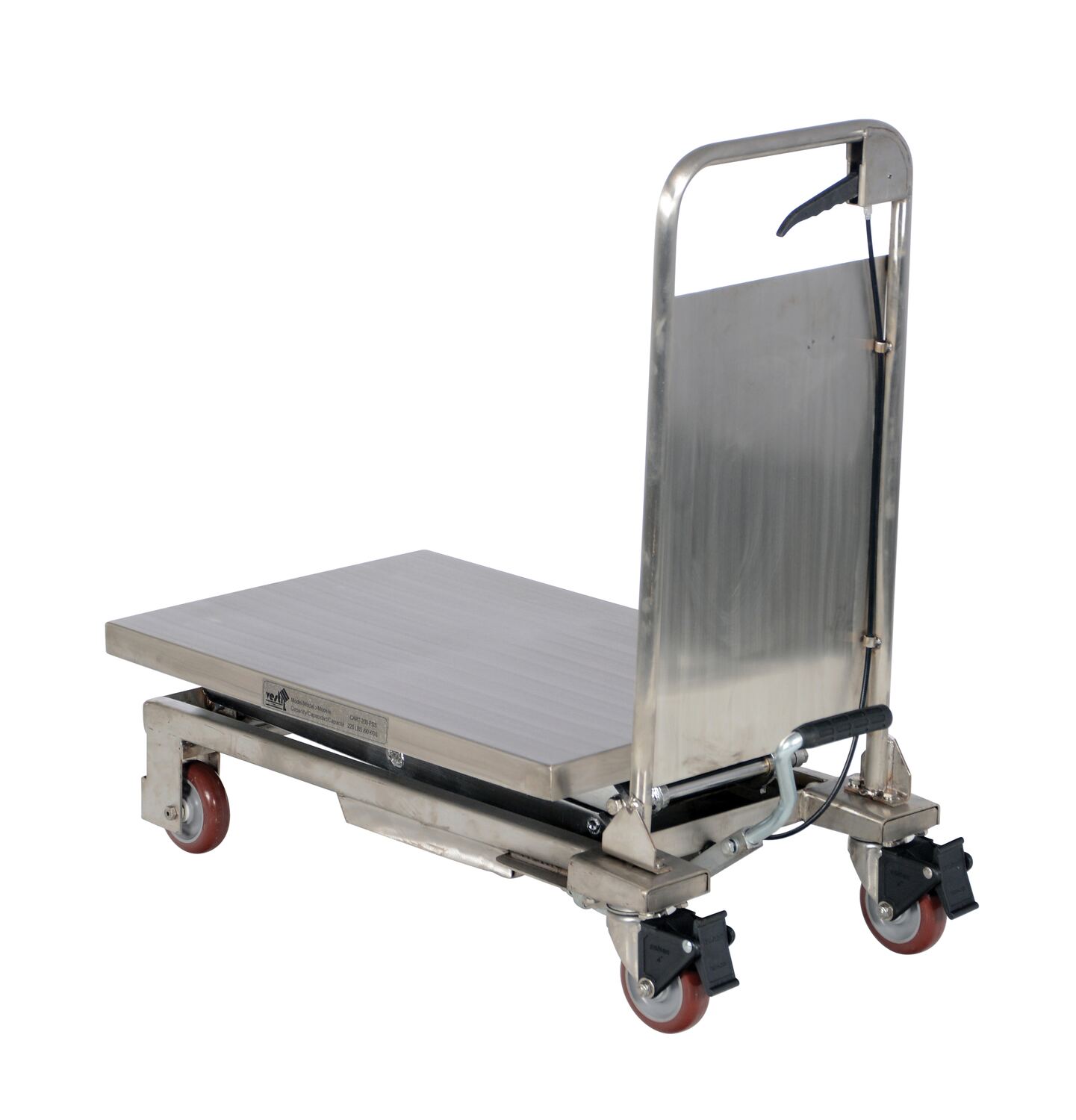

Partially Stainless Steel Hydraulic Double Scissor Elevating Cart 17-1/2 In. x 27 In. 220 Lb. Capacity Silver

Stainless Steel Elevating Cart for Ergonomic Load Lifting and Workstation Positioning, 220 lb. Capacity with 17-1/2 in. x 27 in.
The partially Stainless Steel Hydraulic elevating cart efficiently transports heavy loads in lab, food service and health care applications. Not suitable for wash-down applications. The platform, handle, base frame, caster rig and hardware are 304 grade stainless steel. Foot operated hydraulic pump raises platform. To lower unit use the hand-operated release. The wheels are poly-on-poly. Features an internal safety velocity fuse in each cylinder.
Product Status
Available QuickShip Non-Returnable
Key Features
  • Unique lift design quickly raises & lowers material
  • Ergonomic cart design improves user safety
  • Caster construction provides easy portability when loaded
  • Partially stainless steel construction offers long lasting rugged use
Quick Actions

Product Resources

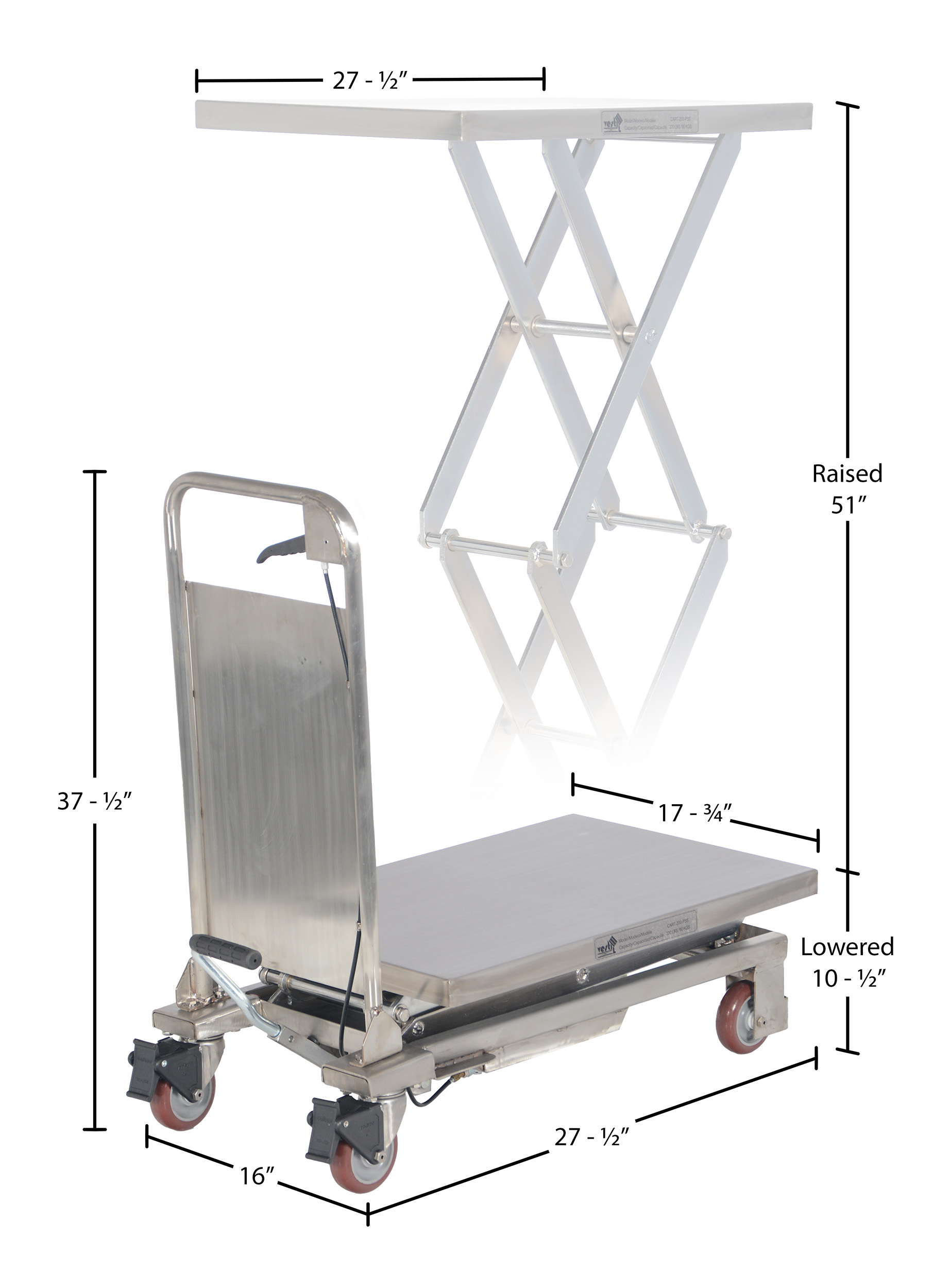

Image Gallery View product images Dimensions Open dimensioned image Contact Vestil Ask about this product
Documents

PDFs & Product Files

  Approval Drawing   Testing Certificate   1 Year Warranty
Product Data

Core Data

Assembled Weight 121 lbs
Assembled Size 17.625"W x 36.5"L x 33.75"H
Total Ship Weight 154 lbs
Package 1 Size 44"W x 48"D x 18"H
Color / Finish Silver
Freight Type LTL Palletized

Additional Attributes

Uniform Capacity (lb.) 220
Platform Width (in.) 17-1/2
Platform Length (in.) 27-1/2
Lowered Height (in.) 10
Raised Height (in.) 51
Foot Pump Speed Single
Caster Quantity/Diameter/Width (in.) (4) 4 x 1-1/4
Caster Material Poly-on-Poly
Scissor Number 2
Elevation per Stroke Full Load (in.) 1.8
Elevation per Stroke No Load (in.) 2
Extended Product Details

Marketing Specs.

MFG Model # (Series)
CART-200-D-PSS
Product Name
Partially Stainless Steel Hydraulic Double Scissor Elevating Cart 17-1/2 In. x 27 In. 220 Lb. Capacity Silver
UPC
691215076104
GTIN
00691215076104
Taxonomy 1
Material Handling
Taxonomy 2
Lifting Equipment
Taxonomy 3
Lifters / Tilters
Taxonomy 4
Scissor Carts
Taxonomy 5
Manual
Assembled Depth (in.)
36.5
Assembled Width(in.)
17.625
Assembled Height(in.)
33.75
Assembled Weight(lbs.)
121
Color/Finish
Silver
Material
Partial Stainless Steel
Option? Y/N
N
Sell UOM
EA-Each
Country Of Origin
CN
Approval Drawing Required? Y/N
N
Assembly
Assembled

Logistics

Packaging Level
BASE_UNIT_OR_EACH
Package Depth (in.)
48
Package Width (in.)
44
Package Height (in.)
18
Package Weight (in.)
154
Subclass
18
Freight Class
92.5
NMFC Code
Conveyors Elevators or Lifts NOI
NMFC Number
120700
LTL Freight
LTL Palletized
UNSPSC
24101501
HTSUS Number
8428.90.0390
USMCA HS
8428.90
Origin Criterion
NO
Certification Indicator
NO
ECCN
EAR99
US Shipping Point
Angola, IN
Supplier Postal Code
46703
Hazardous Material? Yes/No
No
MSDS? Yes/No
No
Batteries Included?
No

Warranty

Warranty
Yes
Manufactuer Warranty
1 Year Limited Warranty
Warranty Type
Limited - Parts
Cancelable? Y/N
N
Returnable? Y/N
N
California Prop 65 Compliant?
Unknown

Prop 65 Warning

Copyright © 2026 All Rights Reserved, Vestil Manufacturing Corp.

Details For Model: CART-200-D-PSS

CART-200-D-PSS

Partially Stainless Steel Hydraulic Double Scissor Elevating Cart 17-1/2 In. x 27 In. 220 Lb. Capacity Silver

The partially Stainless Steel Hydraulic elevating cart efficiently transports heavy loads in lab, food service and health care applications. Not suitable for wash-down applications. The platform, handle, base frame, caster rig and hardware are 304 grade stainless steel. Foot operated hydraulic pump raises platform. To lower unit use the hand-operated release. The wheels are poly-on-poly. Features an internal safety velocity fuse in each cylinder.

  • Unique lift design quickly raises & lowers material
  • Ergonomic cart design improves user safety
  • Caster construction provides easy portability when loaded
  • Partially stainless steel construction offers long lasting rugged use

Core Data

Assembled Weight: 121 Assembled Size: 17.625"W x 36.5"L x 33.75"H Color: Silver
Total Ship Weight: 154 Package 1 Size: 44"W x 48"D x 18"H Freight: LTL Palletized

Specifications

Uniform Capacity (lb.): 220
Platform Width (in.): 17-1/2
Platform Length (in.): 27-1/2
Lowered Height (in.): 10
Raised Height (in.): 51
Foot Pump Speed: Single
Caster Quantity/Diameter/Width (in.): (4) 4 x 1-1/4
Caster Material: Poly-on-Poly
Scissor Number: 2
Elevation per Stroke Full Load (in.): 1.8
Elevation per Stroke No Load (in.): 2
