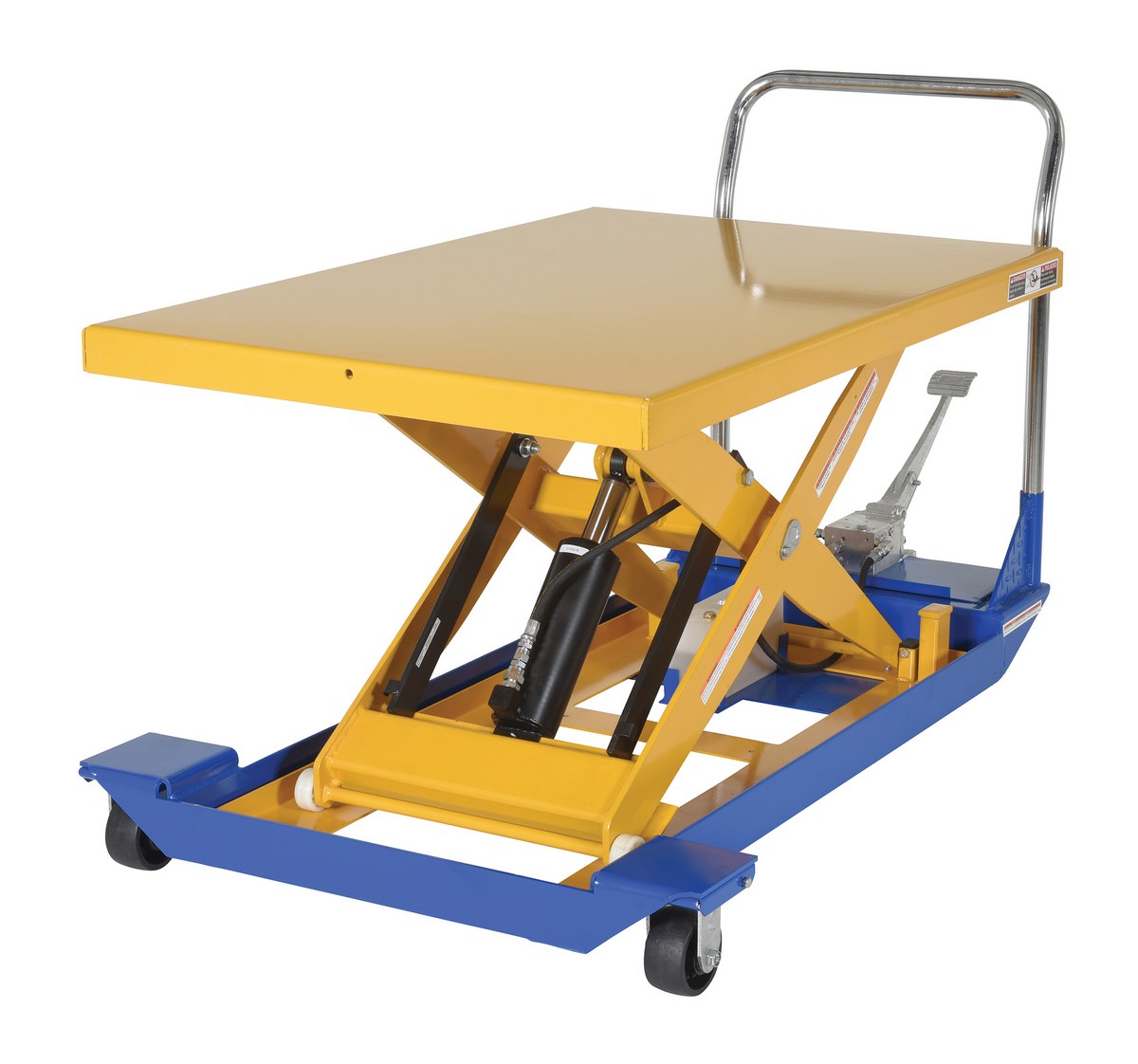

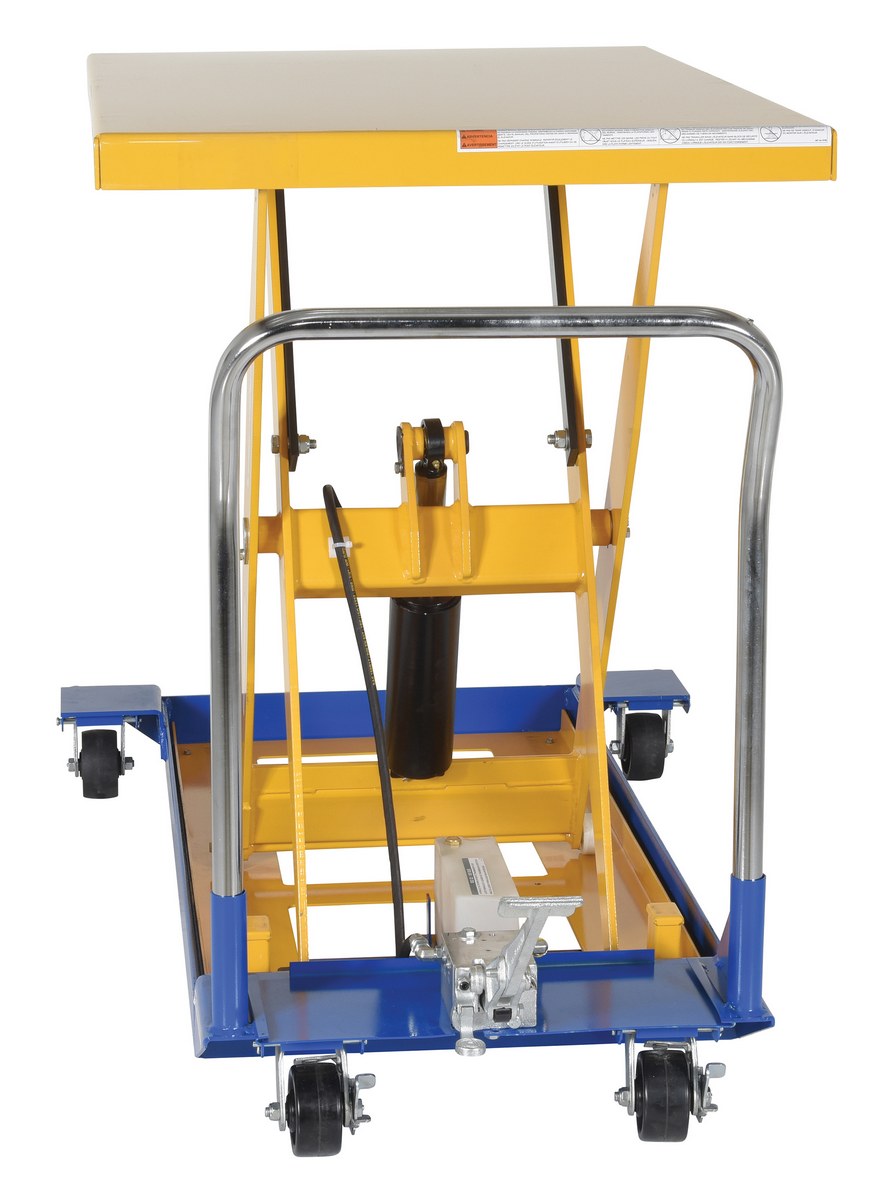

Steel Foot Pump Powered Scissor Cart 48 In. x 32 In. 1000 Lb. Capacity Blue / Yellow

Manual Scissor Cart for Ergonomic Load Lifting and Workstation Positioning, 1,000 lb. Capacity with 48 in. x 32 in.
The manually powered Scissor Cart table provides an unparalleled support in lifting, palletizing, loading, and unloading applications. The cart is raised or lowered with a manual two-speed foot pump. The unit rolls smoothly on two rigid and two swivel phenolic casters with brakes. Features an internal safety velocity fuse in each cylinder.
Product Status
Out of Stock QuickShip
Key Features
  • Solid steel constructions offers long lasting rugged use
  • Push handle is removable for user convenience
  • Phenolic casters with brakes make transportation easy
  • Open design with access from three sides
Quick Actions

Product Resources

Image Gallery View product images Contact Vestil Ask about this product
Documents

PDFs & Product Files

  Approval Drawing   Testing Certificate   Hydraulic Oil SDS   1 Year Warranty
Product Data

Core Data

Assembled Weight 400 lbs
Assembled Size 36"W x 59"L x 9"H
Total Ship Weight 456 lbs
Package 1 Size 40"W x 64"D x 19"H
Color / Finish Blue / Tan
Freight Type LTL Palletized

Additional Attributes

Uniform Capacity (lb.) 1,000
Platform Width (in.) 32
Platform Length (in.) 48
Lowered Height (in.) 10-1/2
Raised Height (in.) 42-1/2
Pumps at Low/High Speed (qty.) 63/31
Caster Quantity/Diameter/Width (in.) (4) 4 x 2
Caster Material Phenolic
Caster Type (2) Rigid (2) Swivel with Brakes
Operation Foot Pump
Foot Pump Type 2-Speed Auto Shift
Removable Handle Height (in) 36
Foot Pump Height (in) 15-13/16
Extended Product Details

Marketing Specs.

MFG Model # (Series)
CART-32-10-M
Product Name
Steel Foot Pump Powered Scissor Cart 48 In. x 32 In. 1000 Lb. Capacity Blue / Yellow
UPC
691215129473
GTIN
00691215129473
Taxonomy 1
Material Handling
Taxonomy 2
Lifting Equipment
Taxonomy 3
Lifters / Tilters
Taxonomy 4
Scissor Carts
Taxonomy 5
Manual
Assembled Depth (in.)
59
Assembled Width(in.)
36
Assembled Height(in.)
9
Assembled Weight(lbs.)
400
Color/Finish
Blue / Tan
Material
Steel
Option? Y/N
N
Sell UOM
EA-Each
Country Of Origin
US
Approval Drawing Required? Y/N
N
Assembly
Assembled

Logistics

Packaging Level
BASE_UNIT_OR_EACH
Package Depth (in.)
64
Package Width (in.)
40
Package Height (in.)
19
Package Weight (in.)
456
Subclass
18
Freight Class
92.5
NMFC Code
Conveyors Elevators or Lifts NOI
NMFC Number
120700
LTL Freight
LTL Palletized
UNSPSC
24101501
HTSUS Number
8428.90.0390
USMCA HS
8428.90
Origin Criterion
B
Certification Indicator
D
ECCN
EAR99
US Shipping Point
Angola, IN
Supplier Postal Code
46703
Hazardous Material? Yes/No
No
MSDS? Yes/No
Yes
Batteries Included?
No

Warranty

Warranty
Yes
Manufactuer Warranty
1 Year Limited Warranty
Warranty Type
Limited - Parts
Cancelable? Y/N
Y
Returnable? Y/N
Y
California Prop 65 Compliant?
Unknown

Prop 65 Warning

Copyright © 2026 All Rights Reserved, Vestil Manufacturing Corp.

Details For Model: CART-32-10-M

CART-32-10-M

Steel Foot Pump Powered Scissor Cart 48 In. x 32 In. 1000 Lb. Capacity Blue / Yellow

The manually powered Scissor Cart table provides an unparalleled support in lifting, palletizing, loading, and unloading applications. The cart is raised or lowered with a manual two-speed foot pump. The unit rolls smoothly on two rigid and two swivel phenolic casters with brakes. Features an internal safety velocity fuse in each cylinder.

  • Solid steel constructions offers long lasting rugged use
  • Push handle is removable for user convenience
  • Phenolic casters with brakes make transportation easy
  • Open design with access from three sides

Core Data

Assembled Weight: 400 Assembled Size: 36"W x 59"L x 9"H Color: Blue / Tan
Total Ship Weight: 456 Package 1 Size: 40"W x 64"D x 19"H Freight: LTL Palletized

Specifications

Uniform Capacity (lb.): 1,000
Platform Width (in.): 32
Platform Length (in.): 48
Lowered Height (in.): 10-1/2
Raised Height (in.): 42-1/2
Pumps at Low/High Speed (qty.): 63/31
Caster Quantity/Diameter/Width (in.): (4) 4 x 2
Caster Material: Phenolic
Caster Type: (2) Rigid (2) Swivel with Brakes
Operation: Foot Pump
Foot Pump Type: 2-Speed Auto Shift
Removable Handle Height (in): 36
Foot Pump Height (in): 15-13/16
