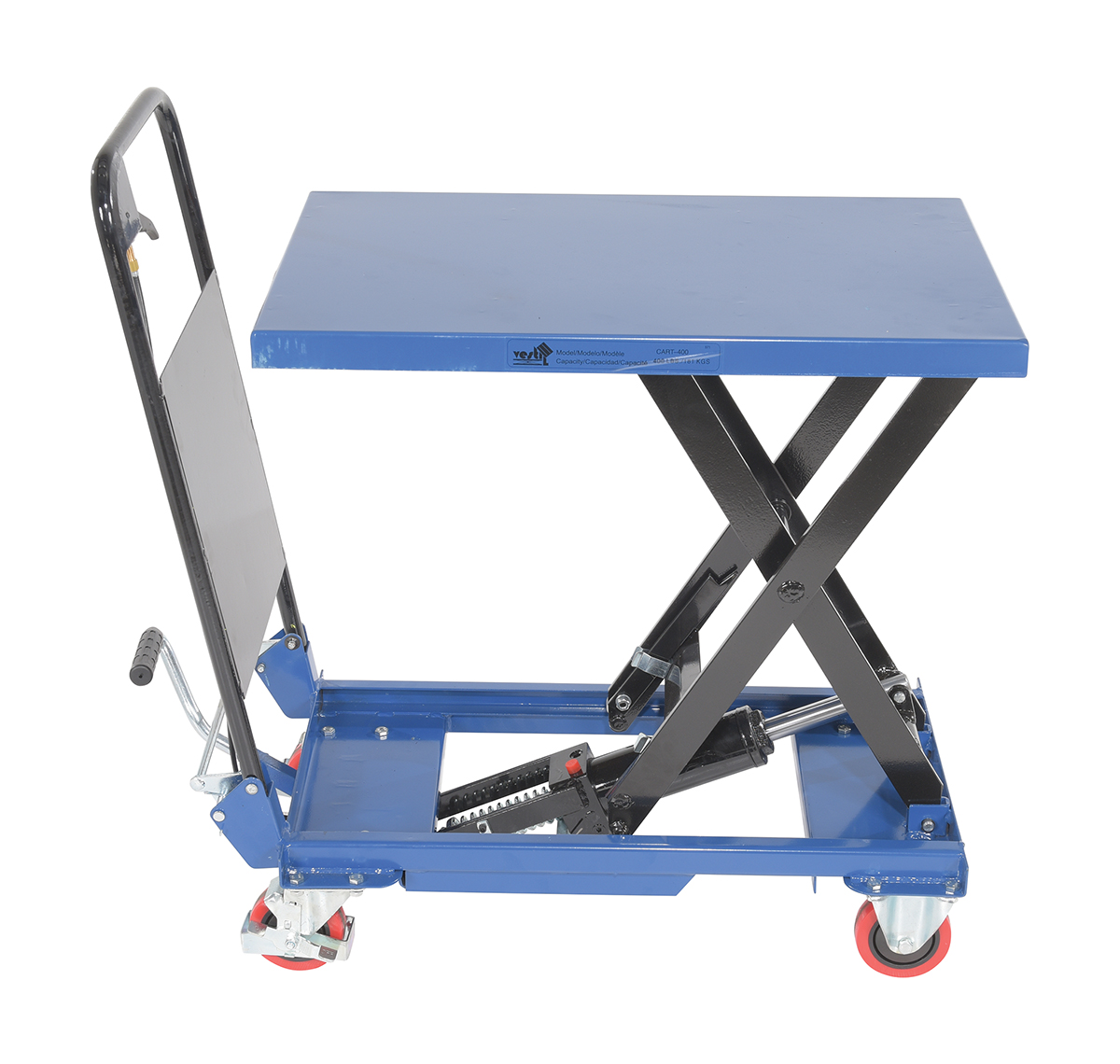

Steel Hydraulic Elevating Cart 330 Lb. Capacity Blue

Scissor Lift Hydraulic Elevating Cart for Ergonomic Load Lifting and Workstation Positioning, 330 lb. Capacity

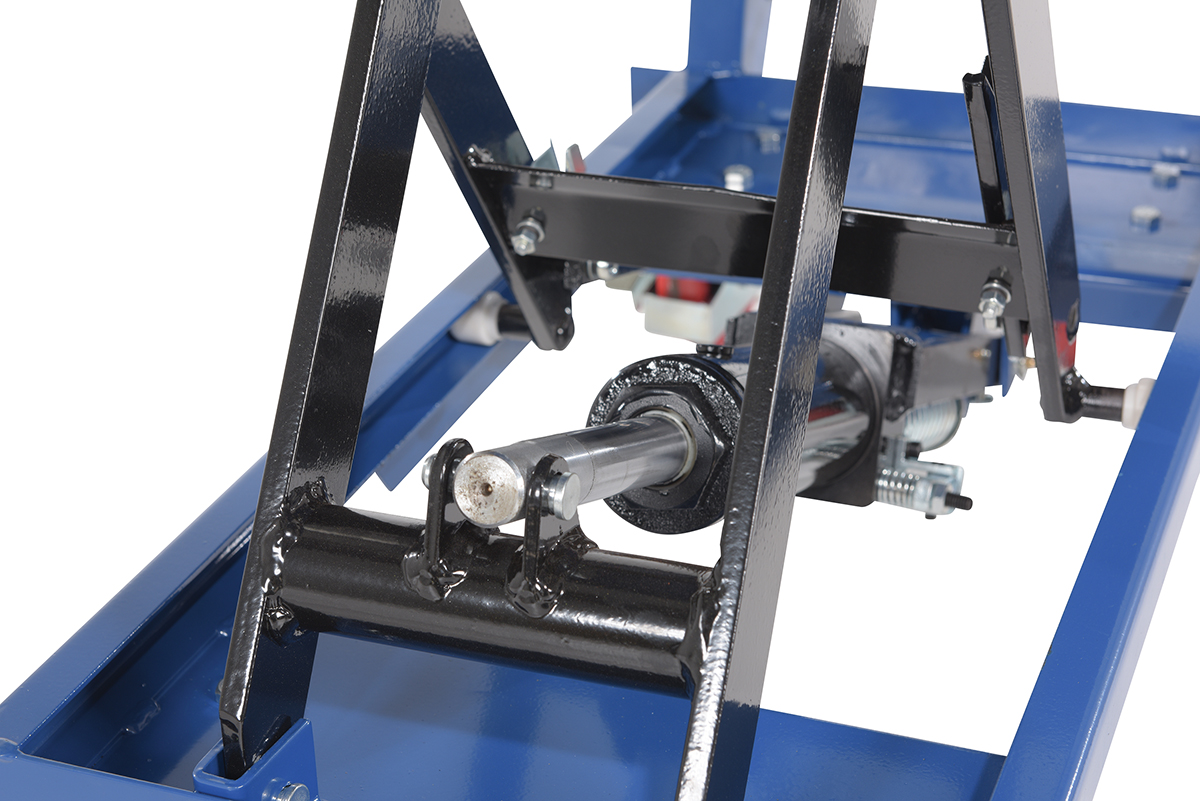

A hydraulic elevating cart works well in a variety of environments. Material can be easily loaded onto a cart from a table and then lowered/raised to the preferred height to unload. The foot pump mechanism allows for the exact placement which minimizes any bending and twisting during the manual labor process. During movement, the casters roll smoothly between areas reducing the chance of any jostling. Powder coated steel construction for an added baked in and tough finish.
Product Status
Temporarily Unavailable - Please Contact Sales QuickShip
Key Features
  • Poly-on-poly casters for smooth transition between areas
  • Wide range between maximum raised and lowered heights
  • Platform size gives stability to products both large and small
  • Single foot pump operation for precise platform positioning
Quick Actions

Product Resources

Image Gallery View product images Contact Vestil Ask about this product
Documents

PDFs & Product Files

  Testing Certificate   360 Image   1 Year Warranty
Product Data

Core Data

Assembled Weight 134 lbs
Assembled Size 17.5"W x 37"L x 36"H
Total Ship Weight 128 lbs
Package 1 Size 41"W x 48"D x 17"H
Color / Finish Blue / Black
Freight Type LTL Palletized

Additional Attributes

Uniform Capacity (lb.) 330
Platform Width (in.) 17-1/2
Platform Length (in.) 27-1/2
Lowered Height (in.) 8-3/4
Raised Height (in.) 29
Power/Operation Hydraulic Foot Pump
Number of Pumps 9
Controls Hand & Foot
Rigid Caster Quantity 2
Swivel Caster Quantity 2
Caster Diameter/Width (in.) 4 x 1-1/4
Caster Material Polyurethene
Handle Height/Diameter (in.) 36 x 1
Extended Product Details

Marketing Specs.

MFG Model # (Series)
CART-330
Product Name
Steel Hydraulic Elevating Cart 330 Lb. Capacity Blue
UPC
691215349116
GTIN
00691215349116
Taxonomy 1
Material Handling
Taxonomy 2
Lifting Equipment
Taxonomy 3
Lifters / Tilters
Taxonomy 4
Scissor Carts
Taxonomy 5
Manual
Assembled Depth (in.)
37
Assembled Width(in.)
17.5
Assembled Height(in.)
36
Assembled Weight(lbs.)
134
Color/Finish
Blue / Black
Material
Steel
Option? Y/N
N
Sell UOM
EA-Each
Country Of Origin
CN
Approval Drawing Required? Y/N
N
Assembly
Assembled

Logistics

Packaging Level
BASE_UNIT_OR_EACH
Package Depth (in.)
48
Package Width (in.)
41
Package Height (in.)
17
Package Weight (in.)
128
Subclass
17
Freight Class
175
NMFC Code
Conveyors Elevators or Lifts NOI
NMFC Number
120700
LTL Freight
LTL Palletized
UNSPSC
24101501
HTSUS Number
8428.90.0390
USMCA HS
8428.90
Origin Criterion
NO
Certification Indicator
NO
ECCN
EAR99
US Shipping Point
Angola, IN
Supplier Postal Code
46703
Hazardous Material? Yes/No
No
MSDS? Yes/No
No
Batteries Included?
No

Warranty

Warranty
Yes
Manufactuer Warranty
1 Year Limited Warranty
Warranty Type
Limited - Parts
Cancelable? Y/N
Y
Returnable? Y/N
Y
California Prop 65 Compliant?
Unknown

Prop 65 Warning

Copyright © 2026 All Rights Reserved, Vestil Manufacturing Corp.

Details For Model: CART-330

CART-330

Steel Hydraulic Elevating Cart 330 Lb. Capacity Blue

A hydraulic elevating cart works well in a variety of environments. Material can be easily loaded onto a cart from a table and then lowered/raised to the preferred height to unload. The foot pump mechanism allows for the exact placement which minimizes any bending and twisting during the manual labor process. During movement, the casters roll smoothly between areas reducing the chance of any jostling. Powder coated steel construction for an added baked in and tough finish.

  • Poly-on-poly casters for smooth transition between areas
  • Wide range between maximum raised and lowered heights
  • Platform size gives stability to products both large and small
  • Single foot pump operation for precise platform positioning

Core Data

Assembled Weight: 134 Assembled Size: 17.5"W x 37"L x 36"H Color: Blue / Black
Total Ship Weight: 128 Package 1 Size: 41"W x 48"D x 17"H Freight: LTL Palletized

Specifications

Uniform Capacity (lb.): 330
Platform Width (in.): 17-1/2
Platform Length (in.): 27-1/2
Lowered Height (in.): 8-3/4
Raised Height (in.): 29
Power/Operation: Hydraulic Foot Pump
Number of Pumps: 9
Controls: Hand & Foot
Rigid Caster Quantity: 2
Swivel Caster Quantity: 2
Caster Diameter/Width (in.): 4 x 1-1/4
Caster Material: Polyurethene
Handle Height/Diameter (in.): 36 x 1
