Steel Linear Elevating Cart 23-5/8 In. x 35-1/2 In. 400 Lb. Capacity Blue/Silver

Linear Actuated Elevating Cart for Ergonomic Load Lifting and Workstation Positioning, 400 lb. Capacity with 23-5/8 in. x 35-1/2 in., Blue Finish – Model CART-400-LA

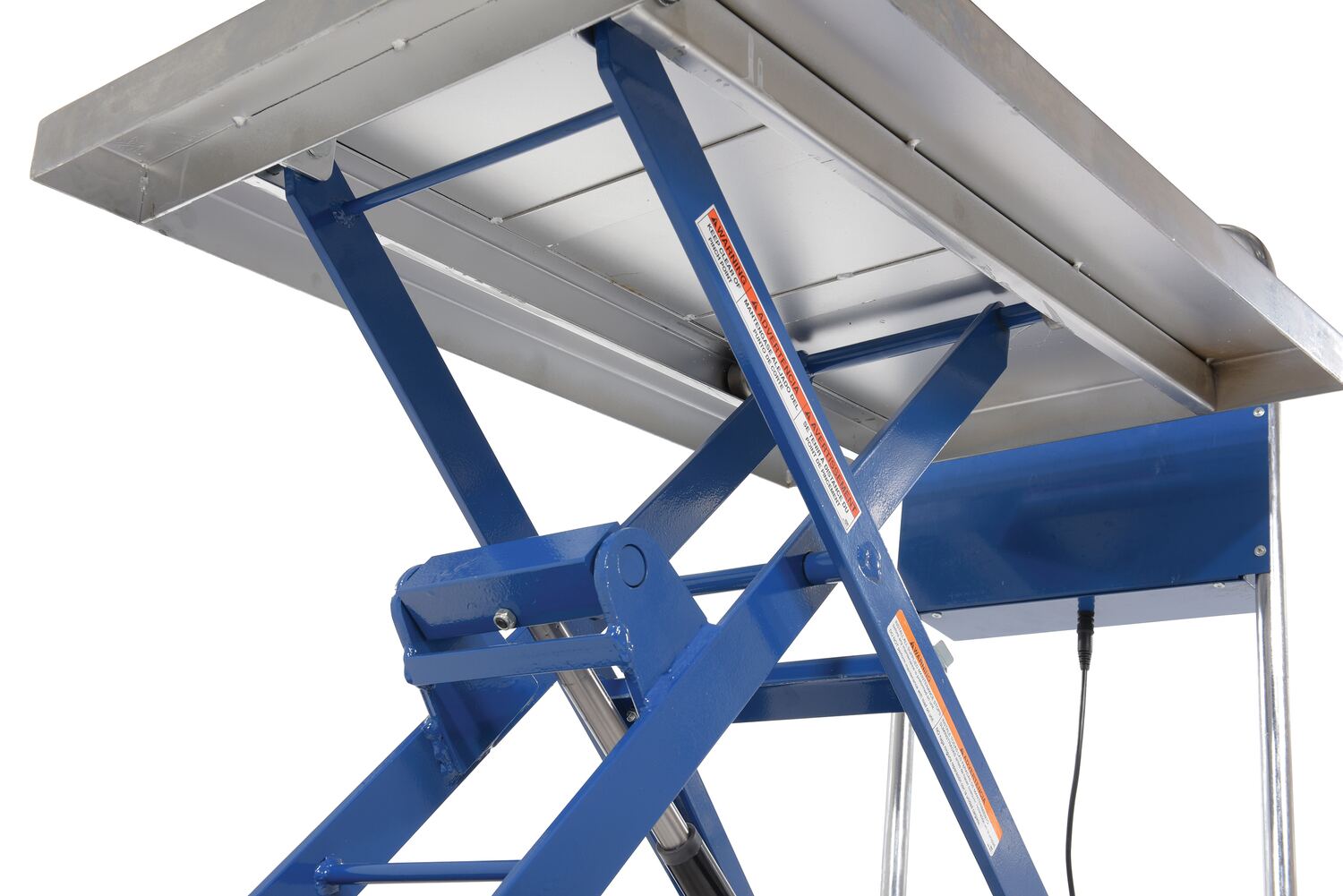

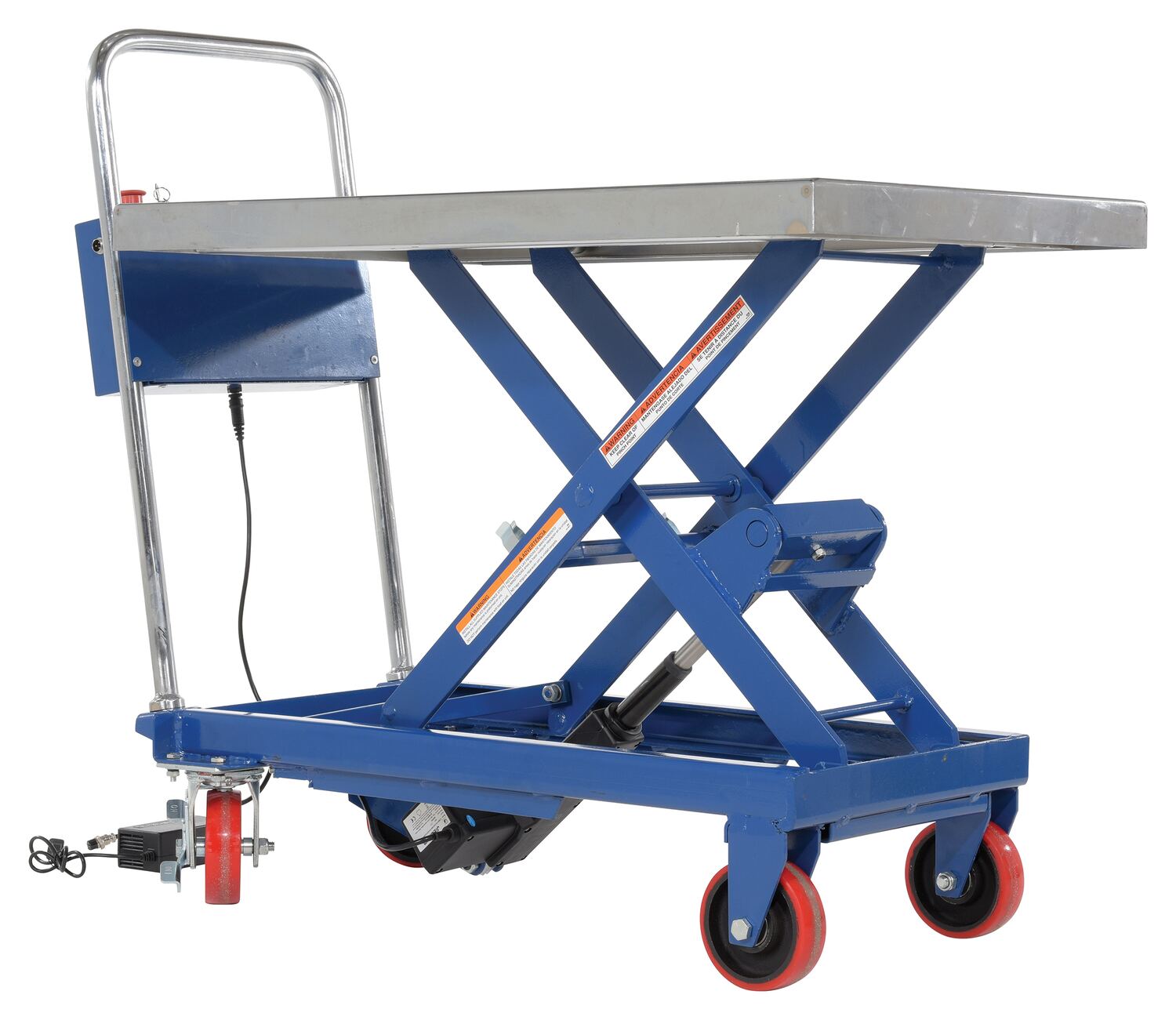

The linear actuated elevating cart transports materials from workstation to workstation with ease. The platform is raised and lowered with an electric linear actuator for precise positioning. Linear actuator will not allow platform to drift down - a common problem with hydraulic carts. This linear actuated cart is powered by (2) 12v AGM batteries and feature bench type charger. Emergency stop button standard on control box. The units rolls smoothly on two rigid and two swivel casters. Features an internal safety velocity fuse in each cylinder.
Product Status
Available QuickShip
Key Features
  • Unique lift design quickly raises & lowers material
  • Ergonomic cart design improves user safety
  • Caster construction provides easy portability when loaded
  • Steel construction offers long lasting rugged use
Quick Actions

Product Resources

Image Gallery View product images Contact Vestil Ask about this product
Documents

PDFs & Product Files

  Testing Certificate   360 Image   Hydraulic Oil SDS   1 Year Warranty
Product Data

Core Data

Assembled Weight 128 lbs
Assembled Size 44.5"W x 53.5"L x 42"H
Total Ship Weight 228 lbs
Package 1 Size 41"W x 49"D x 38"H
Color / Finish Blue
Freight Type LTL Palletized

Additional Attributes

Uniform Capacity (lb.) 400
Platform Width (in.) 23-5/8
Platform Length (in.) 35-1/2
Lowered Height (in.) 15
Raised Height (in.) 34
Lowering Method 12 Volt Battery
Scissor Design Single
Rear Caster Diameter (in.) 4
Rear Caster Width (in.) 2
Front Caster Diameter (in.) 4
Front Caster Width (in.) 2
Caster (quantity) 4
Caster Material Poly-on-Steel
Front Caster Type Swivel
Rear Caster Type Rigid
Battery Quantity/Voltage (2) 12V
Overall Length (in.) 53-1/2
Overall Width (in.) 44-1/2
Overall Height (in.) 42

Battery Information

Battery Depth 10
Battery Width 14
Battery Height 11
Battery Weight 10
Battery Freight Class 60
Battery NMFC Number 60700
Battery NMFC Description Gel batteries on unit
Lithium Battery Configuration C -- Contained In
Extended Product Details

Marketing Specs.

MFG Model # (Series)
CART-400-LA
Product Name
Steel Linear Elevating Cart 23-5/8 In. x 35-1/2 In. 400 Lb. Capacity Blue/Silver
UPC
691215104241
GTIN
00691215104241
Taxonomy 1
Material Handling
Taxonomy 2
Lifting Equipment
Taxonomy 3
Lifters / Tilters
Taxonomy 4
Scissor Carts
Taxonomy 5
Electric
Assembled Depth (in.)
53.5
Assembled Width(in.)
44.5
Assembled Height(in.)
42
Assembled Weight(lbs.)
128
Color/Finish
Blue
Material
Steel
Option? Y/N
N
Sell UOM
EA-Each
Country Of Origin
CN
Approval Drawing Required? Y/N
N
Assembly
Assembled

Logistics

Packaging Level
BASE_UNIT_OR_EACH
Package Depth (in.)
49
Package Width (in.)
41
Package Height (in.)
38
Package Weight (in.)
228
Subclass
6
Freight Class
200
NMFC Code
Cars, Lift Trucks or Vehicles,áNOI, not designed for general highway use,
NMFC Number
190235
LTL Freight
LTL Palletized
UNSPSC
24101501
HTSUS Number
8428.90.0390
USMCA HS
8428.90
Origin Criterion
NO
Certification Indicator
NO
ECCN
EAR99
US Shipping Point
Angola, IN
Supplier Postal Code
46703
Hazardous Material? Yes/No
No
MSDS? Yes/No
Yes
Batteries Included?
Yes
Battery Weight (lbs.)
10
Battery Freight Class
60
Battery NMFC Number
60700
Battery NMFC Description
Gel batteries on unit
Lithium Battery Configuration
C -- Contained In

Warranty

Warranty
Yes
Manufactuer Warranty
1 Year Limited Warranty
Warranty Type
Limited - Parts
Cancelable? Y/N
Y
Returnable? Y/N
Y
California Prop 65 Compliant?
Unknown

Prop 65 Warning

Copyright © 2026 All Rights Reserved, Vestil Manufacturing Corp.

Details For Model: CART-400-LA

CART-400-LA

Steel Linear Elevating Cart 23-5/8 In. x 35-1/2 In. 400 Lb. Capacity Blue/Silver

The linear actuated elevating cart transports materials from workstation to workstation with ease. The platform is raised and lowered with an electric linear actuator for precise positioning. Linear actuator will not allow platform to drift down - a common problem with hydraulic carts. This linear actuated cart is powered by (2) 12v AGM batteries and feature bench type charger. Emergency stop button standard on control box. The units rolls smoothly on two rigid and two swivel casters. Features an internal safety velocity fuse in each cylinder.

  • Unique lift design quickly raises & lowers material
  • Ergonomic cart design improves user safety
  • Caster construction provides easy portability when loaded
  • Steel construction offers long lasting rugged use

Core Data

Assembled Weight: 128 Assembled Size: 44.5"W x 53.5"L x 42"H Color: Blue
Total Ship Weight: 228 Package 1 Size: 41"W x 49"D x 38"H Freight: LTL Palletized

Specifications

Uniform Capacity (lb.): 400
Platform Width (in.): 23-5/8
Platform Length (in.): 35-1/2
Lowered Height (in.): 15
Raised Height (in.): 34
Lowering Method: 12 Volt Battery
Scissor Design: Single
Rear Caster Diameter (in.): 4
Rear Caster Width (in.): 2
Front Caster Diameter (in.): 4
Front Caster Width (in.): 2
Caster (quantity): 4
Caster Material: Poly-on-Steel
Front Caster Type: Swivel
Rear Caster Type: Rigid
Battery Quantity/Voltage: (2) 12V
Overall Length (in.): 53-1/2
Overall Width (in.): 44-1/2
Overall Height (in.): 42
