Steel Low Profile Scissor Lift Cart Auto Shift 19-5/8 In. x 32-1/4 In. 400 Lb. Capacity Blue

Low-Profile Hydraulic Scissor Cart for Ergonomic Load Lifting and Workstation Positioning, 400 lb. Capacity with 19-5/8 in. x 32-1/4 in.
In areas of congestion a low profile scissor cart is a must. With a two speed auto shift foot pump, the platform is easily raised/lowered to the desired position. The auto shift automatically shifts between speeds based on the output pressure of the hydraulic system. Not only is this design extremely efficient but also ergonomically friendly. With a raised steering handle the user can maintain a proper working posture during transit. The sleek steel design, with a powder coated finish for baked in added toughness, is simple to clean and limits needless scuffs or abrasions. Mold on rubber casters with brakes roll easily over a variety of surfaces.
Product Status
Available QuickShip
Key Features
  • Robust capacity is great for handling products both large and small
  • Included casters roll smoothly
  • High handle for minimizes slouching during transportation
  • Single scissor design
Quick Actions

Product Resources

Image Gallery View product images Dimensions Open dimensioned image Contact Vestil Ask about this product
Documents

PDFs & Product Files

  Testing Certificate   Label Page PDF   Hydraulic Oil SDS   1 Year Warranty
Product Data

Core Data

Assembled Weight 164 lbs

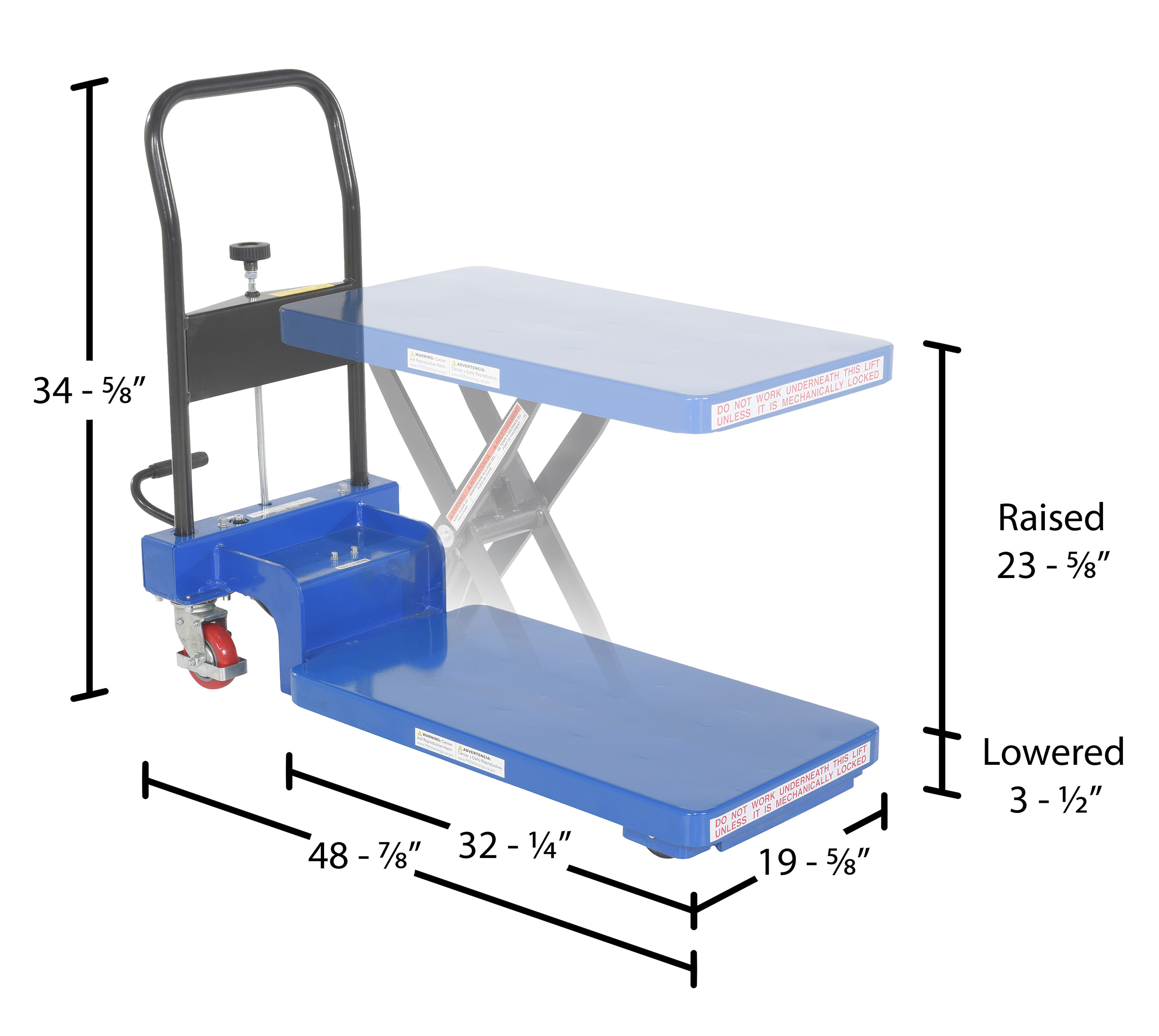

Assembled Size 19.625"W x 48.875"L x 34.625"H
Total Ship Weight 312 lbs
Package 1 Size 40"W x 48"D x 18"H
Color / Finish Blue / Black
Freight Type LTL Palletized

Additional Attributes

Capacity 400 lbs.
Deck Deminsions 19-5/8"x32-1/4"
Lowered Height 3-1/2"
Raised Height 23-5/8"
Push Handle Diameter 1-1/8"
Push Handle Height 34-5/8"
Caster Type Mold On Rubber
Caster Size (2) Swivel 5"x1-1/2" (2) Rigid 3"x-1-1/2"
Foot Pump Speed Two
Extended Product Details

Marketing Specs.

MFG Model # (Series)
CART-400-LP-AS
Product Name
Steel Low Profile Scissor Lift Cart Auto Shift 19-5/8 In. x 32-1/4 In. 400 Lb. Capacity Blue
UPC
691215346153
GTIN
00691215346153
Taxonomy 1
Material Handling
Taxonomy 2
Lifting Equipment
Taxonomy 3
Lifters / Tilters
Taxonomy 4
Scissor Carts
Taxonomy 5
Manual
Assembled Depth (in.)
48.875
Assembled Width(in.)
19.625
Assembled Height(in.)
34.625
Assembled Weight(lbs.)
164
Color/Finish
Blue / Black
Material
Steel
Option? Y/N
N
Sell UOM
EA-Each
Country Of Origin
CN
Approval Drawing Required? Y/N
N
Assembly
Assembled

Logistics

Packaging Level
BASE_UNIT_OR_EACH
Package Depth (in.)
48
Package Width (in.)
40
Package Height (in.)
18
Package Weight (in.)
312
Subclass
19
Freight Class
70
NMFC Code
Conveyors Elevators or Lifts NOI
NMFC Number
120700
LTL Freight
LTL Palletized
UNSPSC
24101501
HTSUS Number
8428.90.0390
USMCA HS
8428.90
Origin Criterion
NO
Certification Indicator
NO
ECCN
EAR99
US Shipping Point
Angola, IN
Supplier Postal Code
46703
Hazardous Material? Yes/No
No
MSDS? Yes/No
Yes
Batteries Included?
No

Warranty

Warranty
Yes
Manufactuer Warranty
1 Year Limited Warranty
Warranty Type
Limited - Parts
Cancelable? Y/N
Y
Returnable? Y/N
Y
California Prop 65 Compliant?
Unknown

Prop 65 Warning

Copyright © 2026 All Rights Reserved, Vestil Manufacturing Corp.

Details For Model: CART-400-LP-AS

CART-400-LP-AS

Steel Low Profile Scissor Lift Cart Auto Shift 19-5/8 In. x 32-1/4 In. 400 Lb. Capacity Blue

In areas of congestion a low profile scissor cart is a must. With a two speed auto shift foot pump, the platform is easily raised/lowered to the desired position. The auto shift automatically shifts between speeds based on the output pressure of the hydraulic system. Not only is this design extremely efficient but also ergonomically friendly. With a raised steering handle the user can maintain a proper working posture during transit. The sleek steel design, with a powder coated finish for baked in added toughness, is simple to clean and limits needless scuffs or abrasions. Mold on rubber casters with brakes roll easily over a variety of surfaces.

  • Robust capacity is great for handling products both large and small
  • Included casters roll smoothly
  • High handle for minimizes slouching during transportation
  • Single scissor design

Core Data

Assembled Weight: 164 Assembled Size: 19.625"W x 48.875"L x 34.625"H Color: Blue / Black
Total Ship Weight: 312 Package 1 Size: 40"W x 48"D x 18"H Freight: LTL Palletized

Specifications

Capacity: 400 lbs.
Deck Deminsions: 19-5/8"x32-1/4"
Lowered Height: 3-1/2"
Raised Height: 23-5/8"
Push Handle Diameter: 1-1/8"
Push Handle Height: 34-5/8"
Caster Type: Mold On Rubber
Caster Size: (2) Swivel 5"x1-1/2" (2) Rigid 3"x-1-1/2"
Foot Pump Speed: Two
