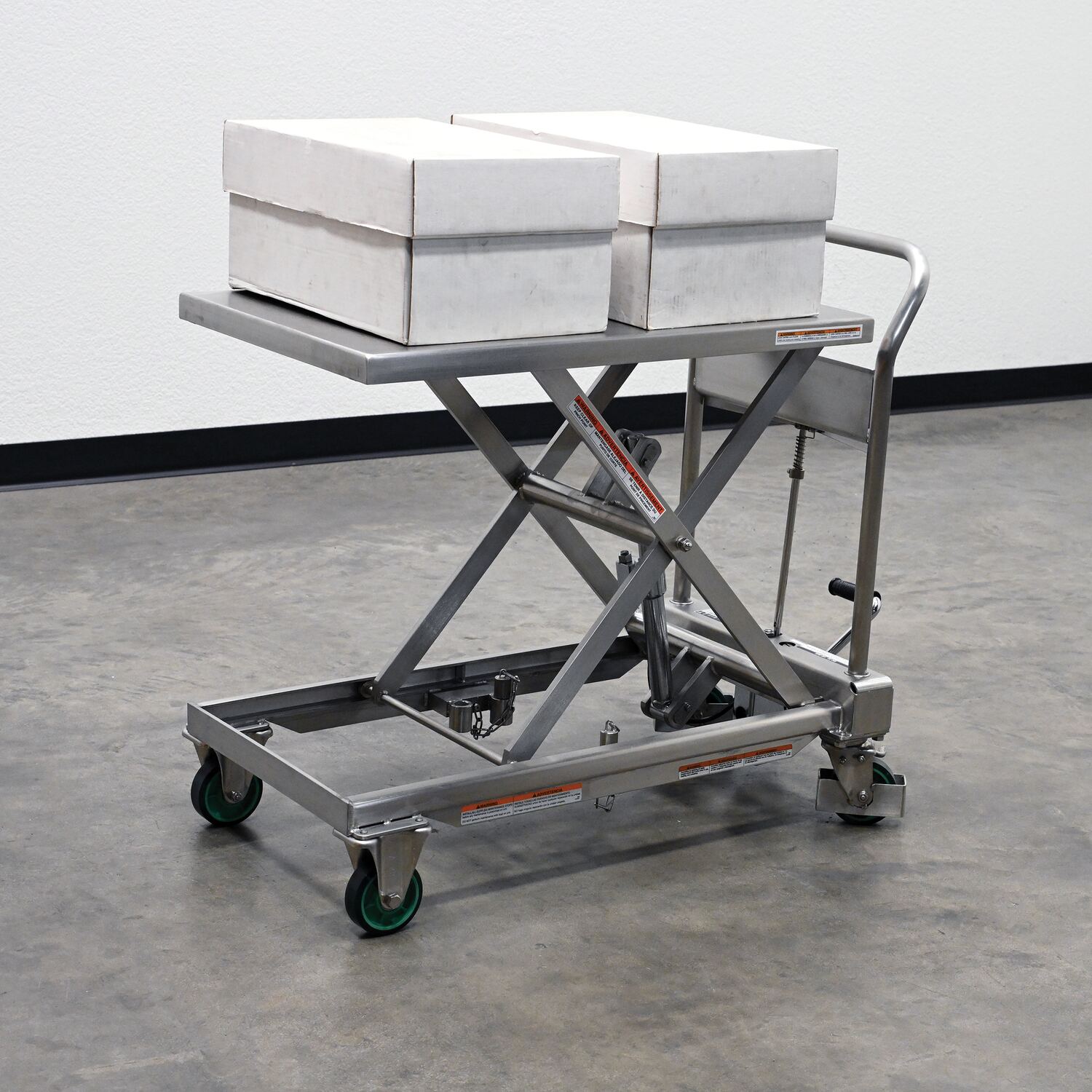

Stainless Steel Hydraulic Cart 19-1/2 In. x 31-1/2 In. 550 Lb. Capacity Silver

Stainless Steel Premium Scissor Lift Cart for Ergonomic Load Lifting and Workstation Positioning, 550 lb. Capacity with 19-1/2 in. x 31-1/2 in.

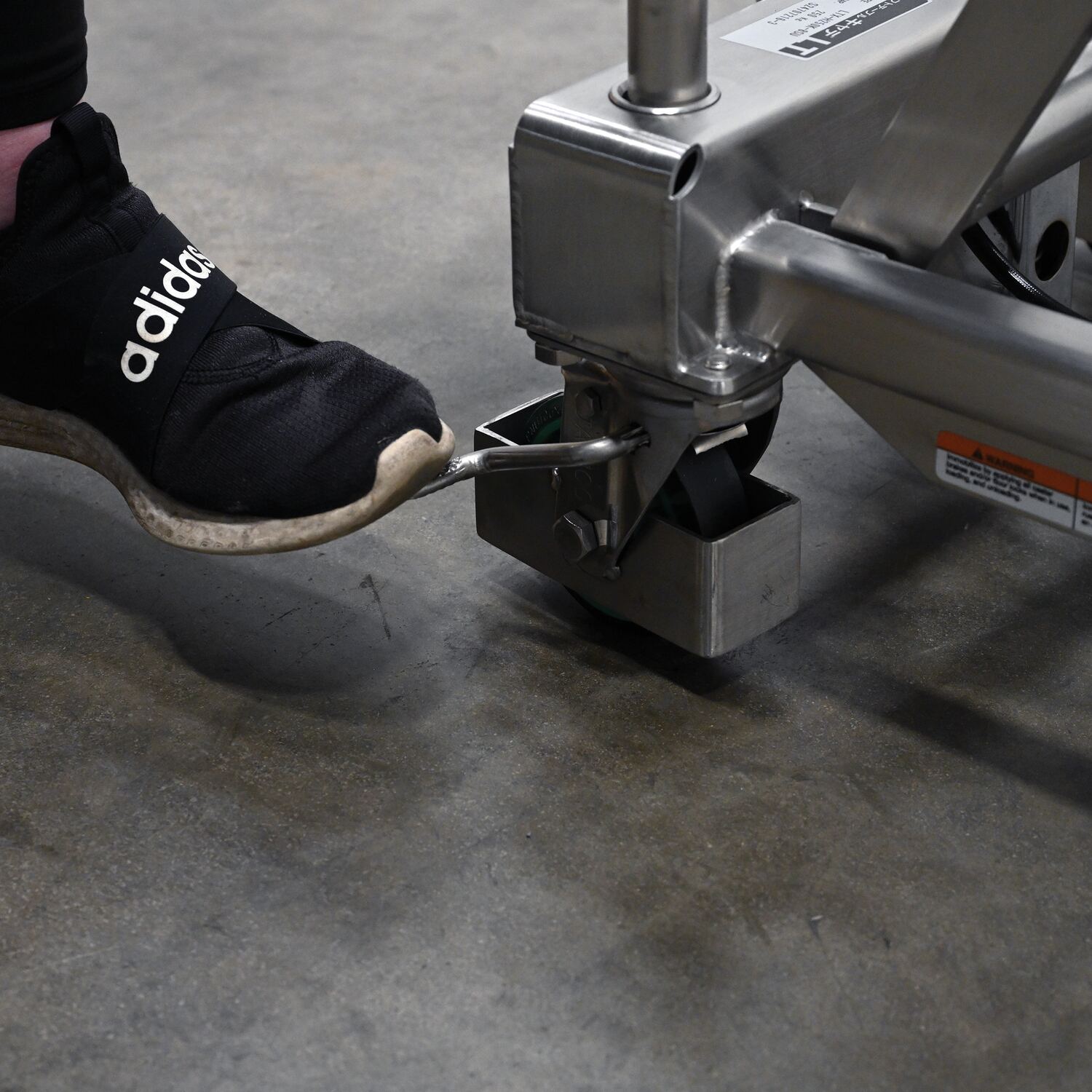

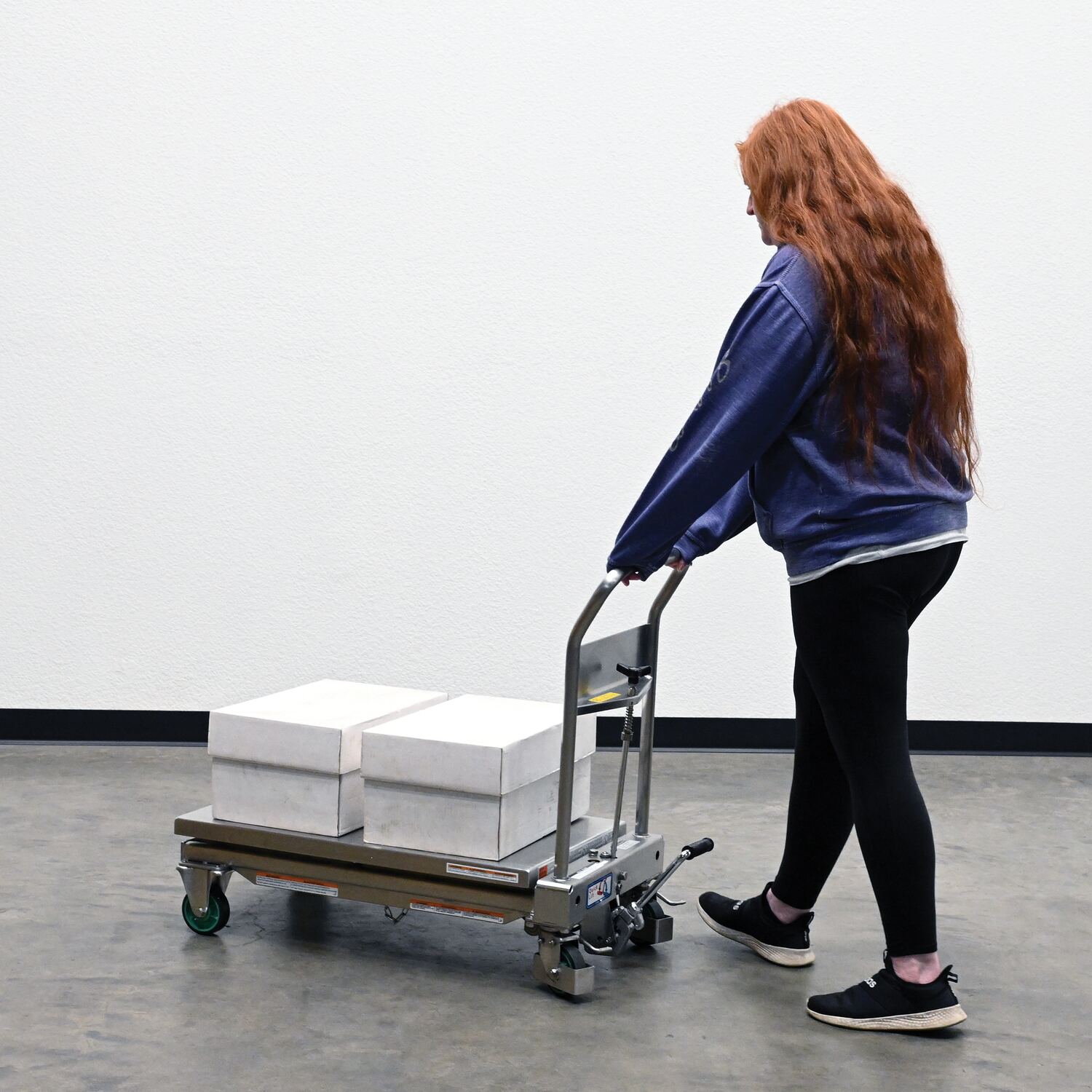

The Hydraulic elevating cart minimizes worker bending and lifting through its ergonomic design and portability. Material can be easily loaded onto a cart from a table, lowered to a safe transporting height, and raised to unload at destination. The foot pump includes a soft-lowering down valve. The unit moves easily on four polyurethane casters; two swivel with brakes and two rigid. Features a two-speed foot pump. Foot pump pedal, pump assembly and hydraulic cylinder are chrome plated. Rest of the unit is fully stainless construction. Features an internal safety velocity fuse in each cylinder.
Product Status
Available QuickShip Non-Returnable
Key Features
  • Unique lift design quickly raises & lowers material
  • Ergonomic cart design improves user safety
  • Caster construction provides easy portability when loaded
  • Stainless Steel construction offers long lasting rugged use
Quick Actions

Product Resources

Image Gallery View product images Contact Vestil Ask about this product
Documents

PDFs & Product Files

  Approval Drawing   Testing Certificate   CART-550-SS HYDRAULIC ELEVATING CART Manual   Hydraulic Oil SDS   1 Year Warranty
Product Data

Core Data

Assembled Weight 134 lbs
Assembled Size 21.2656"W x 41.3125"L x 33.2656"H
Total Ship Weight 179 lbs
Package 1 Size 40"W x 48"D x 16"H
Color / Finish Silver
Freight Type LTL Palletized

Additional Attributes

Uniform Capacity (lb.) 550
Service Range (in.) 9-3/4 to 33-1/2
Platform Width (in.) 19-1/2
Platform Length (in.) 31-1/2
Foot Pump Speed Two
Caster Diameter/Width (in.) 4 x 1-1/4
Caster Qty./Type (2) Rigid, (2) Swivel with Brakes
Caster Material Polyurethane
# of Pumps to Raise Platform on Low Speed while Unloaded 24
# of Pumps to Raise Platform on Low Speed while Loaded 27
# of Pumps to Raise Platform on High Speed while Unloaded 12
# of Pumps to Raise Platform on High Speed while Loaded Can Not Pump at High Speed while Loaded
Extended Product Details

Marketing Specs.

MFG Model # (Series)
CART-550-SS
Product Name
Stainless Steel Hydraulic Cart 19-1/2 In. x 31-1/2 In. 550 Lb. Capacity Silver
UPC
691215010467
GTIN
00691215010467
Taxonomy 1
Material Handling
Taxonomy 2
Lifting Equipment
Taxonomy 3
Lifters / Tilters
Taxonomy 4
Scissor Carts
Taxonomy 5
Manual
Assembled Depth (in.)
41.3125
Assembled Width(in.)
21.2656
Assembled Height(in.)
33.2656
Assembled Weight(lbs.)
134
Color/Finish
Silver
Material
304 Stainless Steel
Option? Y/N
N
Sell UOM
EA-Each
Country Of Origin
JP
Approval Drawing Required? Y/N
N
Assembly
Assembled

Logistics

Packaging Level
BASE_UNIT_OR_EACH
Package Depth (in.)
48
Package Width (in.)
40
Package Height (in.)
16
Package Weight (in.)
179
Subclass
18
Freight Class
92.5
NMFC Code
Conveyors Elevators or Lifts NOI
NMFC Number
120700
LTL Freight
LTL Palletized
UNSPSC
24101501
HTSUS Number
8428.90.0390
USMCA HS
8428.90
Origin Criterion
NO
Certification Indicator
NO
ECCN
EAR99
US Shipping Point
Angola, IN
Supplier Postal Code
46703
Hazardous Material? Yes/No
No
MSDS? Yes/No
Yes
Batteries Included?
No

Warranty

Warranty
Yes
Manufactuer Warranty
1 Year Limited Warranty
Warranty Type
Limited - Parts
Cancelable? Y/N
N
Returnable? Y/N
N
California Prop 65 Compliant?
Unknown

Prop 65 Warning

Copyright © 2026 All Rights Reserved, Vestil Manufacturing Corp.

Details For Model: CART-550-SS

CART-550-SS

Stainless Steel Hydraulic Cart 19-1/2 In. x 31-1/2 In. 550 Lb. Capacity Silver

The Hydraulic elevating cart minimizes worker bending and lifting through its ergonomic design and portability. Material can be easily loaded onto a cart from a table, lowered to a safe transporting height, and raised to unload at destination. The foot pump includes a soft-lowering down valve. The unit moves easily on four polyurethane casters; two swivel with brakes and two rigid. Features a two-speed foot pump. Foot pump pedal, pump assembly and hydraulic cylinder are chrome plated. Rest of the unit is fully stainless construction. Features an internal safety velocity fuse in each cylinder.

  • Unique lift design quickly raises & lowers material
  • Ergonomic cart design improves user safety
  • Caster construction provides easy portability when loaded
  • Stainless Steel construction offers long lasting rugged use

Core Data

Assembled Weight: 134 Assembled Size: 21.2656"W x 41.3125"L x 33.2656"H Color: Silver
Total Ship Weight: 179 Package 1 Size: 40"W x 48"D x 16"H Freight: LTL Palletized

Specifications

Uniform Capacity (lb.): 550
Service Range (in.): 9-3/4 to 33-1/2
Platform Width (in.): 19-1/2
Platform Length (in.): 31-1/2
Foot Pump Speed: Two
Caster Diameter/Width (in.): 4 x 1-1/4
Caster Qty./Type: (2) Rigid, (2) Swivel with Brakes
Caster Material: Polyurethane
# of Pumps to Raise Platform on Low Speed while Unloaded: 24
# of Pumps to Raise Platform on Low Speed while Loaded: 27
# of Pumps to Raise Platform on High Speed while Unloaded: 12
# of Pumps to Raise Platform on High Speed while Loaded: Can Not Pump at High Speed while Loaded
