Steel Mechanical Scissor Cart 37 In. x 23-1/2 In. 660 Lb. Capacity Blue/Silver

Manual Scissor Cart for Ergonomic Load Lifting and Workstation Positioning, 660 lb. Capacity with 37 in. x 23-1/2 in.
The mechanical Scissor Cart raises and lowers material quickly and easily. The cart rolls smoothly on two rigid and two swivel casters. Mechanical screw drive provides precise positioning with no downward drift.
Product Status
Available QuickShip
Key Features
  • Unique lift design quickly raises & lowers material
  • Ergonomic cart design improves user safety
  • Caster construction provides easy portability when loaded
  • Steel construction offers long lasting rugged use
Quick Actions

Product Resources

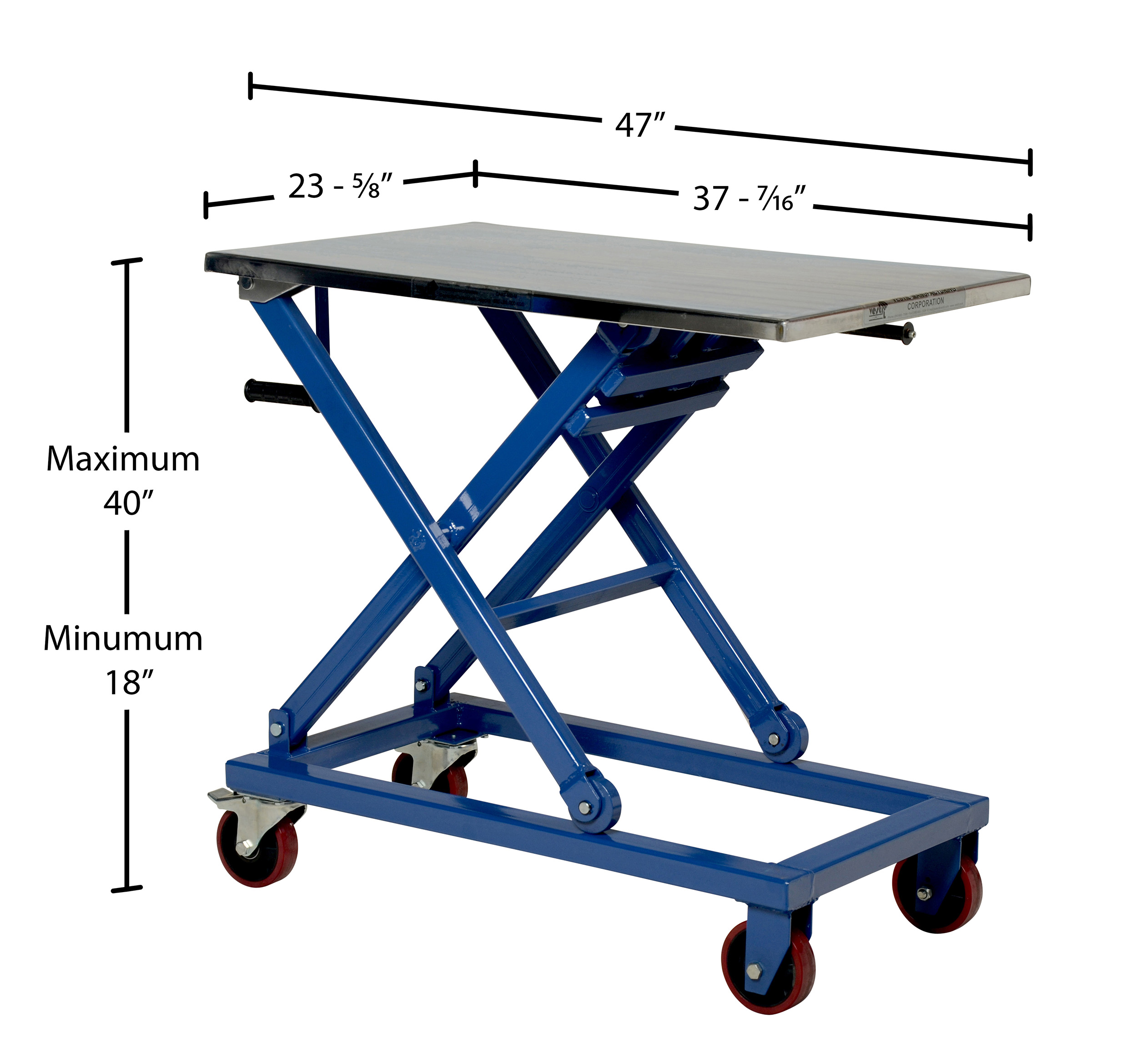

Image Gallery View product images Dimensions Open dimensioned image Contact Vestil Ask about this product
Documents

PDFs & Product Files

  Approval Drawing   Testing Certificate   Model CART-660-M Mechanical Scissor Cart Manual   Label Page PDF   1 Year Warranty
Product Data

Core Data

Assembled Weight 143 lbs
Assembled Size 23.625"W x 47"L x 18"H
Total Ship Weight 190 lbs
Package 1 Size 40"W x 48"D x 21"H
Color / Finish Blue
Freight Type LTL Palletized

Additional Attributes

Uniform Capacity (lb.) 660
Platform Width (in.) 23-1/2
Platform Length (in.) 37
Lowered Height (in.) 18
Raised Height (in.) 39-1/2
Caster Quantity/Diameter/Width (in.) (4) 5 x 1.5
Caster Type (2) Rigid (2) Swivel with Lock
Caster Material Poly-on-Poly
Cranks to Raise Platform 280
Extended Product Details

Marketing Specs.

MFG Model # (Series)
CART-660-M
Product Name
Steel Mechanical Scissor Cart 37 In. x 23-1/2 In. 660 Lb. Capacity Blue/Silver
UPC
691215059794
GTIN
00691215059794
Taxonomy 1
Material Handling
Taxonomy 2
Lifting Equipment
Taxonomy 3
Lifters / Tilters
Taxonomy 4
Scissor Carts
Taxonomy 5
Manual
Assembled Depth (in.)
47
Assembled Width(in.)
23.625
Assembled Height(in.)
18
Assembled Weight(lbs.)
143
Color/Finish
Blue
Material
Steel
Option? Y/N
N
Sell UOM
EA-Each
Country Of Origin
CN
Approval Drawing Required? Y/N
N
Assembly
Assembled

Logistics

Packaging Level
BASE_UNIT_OR_EACH
Package Depth (in.)
48
Package Width (in.)
40
Package Height (in.)
21
Package Weight (in.)
190
Subclass
18
Freight Class
92.5
NMFC Code
Conveyors Elevators or Lifts NOI
NMFC Number
120700
LTL Freight
LTL Palletized
UNSPSC
24101501
HTSUS Number
8427.90.0090
USMCA HS
8427.90
Origin Criterion
NO
Certification Indicator
NO
ECCN
EAR99
US Shipping Point
Angola, IN
Supplier Postal Code
46703
Hazardous Material? Yes/No
No
MSDS? Yes/No
Yes
Batteries Included?
No

Warranty

Warranty
Yes
Manufactuer Warranty
1 Year Limited Warranty
Warranty Type
Limited - Parts
Cancelable? Y/N
Y
Returnable? Y/N
Y
California Prop 65 Compliant?
Unknown

Prop 65 Warning

Copyright © 2026 All Rights Reserved, Vestil Manufacturing Corp.

Details For Model: CART-660-M

CART-660-M

Steel Mechanical Scissor Cart 37 In. x 23-1/2 In. 660 Lb. Capacity Blue/Silver

The mechanical Scissor Cart raises and lowers material quickly and easily. The cart rolls smoothly on two rigid and two swivel casters. Mechanical screw drive provides precise positioning with no downward drift.

  • Unique lift design quickly raises & lowers material
  • Ergonomic cart design improves user safety
  • Caster construction provides easy portability when loaded
  • Steel construction offers long lasting rugged use

Core Data

Assembled Weight: 143 Assembled Size: 23.625"W x 47"L x 18"H Color: Blue
Total Ship Weight: 190 Package 1 Size: 40"W x 48"D x 21"H Freight: LTL Palletized

Specifications

Uniform Capacity (lb.): 660
Platform Width (in.): 23-1/2
Platform Length (in.): 37
Lowered Height (in.): 18
Raised Height (in.): 39-1/2
Caster Quantity/Diameter/Width (in.): (4) 5 x 1.5
Caster Type: (2) Rigid (2) Swivel with Lock
Caster Material: Poly-on-Poly
Cranks to Raise Platform: 280
