Aluminum Frame Case with Trolley 18-1/4 In. x 7-3/4 In. x 14-3/4 In. Silver

Aluminum Frame Case with Trolley for Commercial and Industrial Misc. Storage Use, 44 lb. Capacity with 19 in. x 10 in. x 14 in.
The Aluminum pilot case is designed for portability and dependability. The unit is constructed with MDF (medium-density fiberboard) panels and an ABS surface layer. Features include an aluminum frame construction, reinforced rounded corners, heavy-duty hinges, a telescopic plastic pilot handle, and wheels for easy transporting.
Product Status
Available QuickShip
Key Features
  • Aluminum pilot case design is portable and dependable for ideal operation
  • Ideal for storage solutions for easy transportation and optimal results
  • Features medium-density fiberboard panels and an ABS surface layer for ideal operation
  • Reinforced rounded corners and heavy-duty hinges are ideal for maximum efficiency
Quick Actions

Product Resources

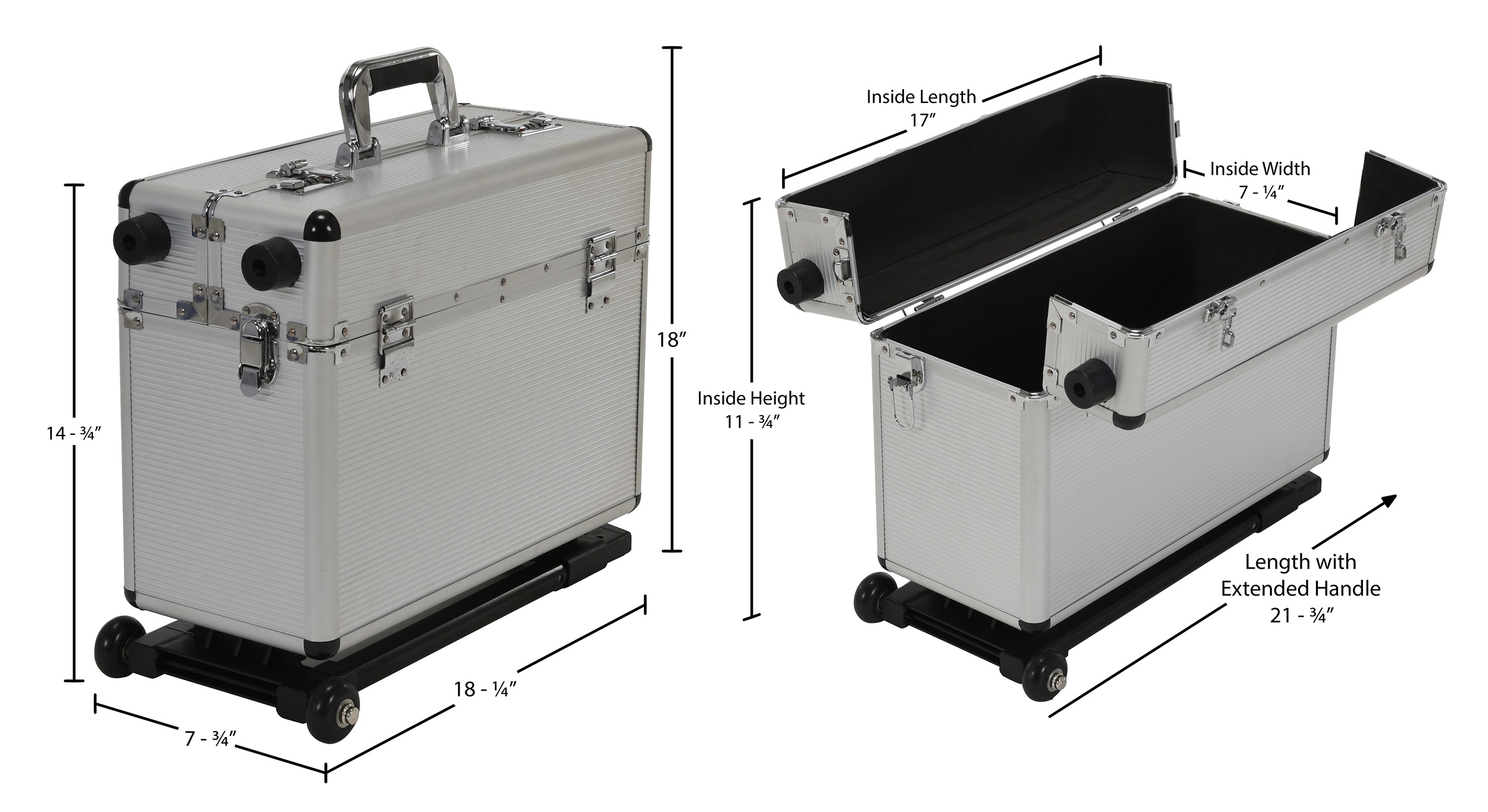

Image Gallery View product images Dimensions Open dimensioned image Contact Vestil Ask about this product
Documents

PDFs & Product Files

  Testing Certificate   30 Days Warranty
Product Data

Core Data

Assembled Weight 8 lbs
Assembled Size 7.75"W x 18.25"L x 14.75"H
Total Ship Weight 10 lbs
Package 1 Size 17"W x 20"D x 11"H
Color / Finish Silver
Freight Type Parcel

Additional Attributes

Uniform Capacity by Wheels (lb.) 44
Uniform Capacity by Handle (lb.) 33
Case Length (in.) 18-1/4
Case Length w/ Extended Tow Handle (in.) 21-3/4
Case Width (in.) 7-3/4
Case Height (in.) 14-3/4
Case Height w/ Top Handle (in.) 18
Inside Length (in.) 17
Inside Width (in.) 7-1/4
Inside Height (in.) 11-3/4
Wheel Diameter/Width (in.) 1-3/4 x 7/8
Extended Product Details

Marketing Specs.

MFG Model # (Series)
CASE-EH
Product Name
Aluminum Frame Case with Trolley 18-1/4 In. x 7-3/4 In. x 14-3/4 In. Silver
UPC
691215106627
GTIN
00691215106627
Taxonomy 1
Apparel
Taxonomy 2
Personal Accessories
Taxonomy 3
Storage
Taxonomy 4
Cases
Assembled Depth (in.)
18.25
Assembled Width(in.)
7.75
Assembled Height(in.)
14.75
Assembled Weight(lbs.)
8
Color/Finish
Silver
Material
Aluminum
Option? Y/N
N
Sell UOM
EA-Each
Country Of Origin
CN
Approval Drawing Required? Y/N
N
Assembly
Assembled

Logistics

Packaging Level
BASE_UNIT_OR_EACH
Package Depth (in.)
20
Package Width (in.)
17
Package Height (in.)
11
Package Weight (in.)
10
Subclass
4
Freight Class
175
NMFC Code
Boxes or chests tool ammunition or fishing tackle
NMFC Number
29900
LTL Freight
Parcel
UNSPSC
24112400
HTSUS Number
7616.99.5190
USMCA HS
7616.99
Origin Criterion
NO
Certification Indicator
NO
ECCN
EAR99
US Shipping Point
Angola, IN
Supplier Postal Code
46703
Hazardous Material? Yes/No
No
MSDS? Yes/No
No
Batteries Included?
No

Warranty

Warranty
Yes
Manufactuer Warranty
30 Days Limited Warranty
Warranty Type
Limited - Parts
Cancelable? Y/N
Y
Returnable? Y/N
Y
California Prop 65 Compliant?
Unknown

Prop 65 Warning

Copyright © 2026 All Rights Reserved, Vestil Manufacturing Corp.

Details For Model: CASE-EH

CASE-EH

Aluminum Frame Case with Trolley 18-1/4 In. x 7-3/4 In. x 14-3/4 In. Silver

The Aluminum pilot case is designed for portability and dependability. The unit is constructed with MDF (medium-density fiberboard) panels and an ABS surface layer. Features include an aluminum frame construction, reinforced rounded corners, heavy-duty hinges, a telescopic plastic pilot handle, and wheels for easy transporting.

  • Aluminum pilot case design is portable and dependable for ideal operation
  • Ideal for storage solutions for easy transportation and optimal results
  • Features medium-density fiberboard panels and an ABS surface layer for ideal operation
  • Reinforced rounded corners and heavy-duty hinges are ideal for maximum efficiency

Core Data

Assembled Weight: 8 Assembled Size: 7.75"W x 18.25"L x 14.75"H Color: Silver
Total Ship Weight: 10 Package 1 Size: 17"W x 20"D x 11"H Freight: Parcel

Specifications

Uniform Capacity by Wheels (lb.): 44
Uniform Capacity by Handle (lb.): 33
Case Length (in.): 18-1/4
Case Length w/ Extended Tow Handle (in.): 21-3/4
Case Width (in.): 7-3/4
Case Height (in.): 14-3/4
Case Height w/ Top Handle (in.): 18
Inside Length (in.): 17
Inside Width (in.): 7-1/4
Inside Height (in.): 11-3/4
Wheel Diameter/Width (in.): 1-3/4 x 7/8
