Steel Wall-Mounted 3 Cylinder Bracket

Cylinder Strap for Organized Warehouse Storage and Material Support, Gray Finish with Steel Construction – Model CB-W-3S
Wall mounted Cylinder bracket, simple design and is easy to install. Simply bolt to wall and then secure cylinder with strap. Edges are protected with rubber guards. For use in non-moving, static environments. Installation hardware is not included.
Product Status
Available QuickShip
Key Features
  • Simple design is easy to install
  • Cylinder strap secures cylinder to bracket
  • Solid construction offers safe & secure use
  • Light weight design is easy to handle
Quick Actions

Product Resources

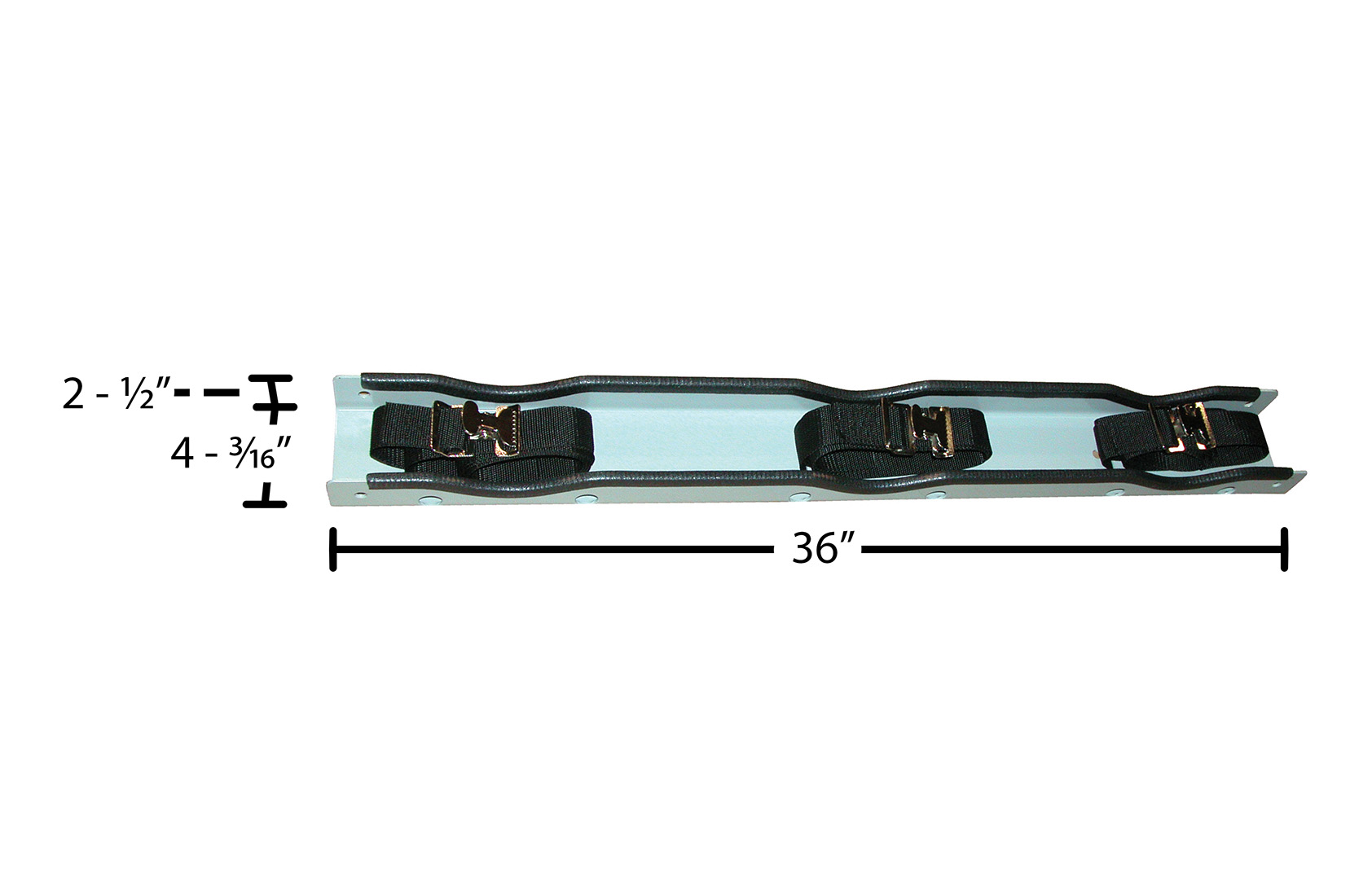

Image Gallery View product images Dimensions Open dimensioned image Contact Vestil Ask about this product
Documents

PDFs & Product Files

  Approval Drawing   Testing Certificate   Steel Wall Mounted Cylinder Brackets   90 Days Warranty
Product Data

Core Data

Assembled Weight 9 lbs
Assembled Size 36"W x 2.3438"L x 4.125"H
Total Ship Weight 10 lbs
Package 1 Size 5"W x 38"D x 4"H
Color / Finish Gray
Freight Type Parcel

Additional Attributes

Maximum Cylinder Diameter (in.) 12
Maximum Cylinder Capacity (qty.) 3
Extended Product Details

Marketing Specs.

MFG Model # (Series)
CB-W-3S
Product Name
Steel Wall-Mounted 3 Cylinder Bracket
UPC
691215049764
GTIN
00691215049764
Taxonomy 1
Cleaning & Janitorial
Taxonomy 2
Storage & Organization
Taxonomy 3
Industrial Storage
Taxonomy 4
Gas Cylinder Wall Brackets
Assembled Depth (in.)
2.3438
Assembled Width(in.)
36
Assembled Height(in.)
4.125
Assembled Weight(lbs.)
9
Color/Finish
Gray
Material
Steel
Option? Y/N
N
Sell UOM
EA-Each
Country Of Origin
CN
Approval Drawing Required? Y/N
N
Assembly
Assembled

Logistics

Packaging Level
BASE_UNIT_OR_EACH
Package Depth (in.)
38
Package Width (in.)
5
Package Height (in.)
4
Package Weight (in.)
10
Subclass
1
Freight Class
65
NMFC Code
Hardware Group Hdwr in boxes crates drums etc
NMFC Number
95190
LTL Freight
Parcel
UNSPSC
31162506
HTSUS Number
8302.41.6080
USMCA HS
8302.41
Origin Criterion
NO
Certification Indicator
NO
ECCN
EAR99
US Shipping Point
Angola, IN
Supplier Postal Code
46703
Hazardous Material? Yes/No
No
MSDS? Yes/No
No
Batteries Included?
No

Warranty

Warranty
Yes
Manufactuer Warranty
90 Days Limited Warranty
Warranty Type
Limited - Parts
Cancelable? Y/N
Y
Returnable? Y/N
Y
California Prop 65 Compliant?
Unknown

Prop 65 Warning

Copyright © 2026 All Rights Reserved, Vestil Manufacturing Corp.

Details For Model: CB-W-3S

CB-W-3S

Steel Wall-Mounted 3 Cylinder Bracket

Wall mounted Cylinder bracket, simple design and is easy to install. Simply bolt to wall and then secure cylinder with strap. Edges are protected with rubber guards. For use in non-moving, static environments. Installation hardware is not included.

  • Simple design is easy to install
  • Cylinder strap secures cylinder to bracket
  • Solid construction offers safe & secure use
  • Light weight design is easy to handle

Core Data

Assembled Weight: 9 Assembled Size: 36"W x 2.3438"L x 4.125"H Color: Gray
Total Ship Weight: 10 Package 1 Size: 5"W x 38"D x 4"H Freight: Parcel

Specifications

Maximum Cylinder Diameter (in.): 12
Maximum Cylinder Capacity (qty.): 3
