Steel Coil Lifter Fork Mounted Inverted 60 In 3000 Lb Capacity Blue

Coil Ram Lifter for Commercial and Industrial Rug Rams & Carpet Poles Use, 3,000 lb. Capacity, Blue Finish – Model CCF-60-4
The coil ram/lifter is used to easily maneuver many types of coiled material. To accommodate multiple core sizes and capacities select different diameter ram poles. With a sturdy steel construction, the carriage mounted unit is class II with a spring loaded lock pin to secure the unit to fork truck carriage.
Product Status
Available
Key Features

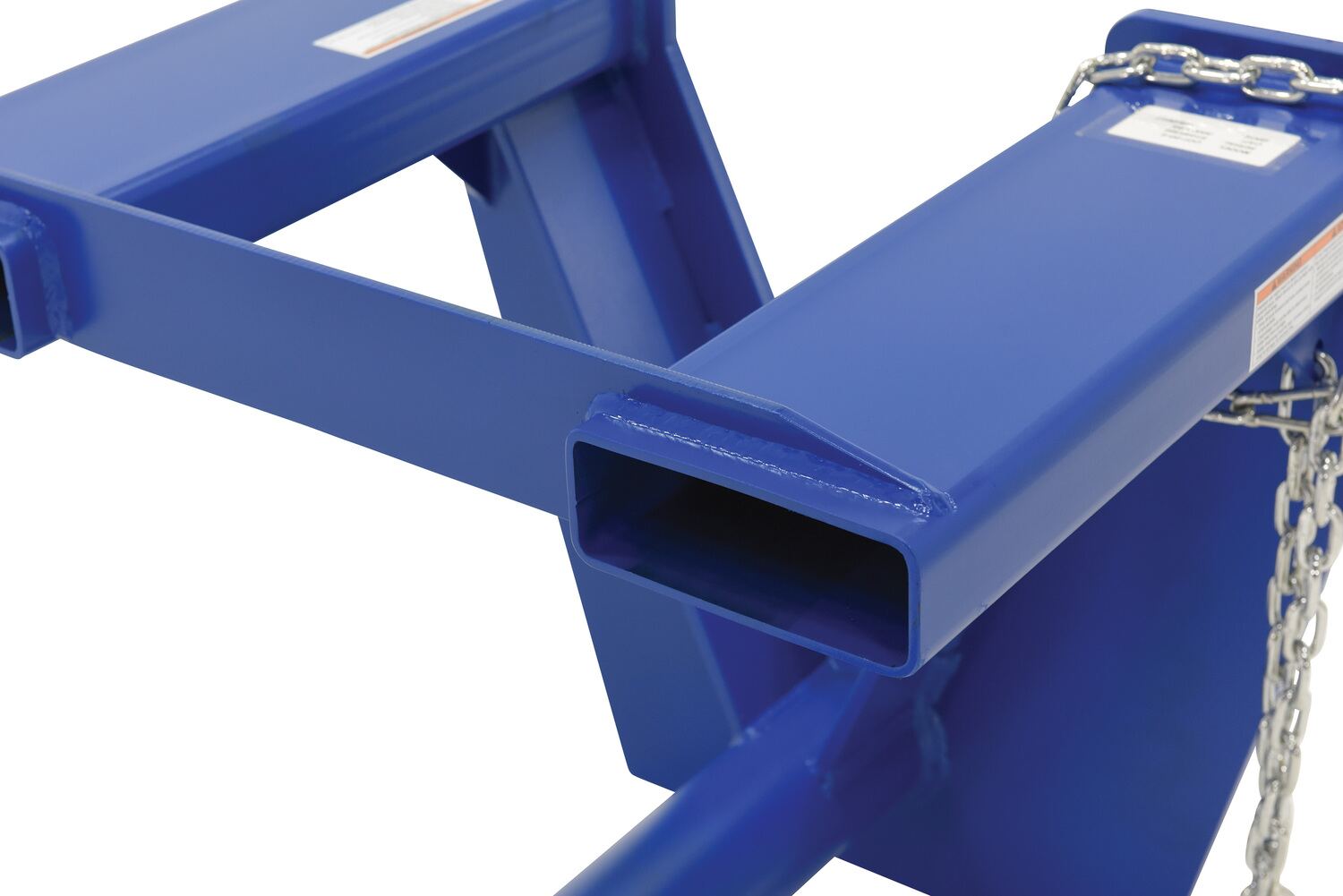

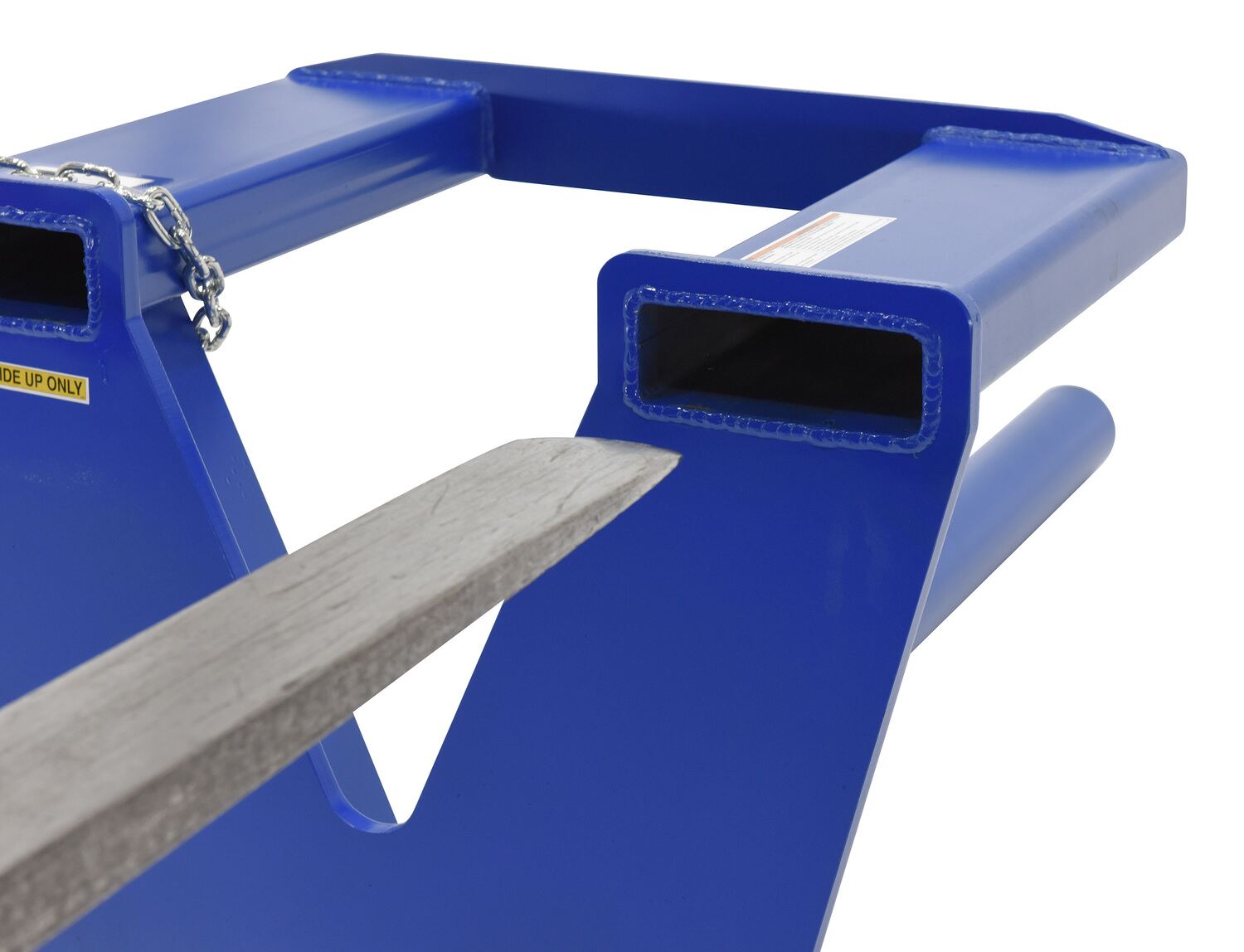

  • 24" fork pocket centers
  • Painted blue coat provides a long lasting tough finish
  • Safety device secures unit to fork truck
  • Sturdy steel construction provides long lasting rugged use
Quick Actions

Product Resources

Image Gallery View product images Contact Vestil Ask about this product
Documents

PDFs & Product Files

  Approval Drawing   Testing Certificate   CCF series Coil Ram/Lifter instruction manuals   Label Page PDF   90 Days Warranty
Product Data

Core Data

Assembled Weight 327 lbs
Assembled Size 34"W x 66"L x 29.25"H
Total Ship Weight 325 lbs
Package 1 Size 34"W x 62"D x 31"H
Color / Finish Blue
Freight Type LTL Palletized

Additional Attributes

Uniform Capacity (lb.) 3,000
Usable Ram Length (in.) 60
Ram Diameter (in.) 4-1/2
Mount Style Fork, Inverted
Usable Fork Pocket Width (in.) 7-1/2
Usable Fork Pocket Height (in.) 2-1/2
Fork Center (in.) 24
Maximum Coil Width (in.) 17-1/2
Horizontal Center of Gravity (in.) 12-1/8
Vertical Center of Gravity (in.) 15-1/8
Extended Product Details

Marketing Specs.

MFG Model # (Series)
CCF-60-4
Product Name
Steel Coil Lifter Fork Mounted Inverted 60 In 3000 Lb Capacity Blue
UPC
691215059893
GTIN
00691215059893
Taxonomy 1
Material Handling
Taxonomy 2
Forklift Attachments
Taxonomy 3
Coil Rams
Assembled Depth (in.)
66
Assembled Width(in.)
34
Assembled Height(in.)
29.25
Assembled Weight(lbs.)
327
Color/Finish
Blue
Material
Steel
Option? Y/N
N
Sell UOM
EA-Each
Country Of Origin
US
Approval Drawing Required? Y/N
N
Assembly
Assembled

Logistics

Packaging Level
BASE_UNIT_OR_EACH
Package Depth (in.)
62
Package Width (in.)
34
Package Height (in.)
31
Package Weight (in.)
325
Subclass
6
Freight Class
100
NMFC Code
Lift Truck Attachments Fork arms fingers tine
NMFC Number
193100
LTL Freight
LTL Palletized
UNSPSC
24101629
HTSUS Number
8428.90.0390
USMCA HS
8428.90
Origin Criterion
B
Certification Indicator
D
ECCN
EAR99
US Shipping Point
Angola, IN
Supplier Postal Code
46703
Hazardous Material? Yes/No
No
MSDS? Yes/No
No
Batteries Included?
No

Warranty

Warranty
Yes
Manufactuer Warranty
90 Days Limited Warranty
Warranty Type
Limited - Parts
Cancelable? Y/N
Y
Returnable? Y/N
Y
California Prop 65 Compliant?
Unknown

Prop 65 Warning

Copyright © 2026 All Rights Reserved, Vestil Manufacturing Corp.

Details For Model: CCF-60-4

CCF-60-4

Steel Coil Lifter Fork Mounted Inverted 60 In 3000 Lb Capacity Blue

The coil ram/lifter is used to easily maneuver many types of coiled material. To accommodate multiple core sizes and capacities select different diameter ram poles. With a sturdy steel construction, the carriage mounted unit is class II with a spring loaded lock pin to secure the unit to fork truck carriage.

  • 24" fork pocket centers
  • Painted blue coat provides a long lasting tough finish
  • Safety device secures unit to fork truck
  • Sturdy steel construction provides long lasting rugged use

Core Data

Assembled Weight: 327 Assembled Size: 34"W x 66"L x 29.25"H Color: Blue
Total Ship Weight: 325 Package 1 Size: 34"W x 62"D x 31"H Freight: LTL Palletized

Specifications

Uniform Capacity (lb.): 3,000
Usable Ram Length (in.): 60
Ram Diameter (in.): 4-1/2
Mount Style: Fork, Inverted
Usable Fork Pocket Width (in.): 7-1/2
Usable Fork Pocket Height (in.): 2-1/2
Fork Center (in.): 24
Maximum Coil Width (in.): 17-1/2
Horizontal Center of Gravity (in.): 12-1/8
Vertical Center of Gravity (in.): 15-1/8
