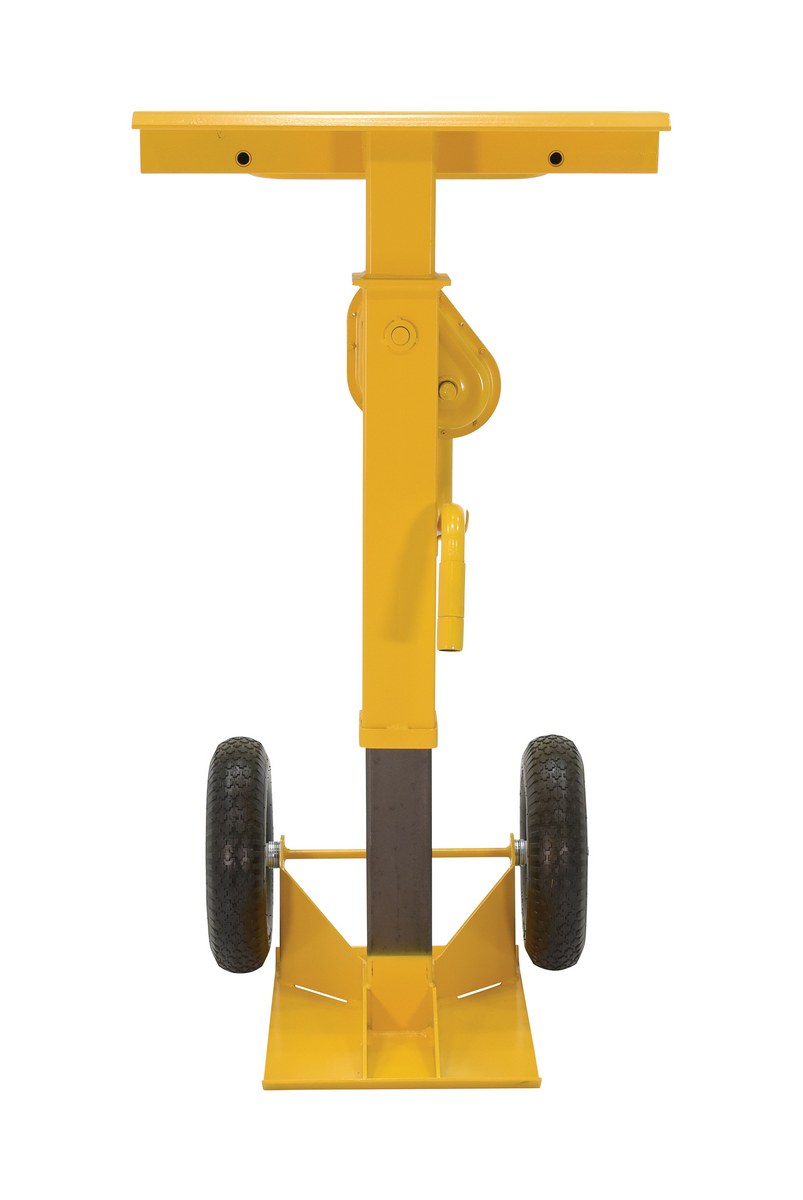

Steel Stabilizing Jack with Pneumatic Wheels 100,000 Lb. Static Capacity Yellow

Pneumatic Trailer Jack Stand for Lifting, Leveling, and Supporting Heavy Loads, 100,000 lb. Capacity
Trailer stabilizing jacks are used to prevent up-ending of semi-trailers when they are not connected to a tractor during loading and unloading operations. Throughout the loading and unloading process it is always recommended to use two jacks, one on each side of the front of the trailer. The trailer must be situated on a flat, stable and improved (preferably concrete) surface, while the jack sits perpendicular to the underside of the trailer. Every jack is built of a high strength steel construction with a flush-type Zerk fitting for lubricating ACME screw. A yellow powder coat finish and a reflective collar for visibility at night are both included. Each jack meets OSHA regulations when used with wheel chocks. **The color of handles included with models may vary between red and black**.
Product Status
Available QuickShip
Key Features
  • Rectangle top plate
  • Reflective collar increases visibility at night
  • Manual raising and lowering mechanism
  • Meets OSHA regulations when used with wheel chocks
Quick Actions

Product Resources

Image Gallery View product images Contact Vestil Ask about this product
Documents

PDFs & Product Files

  Approval Drawing   Testing Certificate   "CJ-BEAM Trailer Stabilizing Jacks Instruction Manual"   Trailer Stabilizing Jacks Use & Maintenance Manual   Label Page PDF   90 Days Warranty
Product Data

Core Data

Assembled Weight 165 lbs
Assembled Size 29.75"W x 27.5625"L x 41"H
Total Ship Weight 221 lbs
Package 1 Size 40"W x 48"D x 47"H
Color / Finish Yellow
Freight Type LTL Palletized

Additional Attributes

Uniform Static Capacity (lb.) 100,000
Uniform Lifting Capacity (lb.) 50,000
Lowered Height (in.) 41
Raised Height (in.) 55
Wheel Size (in.) 16
Wheel Type Fully Pneumatic
Beam Length (in.) 4-3/8
Beam Width (in.) 29-3/4
Beam Thickness (in.) 3/8
Operation Hand Crank
Extended Product Details

Marketing Specs.

MFG Model # (Series)
CJ-BEAM-PN
Product Name
Steel Stabilizing Jack with Pneumatic Wheels 100,000 Lb. Static Capacity Yellow
UPC
691215050340
GTIN
00691215050340
Taxonomy 1
Building Supplies
Taxonomy 2
Industrial Jacks
Taxonomy 3
Trailer Stabilizing Jacks
Assembled Depth (in.)
27.5625
Assembled Width(in.)
29.75
Assembled Height(in.)
41
Assembled Weight(lbs.)
165
Color/Finish
Yellow
Material
Steel
Option? Y/N
N
Sell UOM
EA-Each
Country Of Origin
US
Approval Drawing Required? Y/N
N
Assembly
Assembled

Logistics

Packaging Level
BASE_UNIT_OR_EACH
Package Depth (in.)
48
Package Width (in.)
40
Package Height (in.)
47
Package Weight (in.)
221
Subclass
4
Freight Class
175
NMFC Code
Jacks or jackscrews lifting NOI wheeled
NMFC Number
186600
LTL Freight
LTL Palletized
UNSPSC
47121702
HTSUS Number
8425.49.0000
USMCA HS
8425.49
Origin Criterion
B
Certification Indicator
D
ECCN
EAR99
US Shipping Point
Angola, IN
Supplier Postal Code
46703
Hazardous Material? Yes/No
No
MSDS? Yes/No
No
Batteries Included?
No

Warranty

Warranty
Yes
Manufactuer Warranty
90 Days Limited Warranty
Warranty Type
Limited - Parts
Cancelable? Y/N
Y
Returnable? Y/N
Y
California Prop 65 Compliant?
Unknown

Prop 65 Warning

Copyright © 2026 All Rights Reserved, Vestil Manufacturing Corp.

Details For Model: CJ-BEAM-PN

CJ-BEAM-PN

Steel Stabilizing Jack with Pneumatic Wheels 100,000 Lb. Static Capacity Yellow

Trailer stabilizing jacks are used to prevent up-ending of semi-trailers when they are not connected to a tractor during loading and unloading operations. Throughout the loading and unloading process it is always recommended to use two jacks, one on each side of the front of the trailer. The trailer must be situated on a flat, stable and improved (preferably concrete) surface, while the jack sits perpendicular to the underside of the trailer. Every jack is built of a high strength steel construction with a flush-type Zerk fitting for lubricating ACME screw. A yellow powder coat finish and a reflective collar for visibility at night are both included. Each jack meets OSHA regulations when used with wheel chocks. **The color of handles included with models may vary between red and black**.

  • Rectangle top plate
  • Reflective collar increases visibility at night
  • Manual raising and lowering mechanism
  • Meets OSHA regulations when used with wheel chocks

Core Data

Assembled Weight: 165 Assembled Size: 29.75"W x 27.5625"L x 41"H Color: Yellow
Total Ship Weight: 221 Package 1 Size: 40"W x 48"D x 47"H Freight: LTL Palletized

Specifications

Uniform Static Capacity (lb.): 100,000
Uniform Lifting Capacity (lb.): 50,000
Lowered Height (in.): 41
Raised Height (in.): 55
Wheel Size (in.): 16
Wheel Type: Fully Pneumatic
Beam Length (in.): 4-3/8
Beam Width (in.): 29-3/4
Beam Thickness (in.): 3/8
Operation: Hand Crank
